Coreldraw - Lesson 9: Road drawing tools (continued)

The Pen tool is used to draw lines, curves and closed areas. With the Pen tool, draw the curves faster. The drawing is similar to the Bezier tool, but according to the drawing line with the cursor, it is easier to navigate.

Pen Tool (Pen Tool)

The Pen tool is used to draw straight lines, curves and closed areas ( Figure 1 ).

With the Pen tool, draw the curves faster. The drawing is similar to the Bezier tool, but according to the drawing line with the cursor, it is easier to navigate.

Coreldraw - Lesson 9: Road drawing tools (continued) Picture 1Coreldraw - Lesson 9: Road drawing tools (continued) Picture 1
Figure 1

The curve structure with the Pen tool is similar to the curve drawn with the Bezier tool ( Figure 2 ).

Coreldraw - Lesson 9: Road drawing tools (continued) Picture 2Coreldraw - Lesson 9: Road drawing tools (continued) Picture 2
Figure 2

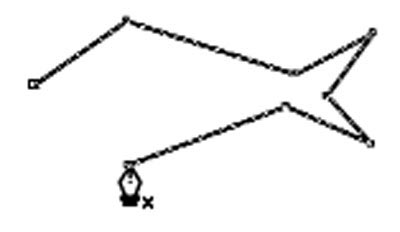

Double clicking the mouse at the last point will end the drawing line with the Pen tool ( Figure 3 ).

Coreldraw - Lesson 9: Road drawing tools (continued) Picture 3Coreldraw - Lesson 9: Road drawing tools (continued) Picture 3
Figure 3

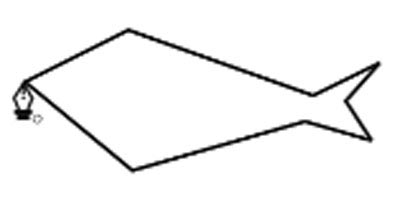

Clicking on the first point coincides with the end point to create a closed area ( Figure 4 ).

Coreldraw - Lesson 9: Road drawing tools (continued) Picture 4Coreldraw - Lesson 9: Road drawing tools (continued) Picture 4
Figure 4

The Pen tool performs drawing the open curves in the same way as the Bezier tool.

Polyline Tool (Polyline Tool)

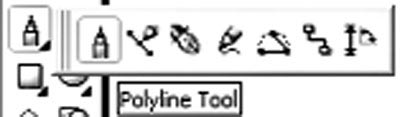

The Polyline tool is used to draw lines and curves similar to the Freehand tool but with the Auto-Close Curve attribute ( Figure 5 ).

Coreldraw - Lesson 9: Road drawing tools (continued) Picture 5Coreldraw - Lesson 9: Road drawing tools (continued) Picture 5
Figure 5

Auto-Close Properties Curve: Before performing drawing with the Polyline tool, click on this icon (the selected icon will sink). When we draw straight lines and similar curves, we will create closed areas.

3 Point Curve Tool (3 Point Curve)

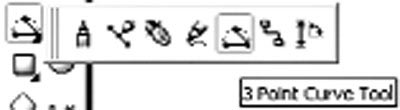

This tool is used to draw curves by specifying the width, height and center of the curve ( Figure 6 ).

Coreldraw - Lesson 9: Road drawing tools (continued) Picture 6Coreldraw - Lesson 9: Road drawing tools (continued) Picture 6
Figure 6

Artistic Media Tools (Artistic Media)

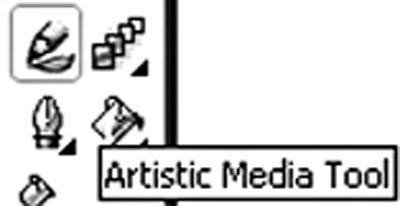

Artistic Media tool is very useful in creating contour effects ( Figure 7 ).

Coreldraw - Lesson 9: Road drawing tools (continued) Picture 7Coreldraw - Lesson 9: Road drawing tools (continued) Picture 7
Figure 7

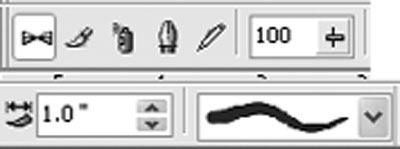

Artistic Media tool has 5 different types, each with a separate attribute bar ( Figure 8 ).

Coreldraw - Lesson 9: Road drawing tools (continued) Picture 8Coreldraw - Lesson 9: Road drawing tools (continued) Picture 8
Figure 8

Interactive Connector Tool (Interactive Connector Tool)

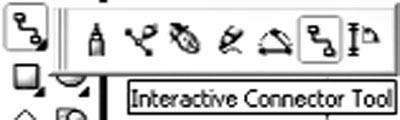

This tool performs links between objects, which are useful for drawing diagrams. ( Figure 9 )

Coreldraw - Lesson 9: Road drawing tools (continued) Picture 9Coreldraw - Lesson 9: Road drawing tools (continued) Picture 9
Figure 9

Dimension Tool (Dimension Tool)

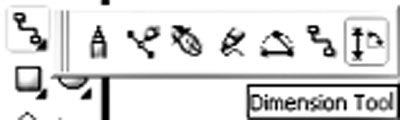

Dimension tool is the last tool in the line drawing tool group, used to create dimension lines (showing the distance between two points or the size of an object), measuring angles and being able to correct the Its part depends on the intended use ( Figure 10 ).

Coreldraw - Lesson 9: Road drawing tools (continued) Picture 10Coreldraw - Lesson 9: Road drawing tools (continued) Picture 10
Figure 10

Dimension tool is very useful for technical drawings, circuit boards need high accuracy.

Dimension tool has 6 types of options, each creating different size lines.

- Auto Dimension Tool : create dimension lines that can be converted into horizontal or vertical size depending on the click position to determine the measuring point and the mouse drag direction ( Figure 11 ).

Coreldraw - Lesson 9: Road drawing tools (continued) Picture 11Coreldraw - Lesson 9: Road drawing tools (continued) Picture 11
Figure 11

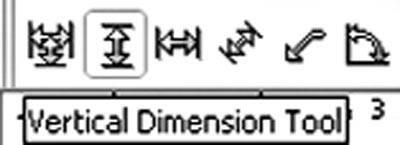

- Vertical Dimension Tool : creating lines due to the size of the vertical dimension ( Figure 12 ).

Coreldraw - Lesson 9: Road drawing tools (continued) Picture 12Coreldraw - Lesson 9: Road drawing tools (continued) Picture 12
Figure 12

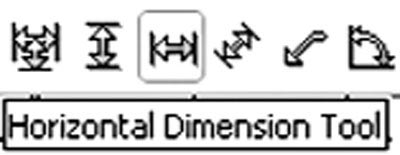

- Horizontal Dimension Tool : creates lines due to the size of horizontal size ( Figure 13 ).

Coreldraw - Lesson 9: Road drawing tools (continued) Picture 13Coreldraw - Lesson 9: Road drawing tools (continued) Picture 13
Figure 13

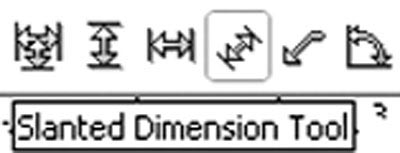

- Slanted Dimension Tool : create oblique dimension lines ( Figure 14 ).

Coreldraw - Lesson 9: Road drawing tools (continued) Picture 14Coreldraw - Lesson 9: Road drawing tools (continued) Picture 14
Figure 14

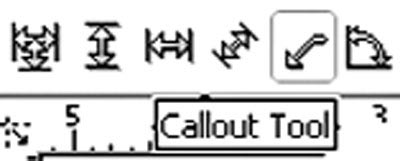

- Callout Dimension Tool : create comment lines with text labels placed in different positions ( Figure 15 ).

Coreldraw - Lesson 9: Road drawing tools (continued) Picture 15Coreldraw - Lesson 9: Road drawing tools (continued) Picture 15
Figure 15

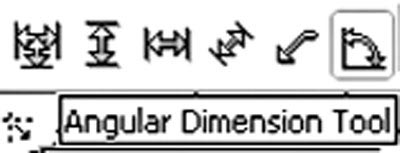

- Angular Dimension Tool : creating measuring lines, measuring units with degrees, radians, or gradients ( Figure 16 ).

Coreldraw - Lesson 9: Road drawing tools (continued) Picture 16Coreldraw - Lesson 9: Road drawing tools (continued) Picture 16
Figure 16
