Today, TipsMake.com will show you how to create a simple spray paint text effect in which letters look like they are sprayed on walls or surfaces. This trick also includes mixing the sprayed text with the background for a more realistic look. And because we only use layer effects and Photoshop blending options , the text can still be edited even when the effect is done.

The tutorial will use Photoshop CC 2019 but every recent version also applies. Below is an example of what the paint spray text effect would look like. Of course, users can use any text, background and colors they like:

How to create spray paint effect in Photoshop Picture 1

Add paint effect to photos

  1. How to create paint spraying text in Photoshop
    1. Step 1: Open the wallpaper
    2. Step 2: Add text
    3. Step 3: Resize and reposition text with Free Transform
    4. Step 4: Lower the Type layer's Fill value to 0%
    5. Step 5: Add the Drop Shadow layer effect to the Type layer
    6. Step 6: Reset the Drop Shadow settings to default
    7. Step 7: Change the color of Drop Shadow to white
    8. Step 8: Change the Blend Mode of the Drop Shadow to Screen
    9. Step 9: Increase the Drop Opacity of Drop Shadow to 100%
    10. Step 10: Set the Distance and Spread to 0%
    11. Step 11: Increase the size of Drop Shadow
    12. Step 12: Change Contour to Cone
    13. Step 13: Uncheck "Layer Knocks Out Drop Shadow"
    14. Step 14: Adjust the Size value if needed
    15. Step 15: Add Noise
  2. How to mix text with spray effect with the background
    1. Step 16: Open Photoshop's Blending Options
    2. Step 17: Drag the "Underlying Layer" slider in black to the right
    3. Step 18: Divide the black slider in half
    4. Step 19: Adjust the sliders to create a smooth transition
    5. Step 20: Close the Layer Style dialog box
  3. How to copy spray paint text effect?
    1. Step 21: Create a copy for the Type layer
    2. Step 22: Select the Move tool
    3. Step 23: Move the text to the right position
  4. How to edit text with paint spray effect
    1. Step 24: Select the Type tool
    2. Step 25: Select and edit text
    3. Step 26: Change the edited text size with Free Transform
  5. How to change paint colors
    1. Step 27: Double-click the Drop Shadow layer effect
    2. Step 28: Click on the color swatch
    3. Step 29: Select a new color from the Color Picker

How to create paint spraying text in Photoshop

We will start by learning how to create the main paint effect, and then how to blend the letters with the background. The article will also show you how to duplicate the effect to add text to the design and how to change the paint color.

Step 1: Open the wallpaper

Because we will spray text on some types of backgrounds, start by opening the background image. The example will use this image from Adobe Stock (stock.adobe.com/images/black-brick-wall-texture-brick-surface-as-background/142590964):

How to create spray paint effect in Photoshop Picture 2

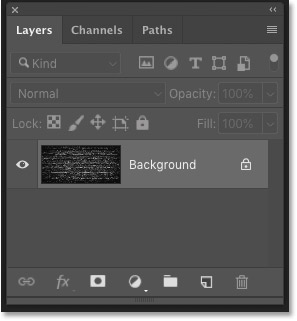

And in the Layers panel , the reader will see an image on the Background layer :

How to create spray paint effect in Photoshop Picture 3

Step 2: Add text

To add text, select the Type Tool from the Photoshop toolbar (Toolbar):

How to create spray paint effect in Photoshop Picture 4

Select the font

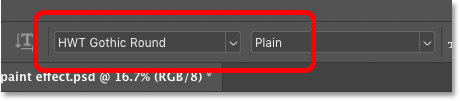

And then in the Options Bar, select the font. For example will use " HWT Gothic Round " download from Adobe Typekit. If you don't have access to this font, that's fine. You can choose any font:

How to create spray paint effect in Photoshop Picture 5

Other options for the text section

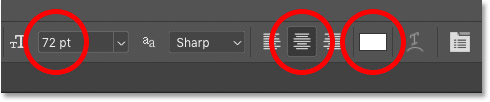

In the Options Bar, we will set the font size to 72pt (the current largest size) and align the text to the center.

For color, for example, select white by clicking on the color swatch and selecting white from Photoshop's Color Picker . This is not the color that will be used for painting effects. All that is needed now is something that allows you to easily view the text when adding it to the background:

How to create spray paint effect in Photoshop Picture 6

Add text

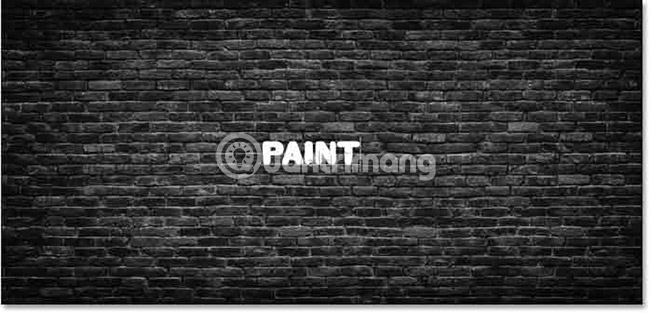

Then click on the document and add the desired text. The example will enter the word "PAINT":

How to create spray paint effect in Photoshop Picture 7

Accept the text

To accept it, click the check mark in the Options Bar:

How to create spray paint effect in Photoshop Picture 8

Step 3: Resize and reposition text with Free Transform

To change the text size and move it to the correct position, go to the Edit menu in Menu Bar and choose Free Transform:

How to create spray paint effect in Photoshop Picture 9

Select the Free Transform command in Photoshop

And then to change the text size, click and drag any handle at any corner. Since Photoshop CC 2019, the frame rate of the text will automatically remain the same when the user drags the handle. In previous versions of Photoshop, users need to hold down the Shift key while dragging the aspect ratio.

To change the text size, press and hold the Alt (Win) / Options (Mac) key when dragging. And if you need to reposition the text, click inside the Free Transform box and drag the text into place.

To accept the added text and exit Free Transform, press Enter (Win) / Return (Mac) on the keyboard:

How to create spray paint effect in Photoshop Picture 10

Step 4: Lower the Type layer's Fill value to 0%

In the Layers panel , users will see the text on a new Type layer above the image:

How to create spray paint effect in Photoshop Picture 11

To create a paint effect, make the text transparent. You lower => reduce the Fill value at the top right of the panel down to 0%. Make sure you are reducing the correct Fill value , not the Opacity value :

How to create spray paint effect in Photoshop Picture 12

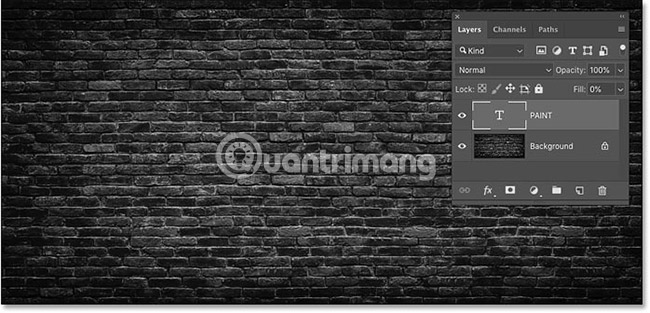

The text will not be visible, but it is still there, it is only transparent:

How to create spray paint effect in Photoshop Picture 13

What is the difference between Opacity and Fill?

In the Layers panel , both Opacity and Fill values ​​affect the transparency of the layer. The difference between them is that Opacity controls the transparency of both the content of a layer and any layer effects you have applied. On the other hand, Fill only affects the content of a layer. It has no effect on layer effects.

This means that by lowering the Fill value , we can apply layer effects to the text and keep the effects displayed even if the text itself is hidden. And this is the factor that creates the spray effect.

Step 5: Add the Drop Shadow layer effect to the Type layer

The entire paint effect can be created using effects for a single layer, and what we need is Drop Shadow. With the Type layer selected, click the Layer Style icon ( "fx" icon ) at the bottom of the Layers panel :

How to create spray paint effect in Photoshop Picture 14

And then select Drop Shadow:

How to create spray paint effect in Photoshop Picture 15

Step 6: Reset the Drop Shadow settings to default

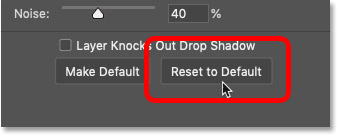

In the Layer Style dialog box, click the Reset to Default button to restore the default Drop Shadow settings:

How to create spray paint effect in Photoshop Picture 16

Step 7: Change the color of Drop Shadow to white

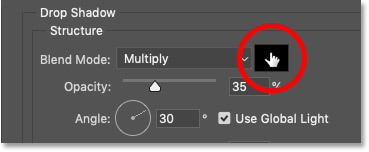

Then change the color of Drop Shadow by clicking on the color swatch:

How to create spray paint effect in Photoshop Picture 17

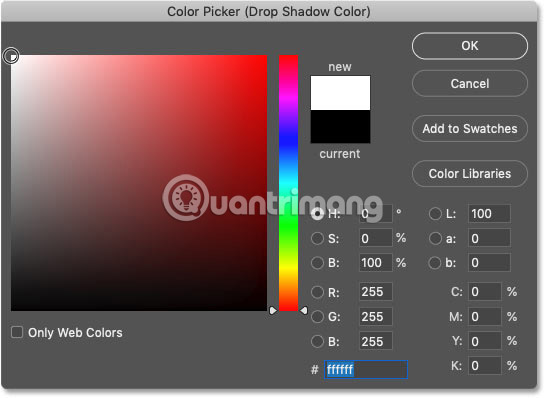

And in Color Picker, select white and then click OK. We will choose different colors to create the following effect:

How to create spray paint effect in Photoshop Picture 18

Step 8: Change the Blend Mode of the Drop Shadow to Screen

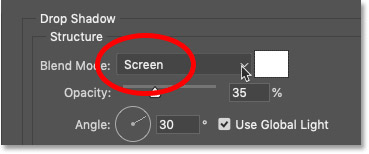

To see white, change Drop Shadow's Blend mode from Multiply (default blending mode) to Screen:

How to create spray paint effect in Photoshop Picture 19

And immediately, the user will begin to see white appear behind the letters:

How to create spray paint effect in Photoshop Picture 20

Step 9: Increase the Drop Opacity of Drop Shadow to 100%

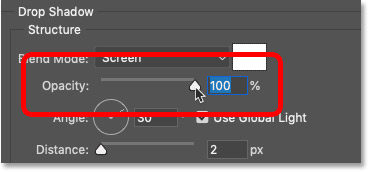

To make the effect brighter, increase the Drop Shadow 's opacity to 100%:

How to create spray paint effect in Photoshop Picture 21

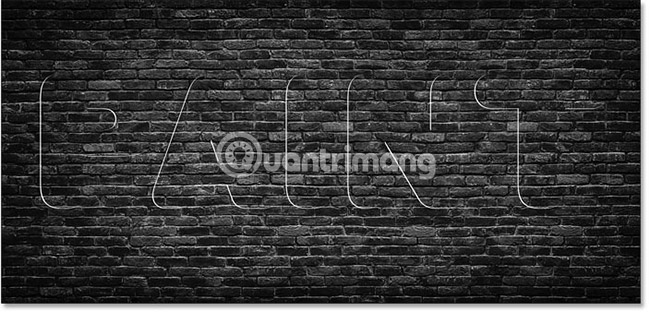

And now the effect will be easier to see. By changing the color of Drop Shadow from black to white and changing its Blend mode from Multiply to Screen.

How to create spray paint effect in Photoshop Picture 22

Step 10: Set the Distance and Spread to 0%

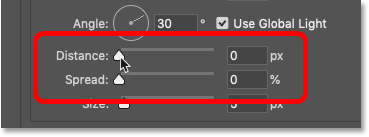

Ignore Angle and Use Global Light options because they are not important here. But take the Distance to 0px and make sure the Spread is set to 0%:

How to create spray paint effect in Photoshop Picture 23

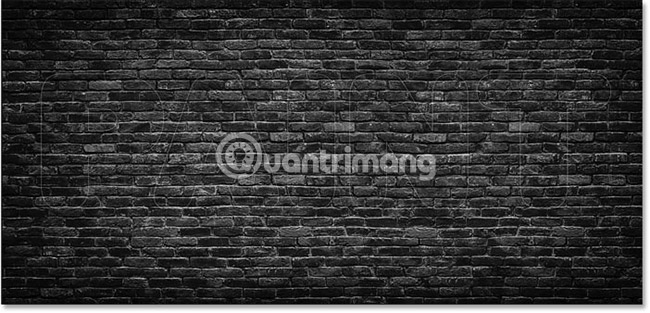

By setting the Distance to 0px, we have centered the drop shadow behind the text, creating a blurred outline or stroke around the letters:

How to create spray paint effect in Photoshop Picture 24

Step 11: Increase the size of Drop Shadow

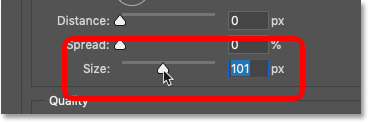

To stretch the shadow (or light in this case) further from the edges, increase the value Size:

How to create spray paint effect in Photoshop Picture 25

The more the value of Size increases , the wider the light portion appears:

How to create spray paint effect in Photoshop Picture 26

Step 12: Change Contour to Cone

At this point, the effect so far is not the same as paint spraying. The light needs to look like a border around the shape of the letters.

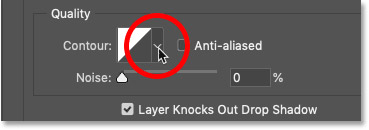

To fix that, still in the Layer Style dialog box , go to the Quality section , click the small arrow next to the Contour preview thumbnail :

How to create spray paint effect in Photoshop Picture 27

And then select Cone contour (conical contour) by double clicking on its thumbnail. It's in the top row, second from the left:

How to create spray paint effect in Photoshop Picture 28

Contours affect the transparency of the shadow area, change the way and where it changes from blur to transparent area. And immediately, users will see a much clearer line around the edges of the letters:

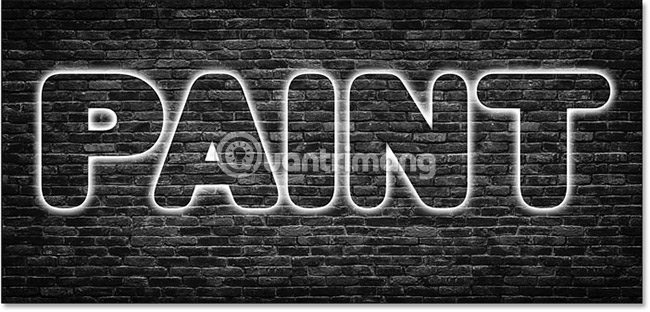

How to create spray paint effect in Photoshop Picture 29

Step 13: Uncheck "Layer Knocks Out Drop Shadow"

But note that the text is transparent, so the light only appears around (outside) the letters. Need to make the light appear inside the letters too.

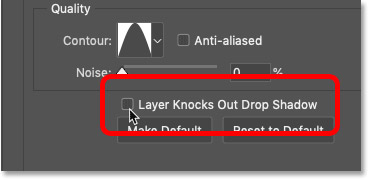

To fix that, uncheck the Layer Knocks Out Drop Shadow option :

How to create spray paint effect in Photoshop Picture 30

And now the outline will appear both outside and inside the text:

How to create spray paint effect in Photoshop Picture 31

Step 14: Adjust the Size value if needed

At this point, the user may need to go back and adjust the Size value to change the thickness of the border. Do not increase too high as this will spread the light too far. The exact size will depend on the text size.

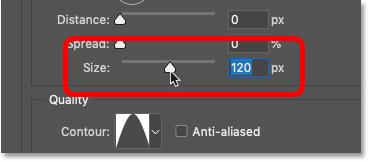

In the case of this example, we will use the Size value around 120px, but this value may vary depending on the specific case:

How to create spray paint effect in Photoshop Picture 32

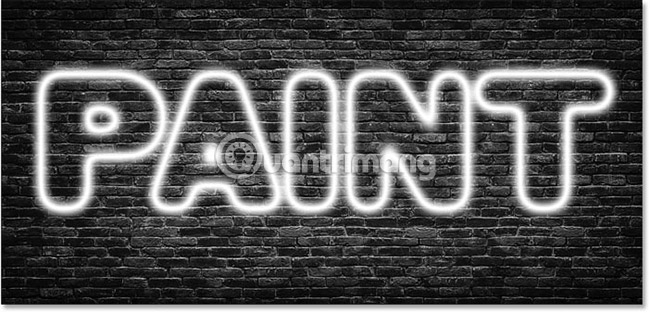

And this is the result:

How to create spray paint effect in Photoshop Picture 33

Step 15: Add Noise

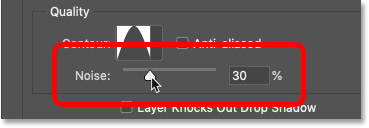

Finally, adding some noise (Noise in photography is a phenomenon of noise, which occurs when taking photos in low-light environments) into the outline by increasing the Noise value . The example will set this value at about 25-30%:

How to create spray paint effect in Photoshop Picture 34

And now, if you zoom in, you'll see small spots in the outline, making it look like a spray paint effect.

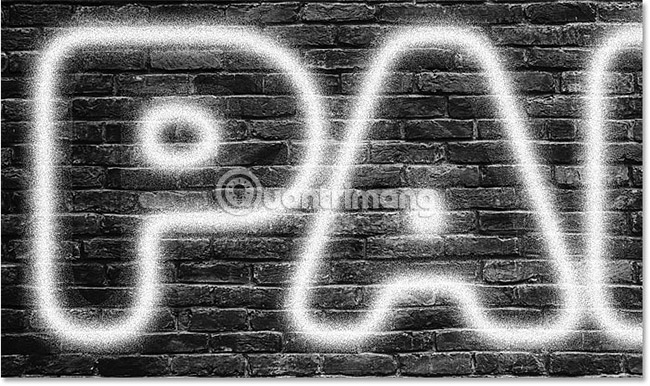

Depending on the size of the font in use, users may notice some hard edges blurred along the areas where the effect and background intersect. In this screenshot, readers can see them inside the letters "P" and "A". These edges will disappear after we blend the text with the background, that's what we'll do next:

How to create spray paint effect in Photoshop Picture 35

How to mix text with spray effect with the background

At this point, we have completed the Drop Shadow layer effect. Now learn how to blend the effect with the background, to make the text as it really is sprayed on the background, not just put text on the background. When done, the article will show you how to copy the effect to add text while maintaining the layer effects and blending options.

Step 16: Open Photoshop's Blending Options

Still in the Layer Style dialog box , select the Blending Options menu on the left:

How to create spray paint effect in Photoshop Picture 36

Step 17: Drag the "Underlying Layer" slider in black to the right

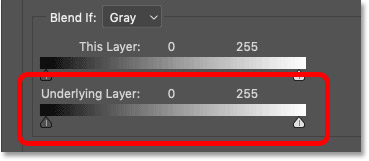

At the bottom of the Blending Options are two sets of sliders. The top slider has the name "This Layer" and the slider below is called "Underlying Layer". We can use these sliders to blend the text with the wallpaper. And the tool we need is Underlying Layer:

How to create spray paint effect in Photoshop Picture 37

Notice the two sliders below the gradient bar. There is a black slider on the left and a white slider on the right. We will mix the text with the darkest parts of the background. And to do that, we need a black slider.

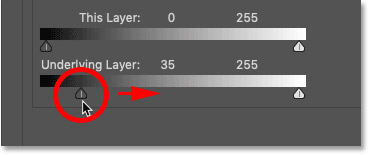

Click on the black slider and start dragging it to the right:

How to create spray paint effect in Photoshop Picture 38

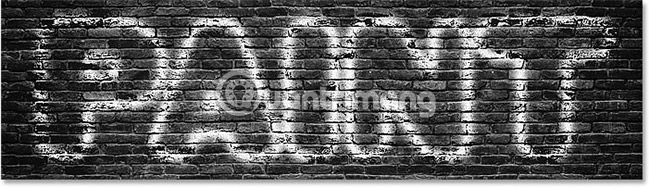

When dragging, keep an eye on the text and you will see the darkest areas of the background begin to show through it. And the more you drag, the more clearly the background appears:

How to create spray paint effect in Photoshop Picture 39

Step 18: Divide the black slider in half

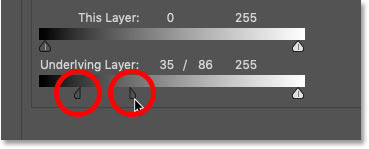

The problem is that the transition effect between text and background is difficult to handle. To create a smoother transition effect, press and hold the Alt (Win) / Option (Mac) key on the keyboard. Click on the right of the black slider and drag it to the left side. This divides the slider into two halves:

How to create spray paint effect in Photoshop Picture 40

Step 19: Adjust the sliders to create a smooth transition

The left half of the slider now controls the brightness level where the text starts appearing in front of the background. And the right half sets the brightness level so that the text is fully displayed and the background is no longer displayed through it. The area between the two sliders becomes the transition area where the text and the background are merged. The more you drag the sliders away, the better the transition effect appears.

Adjust each half of the slider until you are satisfied with the effect. There is no specific value to use here because it will depend on the background in each case.

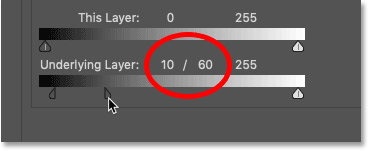

In our case, we will put the left half at the brightness level of 10 and the right half at the brightness level of 60. In other words, any area in the background image at the brightness level of 10 or darker will Completely through the text. Areas with a brightness level of 60 or more will be completely hidden by the text. And the brightness levels between (11 to 59) are where transitions are taking place:

How to create spray paint effect in Photoshop Picture 41

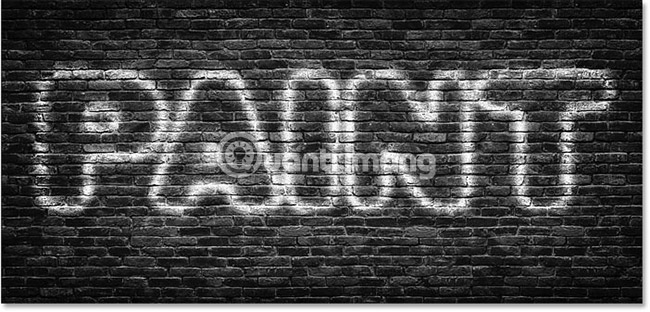

And with the text now merged with the background image, we have the paint effect much more realistic:

How to create spray paint effect in Photoshop Picture 42

Step 20: Close the Layer Style dialog box

The main effect is complete, continue and close the Layer Style dialog box by clicking OK:

How to create spray paint effect in Photoshop Picture 43

And in the Layers panel , we now see Drop Shadow listed as an effect below the Type layer . The Blending Options icon next to the "fx" icon indicates that there are some advanced mixing options applied to the layer:

How to create spray paint effect in Photoshop Picture 44

How to copy spray paint text effect?

At this time, adding text with the spray effect is easy.

Step 21: Create a copy for the Type layer

All you need to do is duplicate the Type layer . Just scroll down to the Add New Layer icon at the bottom of the Layers panel :

How to create spray paint effect in Photoshop Picture 45

A copy of the Type layer will appear above the original, complete with the Drop Shadow effect and the blending options done:

How to create spray paint effect in Photoshop Picture 46

Step 22: Select the Move tool

To reposition text, select the Move tool from the Toolbar:

How to create spray paint effect in Photoshop Picture 47

Step 23: Move the text to the right position

Then click on the text and move it to the right position. We will drag the copy of the text up:

How to create spray paint effect in Photoshop Picture 48

Then, in the Layers panel , click on the original Type layer to select it:

How to create spray paint effect in Photoshop Picture 49

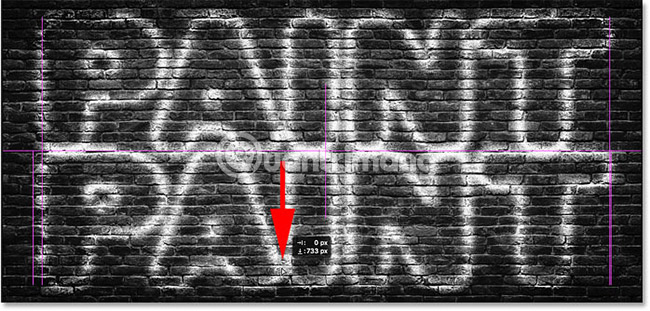

And drag the original text below:

How to create spray paint effect in Photoshop Picture 50

How to edit text with paint spray effect

Because the text is still editable, users can easily edit the text and keep the spray effect intact.

Step 24: Select the Type tool

If you don't want both texts to be the same, edit the text at the top. Select the Type tool from the Toolbar:

How to create spray paint effect in Photoshop Picture 51

Step 25: Select and edit text

Then, double click inside the word to highlight the word:

How to create spray paint effect in Photoshop Picture 52

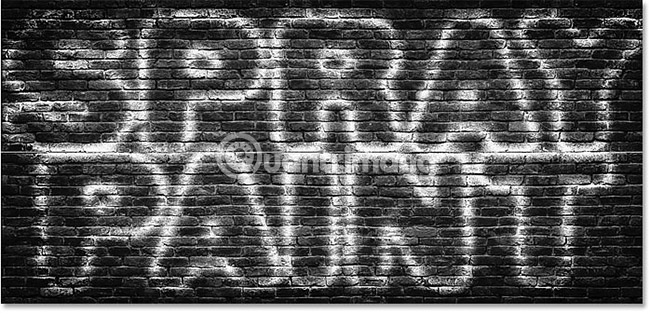

And change the word "PAINT" to "SPRAY":

How to create spray paint effect in Photoshop Picture 53

To accept it, click the check mark in the Options Bar:

How to create spray paint effect in Photoshop Picture 54

Step 26: Change the edited text size with Free Transform

Change the top text size by going to the Edit menu and selecting Free Transform:

How to create spray paint effect in Photoshop Picture 55

And then drag the handle in the top corner to change the size of the word, so that it has the same width as from the bottom. To accept it, press Enter (Win) / Return (Mac) on the keyboard:

How to create spray paint effect in Photoshop Picture 56

How to change paint colors

And finally, see how to change the color of the effect.

Step 27: Double-click the Drop Shadow layer effect

To change the color of the spray paint, double-click the "Drop Shadow" text below the Type layer . If you have more than one Type layer, make sure to double-click the correct layer.

In the example case, we will start with the word "SPRAY" at the beginning:

How to create spray paint effect in Photoshop Picture 57

Step 28: Click on the color swatch

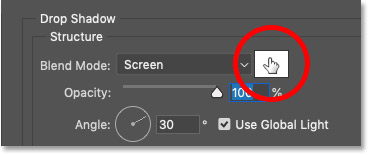

This opens the Layer Style dialog box again . Click on the color swatch:

How to create spray paint effect in Photoshop Picture 58

Step 29: Select a new color from the Color Picker

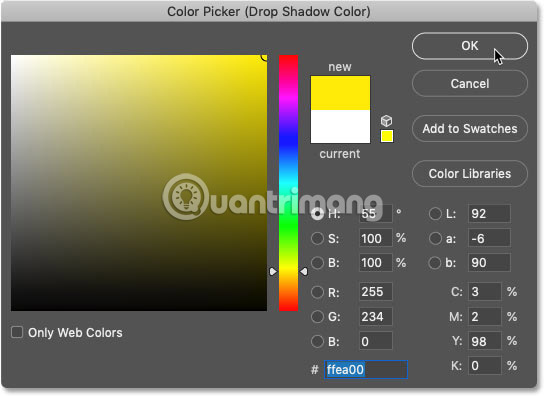

And then in Color Picker, choose a new color. We will choose a lighter color, such as yellow:

How to create spray paint effect in Photoshop Picture 59

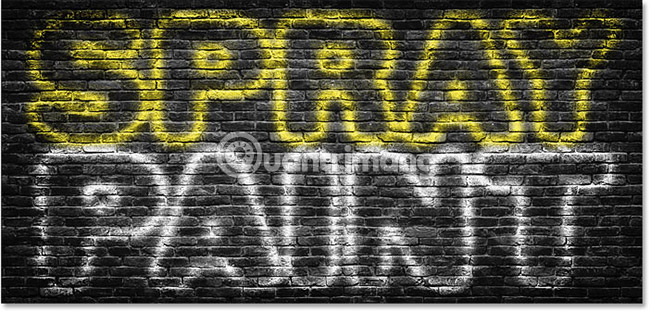

Click OK to close the Color Picker, and then click OK to close the Layer Style dialog box . And now the text above will be yellow:

How to create spray paint effect in Photoshop Picture 60

Change the color of the text below

The example will do the same thing with the text below. Double click on the words "Drop Shadow" to reopen the Layer Style dialog box :

How to create spray paint effect in Photoshop Picture 61

Reopen the Drop Shadow layer effect for the word "PAINT".

And then click on the color swatch:

How to create spray paint effect in Photoshop Picture 62

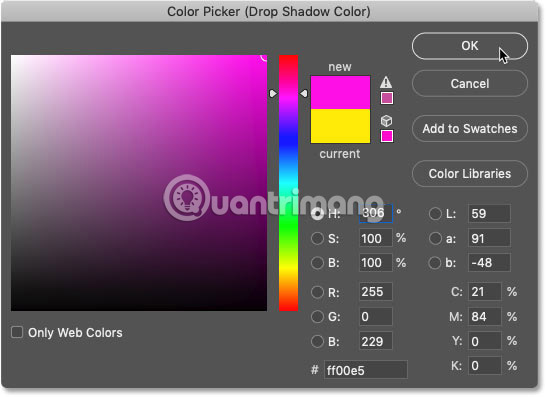

And choose a new color from Color Picker. For the text below, choose a light color, like red pink:

How to create spray paint effect in Photoshop Picture 63

Click OK again to close the Color Picker, and then click OK to close the Layer Style dialog box .

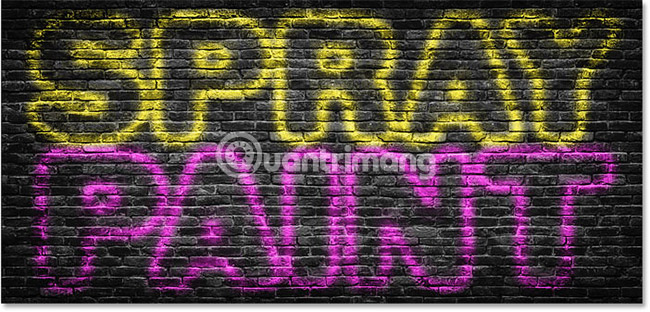

And here, after adding color to both words, the end result will be as follows:

How to create spray paint effect in Photoshop Picture 64

Hope you are succesful.

3.9 ★ | 17 Vote | 👨 6068 Views
« PREV POST
NEXT POST »
