How to install and configure SNMP on Windows 10

Without SNMP, network management tools cannot identify devices, record network changes, monitor network performance, or determine the status of network devices in real time.

Starting with Windows 1803 and later, Microsoft has discontinued this feature because of the security risks involved and recommends using the Common Information Model (CIM) instead. But anyway, if you still want to install and enable SNMP on your PC, TipsMake.com will guide you how to do it.

Enable SNMP

How to enable SNMP from Settings

SNMP is available as an optional feature on Windows 10. You can enable optional features by navigating to Settings > Apps > Apps & features > Optional features. Click Add a feature and search for snmp. Select Simple Network Management Protocol (SNMP) and WMI SNMP Provider, and then click Install.

How to install and configure SNMP on Windows 10 Picture 1

When done, verify if SNMP appears in the Services console.

How to enable SNMP using PowerShell

To enable SNMP via PowerShell, first make sure that your computer can access the Internet. Then, run PowerShell with admin rights by pressing Win + X and selecting Windows PowerShell (Admin). Execute the following command to install SNMP server from Microsoft server:

Add-WindowsCapability -Online -Name "SNMP.Client----0.0.1.0"

Alternatively, you can also install SNMP using the DISM tool with the following command:

DISM /online /add-capability /capabilityname:SNMP.Client----0.0.1.0

How to install and configure SNMP on Windows 10 Picture 2

Once you have executed either command (Add-WindowsCapability or DISM) successfully, verify that the SNMP service is installed with the following command:

Get-WindowsCapability -Online -Name "SNMP*"

Configure SNMP

How to configure SNMP from the Services console

Now that you have the SNMP service installed on your PC, let's configure it.

To get started, verify that the SNMP services (SNMP Service and SNMP Trap) are running. Press Win + R, type services.msc and press Enter to launch the Services console. Find both SNMP services and check if they appear in the list.

How to install and configure SNMP on Windows 10 Picture 3

Also, check if the SNMP Service is running. If not, double-click the service and press Start. Change the Startup type to Automatic to automatically run the service from the next boot.

Next, switch to the Agent tab and fill in your name and location in the Contact and Location fields respectively. In the Service section, check the box that corresponds to the services that you want to collect data to forward that data to the monitoring device.

How to install and configure SNMP on Windows 10 Picture 4

Now, switch to the Security tab.

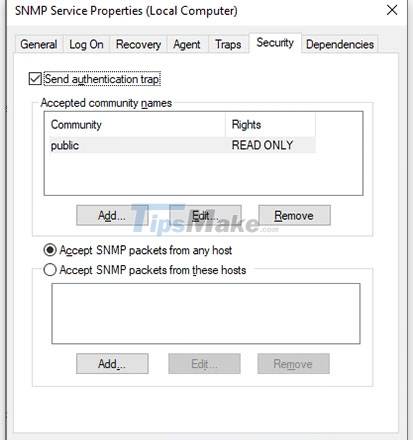

How to install and configure SNMP on Windows 10 Picture 5

Add the name of the SNMP server you want to authenticate to in the Accepted community names list. You have the option of providing None, Notify, READ ONLY, READ WRITE or READ CREATE authentication to the communities.

Next, add the host that you want to accept SNMP packets to in the next box and make sure Accept SNMP packets from these hosts is checked. The Accept SNMP packets from any host option will remove any IP restrictions and allow all hosts to send SNMP packets. Beware, though, this is not a safe option to allow, especially on public computers.

When you're done, click Apply, return to the General tab to restart the service (click Stop and then Start) and click OK to exit. The final step is to open the SNMP ports: UDP 161 (SNMP) and UDP 162 (SNMPTRAP). To do this, execute the following commands:

netsh advfirewall firewall add rule name="SNMP UDP Port 161 In" dir=in action=allow protocol=UDP localport=161 netsh advfirewall firewall add rule name="SNMPTRAP UDP Port 162 In" dir=in action=allow protocol=UDP localport =162 netsh advfirewall firewall add rule name="SNMP UDP Port 161 Out" dir=out action=allow protocol=UDP localport=161 netsh advfirewall firewall add rule name="SNMPTRAP UDP Port 162 Out" dir=out action=allow protocol= UDP localport=162

How to configure SNMP from Group Policy Editor

You can change the Group Policy Object (GPO) parameters to centrally configure the SNMP parameters. Launch Local Group Policy Editor and navigate to Computer Configuration > Administrative Templates > Network > SNMP to configure the parameters.

On the right pane, you'll see the following:

1. Specify communities: Allows the addition and validation of communities that can submit SNMP requests.

2. Specify permitted managers: Allows additional servers that can send SNMP packets to the computer.

3. Specify traps for public community: This option allows you to configure the name of the server that receives the trap message sent by the SNMP service.
