How to Run Diagnostics on Mac

Method 1 of 2:

On Macs Released After June 2013

  1. Unplug external connections. If you have anything non-essential plugged into your Mac (such as USB flash drives), unplug them before you begin the test.
  2. How to Run Diagnostics on Mac Picture 1

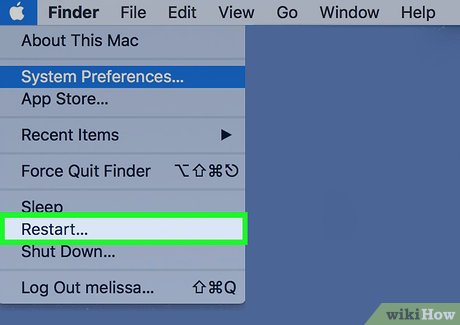

    Restart your Mac. You can only access Apple Diagnostics as your computer is starting up.
    1. Click
      How to Run Diagnostics on Mac Picture 2
      .
    2. Click Restart.
    3. Click Restart to confirm.
  3. How to Run Diagnostics on Mac Picture 3

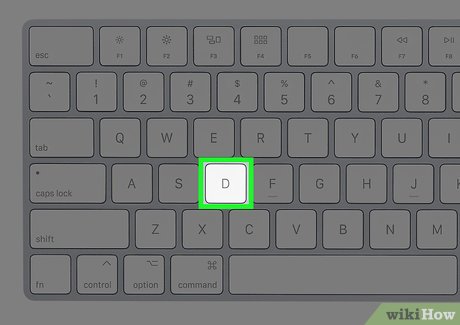

    Press and hold D before the screen displays anything. If your Mac still plays the startup chime, press and hold D before the chime plays.
    1. You may need to disable your firmware password to start Apple Diagnostics.
    2. If Apple Diagnostics doesn't start, reboot the computer and press ⌥ Option+D. The machine will try to start the diagnostics test online. Select your network connection, enter the password (if needed), and press the checkmark.
  4. Click on your language. Once you've selected your language, the diagnostics scan will start.
  5. Allow the diagnostics scan to take place. This may take several minutes, and your computer may run loudly and seemingly erratically. This is normal - it's testing the hardware to make sure it works.
    EXPERT TIP

    Typically, you don't need to run your diagnostics unless you're having some kind of problem like slow performance or connectivity issues.

    How to Run Diagnostics on Mac Picture 4

    Chiara Corsaro

    General Manager of macVolks, Inc.
    Chiara Corsaro is the General Manager and Apple Certified Mac & iOS Technician for macVolks, Inc., an Apple Authorized Service Provider located in the San Francisco Bay Area. macVolks, Inc. was founded in 1990, is accredited by the Better Business Bureau (BBB) with an A+ rating, and is part of the Apple Consultants Network (ACN).
    How to Run Diagnostics on Mac Picture 5
    Chiara Corsaro
    General Manager of macVolks, Inc.
  6. Take note of the results. If Apple Diagnostics finds any abnormalities on your Mac, it will list a summary of the problem(s) and include a reference code under each listed result. From here, you can write down the reference code(s) for use when getting it repaired.
    1. Some errors have multiple reference codes, so write down the reference code rather than just the problem summary.[1]
    2. If there are any hardware faults listed, schedule an appointment with Apple to get your computer repaired.
Method 2 of 2:

On Macs Released Before June 2013

  1. Unplug external connections. If you have anything non-essential plugged into your Mac (such as USB flash drives), unplug them before you begin the test.
  2. Insert the OS installation disc, if necessary. If the Mac still has a disc drive and is still running Mac OS X Snow Leopard (10.6) or below, insert the OS installation disc into your computer to ensure Apple Hardware Test can boot.
    1. If you have a Mac without a CD drive, like a MacBook Air, insert the Software Reinstall USB drive into one of the computer's USB ports.
    2. This is not necessary if you're running OS X Lion or later. If your computer was released after July 2011 or you've updated your OS since then, it will either retrieve the Hardware Test from the hard disk or will download it from the internet.
  3. How to Run Diagnostics on Mac Picture 6
    Restart your Mac. You can only access the Apple Hardware Test as your computer is starting up.
    1. Click
      How to Run Diagnostics on Mac Picture 7
      .
    2. Click Restart.
    3. Click Restart to confirm.
  4. How to Run Diagnostics on Mac Picture 8
    Press and hold D before the screen displays anything. If your Mac still plays the startup chime, press and hold D before the startup chime plays.
    1. If Apple Hardware Test doesn't start and your computer was released in 2011 or later, reboot the computer and press ⌥ Option+D to start the hardware test over the internet. Select your network connection, enter the password (if needed), and press the checkmark.
  5. How to Run Diagnostics on Mac Picture 9
    Select your language. Click on → or press → on your keyboard.
  6. Wait for the Apple Hardware Test window to come up. The Hardware Test will do a quick "probe" of the machine before it does any testing; let it complete the probe.
  7. How to Run Diagnostics on Mac Picture 10

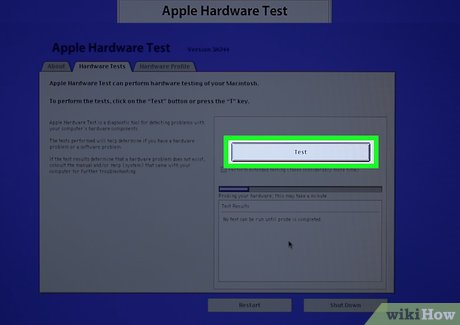

    Click Test, press T, or hit ↵ Enter to start the hardware test. The test may take an hour or more, and your computer may run loudly and seemingly erratically. This is normal - it's testing the hardware to make sure it works.
    1. If you want the computer to check everything, check the box next to Perform extended testing (but be aware this will significantly increase the time it takes for the scan to complete).
  8. Take note of the results. If Apple Hardware Test finds any abnormalities on your Mac, it will let you know it found an error and will list the technical code of the problem in the box in the lower right. From here, you can write down the code for use when getting your computer repaired.
    1. Unlike with Apple Diagnostics, you will not get a specific reference code; it will just be technical jargon.
    2. If there are any hardware faults listed, schedule an appointment with Apple to get your computer repaired.
