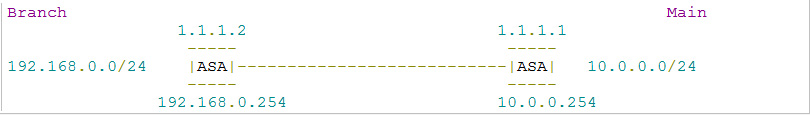

Overview model of the network system
And the request from the management board is to want the computers at the branch to connect to the office via the site to site VPN model.
Now is the time when we need to perform some setup operations, as follows:
- Frequently used addresses are initialized in the access list.
- This list will be accessed via VPN traffic from NAT protocol (NAT0).
- IPSec setup conversion mechanism will take on IPSec encryption tasks.
- The switching map system will initiate real tunnels for IPSec .
- Isakmp policy initializes the necessary settings for the request from the system in step 1.
- Tunnel groups set properties for tunnel .
To make sure the system works stably and there are no errors during the setup process, try to meet these requirements. Next is to check the NAT protocol and the list mentioned.
One point to consider when creating VPN tunnels, you need to 'inform' ASA about the traffic sent through this tunnel - collectively referred to as interesting traffic , we can create this part using access - list. . On a site to site VPN system, users must set up both sides of the tunnel, and we must be careful when creating the corresponding access - list . Specifically, on the first site, ASA will receive a request from the system that tunnel traffic will be transferred from the main office to the branch. As for the other site, ASA will assume the opposite task, which is to transfer tunnel traffic from the branch to the headquarters.
The basic command structure is as follows:
access-list VPN_cryptomap extended permit ip 10.0.0.0 255.255.255.0 192.168.0.0 255.255.255.0
We can see that this list of access - lists is created on the main office, and is responsible for notifying ASA that traffic flows from address 10.0.0.0 to 192.168.0.0 will be added to the tunnel. All other traffic remaining will not be placed on this list, and continue the normal process by going straight through ASA. Next is the access - list section used at the branch:
access-list VPN_cryptomap extended permit ip 192.168.0.0 255.255.255.0 10.0.0.0 255.255.255.0
You should note once again that the way to move and select traffic is reversed with the special traffic, transmitted from the branch office to the headquarters in this case. The above is just a part of the basics of interesting traffic , the ASA system itself will select traffic based on users' options and allow to operate as usual. In addition, we will also have to initiate the corresponding actions and actions while setting up the conversion map mechanism.
Since directly connecting the network at the head office to the branch office, most of us do not need to perform the NAT process of the entire traffic flow between the above locations. If we want to set up some NAT models to connect to the Internet, we must ignore the traffic that needs to pass through the tunnel from NAT. To perform this step, we must use the access - list again:
access-list Inside_nat0_outbound extended permit ip 10.0.0.0 255.255.255.0 192.168.0.0 255.255.255.0
Similar to the interesting traffic sections that have been selected at this time. At the same time, we will also have to tell ASA what to do with the traffic that goes through here. In this case, you will have to create a new clause to do the NAT0 process - that is, do not perform NAT at this step:
nat (Inside) 0 access-list Inside_nat0_outbound
Note that here we use the NAT clause as usual to connect to the external console. After that, provide any number to initialize and define different parts of the tunnel, in this case we use zero to inform ASA that there is no need to use NAT protocol now. Here, we need to consult the list of access - list that has been initialized earlier.
Now, all traffic we choose in the access-list list will not have to go through NAT process through ASA anymore. And apply the same syntax as above for the branch system:
access-list Inside_nat0_outbound extended permit ip 192.168.0.0 255.255.255.0 10.0.0.0 255.255.255.0
nat (Inside) 0 access-list Inside_nat0_outbound
Note that we need to change the options to refer to the headquarters.
Next, this is a step that can be confusing to most of us, because the converter with the main function is to create and define the encryption mechanism of the system, or at the IPSec section. At this point, we have not implemented the encryption as described above. Both sides will discuss how to encode in different classes, and therefore need to be done together. For example, if you proceed with encryption with key A, you will have to decrypt the same key value, otherwise the user will not be able to read the contents of the message.
At this step, the administrator can initiate the function converter, but ASA is mostly built into these components. The basic syntax in this step is as follows:
crypto IPSec transform-set ESP-3DES-SHA esp-3des esp-sha-hmac
crypto IPSec transform-set ESP-3DES-MD5 esp-3des esp-md5-hmac
crypto IPSec transform-set ESP-AES-256-MD5 esp-aes-256 esp-md5-hmac
crypto IPSec transform-set ESP-AES-256-SHA esp-aes-256 esp-sha-hmac
When you first look at this section of code, you may see redundancy and unnecessary, but one point to note is that the IPSec part of the conversion mechanism has been initialized by name.
The next step is when we continue to create the necessary parts of the process to bring the tunnel into operation, grouping all the function blocks created in the previous step together - that is the Crypto map.
The first is the setup section that we will use on the main site, and then explain the individual functional parts:
crypto map VPN_map 10 match address VPN_cryptomap
crypto map VPN_map 10 set peer 1.1.1.2
crypto map VPN_map 10 set transform-set ESP-AES-256-SHA
The crypto map syntax is used first, and then the name part, followed by the setting number. The reason for these numbers is because we can only use crypto map on each interface. But this will be a problem if the user has two branch offices but only one part of the console.
But besides, Cisco has solved this problem by using Preference number. We can use the same crypto map on different parts of the interface, but we can use different Preference numbers on a tunnel. This way will help us set up and initialize many different tunnels on the same interface.
On the first command line, we will see the list of access - list created in the previous step, and this is also the way traffic is passed through the tunnel. Then the peer creation step - this is the rest of the tunnel, and in this case the branch office's WAN IP address.
Next, we will inform ASA about the encryption mechanisms that will be used at the IPSec layer. And once a crypto map is available after initialization, the component has not performed any functionality until it is applied to the interface. Here, make sure that it has been applied to the nearest tunnel interface layer, in this test the outside part is:
crypto map VPN_map interface outside
As for the branch office, we do the same, just change the WAN IP address parameters:
crypto map VPN_map 10 match address VPN_cryptomap
crypto map VPN_map 10 set peer 1.1.1.1
crypto map VPN_map 10 set transform-set ESP-AES-256-SHA
crypto map VPN_map1 interface
When this step is reached, the actual IPSec tunnel time is built, and the next thing to do is to build a security layer to manage and monitor traffic data streams - this is Isakmp or phase 1.
To create this security management class, you need to set up the necessary policies of ASA first:
crypto isakmp policy 10 authentication pre-share
crypto isakmp policy 10 encryption aes-256
crypto isakmp policy 10 hash sha
crypto isakmp policy 10 group 5
crypto isakmp policy 10 lifetime 86400
At this step, we must start each command line with crypto isakmp policy and then Preference number. The smaller these numbers are, the bigger the component will be configured, and the tunneling process will take place faster.
The first line of code in this process will indicate the basic part of the tunnel validation structure. Here, we can use pre-share or certificate keys, in which the pre-share key is the easiest to implement, and the certificate is often used in establishments and businesses with a large scope of operations.
Next is the definition of the encryption and validation mechanism, which looks quite similar to the above conversion, but is still used to encrypt data at the IPSec layer. Specifically, here our main task is to define the coding components, which were created before IPSec was established.
When we finish with setting and activating the operation mode of isakmp, ASA will switch to tunnel construction section:
crypto isakmp enable Outside
Once this step has been completed, after we have completed the steps 1 and 2, we can use the tunnel - group to initialize the tunnel settings separately, in the tunnel of the site to site model. then we recommend that you use the IP address of peers as group - name. Our command syntax at this step is as follows:
tunnel-group 1.1.1.2 type ipsec-l2l
tunnel-group 1.1.1.2 IPSec-attributes
pre-shared-key testkey
Specifically, the first statement tells ASA that we are creating an IPSec tunnel. The second statement is used to refer to the previously initialized components: the pre - share key, we will set them up here and refer back to the policy section of crypto isakmp, and 1 more point to save. The idea is to create on both ASA models.
When we have completed the above steps, we have successfully created tunnel site to site. Then, test on client machines using ping command, remote control or website access. Maybe we will fail in the first trial, but don't worry. But the first signal packet sent to ASA will take over the tunnel initialization task, and this process takes a while to complete. Try again, and we will get better results when 'seeing' all computers, printers, servers and other devices on both sides of the tunnel.
When you encounter any problems, you can use the following command:
show crypto isakmp sa
show crypto IPSec sa
The above syntax will show the results found if the tunnel is in the above steps on the signal response. Good luck!
