Anderson Patricio

MOM 2005 administration interface: Analysis of Exchange Server 2007 Management Pack changes

MOM uses 3 types of data discrimination: event (Event), alert (Alert) and Performance counter to check and save Exchange Server information.

After installing Exchange Server 2007 Management Pack, a new item called Exchange 2007 is created under Management Pack . There are subsections for each Exchange Server 2007 role and each role has its own sections, each of which includes Event Rules, Alert Rules and Performance Rules used to test Exchange Server 2007. Figure 1, in the same picture We can see that the MAPIConnectivity section has 5 Event Rules and 2 Alert Rules, all the results of the Event Rule and Alert Rule can be found on the following MOM Operator Console and MOM reports.

Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 3Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 3
Figure 1: Exchange 2007 and its sub-items for each role

We also have some new items added to MOM components, namely Computer Attribute - the properties of the machine, Notification Groups - Announcement groups, Providers - Providers and Scripts - Scripts.

Computer Attributes allow computers with similar properties to be grouped together. In Exchange Server 2007 Management Pack 2007, we have 5 new Computer Groups, as shown in Figure 2. All Computer Groups validate the Exchange role through a registration key when installing.

Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 4Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 4
Figure 2: New attribute objects created after installing Exchange Server 2007 Management Pack

Notification Groups ; We also see 5 notification groups for each role as shown in Figure 3.

Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 5Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 5
Figure 3: Group of messages for each role created by the Exchange Server 2007 Management Pack

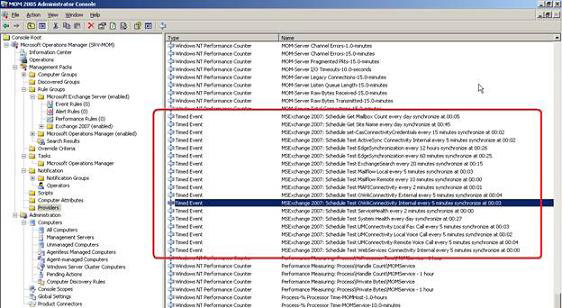

Providers determine how and where to get data for rules. We can use time events, Windows NT performance counters, Windows NT event log providers, and more. With Exchange Server 2007 Management Pack, we will receive a lot of Providers. We need to pay special attention to the TimedEvent provider for enabling Exchange Server 2007 cmdlets, see Figure 4.

Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 6Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 6
Figure 4: TimedEvent will activate the cmdlet in Exchange Server 2007

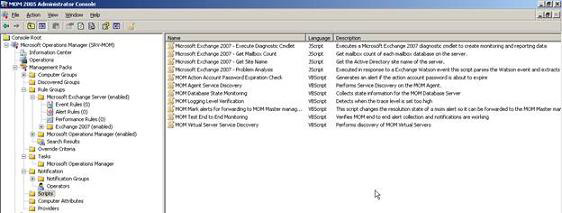

Scripts allow MOM to respond to the principle of processing, in addition to scripts that can provide testing and diagnostic capabilities. In Exchange Server 2007 Management Pack, there are 4 new scenarios. One of them is called Microsoft Exchange 2007 - Execute Diagnostic Cmdlet and runs the cmdlet test in each Exchange Server 2007 server, see Figure 5.

Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 7Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 7
Figure 5: The script section runs cmdlets in Exchange Server 2007 servers

Use MOM Operator Console for Exchange server operations

Now let's see what has changed in the MOM 2005 Administrator Console; See what you can do with the MOM 2005 Administrator Console to help check Exchange Server 2007

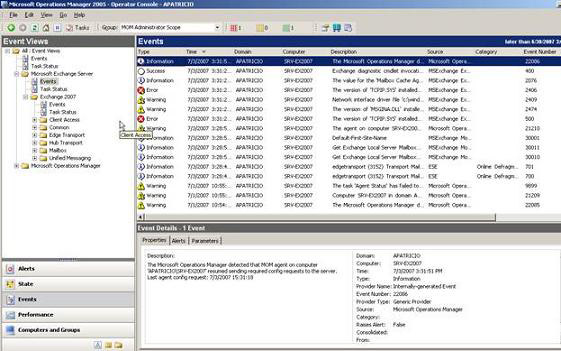

The most popular item of the MOM 2005 Administrator Console is Events . We can see all the events related to Exchange server when you select Events under Microsoft Exchange Server group, see Figure 6.

Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 8Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 8
Figure 6: Exchange server-related events.

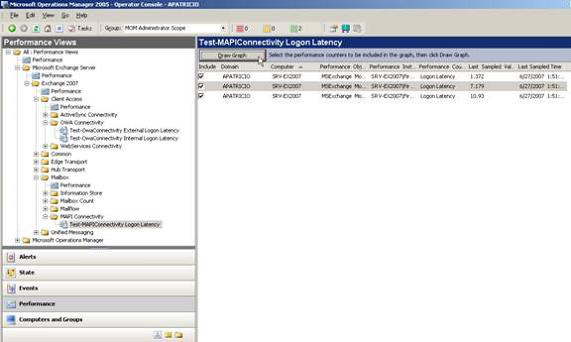

Performance Views ; We can look in the Performance of the Exchange Server 2007 Management Pack and select the appropriate Performance counters, see Figure 7. We will choose the performance counter history of the Test-MAPIConnectiviy Logon Latency section. Select the performance counter we want and click the Draw Graph button.

Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 9Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 9
Figure 7: Create a chart for the most recent performance counter updates via the MOM 2005 Administrator Console

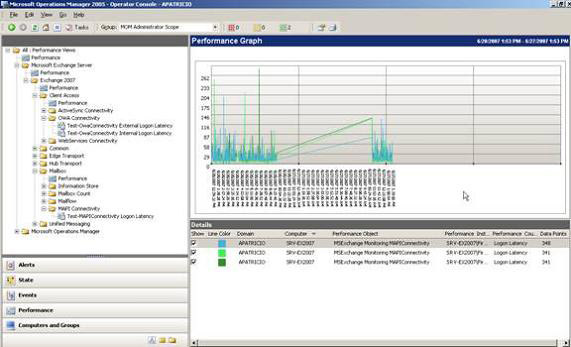

The result will be all data recorded from this cmdlet for all mailbox databases, see Figure 8.

Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 10Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 10
Figure 8: Connectivity MAPI of the mailbox database

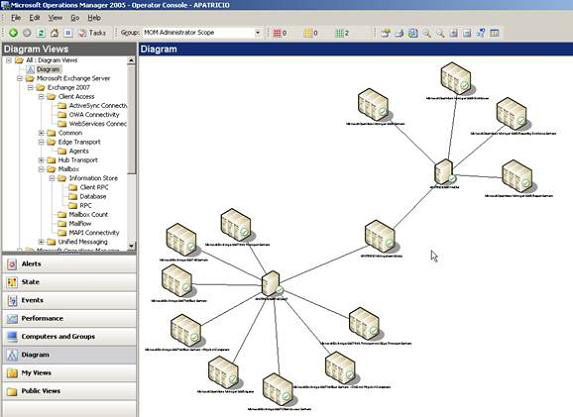

Diagram ; We can see the status of roles through the Diagram option as shown in Figure 9.

Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 11Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 11
Figure 9: Roles in the Diagram section

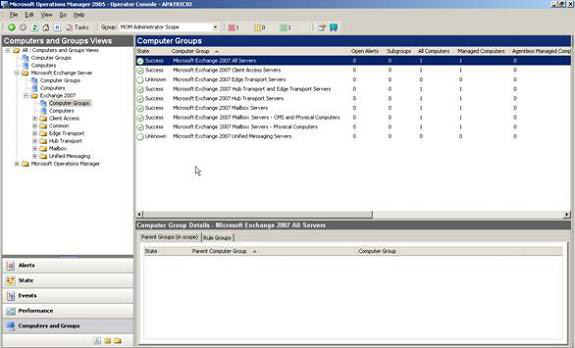

Computers and Group Views ; We can observe all Exchange Server 2007 boxes distributed to each computer (see Figure 10).

Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 12Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 12
Figure 10: Computers Groups

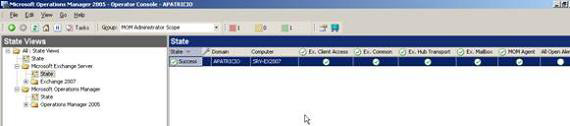

State Views ; This section allows us to view the status of each role, as shown in Figure 11.

Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 13Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 13
Figure 11: The status of each server checked

Exchange Server 2007 reports

Finally, after deploying the Management Pack for Exchange Server 2007, having installed the agent on the Exchange Server 2007 (internal and DMZ) boxes, we can now start observing the information collected by the agent by MOM report. For example, in Figure 14 below, we can see that the Content Filter report is displayed as a percentage graph of each SCL level by the Edge Transport Server.

To access the report, we need to point the web browser to the address below: http://// Reports , see Figure 12.

Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 14Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 14
Figure 12: Microsoft Exchange Server in reporting services

We have 3 main report items in Exchange Server 2007: Service Availability, Metric and Anti-spam:

  1. Service Availability
    1. Service Availability Summary
    2. Mailbox Service Availability (Figure 13)
    3. Mailflow Local Service Availability
    4. Mailflow Remote Service Availability
    5. Outlook Web Access External Service Availability
    6. Outlook Web Access Internal Service Availability
    7. ActiveSync Internal Availability
    8. Unified Messaging Local Voice Service Availability
    9. Unified Messaging Local Fax Service Availability
    10. Unified Messaging Remote Voice Service Availability

      There is a second level class under Service Availability called the Supplemental Reports that includes the following reports:
      1. General Events
      2. Table-ActiveSync Internal Service Availability
      3. Table-Mailbox Service Availability
      4. Table-Mailflow Local Service Availability
      5. Table-Mailflow Remote Service Availability
      6. Table-OWA External Service Availability
      7. Table-OWA Internal Service Availability
      8. Table-Unified Messaging Local Fax Service Availability
      9. Table-Unified Messaging Local Voice Service Availability
      10. Table-Unified Messaging Remote Voice Service Availability

        PS: All reports are used to calculate the availability of the designed service.

Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 15Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 15

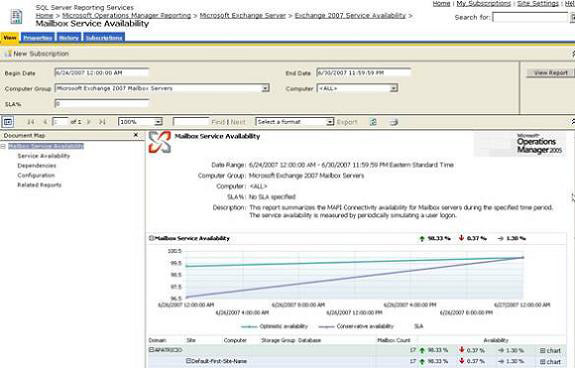

Figure 13: Report of Mailbox Service Availability

  1. Metrics
    1. Client Performance
    2. Mailbox Count
    3. RPC and Database Performance
    4. Unified Messaging Call Summary
    5. Unified Messaging Message Summary
  2. Anti-Spam
    1. Attached File Filter
    2. Connection Filter
    3. Recipient Filter
    4. Sender ID
    5. Sender Filter
    6. Content Filter, see Figure 14

Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 16Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 16

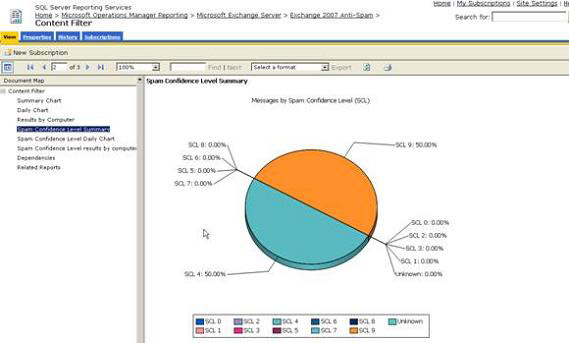

Figure 14: Report of Content Filter

Update report data

In some cases we need to update the report and by default the reports are generated daily at 1:00 am. How can we change this behavior? Quite simply, you just need to run the Task to create the report, but you must consider the related performance issues if you run this process during the production time.

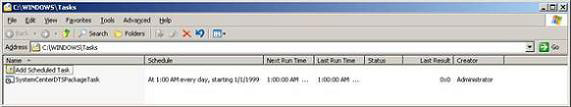

There is a task called SystemCenterDTSPackageTask on the Windows Task Scheduler, which is used to transfer data from the MOM database to the MOM reporting database. To start the task, we need to double-click the task that is in C: windowstasks, as shown in Figure 15, then our reports will be updated.

Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 17Checking Exchange Server 2007 with MOM 2005 (Part 3) Picture 17
Figure 15: The SystemCenterDTSPackageTask entry in operating system tasks

Conclude

In the final part of this series, we saw Exchange Server 2007 reports through MOM 2005 and they analyzed the Exchange Server 2007 Management Pack components in MOM 2005 Administrator Console and the MOM 2005 Operator Console. For more information you can visit here.
