Stanford's Low-Power Optical Amplifier: What the 100x Claim Means

Stanford researchers have demonstrated a small, low-power optical amplifier on a photonic chip. Their paper in Nature reports more than 17 dB of gain with less than 200 mW of input power. Stanford describes the device as capable of increasing a light signal's intensity by about 100 times. It is a research result with potential for portable systems, not a component already installed in smartphones.

This miniature optical amplifier amplifies light up to 100 times and can be integrated into smartphones. Picture 1

What does the amplifier actually do?

An optical amplifier strengthens a light signal directly. In fiber communication and sensing, a signal can become too weak to use after losses in the optical path. Amplification helps a receiver or a later optical stage work with that signal, but extra noise can also make it harder to distinguish the information it carries.

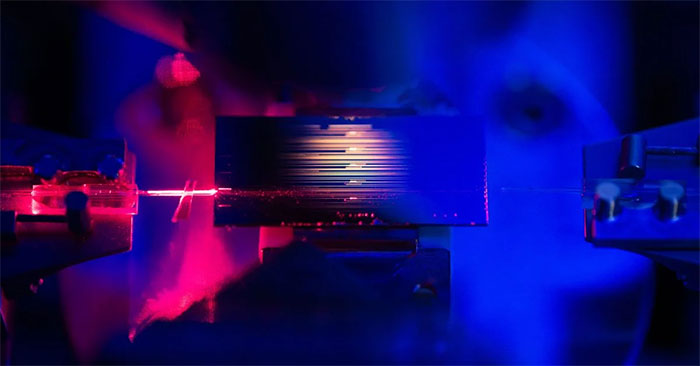

This device is an optical parametric amplifier made on thin-film lithium niobate. It draws energy from a separate optical beam called the pump. A resonant structure keeps pump light circulating so more of its energy can contribute to amplification. That is why the researchers can use a lower pump input than earlier chip-scale demonstrations while retaining broad bandwidth.

The results in context

Reported result	What it tells us
More than 17 dB gain at less than 200 mW input	The main performance benchmark reported in the research paper. Gain describes the amplified optical signal; input power describes what the pump requires.
About 100 times higher light intensity	Stanford's plain-language description of the amplification achieved by the device. This is a laboratory performance result, not a claim about phone battery life or internet speed.
Broad, low-noise operation over 110 nm	The paper reports near-quantum-limited noise performance across this optical wavelength range, rather than at only one narrow wavelength.

The study also reports 95% conversion efficiency for generating the pump's second harmonic in its design. These are measurements of the demonstrated chip architecture. They do not establish the cost, reliability or power draw of a complete consumer device.

Why use a resonator?

In a conventional single-pass design, pump light travels through the active region once. Here it circulates through a resonator, building up useful intensity inside the chip. The paper reports that this raises effective pump power by nearly an order of magnitude compared with a single-pass approach. The pump is not a free source of energy: the design makes better use of supplied power.

The lower input requirement may make on-chip optical amplification more practical for optical sensing, communications and other photonic systems. For background on light-based data links, TipsMake's fiber-optic cable testing guide covers the separate task of measuring optical loss in a cable. A different photonic-chip communication example shows why researchers pursue compact optical components; its transmission demonstration should not be confused with this amplifier experiment.

Does this mean smartphones will use it?

Not yet. Stanford points to laptops, phones and battery-powered sensors as possible future applications because of the device's size and power requirements. Turning a laboratory chip into a product would also require integration with light sources, detectors, packaging and the rest of a system. The research demonstrates the amplifier's optical performance; it does not announce a commercial phone design.

Read the Stanford research summary for the team's explanation and the published paper for the reported measurements.
