MSI's CES 2026 AM5 Motherboards: What Was Announced

MSI used CES 2026 to highlight several AM5 motherboards for different types of builds: the two-DIMM MEG X870E UNIFY-X MAX for overclocking, three MAG B850 MAX models for more conventional systems, and the Mini-ITX MPG X870I EDGE TI EVO WIFI. The announcement also covered GPU Safeguard+, but that protection belongs to separate MSI power supplies rather than these motherboards.

The products are no longer just show-floor concepts, so this revision distinguishes MSI's published specifications from overclocking targets and corrects several slot and expansion-card details in the original report.

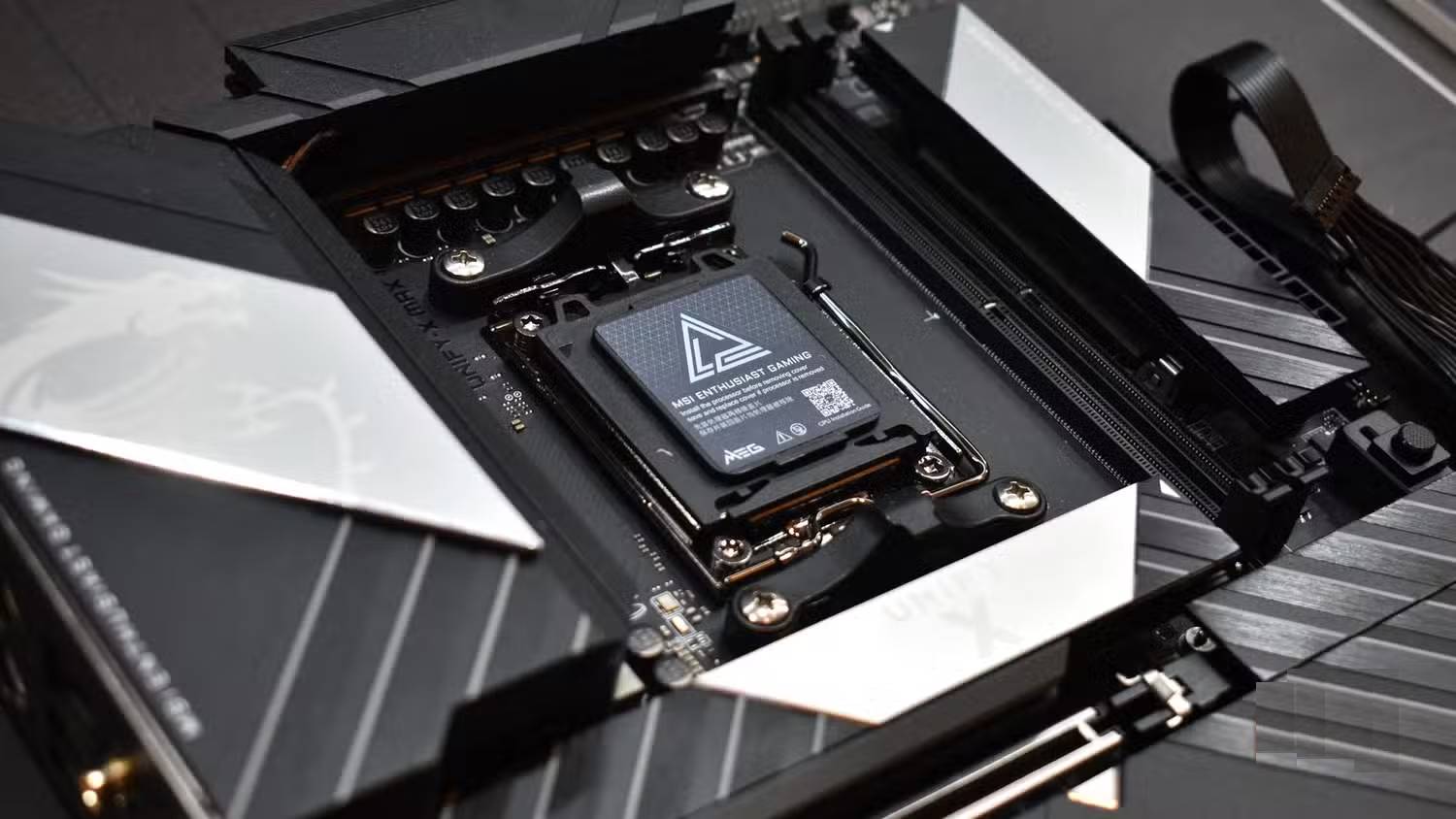

MEG X870E UNIFY-X MAX targets memory overclockers

The MEG X870E UNIFY-X MAX is an AMD X870E, Socket AM5 board supporting Ryzen 9000, 8000, and 7000 series desktop processors according to MSI's current compatibility summary. Its unusual feature is a two-DIMM DDR5 layout rather than the four slots found on mainstream ATX boards. Reducing memory-slot complexity can help signal integrity for competitive memory overclocking, but it also means fewer physical upgrade slots.

MSI lists a maximum memory capacity of 128GB and advertises extensive overclocked DDR5 support. Those speeds are not a promise for every build: the processor's memory controller, DIMM rank, capacity, BIOS, and number of modules all affect stability. Buyers should check the memory support list and the detailed table for their CPU generation on the official UNIFY-X MAX specification page.

The board has five M.2 sockets, but they are not all PCIe 5.0 x4. MSI identifies two as PCIe 5.0-capable and the remaining sockets as PCIe 4.0. It also lists Wi-Fi 7, 5Gb Ethernet, USB4, a 64MB BIOS ROM, PCIe 5.0 expansion support, and its OC Engine.

What the Tuning Controller does

The included external Tuning Controller provides physical controls intended for test-bench overclocking and recovery. MSI describes functions for adjusting parameters and accessing actions such as safe boot or clearing settings. That can be useful to an experienced overclocker, but it does not make aggressive voltage or clock changes risk-free. Warranty terms and CPU, memory, and cooling limits still apply.

The MAG B850 MAX range covers three form factors and styles

MSI announced three B850 MAX models:

• MAG B850 TOMAHAWK MAX WIFI II: a feature-focused ATX model.
• MAG B850M MORTAR MAX WIFI: a smaller Micro-ATX option.
• MAG B850 GAMING PLUS MAX WIFI: an ATX board with a white design.

The TOMAHAWK MAX WIFI II has four DDR5 slots and four M.2 sockets. Two M.2 sockets can run at PCIe 5.0 x4 with supported Ryzen 9000 or 7000 processors; the exact lane behavior changes with some Ryzen 8000 chips. MSI also lists Wi-Fi 7, 5Gb Ethernet, a 20Gbps rear USB-C port, and tool-free or easier-release hardware for M.2 drives and the main graphics slot.

Specifications should not be copied between the three models merely because their names include “B850 MAX.” Form factor changes the available board space, slots, headers, and sometimes lane sharing. This guide to ATX, Micro-ATX, and Mini-ITX motherboard sizes explains the practical case and expansion differences.

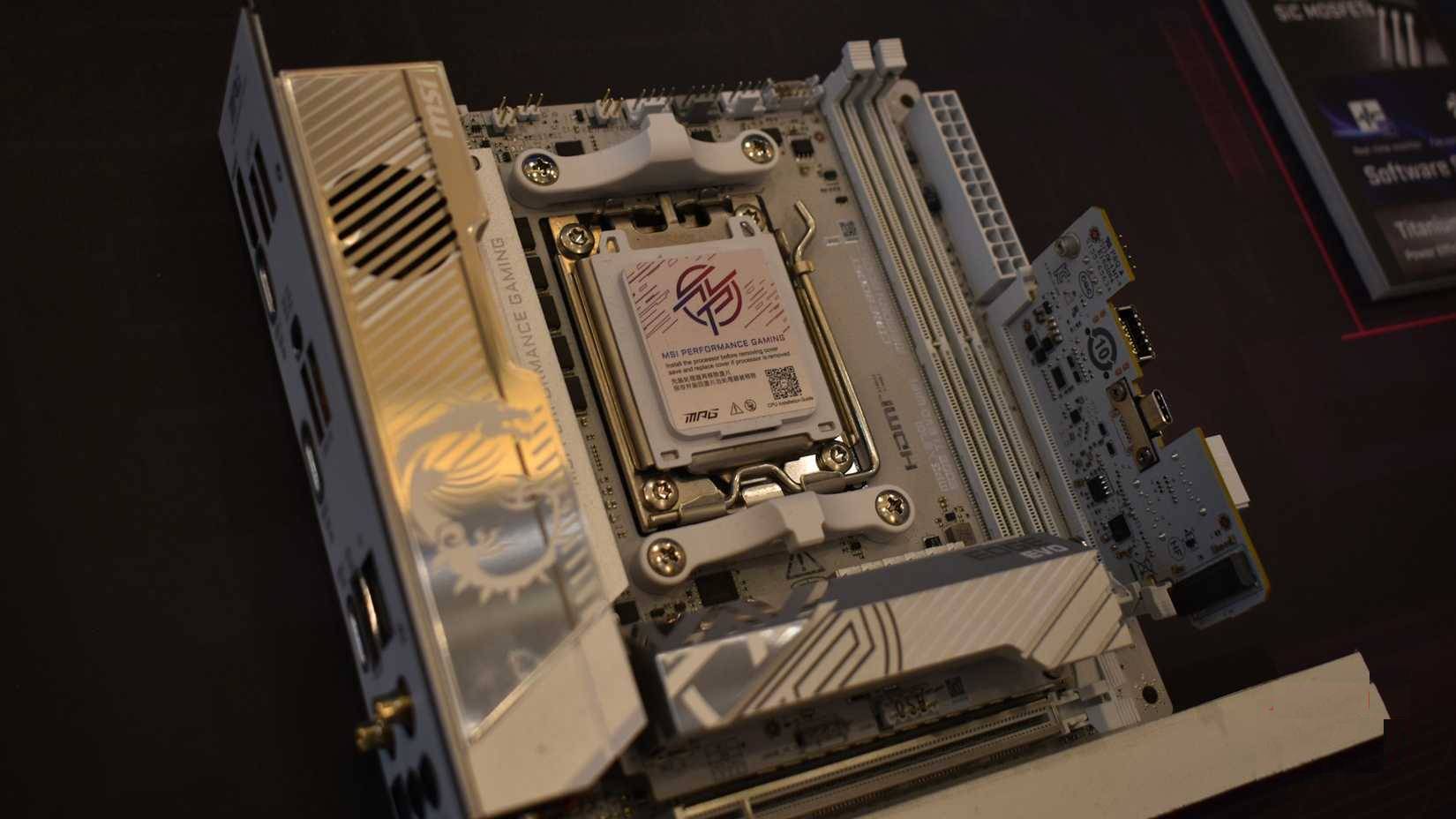

MPG X870I EDGE TI EVO WIFI is the compact option

The silver-and-white MPG X870I EDGE TI EVO WIFI is a Mini-ITX X870 board for Socket AM5. MSI lists two DDR5 slots with up to 128GB capacity, PCIe 5.0 graphics support, M.2 Gen5 storage, USB4, Wi-Fi 7, and 5Gb Ethernet.

Its bundled 5-in-1 XPANDER card is not a two-drive M.2 add-in card. MSI says it adds one PCIe 4.0 M.2 socket, one 20Gbps USB-C port with up to 27W Power Delivery, two 5Gbps USB-C ports, two SATA connectors, and a front-panel connection. That is a meaningful expansion compromise for a small board, but builders must still check case clearance, cooler fit, cable routing, and lane-sharing notes on the official product page.

Advertised DDR5 overclocking figures are configuration-dependent. AM5 uses DDR5 rather than DDR4; readers comparing platform costs can review the broader DDR4 and DDR5 differences before selecting memory.

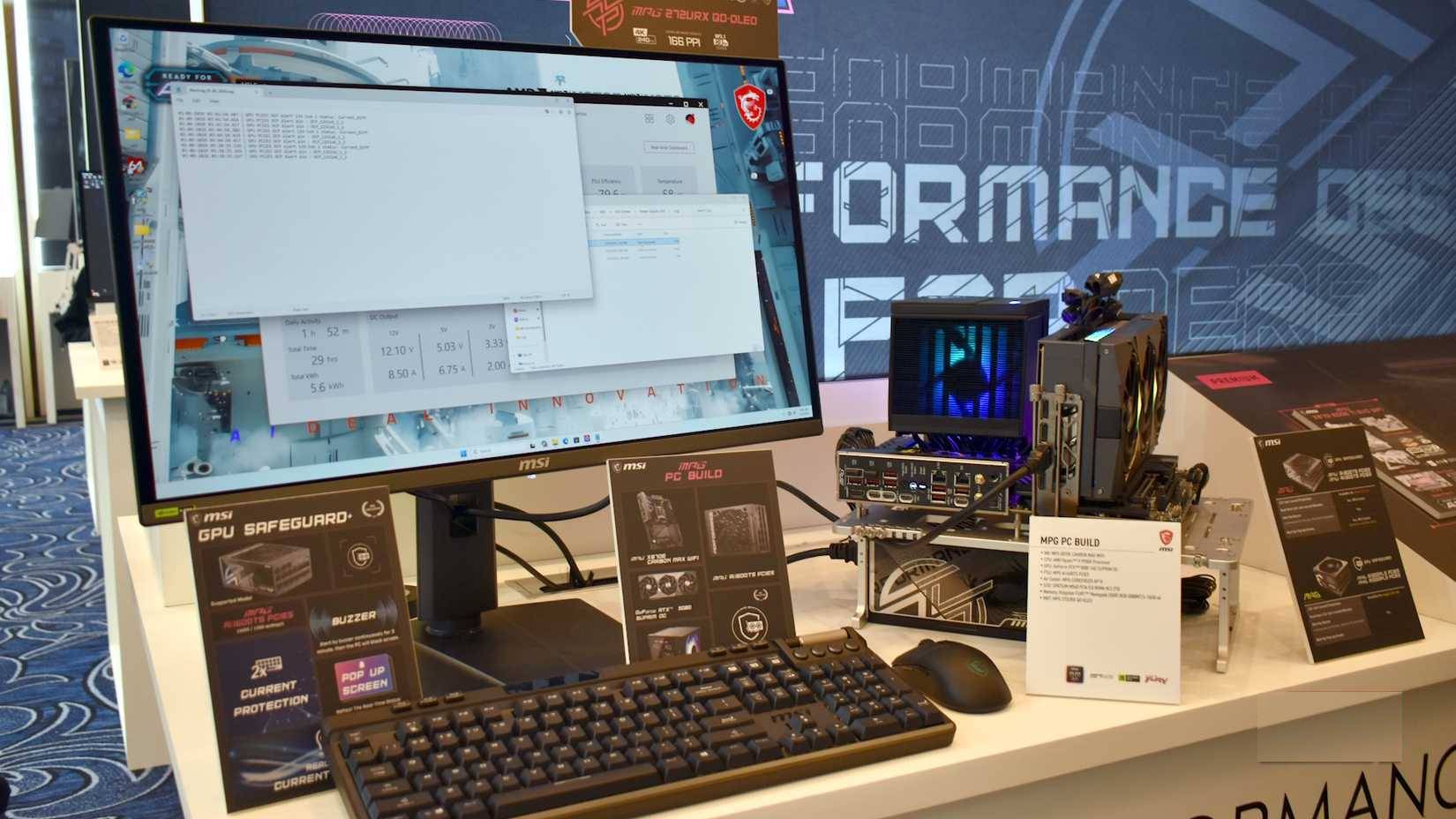

GPU Safeguard+ was a PSU feature, not a motherboard feature

MSI also demonstrated GPU Safeguard+ at CES 2026 on its MPG Ai1600TS and Ai1300TS PCIE5 power supplies. MSI describes monitoring and active protection for their 12V-2x6 outputs. It should not be presented as a circuit built into the X870E or B850 boards above, and no monitoring system can justify a poorly seated or sharply bent power connector.

Builders should use the PSU manufacturer's approved cables, insert every connector fully, provide the required bend clearance, and stop using a connector that shows discoloration, deformation, unusual heat, or intermittent power. Never mix modular PSU cables unless the manufacturer explicitly confirms compatibility.

Which board is aimed at which build?

Before buying, match the exact board revision to the CPU support list, memory support list, case form factor, cooler, front-panel connectors, M.2 and PCIe lane rules, networking needs, and required rear I/O. Product-family marketing is a useful overview, but the model's manual and specification page should make the final decision.
