Instructions for installing MDaemon Mail Server

TipsMake.com - MDaemon Mail Server: is one of the most comprehensive mail server system solutions available for companies and businesses of different sizes. MDaemon Mail Server currently has 3 versions: Standard, Pro and Free. Here are some highlights of the program .

MDaemon main screen

MDaemon's main display ( Graphical User Interface - GUI ) provides important information about resources, transactions, statistics, and data flow in active status and messages. are in the process of waiting (queued) to be processed. In addition, there is an option for users to switch to activating / deactivating status for different server systems that use MDaemon. The right window fully displays information about incoming and outgoing (incoming and outgoing) data connections being performed.

Setup Menu

Default Domain / Servers value:

The Domain / Servers default value can be set easily by selecting the Setup > Default Domain / Servers menu, depending on the domain and servers of the user and can set custom parameters. Only the Domain default values ​​can be adjusted, but MDaemon can manage all numbers, the value of different Extra Domains (this feature is only available in MDaemon Pro version), and archive email for Domain Gateways systems.

The Default Domain working window includes the following items:

- Domain : This window displays the default domain name and IP address

- Delivery : here, the user will declare the value for MDaemon to manage the delivery process, receive mail depending on other factors such as ISP, gateway host, or other servers

- Servers : with options to customize server number, email address. For example, setting up MDaemon will work with SMTP server protocols such as VRFY, EXPN, APOP and CRAM-MD5 . Or you can set the maximum number for email, the number of RCPT execution commands given permission in SMTP .

- Ports : contain values ​​or the number of ports that MDaemon will control and use for SMTP and POP protocols in the process of sending and receiving emails. Or you can re-assign values ​​to different ports that MDaemon will listen to according to IMAP events, and UDP ports for querying DNS servers. In most cases, the default value of ports will not need to be changed, but depending on the different server, the user will have the appropriate changes.

- DNS : this window allows the user to assign a value to the primary and standby IP address of the DNS server. Besides, there are other options for controlling and storing MX record values.

- Timeouts : contains the time-limited values ​​for MDaemon to wait while connecting to the host controller, waiting for the response value of addresses, DNS servers . Besides, the ' Maximum message limit value' hop count 'is used in the case of protecting messages during loop rotation.

- Sessions : Here, the user will set the maximum number of data processing streams that MDaemon will use to send and receive mail through SMTP, POP, and IMAP protocols, or you can set the number. The amount of messages that MDaemon intends to send and receive emails at the same time. Besides, you can also set the number of messages through outbound SMTP protocol to be packaged through each process.

Installation process and initial settings

First, download the latest version of MDaemon Mail Server and start the installation process.

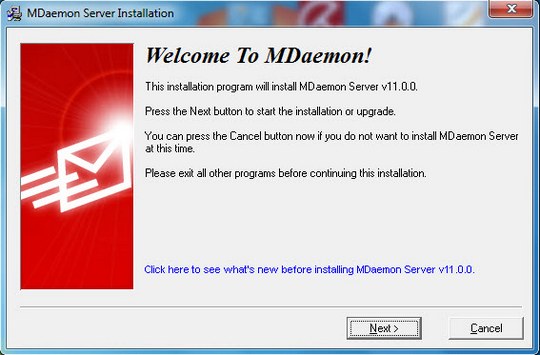

Click ' Next ' to continue:

Check the ' I have read and I agree with all terms of agreement agreement here '

Select the storage path of the program, the default will be the system C drive (the drive with Microsoft Windows operating system installed)

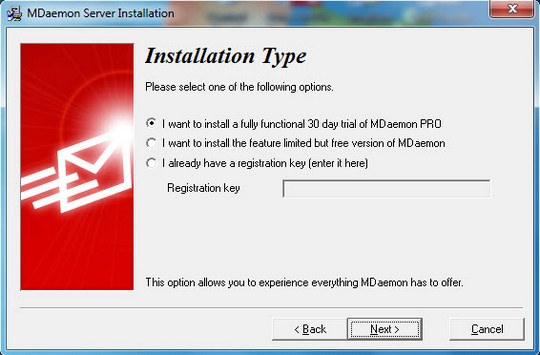

Select the installation version, if you have a registration key, enter the box below. The usage example is a free or 30-day free version of the Pro version.

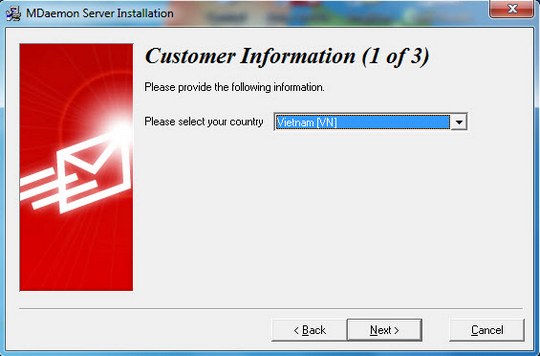

Optional heart information suitable for location, here is Vietnam

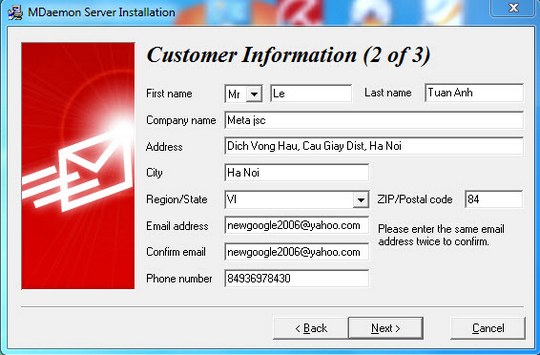

Fill in the complete information such as name, phone number, company, email address, area code:

Fill in the correct information about the size of the organization or company:

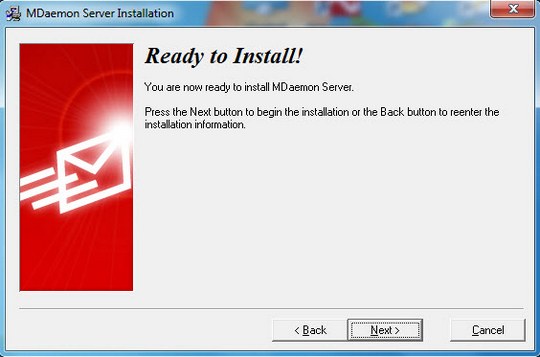

After completing the above steps, select ' Next ' to start the installation:

The installation process takes about 5 minutes. Once finished, the user starts setting up, customizing the appropriate parameters:

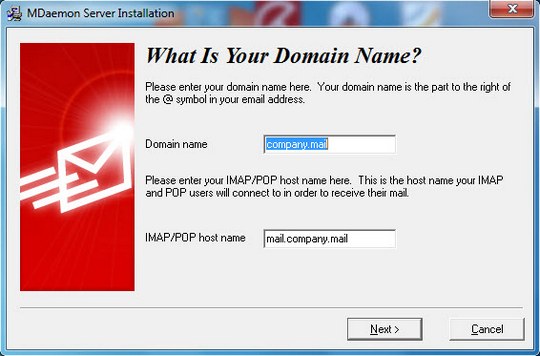

Enter the correct Domain name:

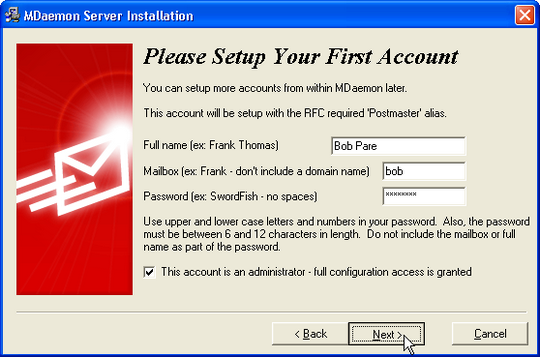

Then set up an account with a password of 6-12 characters:

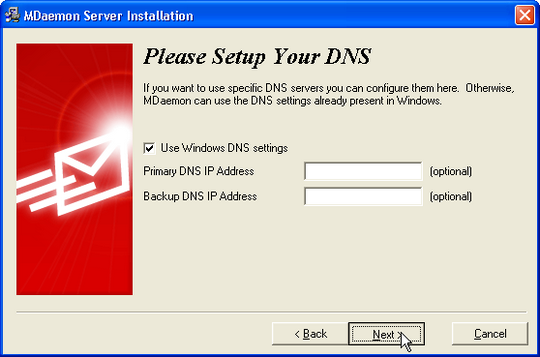

Enter the primary DNS address (Primary) and backup (Backup):

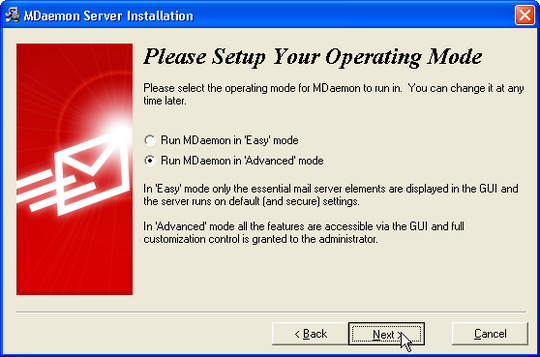

Let MDaemon operate in arbitrary mode (Easy or Advance depending on the purpose of use):

Leave the ' MDaemon Setup as a service service ' option intact:

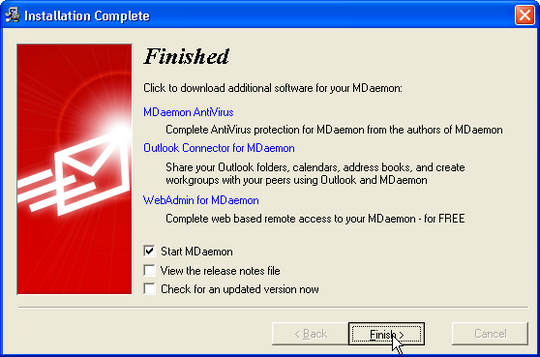

Click ' Finish ' to finish the initial setup and configuration process, start using:
