Instructions for adding Gmail accounts to Outlook 2013 and 2016 using IMAP

If you use Outlook to check and manage Email, you can also do this with Gmail. You can set up your Gmail account to allow email synchronization on multiple computers using Email Client instead of on a browser.

In the following article, Network Administrator will show you how to use IMAP to sync your Gmail account on multiple computers and step-by-step instructions for adding Gmail accounts to Outlook 2013 or 2016.

Instructions for adding Gmail accounts to Outlook 2013 and 2016 using IMAP Picture 1

To set up your Gmail account using IMAP, first log in to your Gmail account.

Instructions for adding Gmail accounts to Outlook 2013 and 2016 using IMAP Picture 2

Next click on the serrated icon in the upper right corner and select Settings .

Instructions for adding Gmail accounts to Outlook 2013 and 2016 using IMAP Picture 3

On the Settings interface, click on Forwarding and POP / IMAP .

Instructions for adding Gmail accounts to Outlook 2013 and 2016 using IMAP Picture 4

Scroll down to IMAP Access section (Access via IMAP) and select Enable IMAP (enable IMAP).

Instructions for adding Gmail accounts to Outlook 2013 and 2016 using IMAP Picture 5

Finally select Save Changes at the bottom of the interface to save your changes and close your browser.

Instructions for adding Gmail accounts to Outlook 2013 and 2016 using IMAP Picture 6

To add a Gmail and Outlook account, first open your Outlook application and then click the File tab.

Instructions for adding Gmail accounts to Outlook 2013 and 2016 using IMAP Picture 7

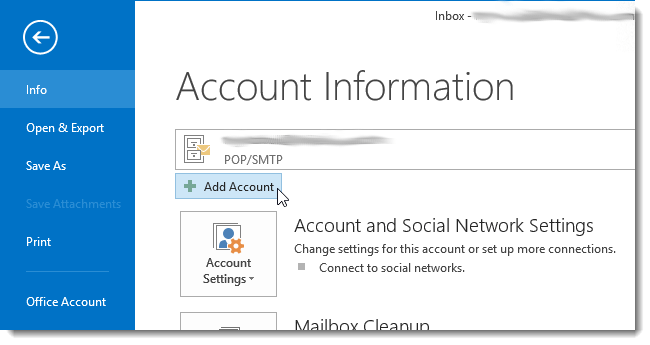

On the Account Information interface, click Add Account .

Instructions for adding Gmail accounts to Outlook 2013 and 2016 using IMAP Picture 8

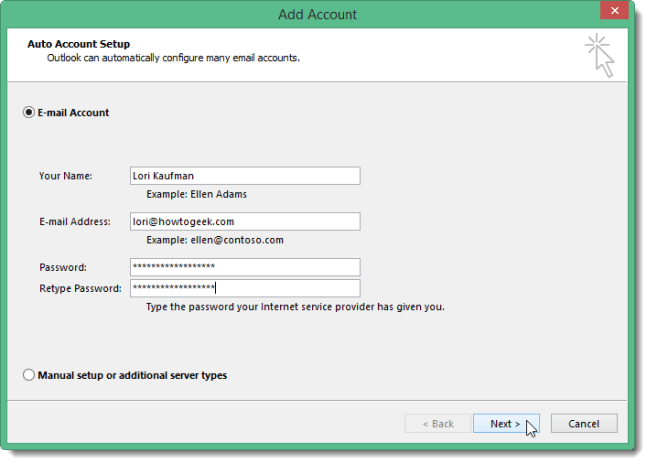

At this time, the Add account dialog box will appear. Here you check the Email Account option to automatically set up your Gmail account in Outlook. Enter your name, Gmail address and Gmail account login password and click Next .

Instructions for adding Gmail accounts to Outlook 2013 and 2016 using IMAP Picture 9

Note : Enter your Gmail account login password twice in the Password and Retype password box.

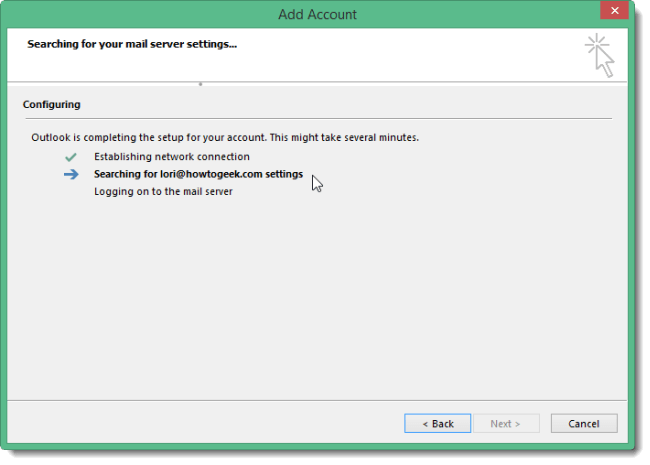

The installation process will appear on the screen.

Instructions for adding Gmail accounts to Outlook 2013 and 2016 using IMAP Picture 10

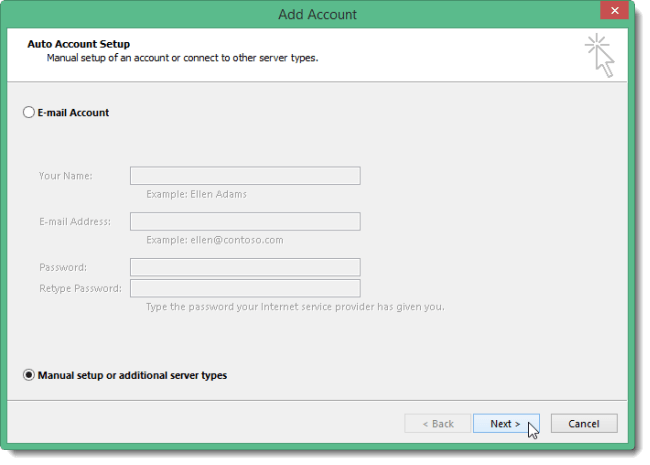

If the setup process fails automatically, click Manual Setup or additional server types instead of selecting Email Account as in the previous step, then click Next.

Instructions for adding Gmail accounts to Outlook 2013 and 2016 using IMAP Picture 11

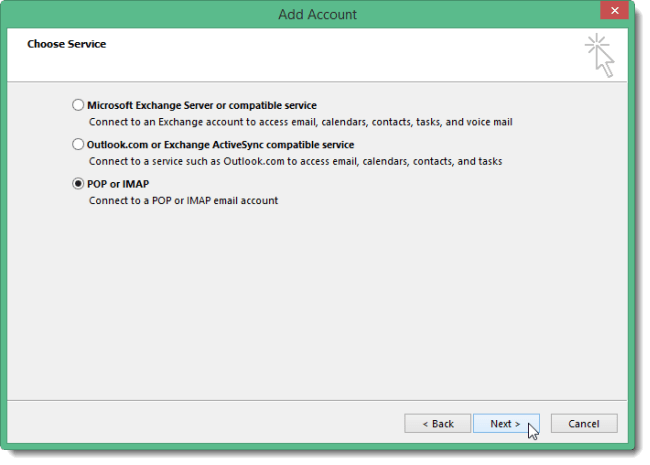

Next on the Choose Service interface, select the POP or IMAP option and click Next.

Instructions for adding Gmail accounts to Outlook 2013 and 2016 using IMAP Picture 12

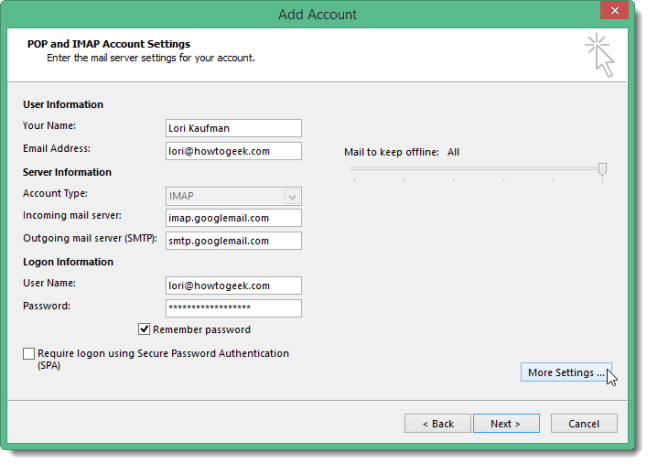

On the POP and IMAP Account Setting interface, you enter all information into the User Information, Server Information and Logon Information sections.

In Server Information, in Account Type, click on the down arrow to select IMAP. Then enter the frame information Incoming server information and Outgoing server information as follows:

Incoming server information: imap.googlemail.com.

Outgoing mail server (SMTP): smtp.googlemail.com.

Note:

Enter your full Gmail address information in the User Name section and your Gmail account login password in the Password section.

Next click More Settings .

Instructions for adding Gmail accounts to Outlook 2013 and 2016 using IMAP Picture 13

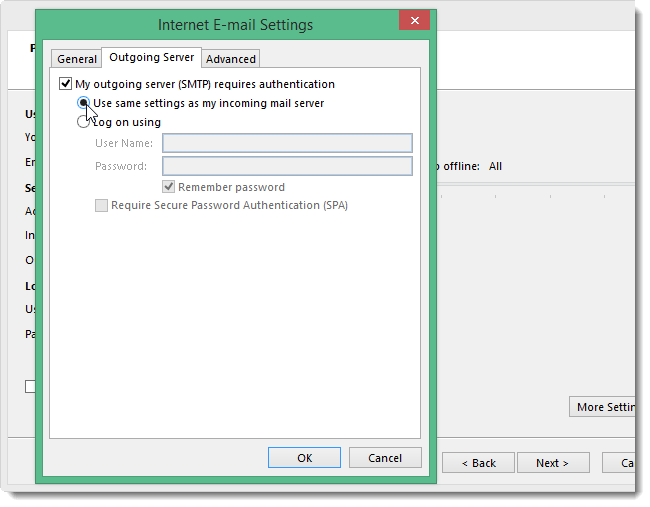

The Internet Email Setting dialog box appears at this time. In this dialog box, click the Outgoing Server tab and then select My outgoing server (SMTP) requires authentication , then select Use same settings as my incoming mail server .

Instructions for adding Gmail accounts to Outlook 2013 and 2016 using IMAP Picture 14

When the Internet Email Settings dialog box appears, click the Advanced tab and enter the following parameters into:

Incoming server: 993

Incoming server encrypted connection: SSL

Outgoing server encrypted connection TLS

Outgoing server: 587

Note:

You can enter Encrypted Connection for Outgoing Server before entering port number 587 into Outgoing Server (SMTP).

Click OK to save the changes and close the Email Settings dialog window.

Instructions for adding Gmail accounts to Outlook 2013 and 2016 using IMAP Picture 15

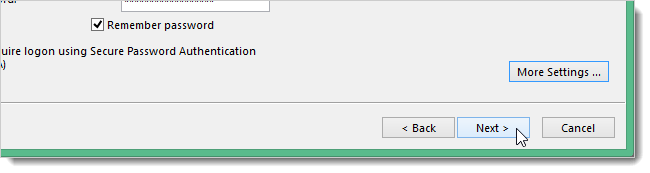

Next click Next.

Instructions for adding Gmail accounts to Outlook 2013 and 2016 using IMAP Picture 16

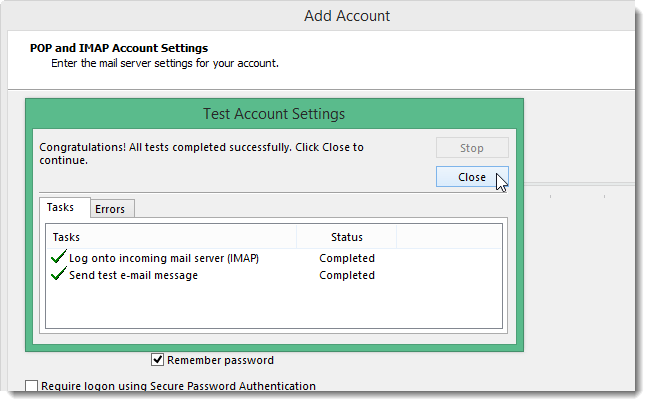

Outlook will check the installation and send you a notification email. When the checkout process is finished, click Close .

Instructions for adding Gmail accounts to Outlook 2013 and 2016 using IMAP Picture 17

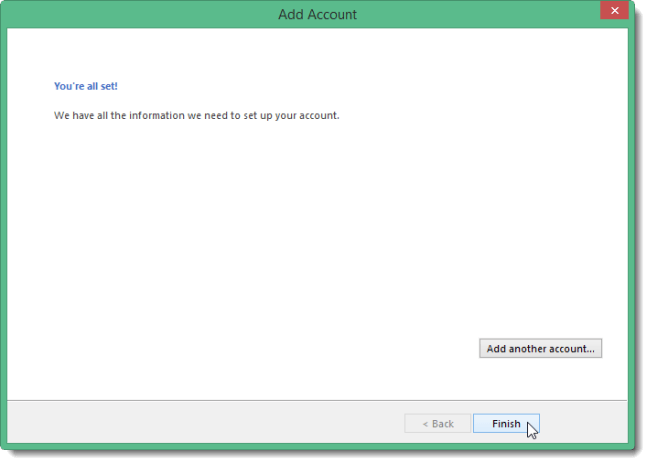

Now on the screen you will receive a message saying "You'are all set". You just need to click Finish to finish.

Instructions for adding Gmail accounts to Outlook 2013 and 2016 using IMAP Picture 18

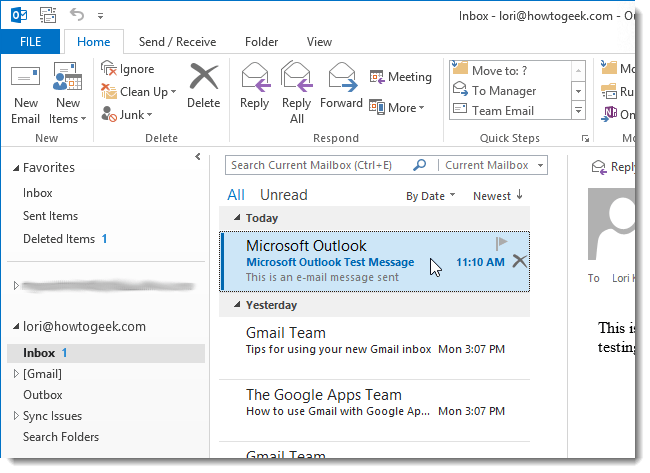

The Gmail account you just added to Outlook is displayed in the Email address list in the left pane.

Click Inbox to view the inbox in your Gmail account.

Instructions for adding Gmail accounts to Outlook 2013 and 2016 using IMAP Picture 19
