Ways to view laptop configuration, view computer configuration

Checking your computer configuration will tell you exactly what hardware your computer is using. From there you can know exactly whether your device can run your favorite software or game or not.

There are many ways for you to view your computer configuration and laptop configuration. With just a few simple steps, you can check your laptop's configuration. Please follow TipsMake's instructions below to see your computer's hardware configuration.

View computer hardware in DirectX Diagnostic Tool

This is a familiar method to most computer and laptop users. Since Windows XP, this is the choice of many users who want to see the computer configuration. DirectX Diagnostic Tool fully displays not only hardware information, but also information about Windows version, current computer model, your computer name.

Step 1: Press the Windows + R key combination to open the Run window.

Ways to view laptop configuration, view computer configuration Picture 1

Step 2: In the command box, type " dxdiag" and select Ok or press Enter to open the DirectX Diagnostic Tool panel.

Ways to view laptop configuration, view computer configuration Picture 2

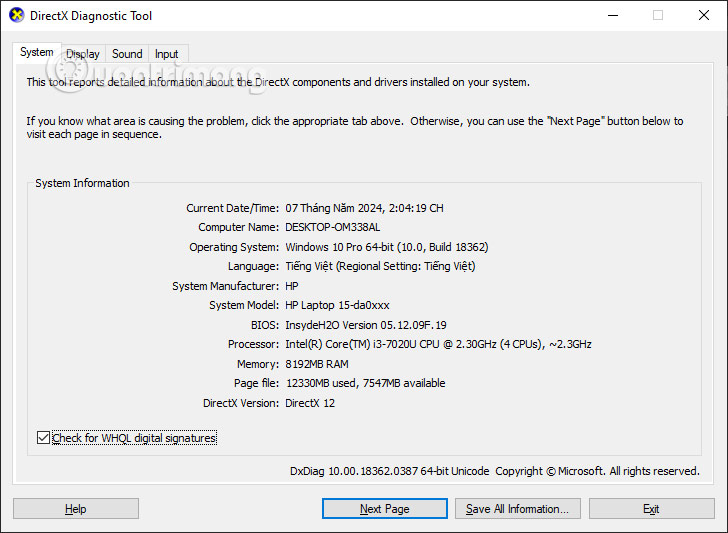

Step 3: On the System tab, which is the first tab that catches your eye, you will have the following details:

1. Current Date/Time: Current date and time
2. Computer Name: Your computer name
3. Operating System: Name of the operating system you are using
4. Language: Device language
5. System Manufacturer: Your device manufacturer
6. System Model: Machine model
7. BIOS: Current BIOS version
8. Processor: CPU in use
9. Memory: The amount of RAM your device has
10. Page file: Extended RAM capacity (virtual RAM)
11. DirectX Version: Current DirectX Phienebanr.

Ways to view laptop configuration, view computer configuration Picture 3

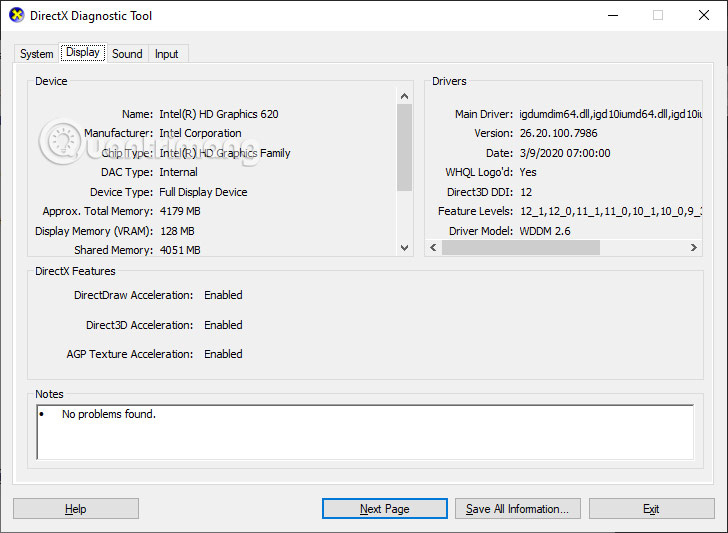

Step 4: Go to the Display tab, you will know the type of graphics card your device is using. Below is the capacity of that graphics card. The Sound and Input tab will display the audio hardware and input devices you are using on your computer.

Ways to view laptop configuration, view computer configuration Picture 4

Check your computer configuration via Task Manager

The Task Manager window not only tells you information about the computer hardware you own, but also tells you how it is being used.

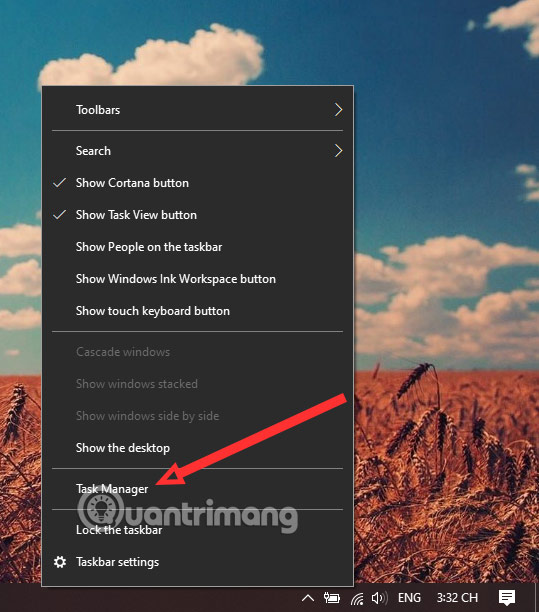

Step 1: Just right-click on the tarkbar and select Task Manager, or select the key combination ATL + CTRL + DEL  and select Task Manager.

Ways to view laptop configuration, view computer configuration Picture 5

Step 2: Select the Performance tab and here you will see information about your computer hardware. Including CPU, RAM capacity, hard drive, Wifi and graphics card.

Ways to view laptop configuration, view computer configuration Picture 6

The Performance tab will have graphs showing how your computer hardware is being used. Below the fluctuation chart will be indicators of the amount of RAM in use and the remaining amount of RAM, cache memory.

Ways to view laptop configuration, view computer configuration Picture 7

View computer hardware parameters via System Information

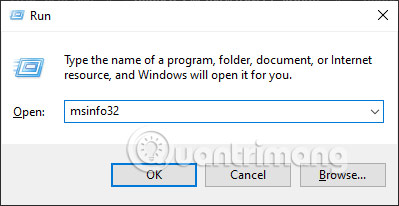

Also in the Run window, type the command line "msinfo32 " and select OK to run.

Ways to view laptop configuration, view computer configuration Picture 8

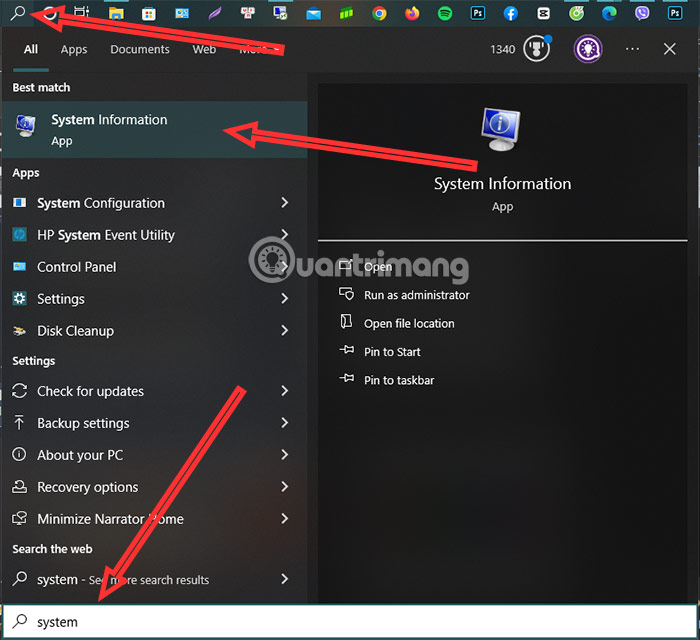

Or you can also select the Search icon on the Taskbar and search for the keyword System Information .

Ways to view laptop configuration, view computer configuration Picture 9

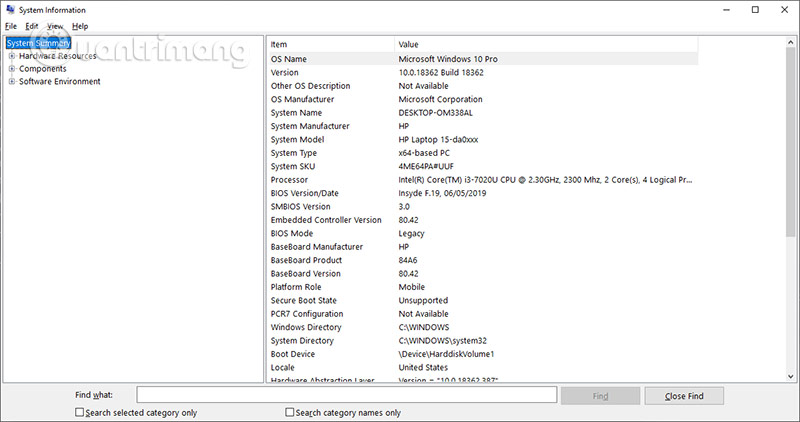

In the System Information window, you will see information divided into two sides, on the left is a column displaying options for you to choose from and view information about your computer. Selecting System Summary will tell you information about the operating system, CPU, machine name. Meanwhile, selecting Component > Multimedia > Display will tell you information about your graphics card.

Ways to view laptop configuration, view computer configuration Picture 10

View hardware information on Windows 11

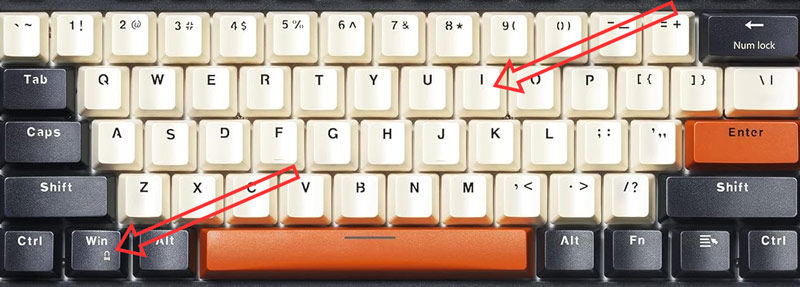

You can mostly view hardware information on Windows 11 using the above methods, but the way to view hardware information on Windows 11 in the system section will be a little different. Still select the Windows + I key combination to open the Settings window.

Ways to view laptop configuration, view computer configuration Picture 11

Compared to the window on Windows 10, the system window of Windows 11 will immediately display the System section and you should scroll down to select About.

Ways to view laptop configuration, view computer configuration Picture 12

In this section, you will have information about the hardware as well as information about the Windows version you are using, device name, device ID.

Ways to view laptop configuration, view computer configuration Picture 13

How to view hardware parameters on Macbook

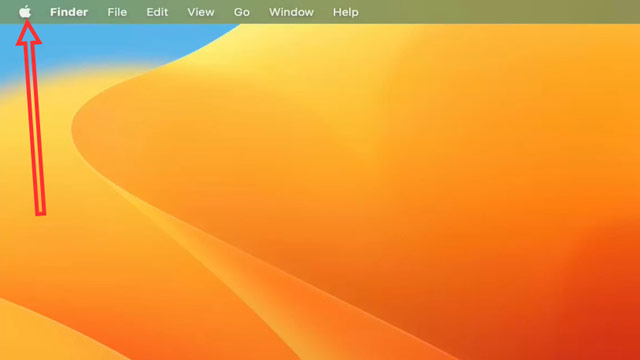

Step 1: To check Macbook hardware information and devices running macOS in general, just select the Apple icon in the upper left corner of the screen.

Ways to view laptop configuration, view computer configuration Picture 14

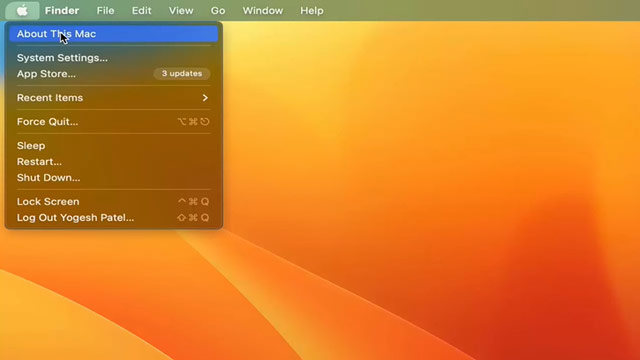

Step 2: Select About This Mac.

Ways to view laptop configuration, view computer configuration Picture 15

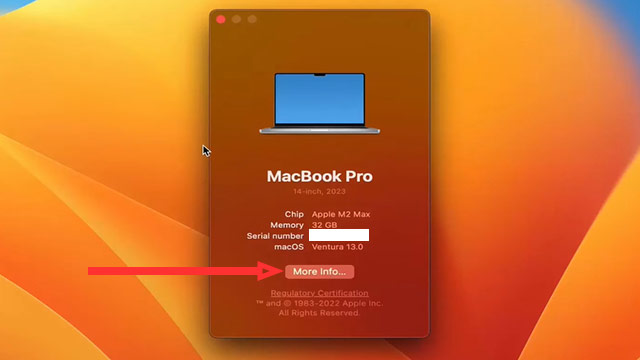

Step 3: In the next display window, you will have basic parameters about your device running macOS, including: Chip in use, RAM capacity, device serial number and macOS version in use. . Select More Info to expand your device information.

Ways to view laptop configuration, view computer configuration Picture 16

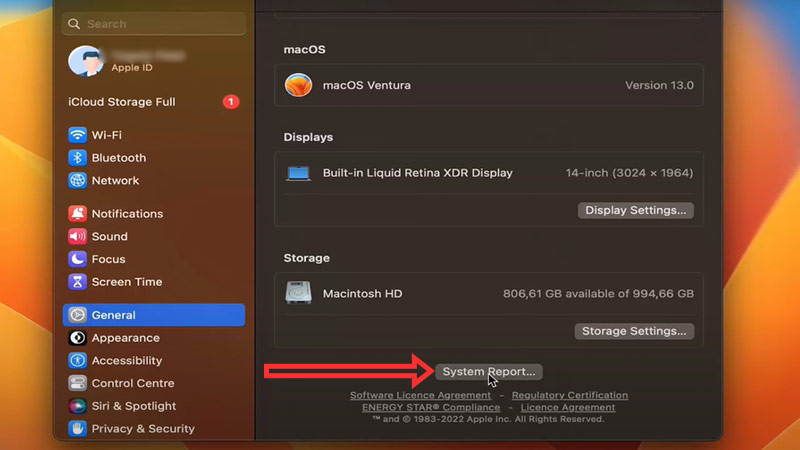

Step 4: The system will take you to the system information panel of the device, here you will see the full parameters, versions, hard drive capacity, screen resolution in use, etc. . If you want a closer look at all device information, scroll down to the bottom and select System Report.

Ways to view laptop configuration, view computer configuration Picture 17

Step 5: In this window, you will have full information about your macOS device.

Ways to view laptop configuration, view computer configuration Picture 18

And those are the ways you can use to view your computer configuration. There are a few more ways that TipsMake has not mentioned in this article, but the above methods are the most popular and also fully display the hardware information you want to learn the most.
