How to Initialize and Partition a New Drive in Windows 11

A new internal HDD or SSD normally needs to be initialized, partitioned, formatted, and assigned a drive letter before it appears in File Explorer. Windows Disk Management can do all four. The critical step is identifying the correct physical disk: initializing or formatting a drive that already contains data can make that data inaccessible or erase it.

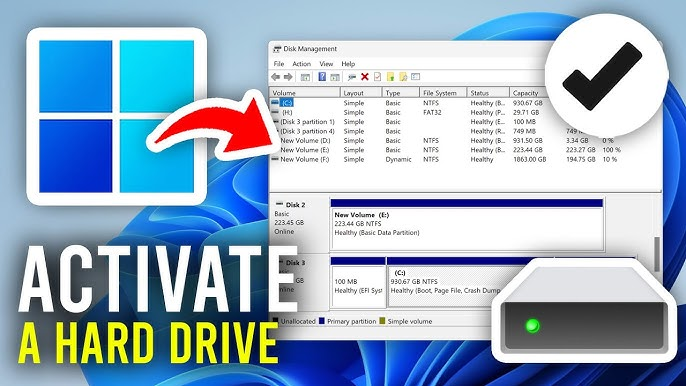

Open Disk Management

The quickest method is to right-click Start and choose Disk Management. You can also press Windows + R, enter diskmgmt.msc, and select OK, or open Computer Management > Storage > Disk Management.

Disk Management displays volumes at the top and physical disks at the bottom. Use the lower pane when identifying a new drive. The disk number is not a permanent physical label, so do not choose one based only on “Disk 1” or “Disk 2.”

Step 1: Bring an offline disk online

If the new drive is listed as Offline, right-click the disk label on the left and choose Online. If Windows reports an I/O, connection, or read-only error, check the SATA/NVMe connection, power cable, USB enclosure, and manufacturer diagnostics before changing partitions.

Step 2: Initialize the new disk

1. In the lower pane, find the drive marked Unknown and Not Initialized.
2. Verify its capacity and, where available, model information.
3. Right-click the disk label—not the unallocated area—and choose Initialize Disk.
4. Select the correct disk and choose a partition style.

Partition style	Use it when	Key limitation
GPT	Almost every current UEFI-based Windows 10 or Windows 11 PC	Very old operating systems or firmware may not support it fully
MBR	Compatibility with specific legacy BIOS hardware or older software is required	Limited to roughly 2TB of addressable disk space and four primary partitions

For a modern PC, GPT is usually the correct choice. Microsoft also recommends GPT for current systems and large disks. Initialization writes partition information; it does not create a usable volume by itself. See Microsoft's Disk Management guide for the current Windows procedure.

Step 3: Create and format a simple volume

After initialization, the new drive normally shows a black bar and the word Unallocated. You can use the full capacity as one volume or create several volumes. One volume is simpler for most data drives; multiple partitions do not protect against physical drive failure, ransomware, theft, or accidental loss, so they are not a substitute for backups.

1. Right-click the unallocated area and choose New Simple Volume.
2. Select Next.
3. Accept the maximum size for one volume, or enter a smaller size in megabytes if you deliberately want additional unallocated space.
4. Assign an available drive letter.
5. Choose the file system and a descriptive volume label.
6. Review the summary and select Finish.

Which file system should you choose?

• NTFS: the normal choice for an internal Windows data drive. It supports Windows permissions, large files, compression, and other Windows features.
• exFAT: useful for a removable drive that must be written by Windows and other modern operating systems, but it lacks several NTFS features.
• FAT32: mainly for compatibility with devices that explicitly require it; it has a 4GB maximum individual file size.

For a new internal Windows drive, leave allocation unit size at Default unless a specific workload has documented requirements. A quick format is appropriate for a known-new drive, but it is not a secure erase method and should not be used to prove a second-hand disk is healthy.

If the initialized drive still does not appear

• Check that the volume has a drive letter in Disk Management.
• Use Action > Rescan Disks.
• Restart Windows after checking physical connections.
• For an external enclosure, test another known-good cable and port without using an unpowered hub.
• Open Device Manager and confirm that the storage controller and drive are detected.
• Run the drive manufacturer's health or diagnostic utility.

A brand-new disk showing Not Initialized is normal. A previously working disk suddenly showing that status is not; initializing it can overwrite information needed for recovery. If valuable data is involved, stop and consult a qualified recovery service.

Create a new partition by shrinking an existing NTFS volume

If there is no unallocated space, Disk Management can shrink a supported basic volume. Although Windows is designed to shrink NTFS without deleting the remaining files, partition changes still carry risk from power loss, hardware faults, software errors, or choosing the wrong volume. Make and verify a backup first.

1. In Disk Management, right-click the NTFS volume you want to reduce.
2. Select Shrink Volume and wait while Windows calculates available space.
3. Enter the amount to shrink in megabytes. For planning in Windows' binary units, 1GB is typically entered as 1,024MB.
4. Select Shrink.
5. Right-click the new unallocated area and use New Simple Volume to format and assign it a letter.

Unmovable files can limit the amount Windows offers even when File Explorer shows more free space. Do not delete recovery or EFI system partitions to create room. Microsoft's shrink-volume documentation lists current requirements and limitations.

Extend an existing Windows volume

Disk Management can extend an NTFS or ReFS volume only when suitable unallocated space is on the same physical disk and immediately follows the volume. If another partition sits between them, Extend Volume is unavailable. Shrinking a partition to the right does not automatically move that unallocated space beside the volume you want to extend.

1. Back up the data on every affected partition.
2. Verify that unallocated space appears directly to the right of the target volume in the lower pane.
3. Right-click the target volume and choose Extend Volume.
4. In the wizard, select the available space and specify how much to add.
5. Review the selection, choose Finish, and confirm the new size.

Deleting the partition to the right would destroy its data, so do not do that merely to make Extend Volume available. Microsoft's extend-volume guide explains the adjacency and file-system rules. TipsMake also has a focused guide to increasing C: drive space, but the same backup and layout checks apply.

Important safety notes

• Formatting deletes access to the volume's existing files. Confirm the disk, partition, capacity, and label before accepting a destructive prompt.
• Initialization is for a new or intentionally erased disk. Do not initialize a drive simply because Windows cannot read it.
• Do not change EFI, Recovery, or OEM partitions. They may be required for booting, recovery, or manufacturer tools.
• Partitioning is organization, not backup. Keep copies on a separate physical device or approved cloud service.
• Encryption changes recovery planning. Save BitLocker recovery keys before resizing, reinstalling, or moving encrypted storage.
• Do not interrupt the process. Keep a laptop connected to power and avoid forcing a shutdown while Disk Management is writing changes.

After setup, copy a test file to the new volume, eject it correctly if removable, reconnect or restart, and confirm that the file remains readable. That quick check verifies more than seeing a drive letter once.
