Steps to use rotation in Cad - How to rotate objects on AutoCAD
1. Rotate Objects in Cad with the Rotate Tool
Step 1: Click on Home (1) => click Rotate (2).
Steps to use rotation in Cad - How to rotate objects on AutoCAD Picture 1
Step 2: You highlight the object to rotate.
Steps to use rotation in Cad - How to rotate objects on AutoCAD Picture 2
And press the Space key to start rotating.
Steps to use rotation in Cad - How to rotate objects on AutoCAD Picture 3
Next, you click on a point to rotate and start moving the rotation direction according to the center of the cursor. Press Enter to save the settings.
Steps to use rotation in Cad - How to rotate objects on AutoCAD Picture 4
And finally you have the original rotated object.
Steps to use rotation in Cad - How to rotate objects on AutoCAD Picture 5
2. Use Rotate or Ro command to rotate
Instead of clicking on the tool, you use the command to rotate it faster. Please act as follows:

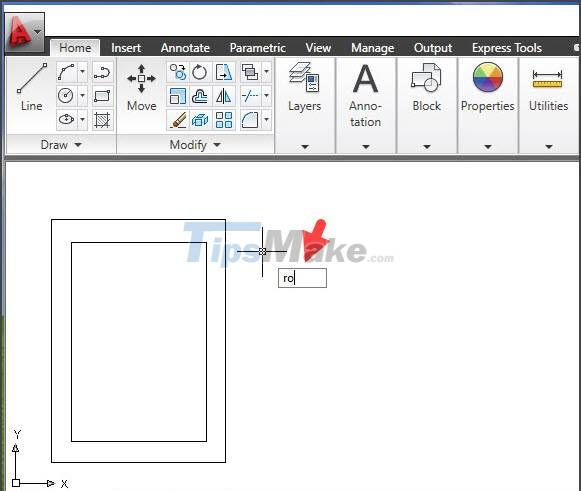

Step 1: Type rotate or ro and press Enter.
Steps to use rotation in Cad - How to rotate objects on AutoCAD Picture 6
Step 2: You click on the area to rotate => press the Space key.
Steps to use rotation in Cad - How to rotate objects on AutoCAD Picture 7
Next, you click on the rotation point and rotate the object in the direction you want.
Steps to use rotation in Cad - How to rotate objects on AutoCAD Picture 8
The object will then be rotated in the direction you specify.
Steps to use rotation in Cad - How to rotate objects on AutoCAD Picture 9
3. Rotate and duplicate objects
If you want to create a similar object with a different orientation without affecting the original object, you need to use the copy command when rotating. Proceed as follows:
Step 1: You enter the command ro or rotate => Enter.
Steps to use rotation in Cad - How to rotate objects on AutoCAD Picture 10
Step 2: You select the object to rotate.
Steps to use rotation in Cad - How to rotate objects on AutoCAD Picture 11
Next, you press the Space key to start rotating.
Steps to use rotation in Cad - How to rotate objects on AutoCAD Picture 12
Step 3: You left-click to create a radial rotation point (1) and enter the command c => Enter (2).
to copy the selection. Next, you left click again to rotate and create a new object.
Steps to use rotation in Cad - How to rotate objects on AutoCAD Picture 13

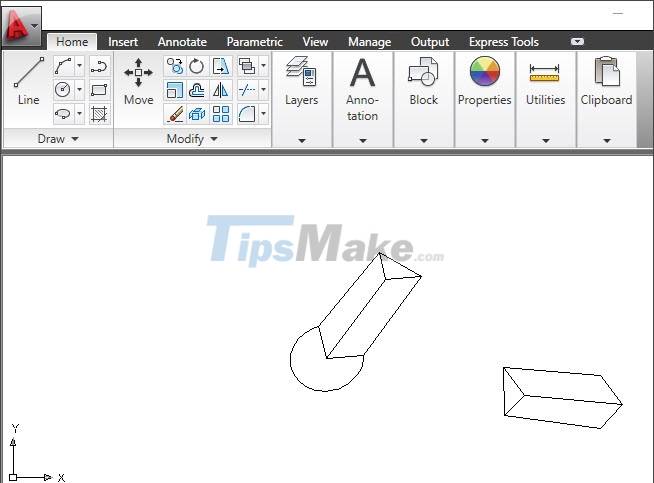

After completing the above steps, you have the copied object with a new position compared to the original.
Steps to use rotation in Cad - How to rotate objects on AutoCAD Picture 14
With the instructions in the article, you can master the rotate command on Cad in a few basic operations. Good luck!
