How to Draw Root Locus of a System

Preliminaries

1. How to Draw Root Locus of a System Picture 1
   Know that the simplest system has an input and an output. System comes between these two. input goes into the system, then becomes altered and then goes out as the desired output. A system is built to create such a desired alteration for the output.
2. How to Draw Root Locus of a System Picture 2
   Show a system by a box. Input goes into it as an arrow and output comes out of it as an arrow.

   1. Whatever system does to the input is called the system function.
      How to Draw Root Locus of a System Picture 3
   2. Before performing that function a system always does one of the three things to its input,
      1. This Root Locus is called 180° Root Locus.
      2. Simply reduces that input. In this case we say the coefficient of amplification is less than one (0 < K < 1).
      3. Simply keep it at the same value. In this case we say the coefficient of amplification is equal to one (K = 1).
      4. Simply increase it. In this case we say the coefficient of amplification is greater than one (K > 1).
   3. Before performing that function a system might make the input inverted, upside-down, and after that it always does one of the three things to its input,
      1. This Root Locus is called 0° Root Locus.
      2. Simply reduces that inverted input. In this case we say the coefficient of amplification is greater than minus one ( – 1 < K < 0).
      3. Simply keep it at the same value. In this case we say the coefficient of amplification is equal to minus one (K = – 1).
      4. Simply increases it. In this case we say the coefficient of amplification is less than minus one (K < – 1).
   4. K is called gain of the system.
   5. A system with the feedback has a path from output into the input and participate and share something from the output into the input.
      How to Draw Root Locus of a System Picture 4
3. How to Draw Root Locus of a System Picture 5
   Remember a system without a feedback in engineering notation is like the one shown in the image.
   Relation of output to input is described as the multiplication of input X(s) by the system function G(s) to result the output Y(s). That is, Y(s) = G(s)X(s).

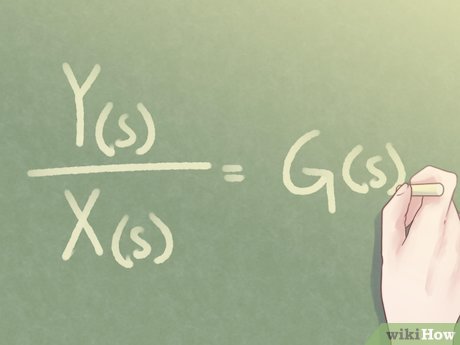

4. How to Draw Root Locus of a System Picture 6
   Manipulate the last result to get (see the image above)
5. How to Draw Root Locus of a System Picture 7

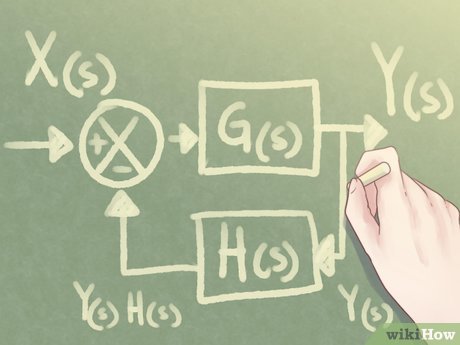

   Show, then, with the same formal notations onwards. Please note that inside the cross (X) there is a plus (+) sign for the input and a minus (–) sign for the feedback.
   Output comes and through a feedback path goes to change the input. When output Y(s) comes out of the feedback it becomes Y(s) times H(s) (that is, Y(s)H(s)) and becomes subtracted from the input X(s).
   Therefore, actually X(s) –Y(s)H(s) goes into the system. X(s) –Y(s)H(s) goes into the system and becomes multiplied by the system function and comes out as (X(s) –Y(s)H(s))G(s). Hence, the output Y(s) is actually,
   Y(s) = (X(s) –Y(s)H(s))G(s)
6. How to Draw Root Locus of a System Picture 8
   Manipulate the last result to get (see the image above)
7. How to Draw Root Locus of a System Picture 9
   Note that the ratio Y(s) / X(s), whatever it is, is called the transfer function.

   1. Transfer function as in Equation 2 is known as the Closed Loop Transfer Function.
   2. Product G(s)H(s) in Equation 2 is known as the Open Loop Transfer Function.
8. How to Draw Root Locus of a System Picture 10

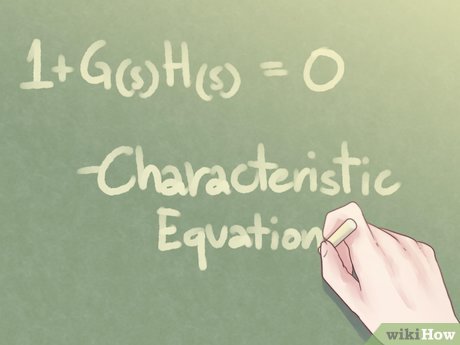

   Keep in mind that you can have an equation, 1 + H(s)G(s) = 0. This equation is called the Characteristic Equation of the system.
9. How to Draw Root Locus of a System Picture 11
   Remember. All the functions discussed, even each of X(s) or Y(s) themselves, are complex rational functions of the complex variable s.
10. Remember also that a complex rational function is the ratio of two complex complex polynomials. For example H(s) = n(s) / d(s).

    How to Draw Root Locus of a System Picture 12
11. How to Draw Root Locus of a System Picture 13
    Compare the ratio Y(s) / X(s) in two systems without feedback and with feedback to see what is the effect of the feedback in a system.

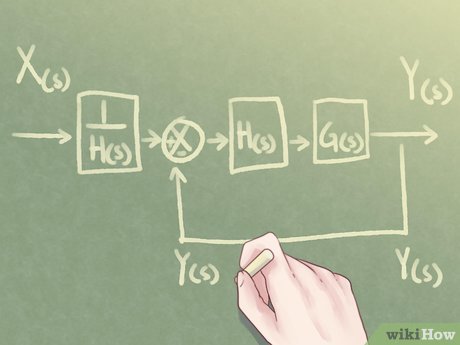

12. How to Draw Root Locus of a System Picture 14
    Do a simple calculation to convince you that the feedback function can be gobbled into the input before the comparison point.
13. How to Draw Root Locus of a System Picture 15

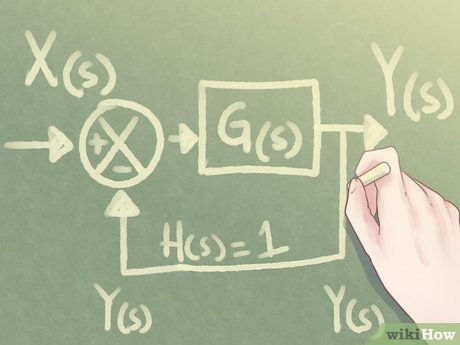

    Observe the simple feedback. Frequently in the feedback loop, the feedback function is unit; that is, H(s) = 1.
14. How to Draw Root Locus of a System Picture 16

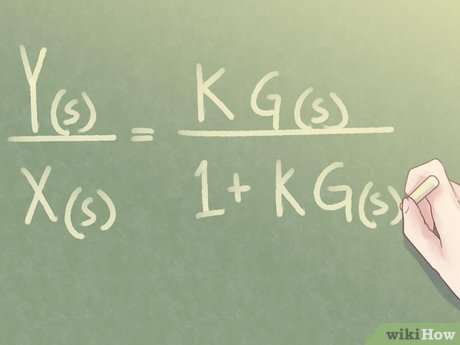

    Write equation 2, then as (see the image above)
15. How to Draw Root Locus of a System Picture 17
    Separate gain K. It is better to separate gain of the system as an independent block. It is correct that now this G(s) is not the same as previous G(s) as its gain K has been removed from it, but it is convenient still to use the same notation for it, as if we had a K block and a G(s) block from the beginning.
16. How to Draw Root Locus of a System Picture 18
    Write, then, equation 3 as (see the image above)
17. How to Draw Root Locus of a System Picture 19
    Note that the denominator determines stability of the system. You like to know when this denominator becomes zero, or approaches zero when gain of the system, K, as a parameter changes. You are interested to inspect 1 + KG(s) = 0. Or G(s) = – 1 / K. Assume K > 0 and then figure out by symmetry what happens if K < 0. For a comprehensive understanding, even the trivial case K = 0 should also be discussed.
18. How to Draw Root Locus of a System Picture 20
    Calculate the magnitude (modulus) and angle (argument) of G(s). Consequently, note that |G(s)| = 1 / K and /G(s) = 180°q; where, q is an odd integer. This symbol /___ shows the angle of a complex function.

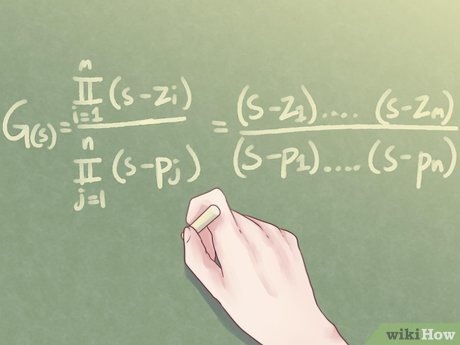

19. How to Draw Root Locus of a System Picture 21
    Remember G(s) is a rational function; that is, equal to a polynomial divided by a polynomial both in the same variable s. Hence,
20. How to Draw Root Locus of a System Picture 22
    Observe that, generally, it is not easy to find roots of a polynomial of degree greater than three or four and write it out in its roots factors, as it is done in Equation 5. This is one hurdle in drawing the Root Locus. Anyway, for now, it is assumed that such a factorization is known. Thus, for a polynomial of degree n we have n complex roots r_i
21. How to Draw Root Locus of a System Picture 23
    Begin from the simplest system. The characteristic equation turns to be s + K = 0. Changing K from 0 upward changes s from 0 to – _∞ downward.
22. How to Draw Root Locus of a System Picture 24
    Remember. From high school you had questions such as to determine a parameter β such that a quadratic equation x² + x + β = 0 has two equal roots; such or similar questions. That was a basic Root Locus problem parametrized with β. You knew you should calculate discriminant and put it equal to zero to meet the prescribed condition : Δ = 1 - 4β = 0 and hence β = 1 / 4.
23. How to Draw Root Locus of a System Picture 25
    Solve a similar Root Locus for the control system depicted in the feedback loop here. Instead of discriminant, the characteristic function will be investigated; that is 1 + K (1 / s(s + 1) = 0. A manipulation of this equation concludes to the s² + s + K = 0.
24. How to Draw Root Locus of a System Picture 26
    Ask questions regarding K.
25. How to Draw Root Locus of a System Picture 27
    Begin from K = 0. You have two real roots s = 0 and s = – 1, since characteristic equation is s² + s = 0.
26. How to Draw Root Locus of a System Picture 28
    Increase K. You have still two real roots, until K = 1 / 4, where two roots will be equal; that is s₁ = s₂ = – 1 / 2.
27. How to Draw Root Locus of a System Picture 29
    Increase K > 1 / 4. Discriminant will be negative. You have two imaginary roots as complex conjugate to each other. But the real value of both roots remain the same and equal to – 1 / 2. Increasing K has no effect whatever on this; only imaginary parts will become larger. The Root Locus is drawn in heavy lines.

    1. There are two roots for this quadratic polynomial and definitely they join in one point on the real line for certain value of parameter K that makes discriminant equal to zero and creates a repeated root.
    2. The portion of the real line between these two roots is part of the Root Locus
    3. This point is called σ-point or branching point of the asymptotes of the Root Locus.
    4. Up to this value of K system damps without overshoot-undershoot (does not quiver before stopping).
    5. At K = 1 / 4 system damps critically.
    6. After that, increasing K only increases the imaginary part of the created conjugate roots.
    7. That makes the branching of the root locus perpendicular to real line.
    8. Theoretically, all along this line system damps but with tremors. Practically, increasing gain can make the system unstable. Tremors might become so persistent that trigger unwanted frequencies in the system which in turn rapture the system beyond its material strength. For example, small cracks reach to catastrophic points or dynamic fatigue work it out. Always designers devise for prevention of unlimited increase of K.
28. How to Draw Root Locus of a System Picture 30
    Know the meaning of things happening in complex plane. Any arbitrary point in the complex plane can be shown by a vector, which has a length and an angle with respect to the real line.

    1. – r is the root of s + r = 0
    2. s is said to be the test point for evaluating – r.
    3. Any selection of s over the real line is called a real-line evaluation of – r.
29. How to Draw Root Locus of a System Picture 31
    Note that the complex plane is not like the real line.

    1. On the real line you are confined in the intervals. An integral has just two end points to be evaluated.
    2. On the complex plane you cannot roam everywhere. In contrast, you have to select a region to confine your evaluations. Even that is too much. You confine your evaluations only to be done on a certain curve or certain (usually simple) paths.

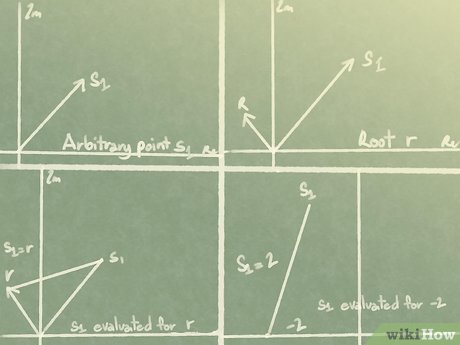

30. How to Draw Root Locus of a System Picture 32
    Evaluate arbitrary test point s₁ with respect to the root of polynomial s + 2 = 0. It is a vector from the tip of s₁ to the tip of r.
31. How to Draw Root Locus of a System Picture 33
    Assume you have certain number of the real roots on the real line. Ask which part of the real line falls on the root locus when the gain k varies from zero to plus infinity.

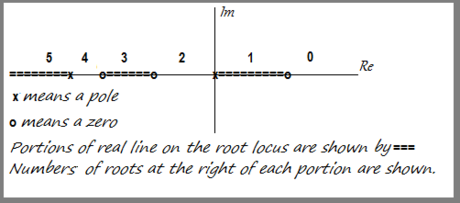

    1. Select any point on the real line if the number of the real roots (zeros and poles) at the right hand side of that root is an odd number (1, 3, 5, ...) then that portion of the real line is also on the Root Locus.
       How to Draw Root Locus of a System Picture 34
    2. In the simple Integrator all points on the negative part of the real line have only one root at the right side. Hence, all the negative real line is on the Root Locus.
    3. In the Motor Control System only those points of the real line between s = 0 and s = – 1 have odd number of roots at the right side. Hence, only the portion between s = 0 and s = – 1 is on the Root Locus.
32. How to Draw Root Locus of a System Picture 35
    Remember the characteristic function for the general feedback loop was 1 + G(s)H(s) = 0. Remove gain K wherever it is, as a separate parameter and write the characteristic equation as 1 + K F(s) = 0, where F(s) is a rational function; that is, F(s) = N(s) / D(s). Both N(s) and D(s) are polynomials.

    1. Roots of N(s), that is, zeros of F(s) is polynomial of degree m.
    2. Roots of D(s), that is, poles of F(s) is polynomial of degree n.
    3. Characteristic function for the simple Integrator is 1 + K / s = 0.
       1. F(s) = 1 / s.
    4. Characteristic function for the Motor Control System is 1 + K / s (1 + s) = 0.
       1. F(s) = 1 / s (1 + s).
33. How to Draw Root Locus of a System Picture 36
    Recognise a proper system. In a proper system m < n. number of zeros are strictly less than number of poles. That is, system does not kick back or tolerates infinite transitions.
34. How to Draw Root Locus of a System Picture 37
    Know the meaning of branches. Branches are paths that roots of the characteristic function create when the value of the gain K varies from zero to infinity. Each value of K gives a new characteristic function with different roots.

    1. If you want to put different values of K into the characteristic equation and solve the polynomials to get the roots either you have to use a computer or use graphical methods such as the Root Locus to sketch the solutions.
