Instructions on How to Share Files in Windows 10 LAN

Brief concept of LAN

LAN - Local Area Network is a local computer network or a network system that helps users connect 2 or more computers in a small area. Computers in the LAN can share resources with each other such as files, printers, scanners. LAN is often used in agencies, schools, companies.

Things to prepare before sharing files

Turn off firewall (Windows Firewall)

Step 1:  Access  Control Panel  on your computer.

Instructions on How to Share Files in Windows 10 LAN Picture 1

  1. Click on  System and Security .

Instructions on How to Share Files in Windows 10 LAN Picture 2

  1. Select  Windows Defender Firewall

Instructions on How to Share Files in Windows 10 LAN Picture 3

Step 2: In the Windows Defender Firewall  window  , click  Turn Windows Defender Firewall  on or off  in the  Control Panel Home column  on the left to start setting up to turn off the Windows 10 firewall for your computer.

Instructions on How to Share Files in Windows 10 LAN Picture 4

Step 3:  Customize the option to enable or disable the Windows 10 firewall at  Customize Settings

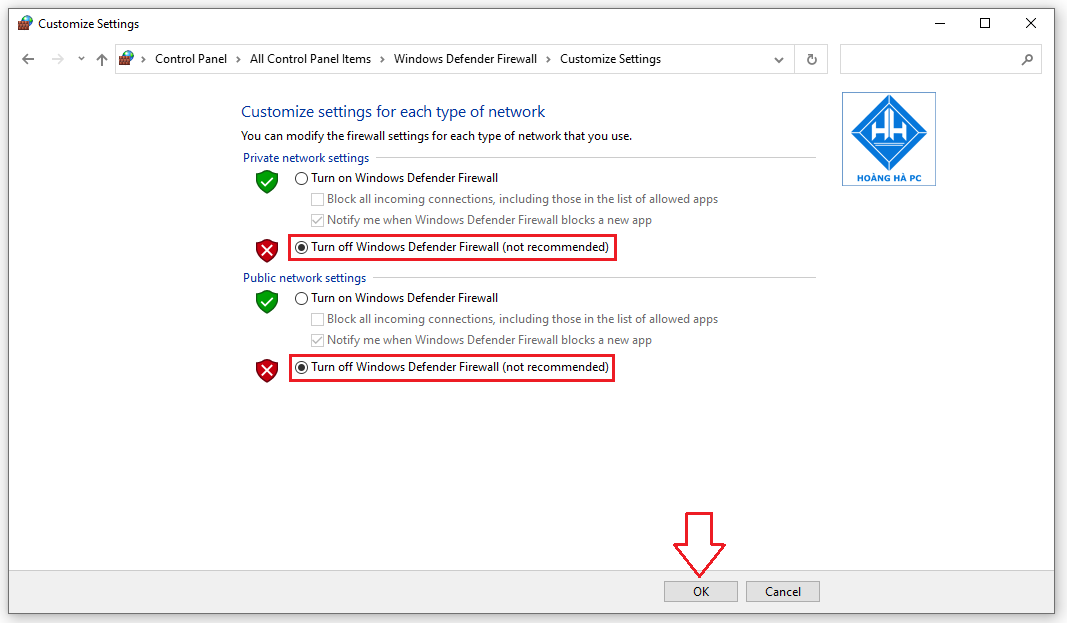

If you want to turn off the firewall, click the  Turn off Windows Defender Firewall box  in both  Private network settings  and  Public network settings  as shown below.

Instructions on How to Share Files in Windows 10 LAN Picture 5

In case you want to restore the firewall for your computer, perform the same operations above and select  Turn on Windows Defender Firewall  in both  Private network setting  and  Public network settings .

  1. Once selected, click  OK  to save the changes.

Step 4:  When the process of turning off your Windows 10 firewall is complete, you will see the  Windows Defender Firewall interface  displayed as follows:

Instructions on How to Share Files in Windows 10 LAN Picture 6

Check if the machines are connected

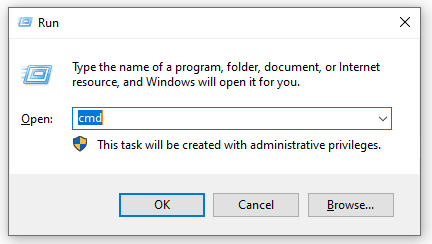

Step 1: Open the Run dialog box using the Windows + R key combination , then type cmd and press OK .

Instructions on How to Share Files in Windows 10 LAN Picture 7

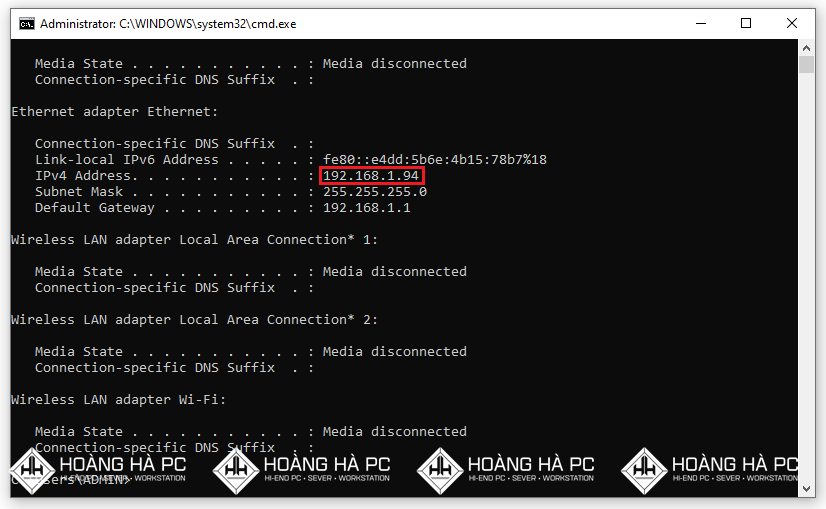

Step 2: Next, type the command ipconfig to see the computer's IP address. The IP address usually starts with the line IPv4 Address .

Instructions on How to Share Files in Windows 10 LAN Picture 8

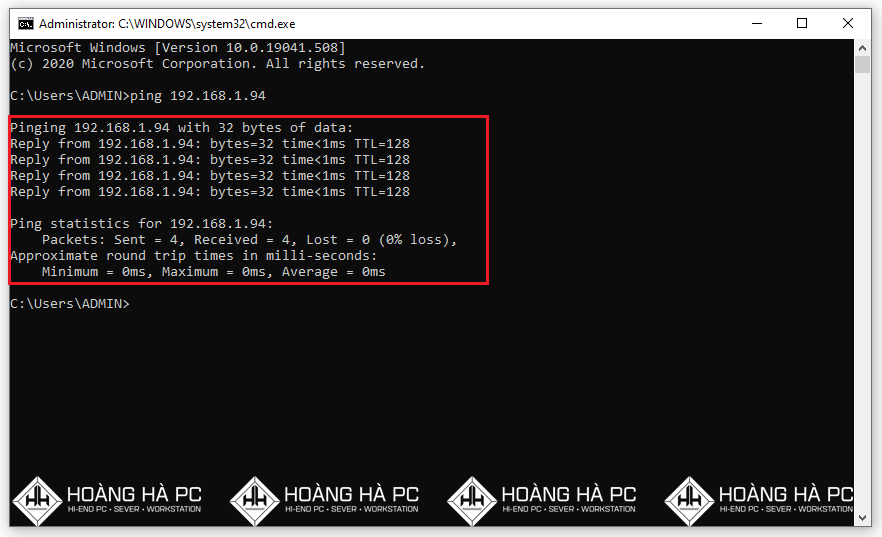

Step 3: Do the same with the computer you want to share files with to check the IP address, enter the command '' ping the IP address of the computer you want to access -t ''.

Instructions on How to Share Files in Windows 10 LAN Picture 9

Step 4: If the computers are not connected, change to the same WORKGROUP or MSHOME . By the following method:

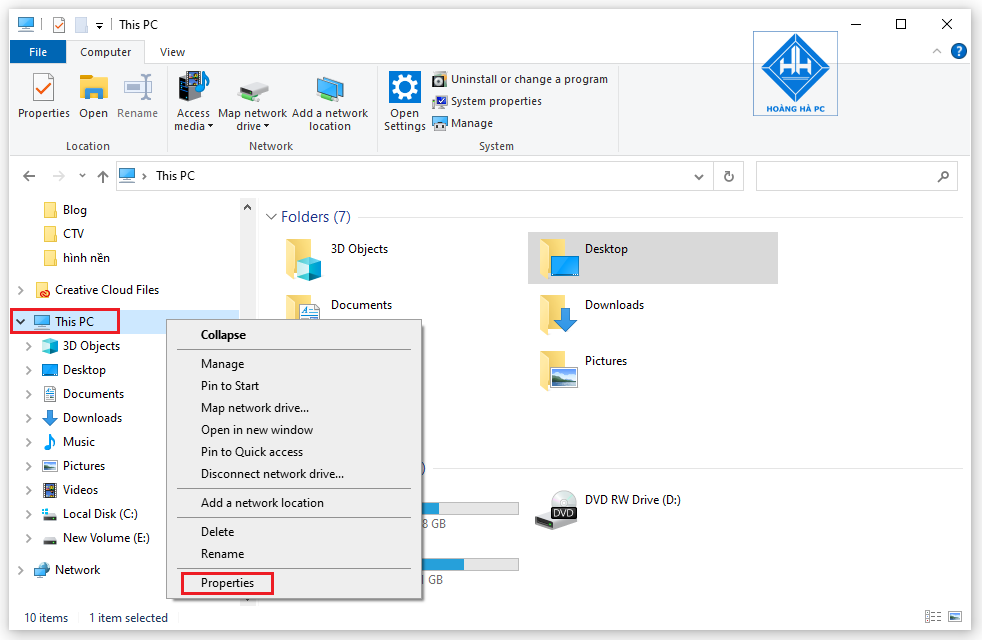

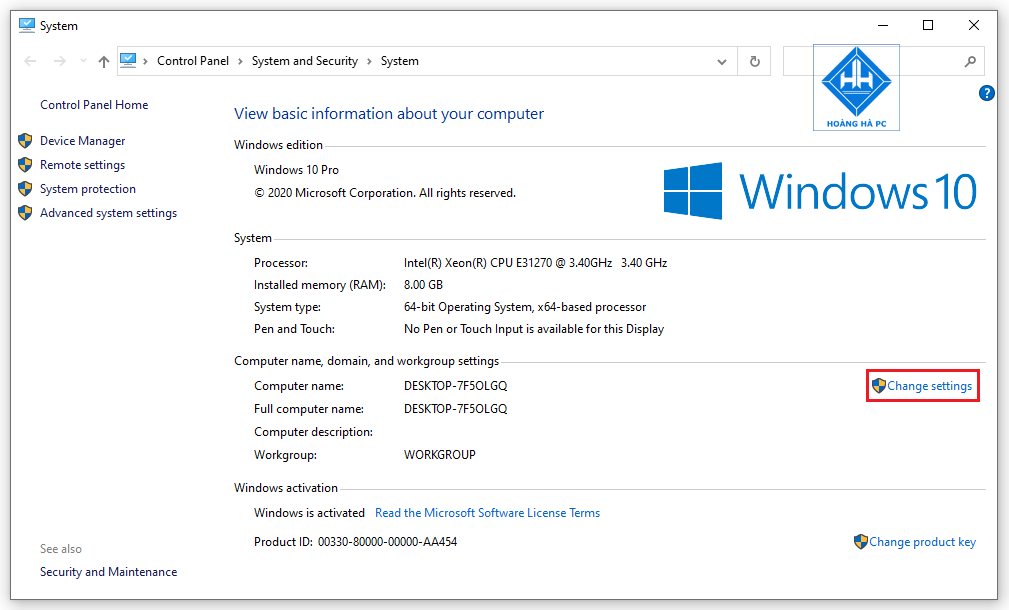

  1. Right click on Computer (this PC) => select Properties => Change settings .

Instructions on How to Share Files in Windows 10 LAN Picture 10

Instructions on How to Share Files in Windows 10 LAN Picture 11

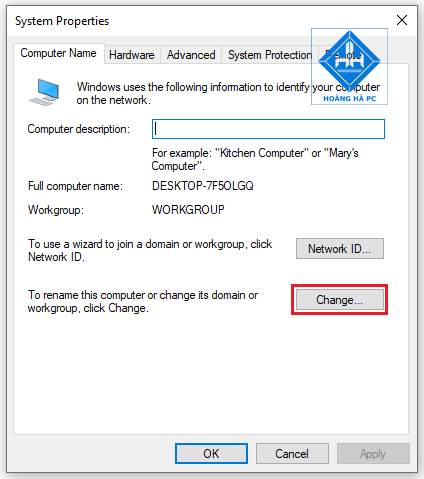

  1. In the next window click '' Change ''

Instructions on How to Share Files in Windows 10 LAN Picture 12

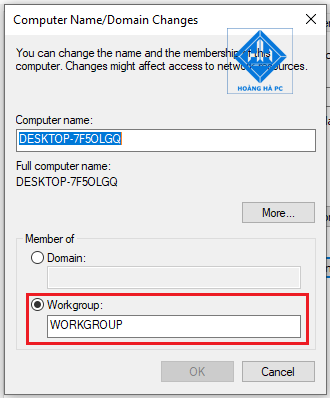

  1. Select '' WORKGROUP '' => OK .

Instructions on How to Share Files in Windows 10 LAN Picture 13

Setup to enter LAN

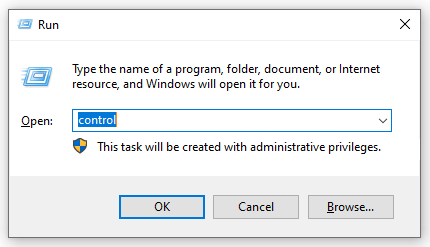

Step 1: Press the key combination '' Windows + R '' to open the Run dialog box , enter the command Control then press Enter to access Control Panel .

Instructions on How to Share Files in Windows 10 LAN Picture 14

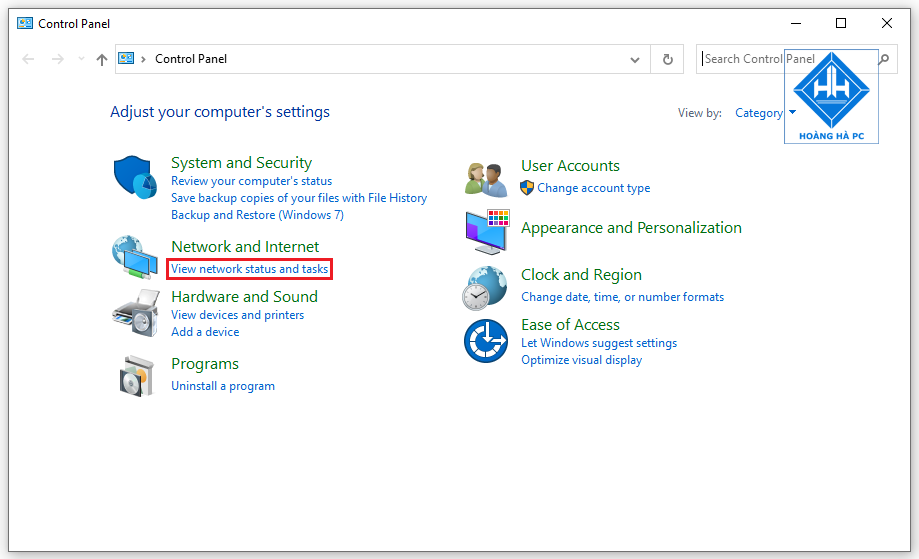

  1. Then click View  Network status and tasks

Instructions on How to Share Files in Windows 10 LAN Picture 15

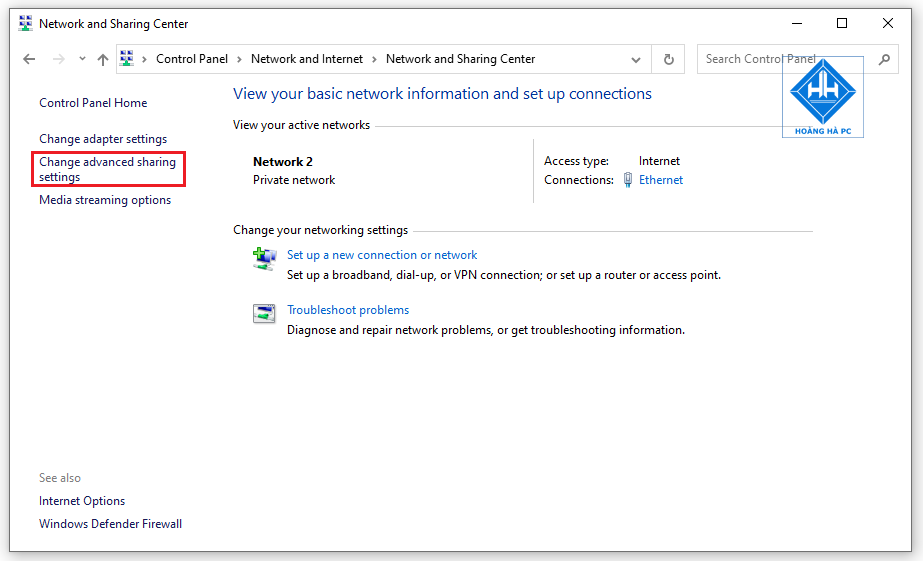

  1. Then click on the Change advanced sharing settings option .

Instructions on How to Share Files in Windows 10 LAN Picture 16

Step 2: Please select the items according to the following instructions:

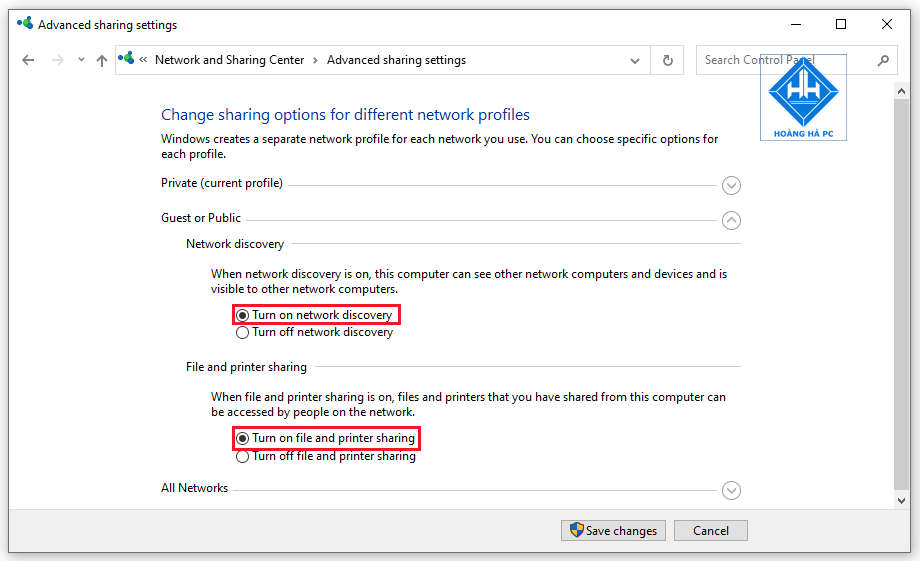

  1. Click on   Guest or  Public.  In the Network discovery section , select: Turn on network discovery .
  2. In the " File and printer sharing " section: click "Turn on file and printer sharing " to enable sharing and printing.

Instructions on How to Share Files in Windows 10 LAN Picture 17

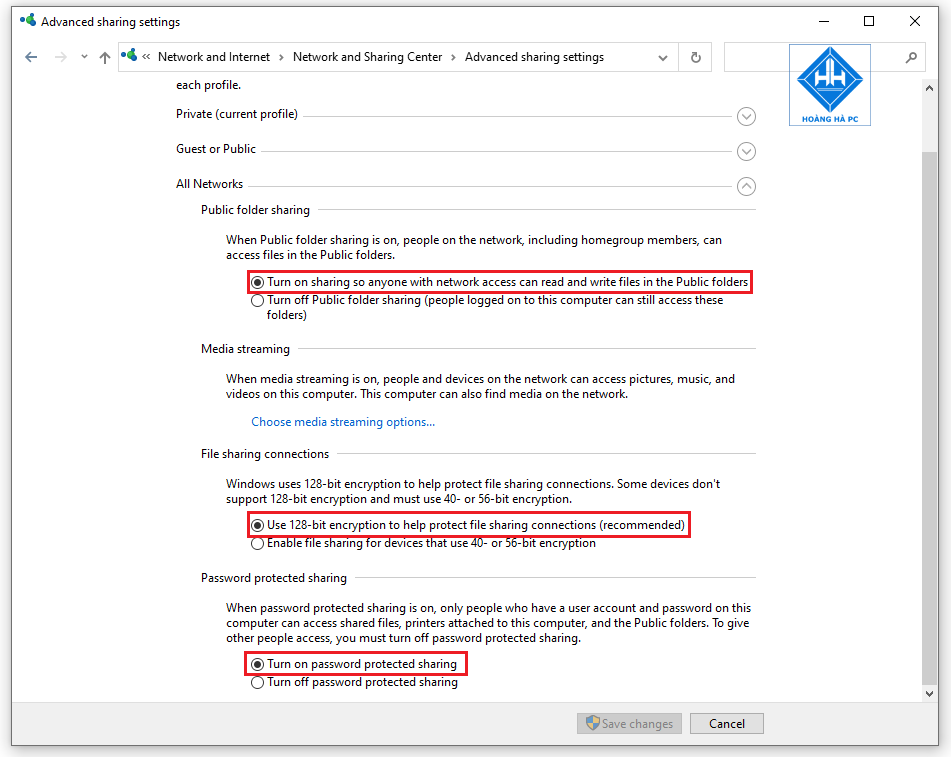

  1. In the '' Public folder sharing '' section: select '' Turn on sharing so anyone with network access can read and write files in the Public folders '' so that everyone can access and edit the files.
  2. '' File sharing connections '': select '' Use 128-bit encryption to help protect file sharing connections (recommended) '' to help protect file sharing connections
  3. '' Password protected sharing '': select '' Turn off passwords protected sharing '' to turn off password protected sharing.

Instructions on How to Share Files in Windows 10 LAN Picture 18

Instructions on how to quickly share files in a Win 10 LAN network.

Share hard drive

To share files in LAN win 10, please follow these steps:

Step 1: Right-click on the hard drive you want to share, then select Properties .

Instructions on How to Share Files in Windows 10 LAN Picture 19

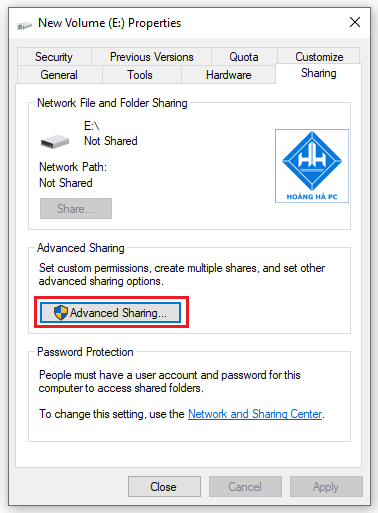

Step 2: Click on the Sharing tab , select the Advanced Sharing box

Instructions on How to Share Files in Windows 10 LAN Picture 20

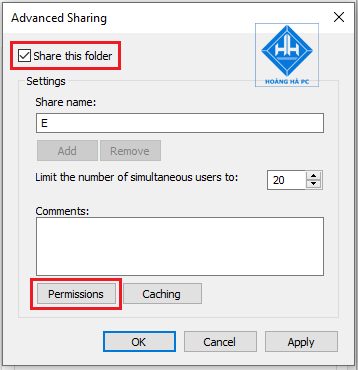

  1. Check the box Share this folder and then select Permissions .

Instructions on How to Share Files in Windows 10 LAN Picture 21

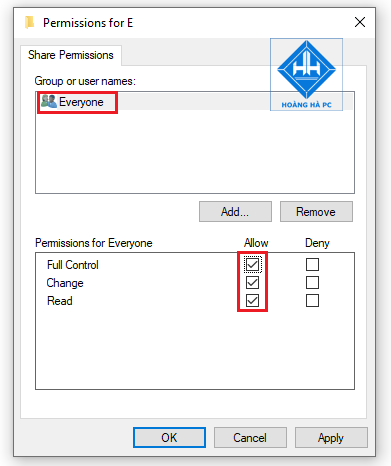

Step 3: Select Everyone for full control , change, read . Select OK to complete!

Instructions on How to Share Files in Windows 10 LAN Picture 22

How to share files in LAN win 10

Sharing a File or Folder is very simple by following these steps:

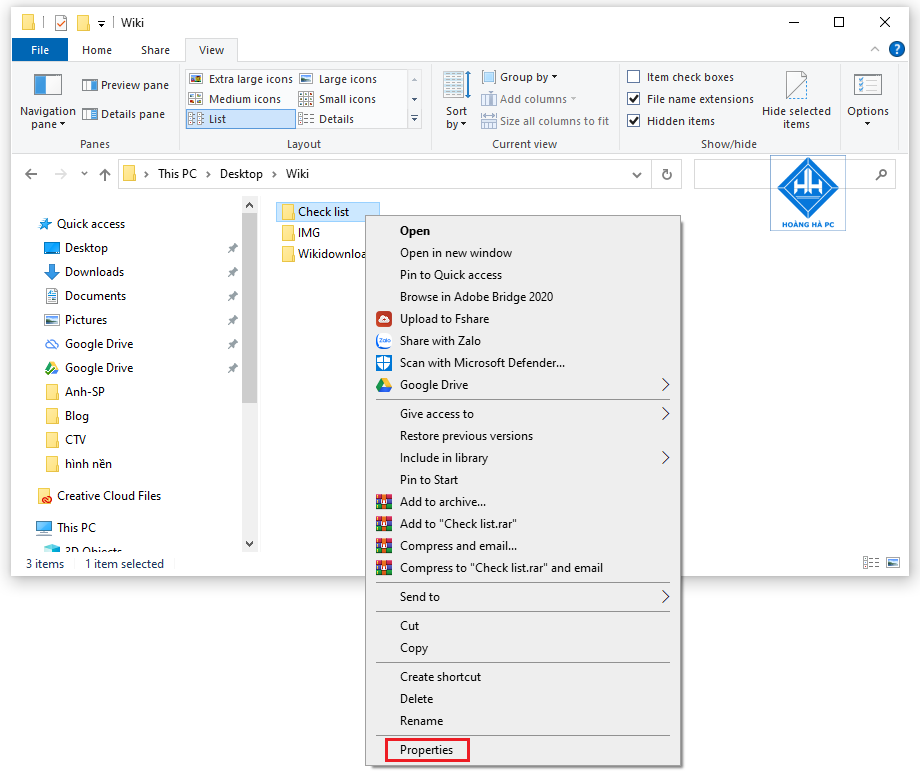

Step 1: First, right-click on the folder you want to share, then click Properties

Instructions on How to Share Files in Windows 10 LAN Picture 23

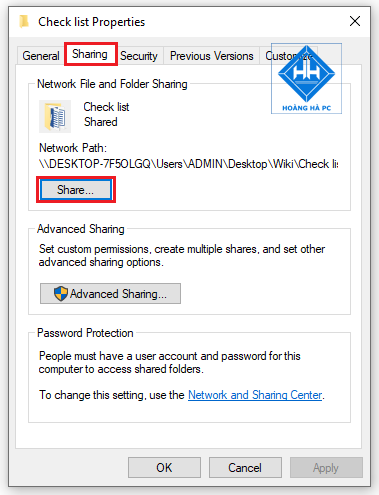

Step 2: The Sharing Properties window appears and on that window. Click on the Sharing tab . Then, under Network file and Folder Sharing , continue to click on Share .

Instructions on How to Share Files in Windows 10 LAN Picture 24

Step 3: In this step, you will enter the name of the person you want to share the folder with . Next, after adding the name to the sharing list, click Share .

Instructions on How to Share Files in Windows 10 LAN Picture 25

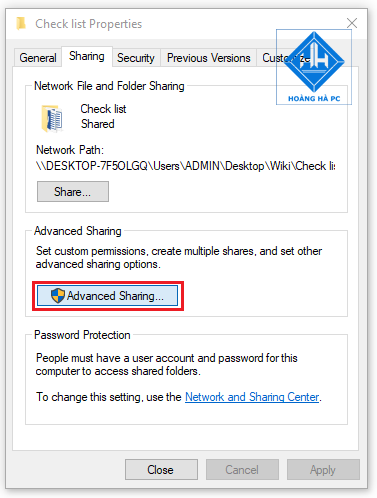

Step 4: If you want to control the folder permissions during the sharing process. Click Advanced Sharing on the Share Properties window.

Instructions on How to Share Files in Windows 10 LAN Picture 26

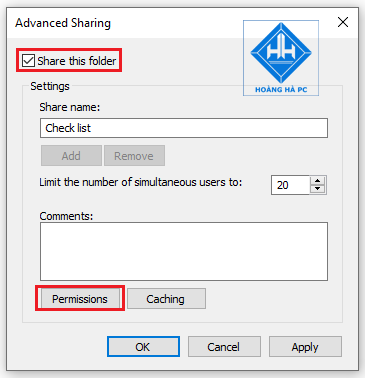

Step 5: Check the Share this folder option and click Permissions .

Instructions on How to Share Files in Windows 10 LAN Picture 27

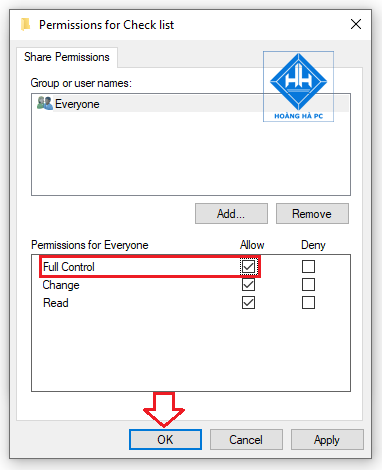

Step 6: Next, check the box to select Full Control , then click OK .

Instructions on How to Share Files in Windows 10 LAN Picture 28

Please edit the permissions in the Security tab to provide full control over the folder during sharing!

If the Security setup is unchanged, there will be at least one visitor in Sharing and Security will be considered during the sharing process.

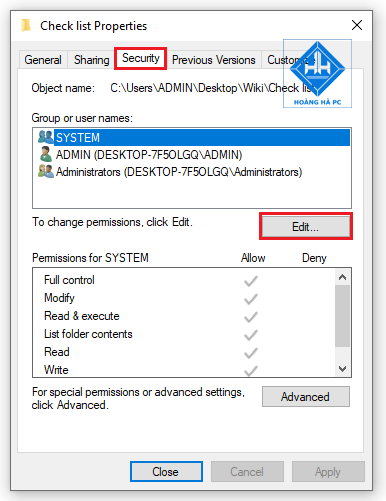

Step 7:  Click on the Security tab . To change permissions, click Edit .

Instructions on How to Share Files in Windows 10 LAN Picture 29

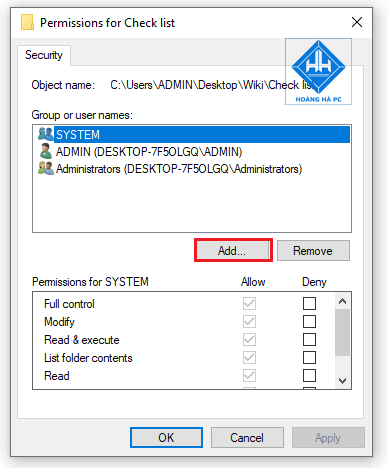

Step 8: Click Add .

Instructions on How to Share Files in Windows 10 LAN Picture 30

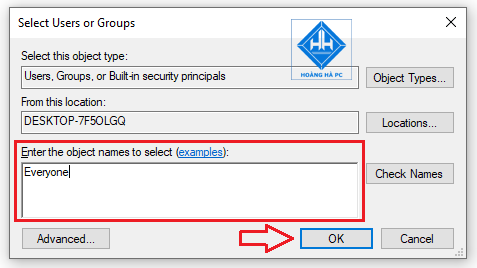

Step 9: Enter Everyone in the Enter the object names to select box and then click OK .

Instructions on How to Share Files in Windows 10 LAN Picture 31

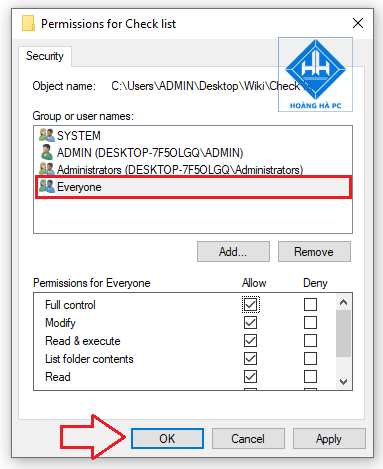

Step 10: Next, in the Username section , click Everyone . Then check the box to select Full Control .

  1. Finally, click OK to complete the entire process.

Instructions on How to Share Files in Windows 10 LAN Picture 32

How to fix errors in file sharing process in Win 10 Lan network

Some errors may occur when sharing files in a LAN network on Windows 10, such as not being able to access a computer in the LAN or requiring a password in the LAN or an error due to the firewall of the antivirus software. Here are some ways to help you fix it.

Cannot access computer in LAN

When the computer displays '' you do not permission to access … Contact your network administrator to request access. Right-click on the drive or folder you shared and select the items in turn: Properties => Security => Edit => Add => Advanced => Find now => Everyone => OK => OK => OK. So you have fixed the error of not being able to access the computer in the LAN network.

Require password in LAN

Select the following items in turn to fix it: Control Panel => Network and Sharing Center => Change advanced and sharing setting => Turn off password protected sharing.

Error due to anti-virus software firewall.

This is also a common error that makes sharing files in LAN win 10 impossible when the firewall does not allow access to other computers in the LAN. Exit the antivirus software and check again.
