What is a MAC address? How does it work in conjunction with an IP address?

If you want to send a letter, you need the recipient's address. The address is the identifier that tells the postman where to send the letter, so the address must be unique. Two houses cannot have the same address, otherwise there will be confusion.

The Internet works in a similar way to the postal service. Instead of sending letters, devices send 'data packets', and the IP address or MAC address determines where those data packets will go. Today's article will talk about how these two addresses work together.

What is an IP address?

An IP (Internet Protocol) address is a numerical identifier for a piece of network hardware. Devices on a network have unique IP addresses, similar to home or business addresses. Devices use IP addresses to communicate with each other over a network.

TipsMake has a long article about IP addresses, for more details, please read the article: What is an IP address?

What is a MAC address? How does it work in conjunction with an IP address? Picture 1

What is MAC address?

A MAC address uniquely identifies a "network interface" in a device. While IP addresses are assigned by the ISP and can be reassigned when a device connects or disconnects, MAC addresses are tied to the physical adapter and are assigned by the manufacturer.

A MAC address is a string of 12 digits, where each digit can be any number from 0 to 9 or a letter from A to F. For readability, the string is divided into blocks. There are three common formats, the first of which is the most common and preferred:

1. 68:7F:74:12:34:56
2. 68-7F-74-12-34-56
3. 687.F74.123.456

The first 6 digits (called the 'prefix') represent the adapter manufacturer, while the last 6 digits represent a unique identifier for that particular adapter. The MAC address does not contain information about which network the device is connected to.

How do IP addresses and MAC addresses work together?

Bridge between MAC address and IP address: ARP

Although MAC addresses and IP addresses have many differences, they do not operate independently of each other. The Address Resolution Protocol (ARP) is the bridge that connects them. This protocol operates between Layer 2 and Layer 3 on a local area network (LAN). It maps IPv4 addresses to the MAC addresses of network devices and vice versa.

Note : IPv4 uses the ARP protocol. On newer IPv6 networks, the Neighbor Discovery Protocol provides equivalent functionality.

Here's how it works: A device wants to communicate with another device on a local network segment. It puts its request with both the source IP address and the destination IP address in an IP packet. An Ethernet frame then encapsulates the IP packet. This frame contains both the source and destination MAC addresses. But sometimes the destination device's MAC address is unknown.

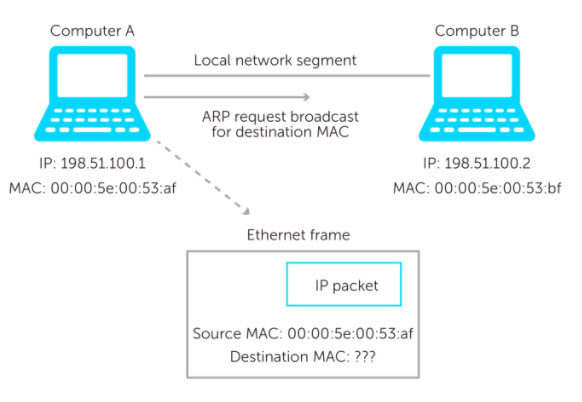

Example of computer A and computer B

Computer A wants to send an IP packet to computer B. But it does not know the MAC address of computer B. Computer A then broadcasts an ARP request which is received by all computers in the local network segment.

Basically, the request says: 'Here is my IP address. Here is my MAC address. And I'm looking for the MAC address associated with this IP address. If this IP address is yours, please respond and give me your MAC address'.

What is a MAC address? How does it work in conjunction with an IP address? Picture 2

Computer B receives the ARP request and will do two things.

First, every device has its own ARP table. Whenever a computer wants to send a packet on a LAN, it will first look in its ARP table. If an entry for Computer A does not already exist in the Computer B table, it will create a new entry. Computer A's MAC and IP addresses will be added based on what is in the frame.

An ARP response with the IP address and MAC address will then be sent. Computer A will receive the response and add the information to its ARP table. With the matching MAC address, Computer A can now send an Ethernet frame to Computer B.

It is important to note that, although the IP address is easy for anyone to look up, the MAC address is not easy for others to find. When an IP packet leaves your LAN and passes through a router, its header with the MAC address is stripped away. Therefore, anyone outside the LAN will never see your MAC in the IP packet (unless an application sends it as data).

The main difference between MAC address and IP address

MAC address is permanent, IP address is dynamic

Because they are assigned to the NIC or other hardware, MAC addresses never change themselves (but many network interfaces support MAC address changing). On the other hand, many IP addresses are dynamic, changing periodically based on time or characteristics of the network setup.

Each address has a unique address structure.

A MAC address is a 48-bit hexadecimal address. It is typically made up of six sets of two digits or characters, separated by colons. An example MAC address would look like this: 00:00:5e:00:53:af.

Many network card and other hardware manufacturers use a similar string at the beginning of the MAC address of their products. This is called an organizationally unique identifier (OUI). The OUI is usually the first 3 bytes of a number or character. The IEEE (Institute of Electrical and Electronics Engineers) manages the OUIs for manufacturers.

Meanwhile, an IPv4 address is a 32-bit integer represented in hexadecimal notation. A more common format, known as dotted quad or dotted decimal, is xxxx, where each x can be any value between 0 and 255. For example, 192.0.2.146 is a valid IPv4 address.

Lies in different layers of the OSI model

MAC addresses and IP addresses also exist in different layers of the Open Systems Interconnection (OSI) model. The OSI model is a conceptual framework that uses seven abstract layers to describe all the functions of a telecommunications system. In the OSI model, the MAC sublayer of the data link layer (Layer 2) implements MAC addresses. Whereas, an IP address operates in the network layer (Layer 3) of the model.

Weaknesses of IP addresses and MAC addresses

Remember how an IP address represents a device's connection to an ISP? What if a second device connects to the primary device and channels all web activity through that device? To the rest of the web, the second device's activity appears to be the primary device.

This is how you hide your IP address from others. While there is nothing wrong with doing this, it can lead to security issues. For example, a malicious hacker hiding behind some proxy can make it very difficult for the authorities to track him down.

Another risk is that IP addresses can be traced. You would be surprised what someone can do with just your IP address.

And there's also the potential problem of IP conflicts, where two or more devices share the same IP address. This mostly happens within a local network, but with the growing shortage of IPv4 addresses, it could soon spread across the entire Internet.

As for MAC addresses, there's really only one problem you need to be aware of: It's very easy to change a device's MAC address. This defeats the purpose of a unique manufacturer-assigned identifier, as anyone can 'spoof' someone else's MAC address. It also makes features like MAC filtering almost useless.

Regardless, IP addresses and MAC addresses are useful and important, so they aren't going away anytime soon. Hopefully now you understand what they are, how they work, and why you need them.

If you have any questions or if you have any other tips or explanations, please share them with us in the comments section below!
