Simple instructions on how to use Modem H646EW

Modem H646EW is an important electronic device that helps people use the internet effectively. So how to use this device, what features does it have? Let's find out the details with TipsMake in the article below!

Introduction to H646EW modem

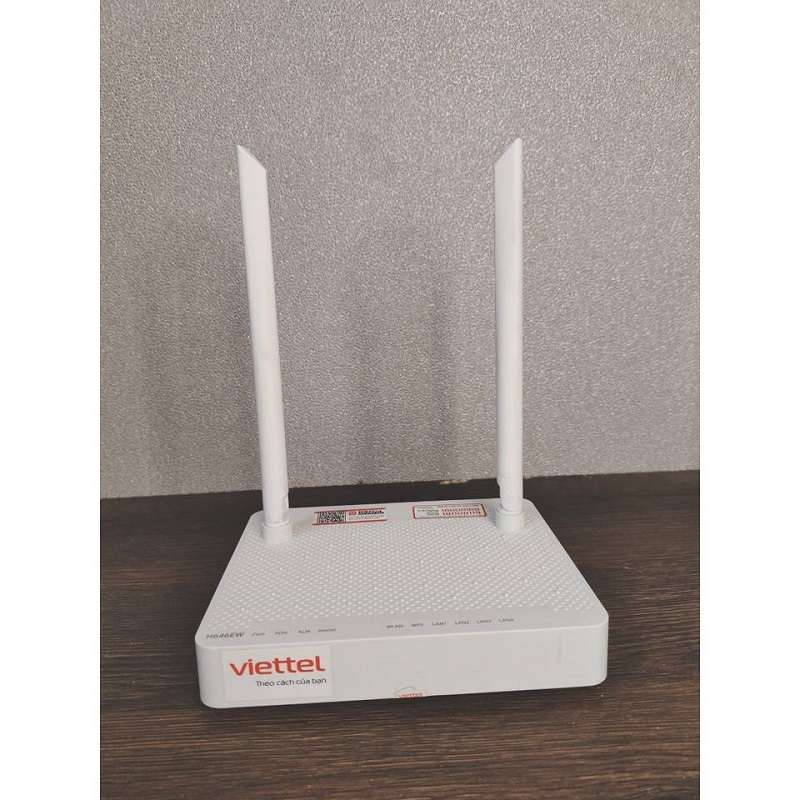

Simple instructions on how to use Modem H646EW Picture 1

Modem H646EW is a single-band modem commonly used in the network and telecommunications sector of Viettel Group. The device is designed to provide stable and high-performance network connections in homes and businesses. This is a modem that is highly appreciated for its diverse connectivity and many features.

This device is often used as a secondary wifi router to broadcast wifi, with many connection ports allowing connection to many different devices at the same time. This has created flexibility for the device, facilitating the management and sharing of internet access resources more effectively.

Currently, the H646EW modem and the H646GM-V dual-band modem of Viettel Group are being used quite popularly. These are modems that have the ability to transmit wifi smoothly and have affordable prices.

Viettel H646EW modem configuration

Similar to the H646GM-V modem, the Viettel H646EW modem has a fairly simple configuration that is easy to perform with the basic steps below:

Step 1: Boot the H646EW modem to default configuration

Turn on the modem and device, wait until all 4 lights are on, then reset. Use a toothpick to press the reset button (the reset button is on the side of the device), hold it for about 10 seconds then release it, at this time all the lights will turn off and the modem will restart.

Step 2:  Next, open your phone or computer and access the 'wifi' section, select the wifi name, then connect to the wifi and enter the password located on the back of the device.

Step 3 : Change wifi name and password

Viettel H646EW Modem displays all information on the interface just logged in, making it easy for users to use.

In wifi setting section:

1. Enter the wifi name you want to set in the SSID field
2. Enter the password you want to change in the password field.
3. Click submit to save all changes.

Step 4 : Configure modem H464EW into wifi transmitter

Next, to configure the H464EW modem as a Wifi transmitter, do the following:

On the Viettel configuration screen interface, go to Advanced Setup, here select Network -> select LAN -> here you will see the IP address is 192.168.1.1. Then enter the new IP address 192.168.1.15, or any number instead of the last 1 in the IP address, as long as it is between 2 and 254.

In the DHCP server section, select Disable. Finally, click Apply to save the configuration.

Simple instructions to open Viettel H646EW modem port

Opening the modem port allows data to pass through network devices such as modems and wifi routers to ensure download and upload speeds for some software and applications. To open the modem port of any modem, users also need to prepare the following elements:

1. Determine the IP address of the recorder and the ports that need to be opened.
2. Determine the IP of the modem
3. The computer or phone and the camera receiver must be connected to the internet of the modem that is about to open the port.

Next, TipsMake will go into detail on how to open the Viettel H646EW modem port  according to the steps below:

Step 1: Log in to Viettel modem

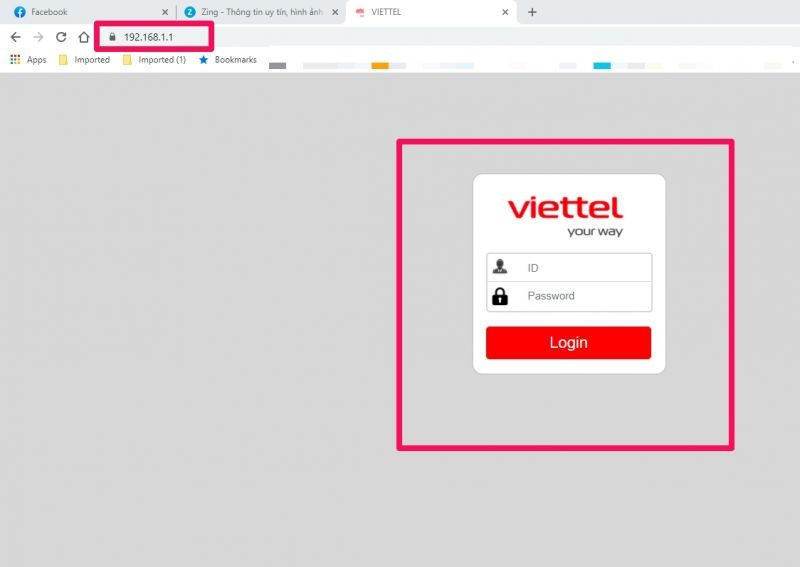

Simple instructions on how to use Modem H646EW Picture 2

Log in to the modem by opening Viettel's web browser http://192.168.1.1 , the modem interface will appear and ask for login. The default IP name and password are usually written on the back of the modem.

Step 2: Open port on Viettel H646EW modem

After completing the login to the main interface on the modem, on the screen, select Firewall Setup, then select NAT, then select Port Forwarding and proceed to fill in the information of the port to open.

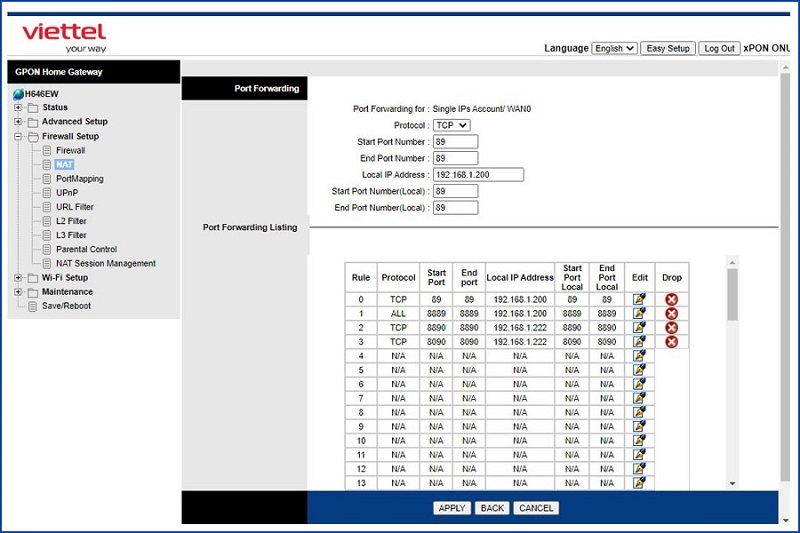

Simple instructions on how to use Modem H646EW Picture 3

In there

1. Protocol: Select TCL or you can select All or UDP
2. Start Port Number: Enter the port you want to open
3. End Port Number: Enter the port to open
4. Local IP Address: IP address of the device (camera, recorder)
5. Start Port Number (local): Enter the port to open
6. End Port Number (local): Enter the port to open

Then press Apply to add port

Step 3: Check if the port is open or not

After completing the port opening operation, the user needs to check whether his port is open or not. Go to ping.eu and select Port Check. At this time, the browser will redirect the page. Here you need to do some operations to check whether the nat port of the Viettel H646EW modem  has been opened or not.

1. Click on the text Your IP is
2. At IP Address or host name will appear exactly that series of numbers
3. In the Port Number box, enter the opened port and click Go.

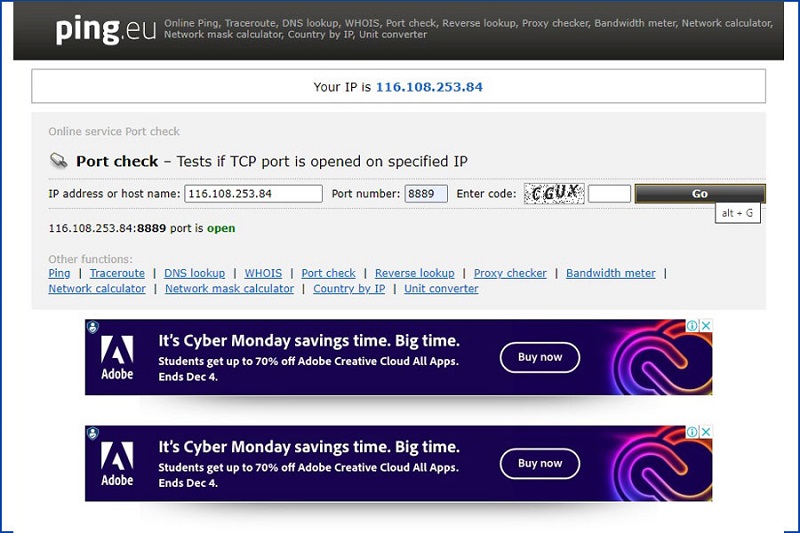

Simple instructions on how to use Modem H646EW Picture 4

If the result is displayed as shown in the picture, it means that the nat port of Viettel H646EW modem  has been successfully opened.

Above are TipsMake's shares about the H646EW modem , hope it will be useful for everyone. At the same time, when you have questions and need to use the best modems today. Please contact TipsMake immediately via hotline 1900 1063 to receive more detailed support advice.
