Corel Draw: Use the photo corner effect in Corel Draw

About photo editing, Corel Draw is not in Photoshop. But Corel can also create a lot of effects when editing bitmap images similar to Photoshop and still equally effective!

However, you should note that Corel only creates drawing objects as vector images, so if you want to use the effects of bitmap images you must convert them to bitmap with the Bitmaps command> Convert to bitmap . Please try, the photo corner effect with Corel Draw.

At Corel's working interface, click the Import button or go to File > Import , select an image of any format (available on your computer) and then click the Import button. To fit the image into the Corel screen in a balanced manner with the original image as well as being aligned in the Corel screen, press the Enter button.

Click to select the image, go to Bitmaps > 3D Effects > Page Curl .

Figure 1

The Page Curl dialog box opens, indicating that you will choose to bend the image at any corner through the 4 left middle icons.Direction area allows you to choose the direction of bending angle in the direction of straight up ( Vertical ) or horizontal ( Horizontal ). In the Paper area, you can give your flip angle opaque ( Opaque ) or ( Transparent ). The Color area shows you the color of the flip angle ( Curl ) and the color of the background ( Background ) by selecting the color in the 2 color cells. The two Width% and Height% sliders below allow you to set parameters to 'flip' the corners of the image. If you extend the angle of the corner of the image, it is the percentage value of the width. Height is the value from the top of the flip angle when it has not turned to the corner of the flip. Also, if you want to find the same color as one of the main colors, use the Eyedropper tool located next to the 2 color boxes to select (see Figure 1).

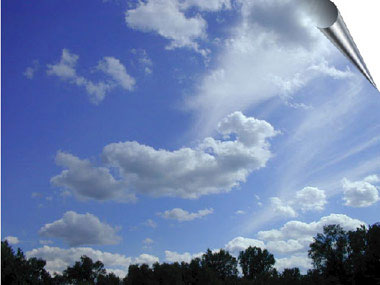

Figure 2

When done, click Preview to preview. As long as you are satisfied, click OK to execute. Figure 2 is the result.

Phan Lê
