10 tips with PowerShell in Windows Server 2008 - Part 1

TipsMake.com - In fact, there are quite a few tasks of Windows Server 2008 that we can do a lot faster with PowerShell than the GUI application or support tool. In the following article, we will introduce you some basic and most frequently used operations with PowerShell :

- Change the administrator account password - Administrator

- Restart or turn off the server

- Restart 1 any service

- Turn off any process

- Create a report

1. Change admin password with PowerShell:

Assume that you are logged in with an Administrator domain account on a Windows 7 Desktop computer on the domain system. The requirement here is to change the password on the remote server in Chicago named CHI-WIN7-22 . After an account is used many times, the chances of 'unlocking' the password are higher. That is why we should change the password of the account after a period of use.

First, we need to create a new ADSI object for the local Administrator account on the server. To do this, type the following command at the PowerShell screen:

[ADSI] $ Admin = 'WinNT: // CHI-WIN7-22 / Administrator'

In essence, the above command will perform 'retrieve' admin account on machine CHI-WIN7-22 and assign it to ADSI object named $ Admin . If you want to connect to another computer, you just need to change CHI-WIN7-22 to the corresponding name of that computer. If you want to know how long that password has been used to change it, we will use the command:

$ Admin.PasswordAge

The above statement will display the amount of time that has elapsed since the last change, and since the return value is calculated in seconds, we will divide by 86,400 to convert to date:

$ Admin.PasswordAge.Value / 86400

If you pay close attention, we will see that we use the Value attribute here. That's because the PasswordAge information is stored in the collection form, so we need to know the value of that collection to check the exact number to perform the division calculation. Finally, change the password using the SetPassword function, along with the new password - argument . For example, if you want to set a new password, S3cre + WOrd , you must type the following command:

$ Admin.SetPassword ('S3cre + WOrd')

However, you should note that after pressing Enter, the system will not display any messages, but this change will take effect immediately. Because we used the method - method, not the cmdlet - command. Unlike cmdlets , SetPassword does not support -whatif or -confirm .

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 1

2. Turn off or restart the server:

To do this, we will use a WMI-based cmdlet pair of commands, which is Restart-Computer and Stop-Computer . Although ink doesn't go too far into analyzing each of these commands, we still have to mention, since those cmdlet commands accept alternative information - great for specifying user accounts already. login is available, through which we can execute the corresponding commands of that account.

Besides, you can take advantage of whatif - confirm and - confirm , which means that if you want to execute the command to shut down or restart the system, we can do it in our own way. And if applied in practice, especially in the case of having to turn off multiple computers at the same time, this will be the most effective solution. The basic structure of this command is:

Restart-Computer -ComputerName

with - ComputerName is an array of string data, assigned with the name of 1 or more computers. Stop-Computer uses the same syntax, for example if you want to restart 2 computers named CHI-DC02 and CHI-FP01 , we type:

Restart-Computer 'CHI-DC02', 'CHI-FP01'

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 2
The -whatif parameter is used to show what happens when the command is executed

Now, we will move on to a more complicated example, assuming we have a list of multiple computers in a file called servers.txt , using the Get-Content cmdlet command to get the content inside. in that text file:

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 3

So if you have to do it on multiple computers, enter the names of those computers into a text file. And each time we need to reboot, we just need to apply the Get-Content cmdlet command. Examples are as follows:

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 4

Next, the system will push the list part to the where clause to check. Inside this where clause, we will proceed with the test-connection command - the main purpose is to ping each individual computer. The - quiet parameter will return true or false , while - count 2 means that each computer can only ping 2 times. For each machine that is pinged twice, the system will automatically browse them.

Next, we will have to use foreach . Specifically, for each computer name that passes the above check, the system will display a message with a green color that says: ' Restarting '. The parameter $ _ represents each object in the system, and then the Restart-Computer cmdlet command will be invoked to restart all computers that have been pinged. Besides, we can also use the - force parameter to prevent any account from logging in.

And finally, continue to use whatif - to show the entire activity, progress or happenings happening in the system.

3. Restart the service:

Here, Restart-Service will be the cmdlet command used to restart the service - service in the system. Although the cmdlet command does not have a mechanism to support the connection to a remote computer, PowerShell Remoting can be activated for use via the remote mechanism.

To do this, just type the command: Restart-Service 'service', where ' service ' is the name of the service that needs to be restarted. On the other hand, if you want to apply this on one or more remote computers, use the cmdlet Invoke-Command and PowerShell Remoting commands .

For example, in the screenshot of PowerShell below, there are 2 cases where we have performed Restart-Service syntax to restart the service called wuauserv (of Windows Update ). First, the Restart-Service is executed directly on the system, but then this command continues to be executed on a database server called CHI-DB01 with the help of Invoke-Command.

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 5

By default, Restart-Service will not save any objects into the system unless you use the command - passthru . Therefore, the information we see below ( Status , Name .) is the result after using - passthru . If the service works on many different computers, and wants to restart that service, we just need to add the names of those computers to the list, separated by commas.

Another way to do this is to use WMI . First, we will create a new WMI object:

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 6

In which gwmi is the alias of Get-WmiObject.

Specifically, the system will first push objects to Get-Member (with alias gm ):

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 7

If you pay close attention, you will find that there is no way to restart the service. That means we will have to use the StopService command to stop, then start with StartService .

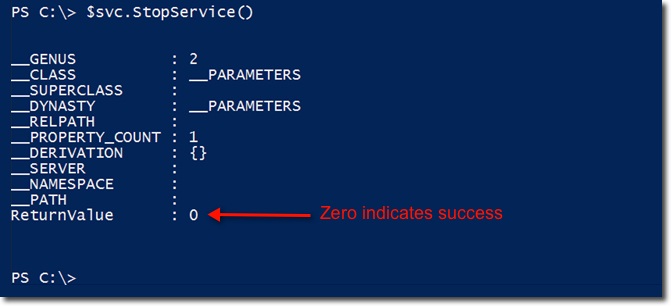

Here's how to stop the service using the object 's StopService . If you get a ReturnValue value of 0, it means that service has been stopped. In case you get another value, find that value on MSDN:

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 8

To start the service, we use the StartService command:

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 9

To test, you type the corresponding get-service command on the computer. This command allows the user to connect to the remote computer:

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 10

4. Turn off any process:

This is also the most often done on multiple servers, and to do this we will have to use the Stop-Process cmdlet command. Similarly, if you want to apply on the remote system, you will need to go to Stop-Process that comes with PowerShell Remoting.

In fact, we have two ways to do this with the Stop-Process cmdlet .

The first way is quite simple, you just need to run the Stop-Process command, and then the name or corresponding ID of the process. For example, with the screenshot below, the process name to shut down here is Calc (which is the Windows Calculator ):

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 11

Next, we will switch to the application case on the remote computer. The example here is the process of notepad on the remote machine called chi-fp01.

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 12

Then, we have to check if the application is working by using the ps - alias parameter of Get-Process:

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 13

And when you have the remote process to process, we will apply some of the same steps as in the above reboot, you use the Invoke-Command and PowerShell Remoting commands to perform Stop syntax. -Process on remote chi-fp01 server .

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 14

5. Create report Disk Utilization:

System administrators must regularly monitor the status of the server as well as the available space on the server's drive. In fact, we can easily do this by using WMI or Win32_LogicalDisk class .

With WMI , it is possible to execute query commands directly on local or remote machines, 1 or more computers. Besides being able to save data into CVS file or directly into database, HTML page or simplest is displayed on the screen.

Example of a simple WMI statement on a local machine:

Get-WmiObject win32_logicaldisk -filter 'drivetype = 3' | Out-File c: ReportsDisks.txt

Specifically, we use the cmdlet GetWmiObject command to display information returned from the Win32_LogicalDisk class. Then there is the - filter to filter drivetype related information = 3 - corresponding to the fixed system partitions like drive C. This also means that other devices such as USB Flash drives, map drives The system will not be listed here, and this information will be saved in the Disks.txt file .

In the screenshot below, we specify that the displayed results will include some information such as Device ID, Size, Space .:

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 15

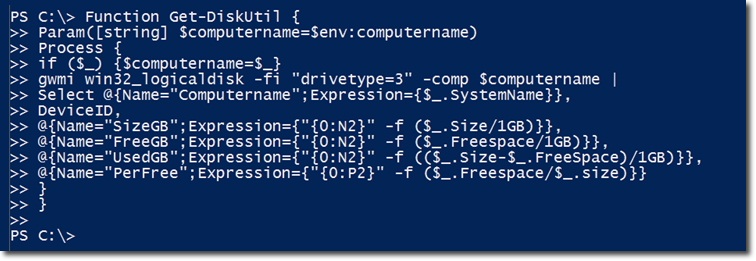

Specifically, we will create a new function function here called Get-DiskUtil. Depending on the actual situation in which you can put this function in the script file, then download to the profile, or load from many other scripts to use in combination.

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 16

The above function will use the computer name as a parameter, and the default value is the name of the local computer.

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 17

Here, we continue to use the Process script to prevent the name of the local computer from entering the function.

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 18

Next is GetWmiObject :

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 19

The result of this process is focusing on the Select-Object cmdlet command (with the corresponding alias Select ). Next, we take advantage of Hashtable to create a properties object called Computername - with the main function of renaming SystemName of the current object ($ _) to Computername , while DeviceID will be preserved:

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 20

After that, we continue to create 1 Hashtable object pair, first with the Size property, broken down into 1GB separate parts, so change it to SizeGB . Next is Freespace with the same basic formula:

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 21

To continue, we will create a new property named UsedGB - not available in WMI, this is simply the difference between Size and FreeSpace , then split by 1GB:

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 22

And finally, we need to create another attribute called PerFree - understand what is 'percent free', with the main function is to display the free space of the drive in%:

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 23

Below is a screenshot of the system when we enter the name of the computer, display it in a tabular format - Format-Table or ft, then the results will automatically be adjusted to size by using -auto.

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 24

In the next step, we will move on to the details of creating a report on Disk Utilization status for the server. The first thing to do here is to save all data into the $ data variable, so that the user will not have to type the command manually anymore. After that, the system continues to push the results obtained to the where object, execute the ping command to check, assign the computer name to the newly created function - Get-DiskUtil.

And when the system displays the interface as shown below, it means the data storage has been completed:

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 25

Data information has been successfully stored in $ data . If desired, the user can define this information section in $ data and sort by computername variable, besides it can be sent via Out-Printer or Out-File:

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 26

Similarly, if you want to download that information to SQL database or Excel , we only need to convert the format - convert to CVS file as follows:

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 27

If you import the CSV file, you can store the temporary state of the partitions and the drive when the command is executed:

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 28

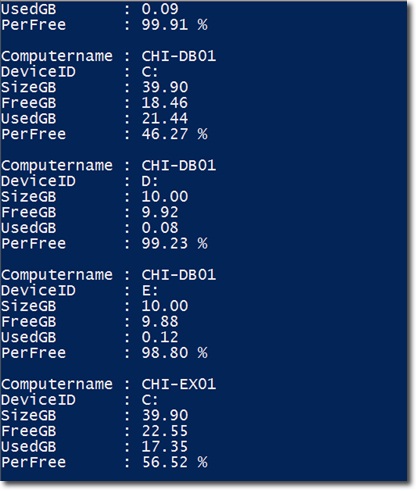

For example:

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 29

And finally, we will discuss how to create a report in HTML format. Similar to the above, you start by filtering $ data and assigning Sort Computername , then passing this information to ConvertTo-HTML cmdlet command, besides naming and the path to the CSS file. This CSS section is really necessary because ConverToHTML does not perform any formatting operations nor sort information. Then, create the resulting file according to the structure as below:

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 30

Then, type start to start:

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 31

And this is our result:

10 tips with PowerShell in Windows Server 2008 - Part 1 Picture 32

Good luck!
