 The cooling fan is a part that helps keep the CPU's temperature stable when the computer is operating. After a period of use, if this part is damaged and does not work well, it will cause the CPU to overheat, resulting in the computer slow down or stop working (hanging). The fan must be removed to repair or replace the cooling fan. This article will show you how to remove the cooling fan of the LGA775 standard CPU.

How to remove the cooling fan of the standard CPU LGA775

Unplug the fan control wire from the docking station on the motherboard with the symbol  CPU_FAN .

Instructions on how to remove the cooling fan of the standard CPU LGA775 Picture 1Instructions on how to remove the cooling fan of the standard CPU LGA775 Picture 1 Unplug the fan's power cord from the docking station on the motherboard

Turn the fan locking pins counterclockwise.

Instructions on how to remove the cooling fan of the standard CPU LGA775 Picture 2Instructions on how to remove the cooling fan of the standard CPU LGA775 Picture 2 Turn the fan locking pins counterclockwise

Remove the two diagonal locking pins at the same time from the holes on the motherboard to make sure they don't move. Do the same thing again with the other two latches.

Instructions on how to remove the cooling fan of the standard CPU LGA775 Picture 3Instructions on how to remove the cooling fan of the standard CPU LGA775 Picture 3 Remove two diagonal locking pins at the same time from the holes on the Mainboard

Check that the locking pins have been removed from the holes on the motherboard, then you can lift the fan from the motherboard.

Instructions on how to remove the cooling fan of the standard CPU LGA775 Picture 4Instructions on how to remove the cooling fan of the standard CPU LGA775 Picture 4 Lift the fan off the motherboard.

In some cases, the fan is stuck to the back of the CPU due to the heatsink, the fan can be rotated slightly to help remove it easily.

After removing the fan, you must rotate the locking pins clockwise to restore these locking pins to their original position, then you can install the fan again later.

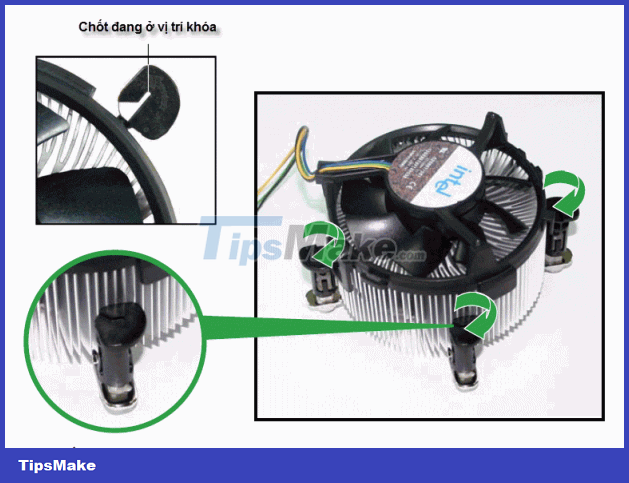

Instructions on how to remove the cooling fan of the standard CPU LGA775 Picture 5Instructions on how to remove the cooling fan of the standard CPU LGA775 Picture 5 Turn the locking pin ends clockwise

After removing the fan from the mainboard, clean the heatsink on the CPU's back and on the fan's heatsink surface. You can now repair or replace the fan then put it back on the motherboard. See the instructions Instructions on how to assemble the cooling fan for the standard CPU LGA775
