Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 1Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 1 Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 1

Thomas Shinder

TipsMake.com - In part 1 of this series, we introduced you to using IPsec implementation with NAP 'health' policies, which introduced an example network and pointed out the The most basic step required for NAP to work with IPsec enforcement policy.

Below is a list of steps to implement the solution.

• Configuring Domain Controller
• Install and configure Network Policy Server, Health Registration Authority and Subordinate CA (subordinate CA)
• Configuring NAP IPsec Enforcement Policy on the Network Policy Server
• Configure VISTASP1 and VISTASP1-2 for testing
• Test Health Certificate and Auto-remediation Configuration
• Verify NAP Policy Enforcement on VISTASP1
• Configure and test IPsec policies

In the first part of this series, we introduced the steps needed to configure domain controllers in NAP with the IPsec execution environment. In this part 2, we'll move on to the second step, which is the step to install and configure the Network Policy Server, the Health Registration Authority and the subordinate CA.

Install and configure Network Policy Server, Health Registration Authority and subordinate CAs.

Let's first consider the Network Policy Server section. Network Policy Server or NPS takes care of the RADIUS server role. NPS is the new name given to Microsoft's previous Internet Access Server (IAS) name. There are two main components to the new NPS server: the RADIUS component (this is a component that includes new support for NAP) and the RRAS component. We will not mention the RRAS component in this scenario, so we will not install and configure RRAS. We need to do the following steps to create an NPS server with the Health Registration Authority and the CA Under the bow is installed and configured on this machine:

• Add a network policy server to the NAP Exempt Group
• Restart the Network Policy Server
• Request a computer certificate for the Network Policy Server
• See the computer certificate and health certificate installed on the Network Policy Server.
• Install Network Policy Server, the Health Registration Authority and the Subordinate CA (lower level CA).
• Configure Subordinate CA on the Network Policy Server
• Activate the permissions for the Health Registration Authority to request, issue, and manage certificates.
• Configure the Health Registration Authority to use a subordinate CA to issue 'health' certificates.

Let's take a closer look at each of these steps.

Add the Network Policy Server to the NAP Exempt Group group

We need to set the WIN2008SRV1 computer to become a member of the NAP Exempt Group so that it can automatically enroll the created health certificate. This will allow this computer to act as a NAP policy server and the Health Registration Authority in communicating with other computers on a secure network, even if this computer does not meet NAP requirements. .

Perform the following steps on the domain controller of WIN2008DC computer:

1. On WIN2008DC , click Start , point to Administrative Tools , and then click Active Directory Users and Computers .
2. In the left pane of the Active Directory Users and Computers console, expand the msfirewall.org section, then click the Users button.
3. Double-click the NAP Exempt group in the right pane of the console.

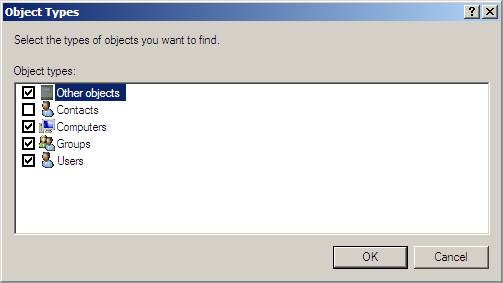

4. Click the Members tab, click Add , click Object Types , select the Computers check box, and then click OK .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 2Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 2

Figure 1

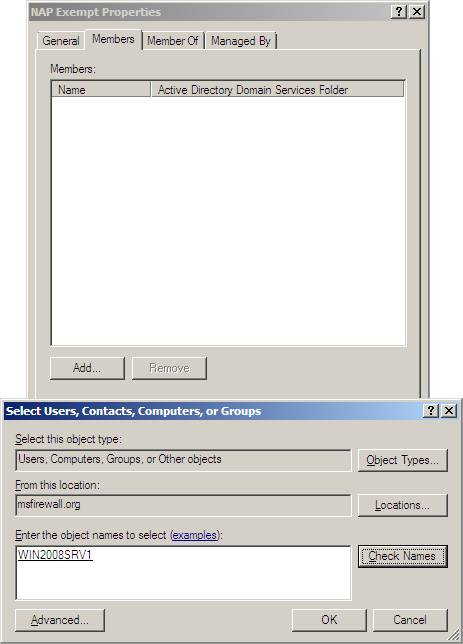

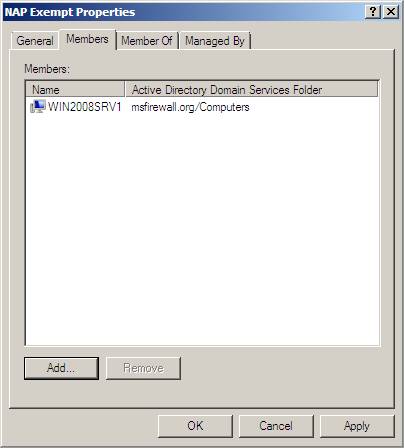

5. In Enter the object names to select (examples) , type WIN2008SRV1 , then click Check Names . Click OK , and then click OK in the NAP Exempt Properties dialog box.

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 3Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 3

Figure 2



Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 4Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 4

Figure 3


6. Close the Active Directory Users and Computers console

Restart the Network Policy Server

To enable new domain member settings and security group members, restart WIN2008SRV1 .

1. Restart WIN2008SRV1 .
2. After your computer restarts, log on to the computer under the administrator account.

Request a computer certificate for the network policy server

The WIN2008SRV1 machine needs a certificate to support SSL connections for the server. SSL connections will come from NAP clients when they connect to the Health Registration Authority Web server on the NPS server. Note that in this example, the NPS server and the Health Registration Authority are on the same machine. However, it is not required to do so - you can put the Health Registration Authority and NPS server on different machines. In that scenario, you need to install the NPS service on the HRA computer and configure that computer to be a RADIUS proxy, since the HRA is a network access server in this scenario and the NAS needs to declare the NPS service. client state.

Perform the following steps on WIN2008SRV1 NPS machine:

1. On the WINS2008SRV1 machine, click Start , click Run , type mmc , and then press ENTER.
2. Click File , and then click Add / Remove Snap-in .
3. In the Add or Remove Snap-ins dialog box, click Certificates and then click Add . In the Certificates snap-in dialog box, select the Computer account option and click Next .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 5Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 5

Figure 4

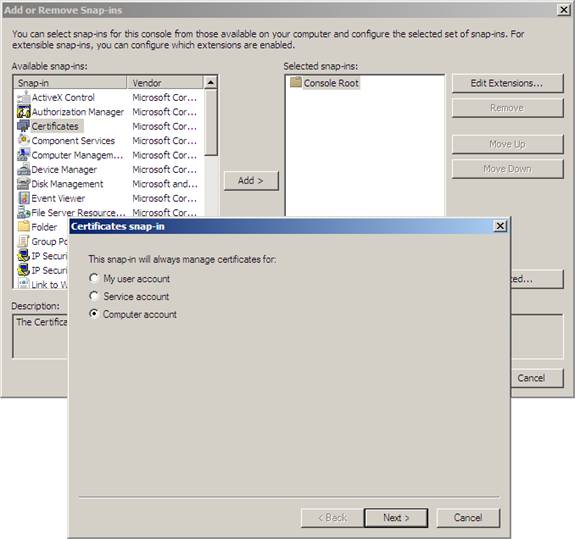

4. In the Select Computer check box, select the Local Computer option and click Finish .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 6Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 6

Figure 5


5. Click OK in the Add or Remove Snap-ins check box.

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 7Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 7

Figure 6

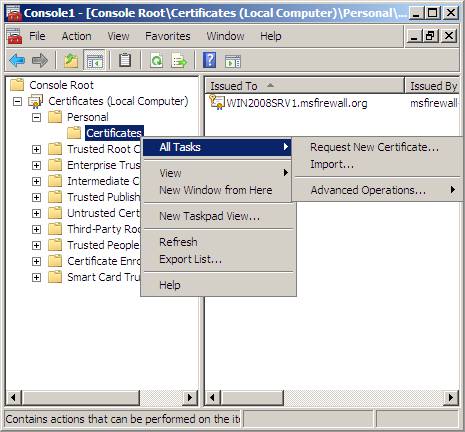

6. In the Certificates console, open the Certificates (Local Computer) button , then open Personal . Click the Certificates button, right-click it and point to All Tasks then click Request New Certificate .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 8Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 8

Figure 7


7. Click Next on the Certificate Enrollment page.

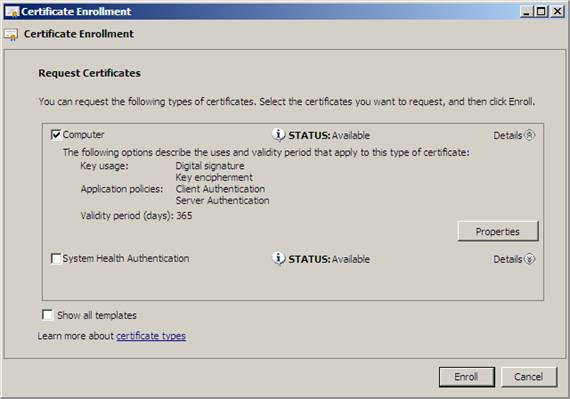

On the Request Certificates page, you can see a list of certificate templates available on this computer. Note that, although there are many certificate templates available, there are only a few templates for this machine, which are based on permissions configured for certificate templates. Check the Computer check box and click Enroll . Note that you can perform the details of this certificate by clicking the Properties button.

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 9Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 9

Figure 8

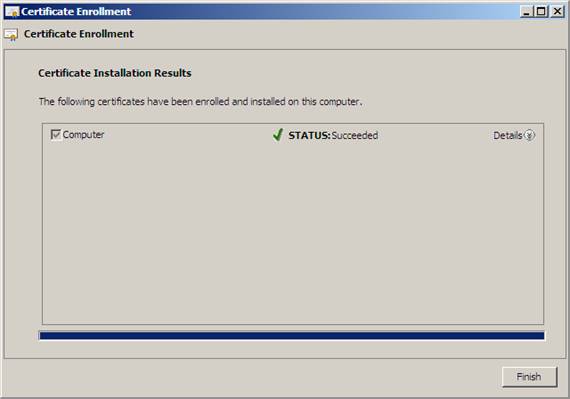

8. Click Finish in the Certificate Installation Result dialog box.

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 10Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 10

Figure 9


9. Leave this window for the next procedure below.

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 11Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 11

Figure 10


See the computer and health certificate installed on the Network Policy Server

Next, verify that WIN2008SRV1 has an SSL certificate and an NAP exemption certificate.

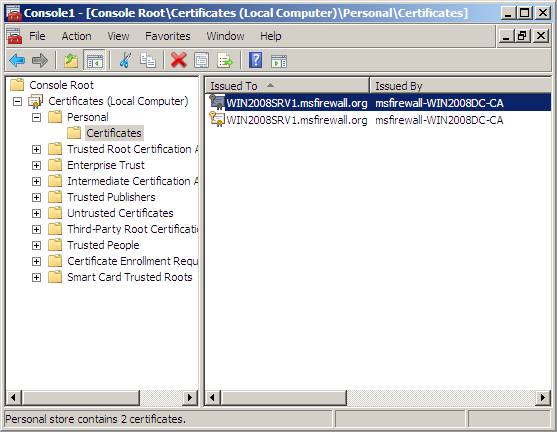

1. In the left pane of Console Certificates , open Certificates (Local Computer) PersonalCertificates. In the right pane, verify that the certificate has been automatically enrolled by WIN2008SRV1 with Intended Purposes of System Health Authentication and Client Authentication . This certificate will be used for NAP client IPsec exemption.

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 12Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 12

Figure 11

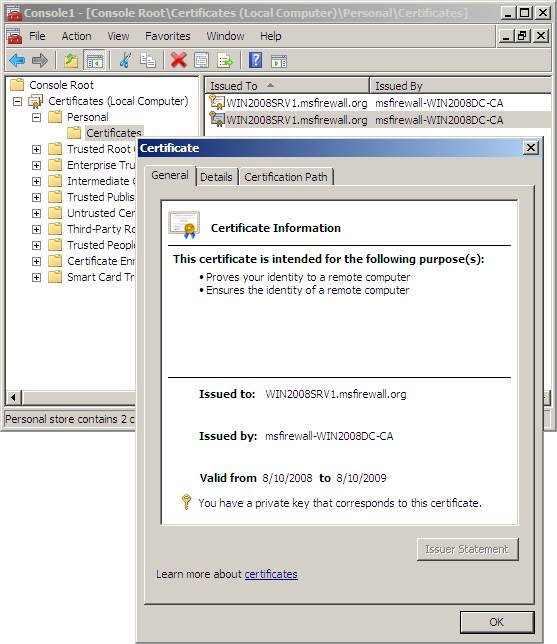

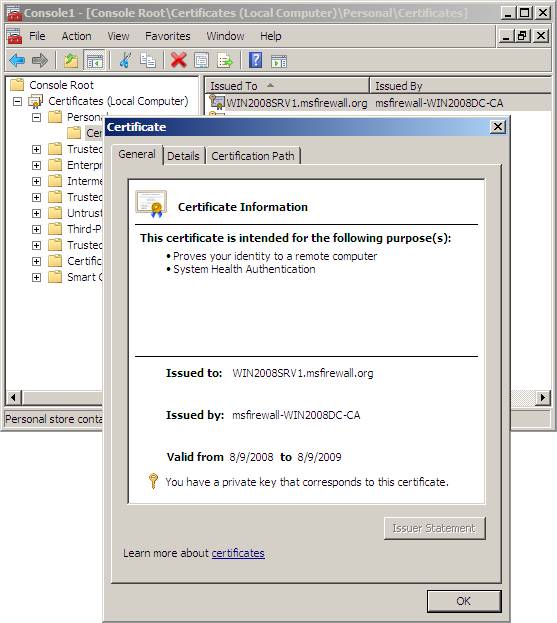

2. In the right pane, verify that the certificate has been enrolled with the Intended Purposes of Client Authentication and Server Authentication . This certificate will be used for SSL authentication on the server side.

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 13Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 13

Figure 12


3. Close Console Certificates . If you are prompted to save the settings, click No.

Install the Network Policy Server roles, the Health Registration Authority, and the Subordinate Certificate Server.

Next, install role services to set WIN2008SRV1 to a NAP health policy server, NAP server and NAP CA server.

Follow the steps below on WIN2008SRV1 :

1. In Server Manager , in the Roles Summary section, click Add Roles , and then click Next .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 14Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 14

Figure 13


2. On the Select Server Roles page, select the Active Directory Certificate Services and Network Policy and Access Services check boxes, and then click Next twice.

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 15Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 15

Figure 14

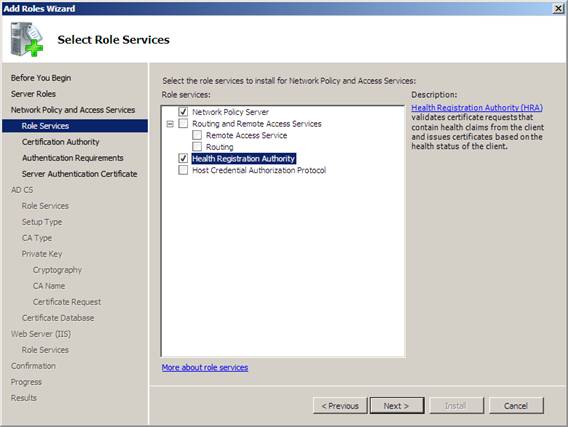

3. On the Select Role Services page, select the Health Registration Authority check box, click Add Required Role Services in the Add Roles Wizard window, and click Next .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 16Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 16

Figure 15

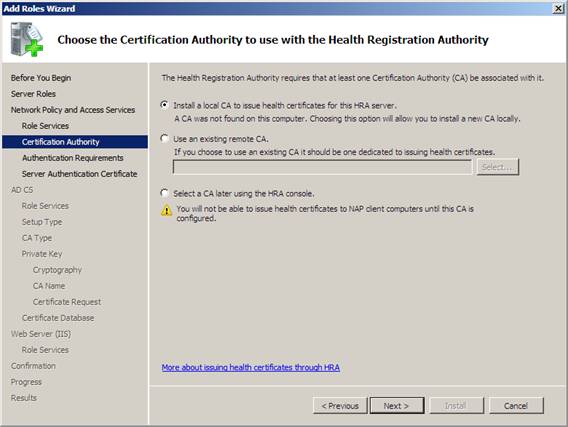

4. On the Choose the Certification Authority page to use with the Health Registration Authority , select Install a local CA to issue health certificates for this HRA server , then click Next .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 17Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 17

Figure 16


5. On the Choose Authentication page for the Health Registration Authority , select No, allow anonymous requests for health certificates, and then click Next . This option will allow computers to be enrolled in health policies in a workgroup environment. We will look at an example of a workgroup computer receiving the 'health' certificate later.

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 18Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 18

Figure 17


6. In the Choose a Server Authentication Certificate page for SSL Encryption , select Choose an existing certificate for SSL encryption (recommended) , click the certificate shown in this option, and then click Next .

Note:
You can view the properties of the certificates in the local computer's certificate store by clicking on a certificate, selecting Properties and then clicking the Details tab. A certificate used for SSL authentication must have a Subject field value that corresponds to the full domain name of the HRA server (for example, NPS1.Contoso.com) and the Enhanced Key Usage field value of Server Authentication . The certificate must also be issued from a root CA trusted by the client.

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 19Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 19

Figure 18


7. On the Introduction to Active Directory Certificate Services page , click Next .
8. On the Select Role Services page, verify that the Certification Authority check boxes are selected, and then click Next .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 20Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 20

Figure 19

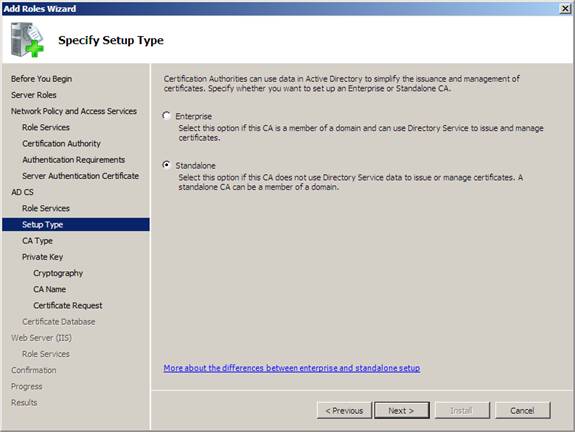

9. On the Specify Setup Type page , click Standalone and then click Next .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 21Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 21

Figure 20

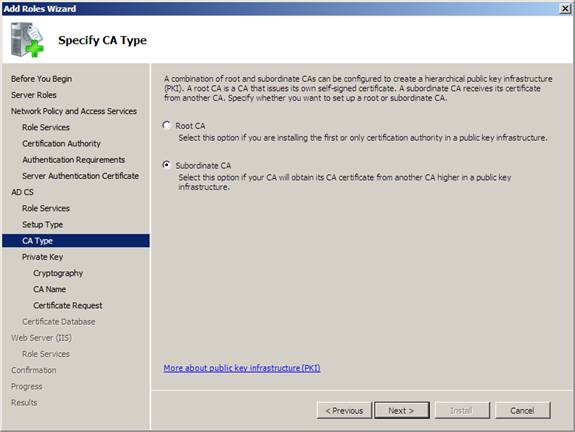

10. On the Specify CA Type page , click Subordinate CA , and then click Next . We choose to use lower level CA for safer purposes. The lower CA is responsible for issuing certificates, while the root CA's main job is to sign certificates of subordinate CAs being issued. This allows you to have multiple subordinate CAs and a root CA. In a production environment, you can put the CA in the state ofline and only activate it online when signing certificates for subordinate CAs.

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 22Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 22

Figure 21


11. In the Set Up Private Key page , click Create a new private key , and then click Next .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 23Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 23

Figure 22


12. On the Configure Cryptography for CA page , click Next .
13. On the Configure CA Name page, the Common name for this CA section , type msfirewall-WIN2008SRV1-CA , and then click Next .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 24Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 24

Figure 23

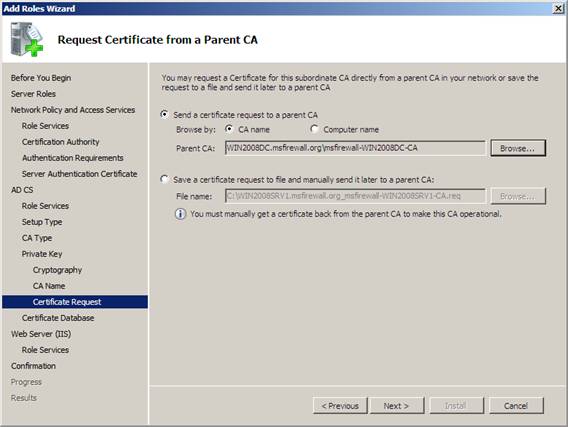

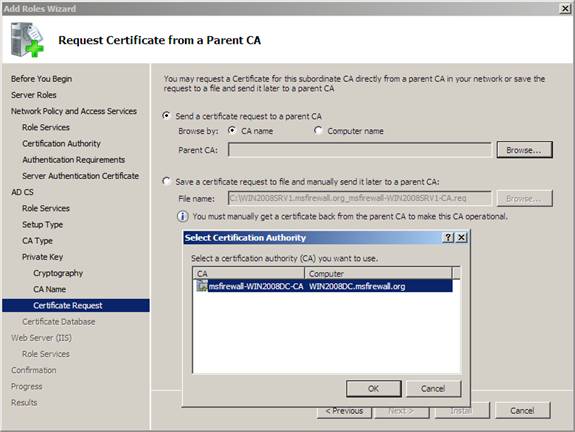

14. In the Request Certificate from a Parent CA page , select Send a certificate request to a parent CA, then click Browse . In the Select Certification Authority window, click Root CA , and then click OK .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 25Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 25

Figure 24


15. Verify that WIN2008DC.msfirewall.orgRoot CA is displayed next to Parent CA , and then click Next .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 26Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 26

Figure 25


16. Click Next three times to accept the default database, Web server, and service settings for the role, and then click Install .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 27Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 27

Figure 26


17. Verify that all installations are successful, then click Close . Note that the installation results say that Attempt to configure Health Registration Authority failed . Lỗi lấy tên của cục bộ Authority , don't worry too much about that failure. We will configure the Health Registration Authority in the next steps.

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 28Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 28

Figure 27


18. Leave the Server Manager window open to perform the procedure below.

Configure the lower CA on the Network Policy Server

The subordinate CA must be configured to automatically issue certificates when the NAP clients of the person who has the full NAP policy requirements request a certificate. By default, the private CA will wait until the administrator authorizes before the certificate is issued. We do not want to wait for the administrator's permission, so we will configure a private CA to automatically issue certificates when the request arrives.

Perform the following steps on WIN2008SRV1 machine:

1. On WIN2008SRV1 , click Start , click Run , type certsrv.msc , and then press ENTER.

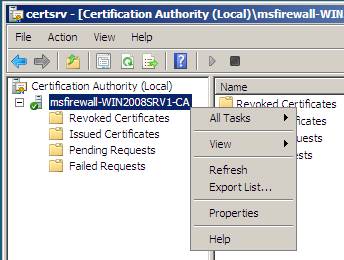

2. In the Certification Authority interface, right-click msfirewall-WIN2008SRV1-CA , and then click Properties .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 29Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 29

Figure 28

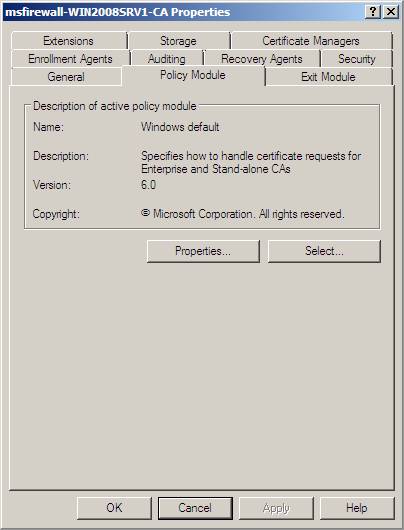

3. Click the Policy Module tab, and then click Properties .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 30Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 30

Figure 29

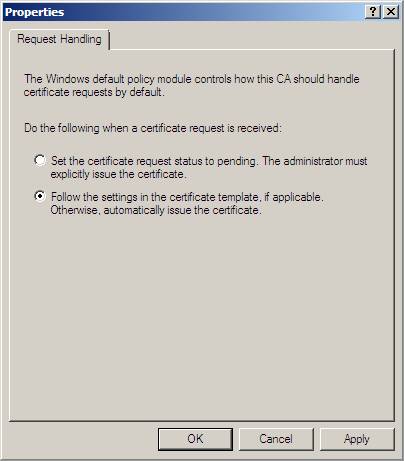

4. Select Follow the settings in the certificate template, if applicable. Otherwise, automatically issue the certificate , then click OK .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 31Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 31

Figure 30

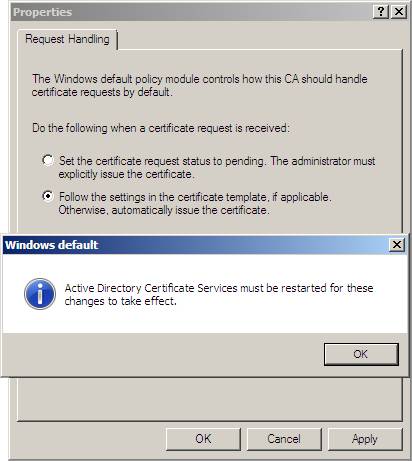

5. When prompted that AD CS must be restarted, click OK . Click OK , right-click msfirewall-WIN2008SRV1-CA , point to All Tasks, and then click Stop Service .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 32Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 32

Figure 31

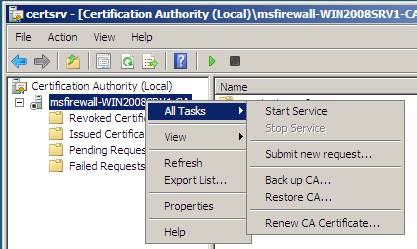

6. Right-click msfirewall-WIN2008SRV1-CA , point to All Tasks , and click Start Service .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 33Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 33

Figure 32


7. Go to the Certification Authority interface to perform the procedure below.

Activate the permissions for the Health Registration Authority to request, issue, and manage certificates.

The Health Registration Authority must have security permissions attached to request, issue, and manage certificates. It must also be allowed to manage subordinate CAs to disable expired certificates from the certificate store.

When the Health Registration Authority is activated on a different computer than the CA issuing computer, the permissions must be assigned to the HRA machine. In this configuration, HRA and CA are located on the same computer. In this scenario, the permissions must be assigned to Network Service .

Follow the steps below on WIN2008SRV1 :

1. In the left pane of the console, click msfirewall-WIN2008SRV1-CA , and then click Properties .

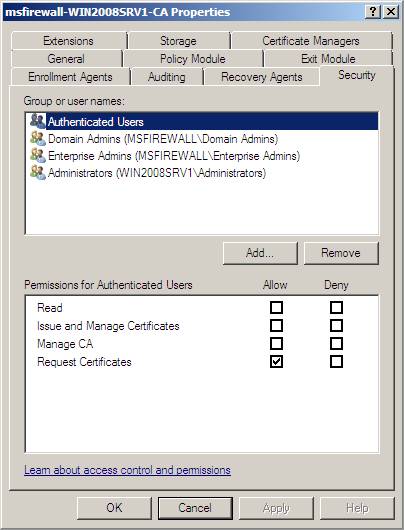

2. Click the Security tab, and then click Add .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 34Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 34

Figure 33

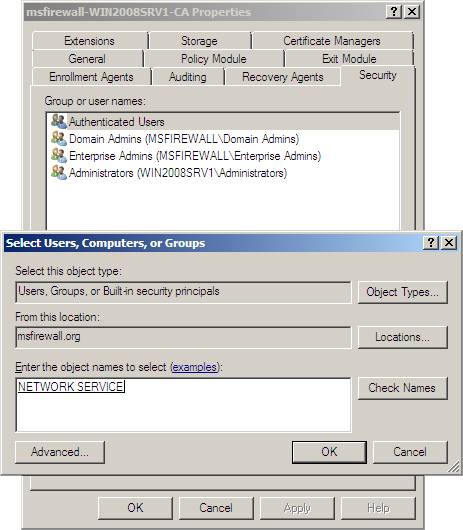

3. In Enter the object names to select (examples) , type Network Service and then click OK .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 35Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 35

Figure 3 * 4

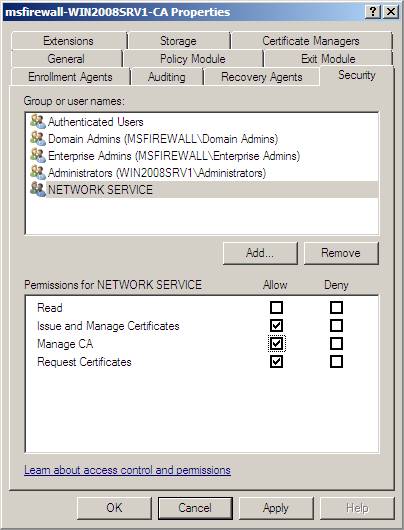

4. Click Network Service , under Allow , select the Issue and Manage Certificates , Manage CA , and Request Certificates check boxes, and then click OK .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 36Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 36

Figure 35


5. Close the Certification Authority console.

Configure the Health Registration Authority to use a subordinate CA to issue 'health' certificates

You must inform the Health Registration Authority about which CA can use to issue 'health' certificates. You can use either a private CA or a business CA. In this example network, we are using the private CA installed on WIN2008SRV1 .

Follow the steps below on WIN2008SRV1 :

1. On WIN2008SRV1 , click Server Manager .
2. In Server Manager , open RolesNetwork Policy and A ServicesHealth Registration Authority (WIN2008SRV1) Certification Authority .

Note:
If Server Manager is open when you install the HRA server role, then you need to close it and then reopen to access the HRA interface.

3. In the left pane of the HRA console, right-click the Certification Authority and click Add certification authority .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 37Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 37

Figure 36


4. Click Browse , click msfirewall-WIN2008SRV1-SubCA , and then click OK . See example below.

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 38Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 38

Figure 37

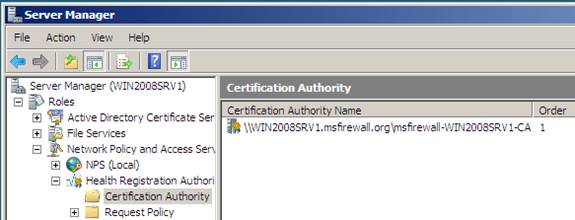

5. Click OK , then click Certification Authority and verify that WIN2008SRV1.msfirewall.orgmsfirewall-WIN2008SRV1-CA is displayed in the details pane. Next we will configure the properties of this private CA.

The Health Registration Authority can be configured to use a private CA or enterprise CA. The CA properties (which we will configure next) configured on the Health Registration Authority must match the type of CA selected.

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 39Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 39

Figure 38


6. Right-click Certification Authority , and then click Properties .

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 40Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 40

Figure 39


7. Verify that the Use standalone certification authority option has been ticked and the value is in Use standalone certification authority is selected and that the value under Certificates approved by Health Registration Authority will be valid for 4 hours, then you should Click OK . See the example below.

Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 41Deploying IPsec Server and Domain Isolation with Windows Server 2008 Group Policy - Part 2 Picture 41

Figure 40


8. Close Server Manager .

Conclude

In the second part of this article series, I showed you how to use IPsec enforcement with NAP, introducing you to the procedures needed to create an NPS server. On this server we have installed and configured the Windows Server 2008 Network Policy Server, the Health Registration Authority and the subordinate CA. With these components, we can already be ready for the next step, the IPsec enforcement policy step.
