Learn about Access Rules

Access Rules are used to control access sent from a network protected by the TMG firewall. When you want to allow a computer behind the TMG firewall's control to access another network (including the Internet), you need to create an Access Rule to allow that connection. By default, no Access Rules allow connections through the firewall, so the TMG firewall is a solid brick wall that protects the network. This default closure is a safe configuration, but it also means that if you want to allow traffic through the TMG firewall, you need to understand how Access Rules work and how to create them.

Create an outgoing Access Rule

To begin, we will create a simple outbound Access Rule that allows all users to access the Internet with all protocols. In the next part of this series, we will go into the details of Access Rules and see what dependency issues Access Access has and how you can adjust those dependencies.

Let's start by opening the TMG firewall console and clicking the Firewall Policy button in the left pane of the interface, as shown in the figure below.

Controlling Internet Access: Introduction to TMG Access Rule - Part 1 Picture 1
Figure 1

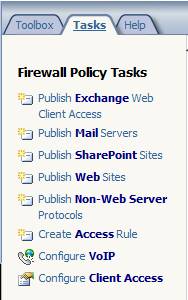

After clicking the Firewall Policy button in the left pane, we will click the Tasks tab in the right pane of the interface. Here you will see some options, most of them related to creating firewall rules. In this example, we will create an access rule to allow access to be sent through the firewall. Click the Create Access Rule link to launch the Access Rule wizard, as shown in the figure below.

Controlling Internet Access: Introduction to TMG Access Rule - Part 1 Picture 2
Figure 2

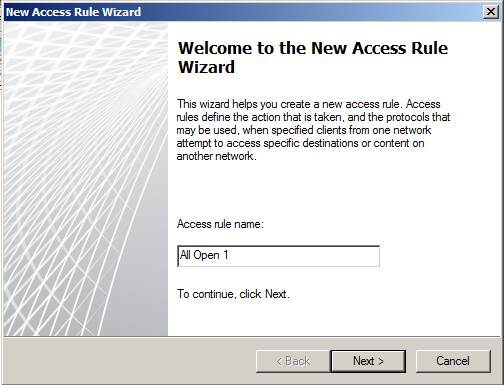

On the Welcome to the New Access Rule Wizard page , name it in the Access Rule name text box. In general, you should place a meaningful name for your Access Rule so that you can scan your firewall policy and know what the rule does, especially knowing the purpose of the rule's purpose. In this example, we will name the rule All Open 1 . In a production environment, you won't want to create such a rule because this rule will allow all computers to access the Internet and certainly not what you want in a production environment.

Controlling Internet Access: Introduction to TMG Access Rule - Part 1 Picture 3
Figure 3

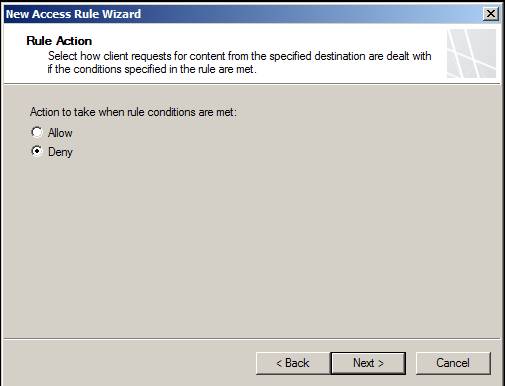

On the Rule Action page, you will have either Allow or Deny options for the rule. Note that the default option is Deny, which is a good option in terms of security. We will change the Deny status to Allow before clicking Next to make it become a Allow rule.

Controlling Internet Access: Introduction to TMG Access Rule - Part 1 Picture 4
Figure 4

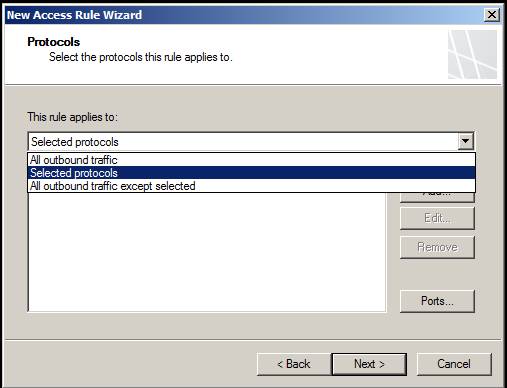

On the Protocols page, select the protocols you want to apply to this rule. In the This rule applies to drop- down box, you have the following options:

1. All outbound traffic - Use the option if you want to apply this rule to all protocols.
2. Selected protocols - Use this option to select certain protocols that you want to apply to this rule. This is a sure option most of you will need.
3. Outbound traffic except except selected - This option allows you to allow or deny all protocols except for certain protocols that you select.

Controlling Internet Access: Introduction to TMG Access Rule - Part 1 Picture 5
Figure 5

If you select the second or third option, you can click the Add button to select the protocols you want to apply to this rule. After clicking the Add button, you will see the Add Protocols dialog box appear. When you click on a folder in this dialog box, the folder will open and show you a list of protocols. The TMG firewall development team has made it easy to use the separation of protocols in groups to make it easier for you to find the protocols you care about. Double-click the protocols you want to allow, they will appear on the Protocols page in the Protocols list .

Controlling Internet Access: Introduction to TMG Access Rule - Part 1 Picture 6
Figure 6

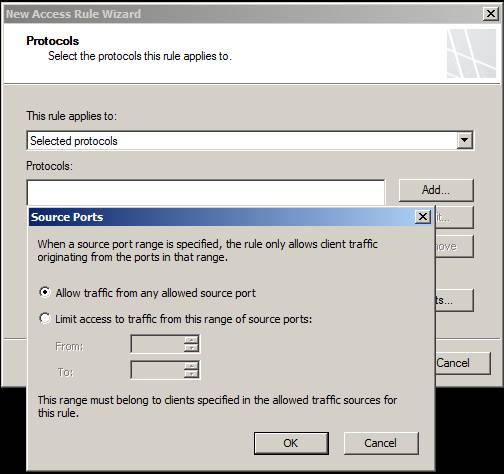

A guest option you have on this page will be revealed when you click the Source Ports button . Your operation will bring up the Source Ports dialog box. Here you can control the allowed source ports for connections that match this rule. Default Allow traffic from any allowed source port is selected, however, if you want to block source ports, you can select Limit access to traffic from this range of source ports and then enter the values ​​in the From and To fields. to specify these source ports.

Controlling Internet Access: Introduction to TMG Access Rule - Part 1 Picture 7
Figure 7

We will not select any source ports at this time but will select the option All outbound traffic and then click Next .

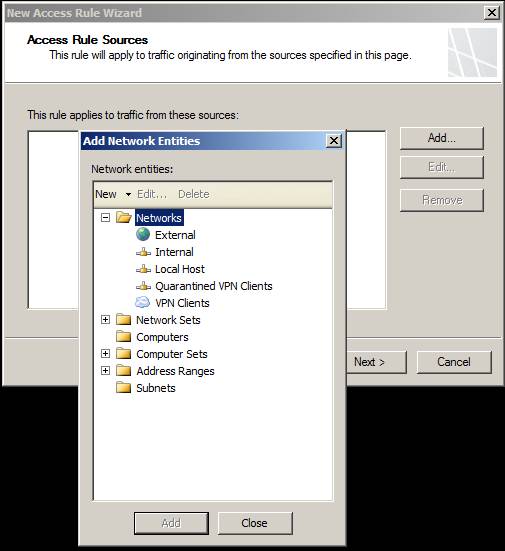

The next page is Access Rule Sources. Here you will choose the location of the computers behind the TMG firewall that you want to apply to this rule. Click the Add button and you will see the Add Network Entities dialog box. Click the folder that contains the network component that is presenting the source location of the computers on which you want to apply this rule. In this example, we will configure this rule to apply to all computers on the default internal network by clicking the Networks folder and then double-clicking on the Internal network.

Controlling Internet Access: Introduction to TMG Access Rule - Part 1 Picture 8
Figure 8

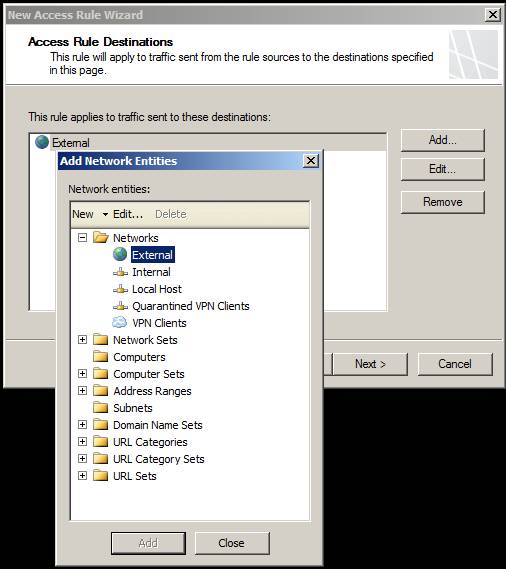

After selecting the source Network as the Internal Network and clicking Next , you will see the next page, this is the Access Rule Destinations page. Here you set the destination where you want the computers from the previously selected source to access through this rule. The Access Rule Destinations page works the same as the previous page, where you click the Add button and then in the Add Network Entities dialog box , click the folder, and then double-click the network component to allow access to this rule. In this example, we will select the default External network.

Controlling Internet Access: Introduction to TMG Access Rule - Part 1 Picture 9
Figure 9

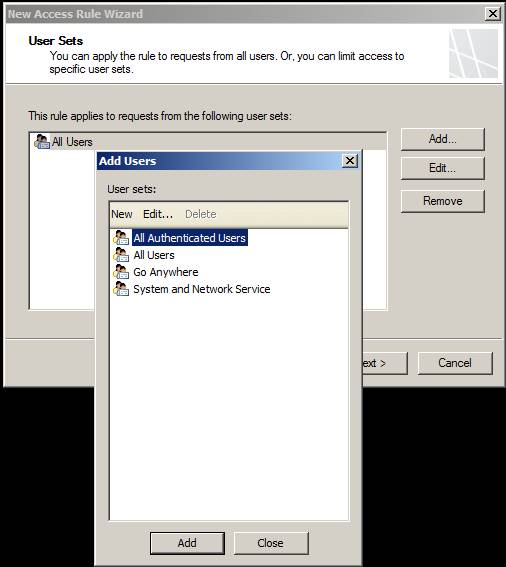

The next page of the wizard is User Sets . On this page, you specify the user you want to apply to this rule. By default, Access Rules are applied to all users. For now, defining your 'all users' may not be the same as defining the 'all users' of the TMG firewall. 'All users' doesn't mean your rule will apply to all accounts in your organization, but 'All users' from the TMG firewall perspective means all anonymous users - connections are not received. real. If you click the Add button, you can select other users, such as All Authenticated Users or System and Network Service . You can also create custom user sets based on Active Directory and RADIUS accounts. However, we will mention more about these options in the next section. In this example, we will select the All Users option and click Next to move to another page.

Controlling Internet Access: Introduction to TMG Access Rule - Part 1 Picture 10
Figure 10

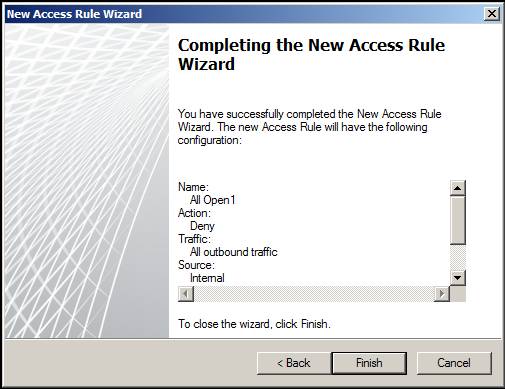

The final page of the wizard is the Completing the New Access Rule Wizard. This is the page that allows you to review your settings and then click Finish .

Controlling Internet Access: Introduction to TMG Access Rule - Part 1 Picture 11
Figure 11

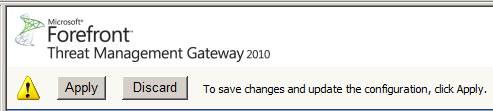

After the rule has been created, it will not be valid until you click the Apply button at the top of the middle pane in the TMG firewall console. We will click this Apply button now.

Controlling Internet Access: Introduction to TMG Access Rule - Part 1 Picture 12
Figure 12

Other options

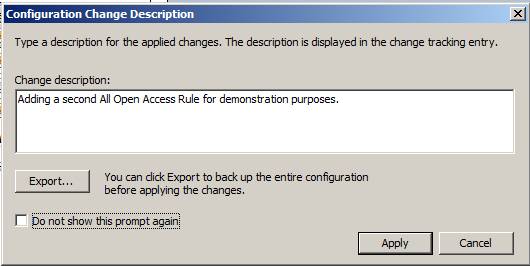

After clicking the Apply button, the Configuration Change Description dialog box will appear. Here you can add a description for the changes you have made to the firewall policy and this description will appear in the change log. The change log is useful when you need to check and find out what you or someone else has done to the firewall policy in case something goes wrong.

Note that you have an option to backup firewall policies by clicking Export . This allows you to backup the configuration so that it can be restored to the point before making the change. You also have the option to not display this prompt in the future, but we do not recommend that you choose this option because this is a very useful dialog for you in the future. Now click Apply .

Controlling Internet Access: Introduction to TMG Access Rule - Part 1 Picture 13
Figure 13

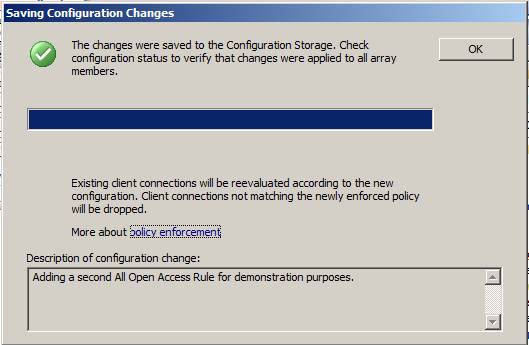

The Saving Configuration Changes dialog box appears and tells you that the firewall policy settings have been saved to the configuration repository. Note the text ' Existing client connections will be reevaluated according to the new configuration. Client connections không hợp lệ mới hiện thời để xác thực sẽ bị bỏ qua, means' Existing client connections will be revalued according to the new configuration. Client connections that do not correspond to the new policy will be blocked '. This is a new feature in the TMG firewall. With ISA firewall, the new firewall policy is only applied to new connections, not for existing connections. This is a great improvement and is one of the reasons you should upgrade to the latest version of the ISA firewall - named TMG.

Controlling Internet Access: Introduction to TMG Access Rule - Part 1 Picture 14
Figure 14

This new rule appears in the firewall's policy list, as you can see in the figure below. The location on the list depends on where you clicked when starting the wizard. However, as we will show you in the next section, you can push this rule up or down in the list.

Controlling Internet Access: Introduction to TMG Access Rule - Part 1 Picture 15
Figure 15

Conclude

In this article, I have shown you some of the basics of Access Rules of the TMG firewall. As you can see, Access Rules are used to control traffic sent from the TMG protected network to other networks. By default, there are no Access Rules and no traffic is possible through the TMG firewall. An Access Rule needs to be set to allow outbound traffic. Access Rules allow you to control traffic, based on a number of factors, such as source location, target location, user, protocols to be used. There are also many other options that have not been revealed in the Access Rule wizard, and we will show you these options in the next section.
