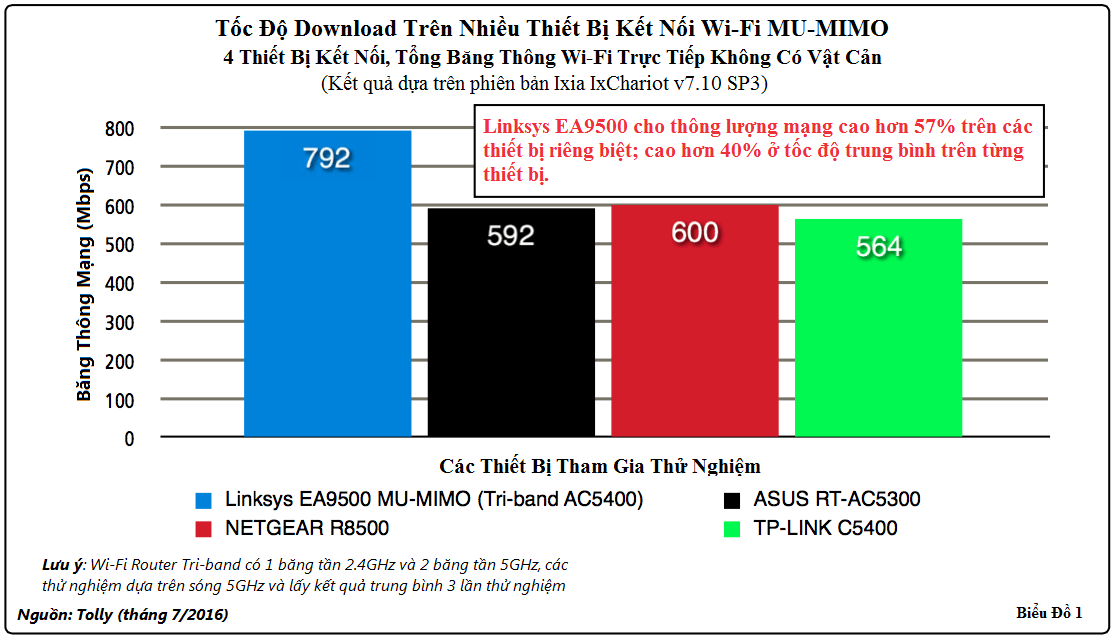

Chart 1
Four connected devices will be placed in different locations in the house at this measurement to best reflect Linksys's superior advantages. And during this test, the EA9500 always gave the highest performance when serving a separate connected device with 192Mbps speed, a completely superior result compared to the 156Mbps of the Router in the next position.

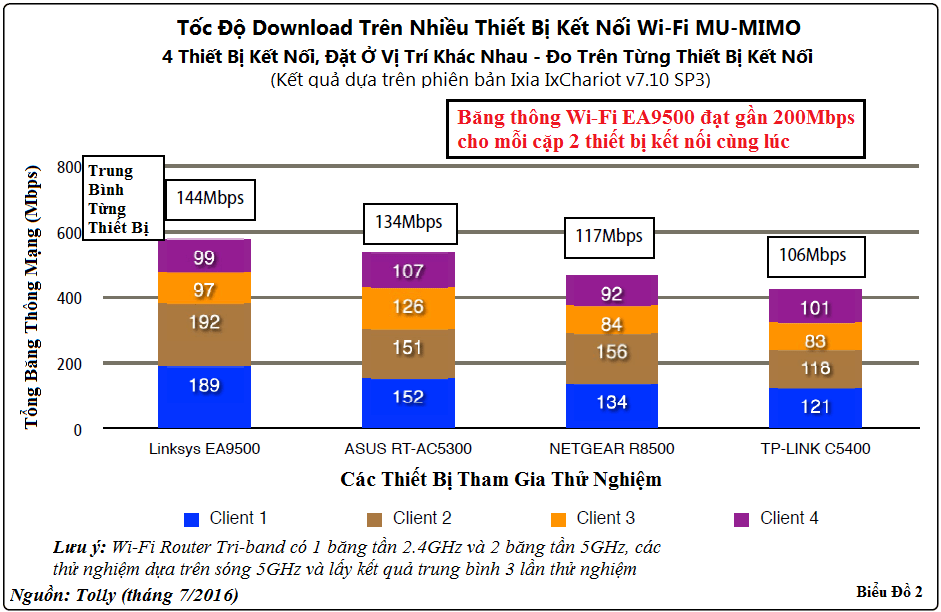

Chart 2
The purpose of the test is to measure the performance of the Router's Wi-Fi network to determine the download speeds of these routers on the 5GHz band that support the fastest 802.11ac standard with the latest MU-MIMO technology.

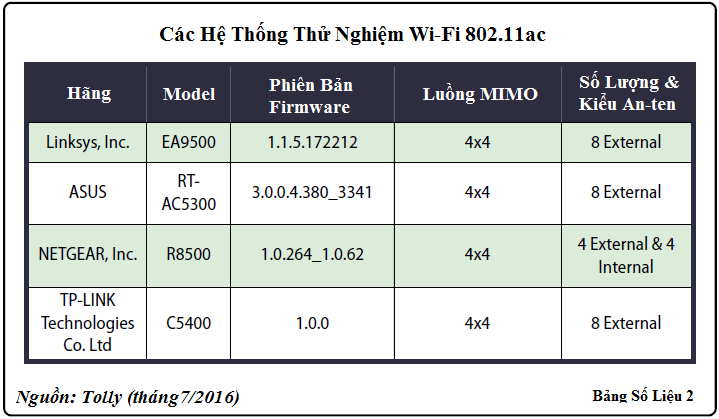

All Router devices support the latest Wi-Fi standard and are certified as commercial standard products. All routers are updated with the latest firmware (Firmware EA9500 is v1.1.5.172212). Tested devices (including Router devices and devices connected to the Router) are all configured in the same way as bandwidth, channel, transmit power and security encryption parameters. Routers are connected to the main router (DHCP allocation) using an Ethernet network cable via Gigabit Ethernet switch, WPA2-PSK encryption is used for Wi-Fi security during testing.
All tests are done on the 5GHz band.

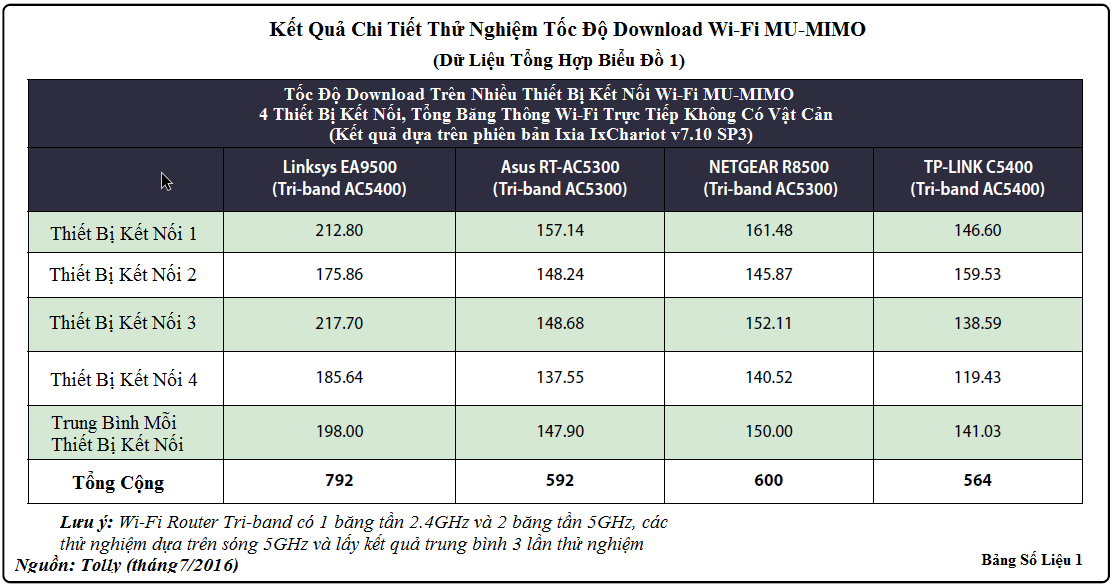

4 connected devices - direct Wi-Fi waves (no obstacles)
4 connected devices - direct Wi-Fi waves (no obstacles)
Use four Acer Aspire V3-371-51UJ laptops, two laptops with the first 5GHz Wi-Fi network and two laptops connected to the other 5GHz Wi-Fi network. The test was done in a home environment and there were absolutely no other 5Ghz Wi-Fi signal waves around. Tests are direct Wi-Fi waves with no obstacles, 5GHz wave channels are 40 and 153 respectively with maximum 80MHz channel width.
Connected devices are placed on the table and have the same distance of 2.5m to the Router in the central position with a height of 0.5m above the ground.

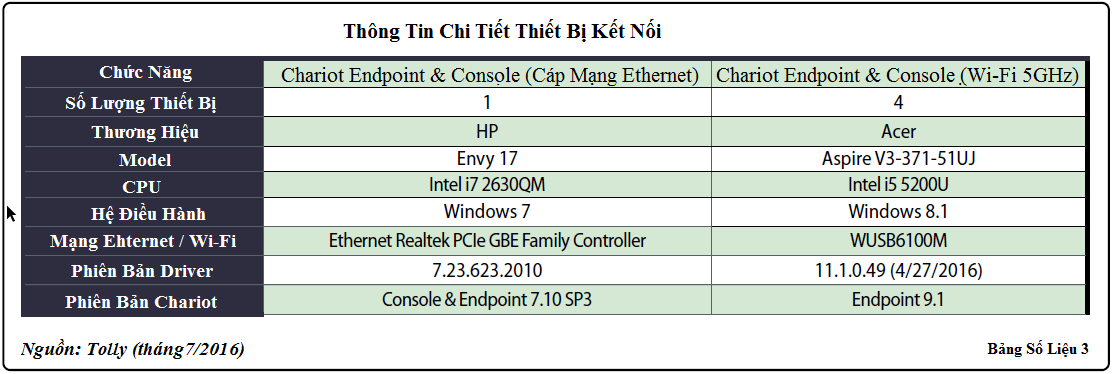

The result is due to the traffic of data transmitted through the network implemented by the dedicated Ixia IxChariot application through the script. 4 connected devices (Acer laptops) all run the IxChariot Endpoint application and transmit to another IxChariot Endpoint device connected to the test network using Ethernet networks via the Gigabit Ethernet switch mentioned above. The test time for each measurement is 1 minute in each test location and will be measured 3 times to get the average value. Tolly's engineers are always closely monitoring to make sure the devices are connected to the correct Wi-Fi signal and the router is testing accordingly.
4 connected devices - located in different locations
4 Acer Aspire laptops V3-371-51UJ will be put into 2 groups: 2 laptops in the bedroom on the 1st floor at a distance of 6m compared to the Router located on the 2nd floor, the remaining 2 laptops are placed on the 2nd floor with Router via 1 Wall with distance 9m to Router.
Calculating relative performance
To calculate performance superiority between routers, the formula used is 1 - (T1 / T2). In which T1 is the best result and T2 is the slower result. This result is multiplied by 100 to best represent the percentage.

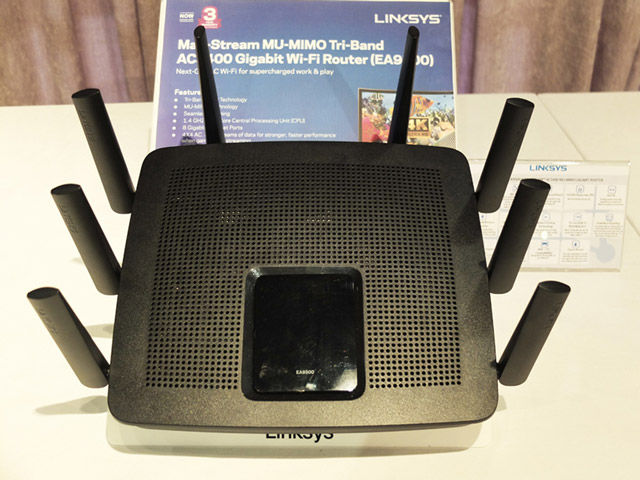

Linksys EA9500 Max-Stream AC5400 MU-MIMO Gigabit Router showed positive results as follows:
