Procedures for installing car washers and notes not to be missed

Have you ever thought about installing a car washing machine at home? If you're still wondering about it, don't worry. Today, Quantrimang will guide you through the process of installing a family car washer in the right detail and with caution when using the car wash machine!

Procedures for installing car washers and notes not to be missed Picture 1

Advantages of a family car washer

1. Compact structure: usually a household car washer or mini car washer is compactly designed for only 6 - 16kg, with wheels and handles, making it easy to move.
2. Simple operation , easy to disassemble the machine.
3. High pressure water injection
4. Save water
5. Low cost , every family can equip it.
6. Save time and money: instead of weekly, you have to go to the car wash waiting for a long time and high cost. Owning a car washing machine at home will help you proactively clean vehicles quickly and simply.
7. In addition to the function of washing motorbikes, cars, family car washers also have the ability to perform other tasks very conveniently such as:

1. Bathe and clean livestock cages quickly.
2. Watering and cleaning moss on the walls, soil on concrete floors and watering plants.
3. Cleaning machines and factories .

>>> More: "The reason to invest in a car washing machine at home"

Instructions for installing car washers at home

Step 1: Fit the spray body into the gun stock.

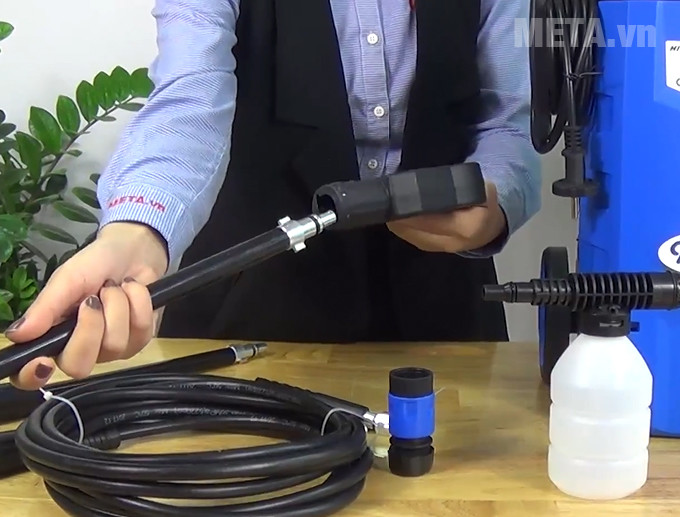

Procedures for installing car washers and notes not to be missed Picture 2

Step 2: Install spray nozzles with spray body, depending on the need of use.

However, in some types of household car washers with air-conditioning function with handguns already attached to the nozzle, users will not need to install anymore.

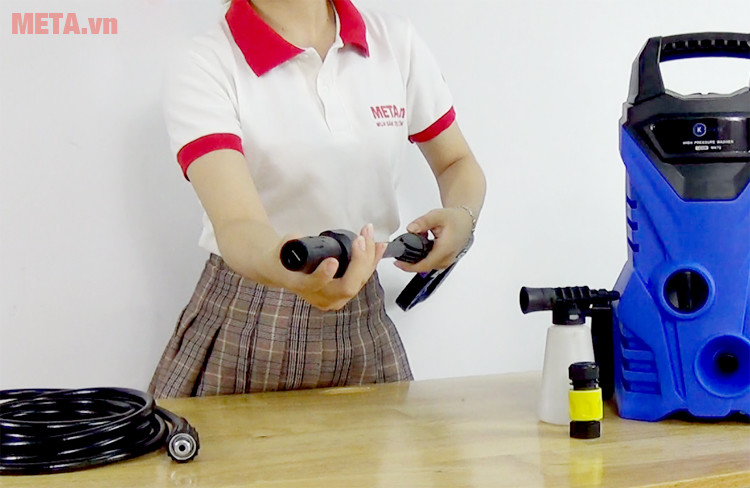

Procedures for installing car washers and notes not to be missed Picture 3

Step 3: Install pressure sprayer with gun grip. Depending on the design of the gun, there are 2 types of installation. With the position of installing a threaded gun, the pressure sprayer will be connected to the gun by tightening it like a screwdriver. In addition, with the mounting position, you only need to unlock and connect the pressure spray wire.

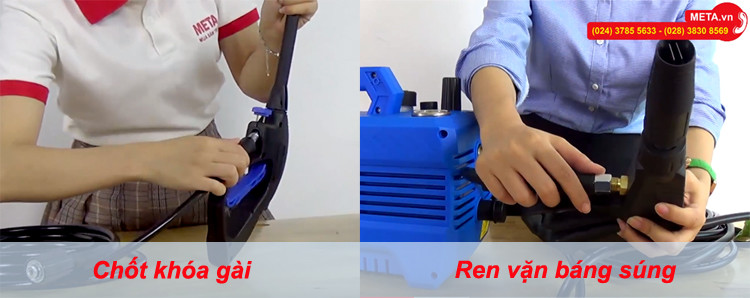

Procedures for installing car washers and notes not to be missed Picture 4

>>> More references:

Some car washing machine codes have latches: Lavor Galaxy 140, Btec BT527, Bosch Aquatak-33-11 .
Some car wash codes have threaded gun: Hyundai HRX815, Ergen EN-6708, Kachi 1400W .

Step 4: Install the spray head with the remaining pressure on the machine.

Procedures for installing car washers and notes not to be missed Picture 5

Step 5: Install the device to connect the water source to the machine. In some car wash codes such as: equipped with a garbage filter to connect with water conductors to help filter the dirt, rubbish from the water into the machine, protect the machine from damage, for high durability.

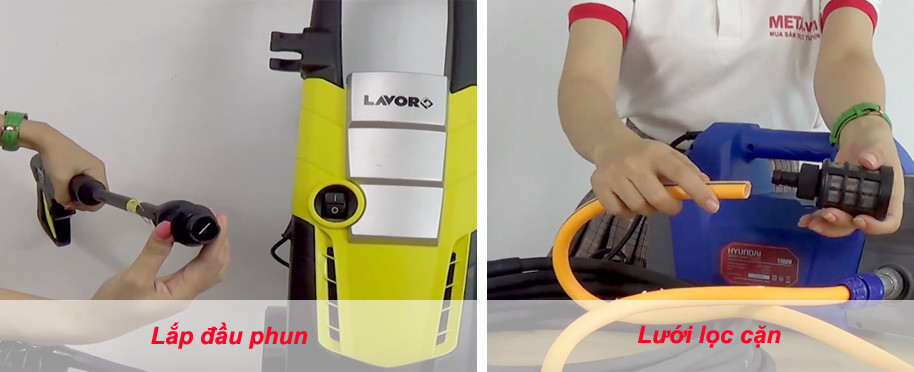

Procedures for installing car washers and notes not to be missed Picture 6

Some car washers are not equipped with water conductors, so when installing, you need to buy more wires!

After installation is complete, you only need to connect the machine to the power source, water source and turn on the switch to use it only!

Note when using a family car washer

In some lines the car wash has the function of sucking water from the bucket. These codes are very convenient, so you can easily wash the car, spray it even when not near direct water source. With these machines, you just need to put the wire into the bucket, turn on the switch, squeeze the trigger and wait for the water to spray. In case the suction pressure is too weak, you can bait the water by pouring water into the water cord before use. Note that you should put the bucket of water on the same plane with the machine or higher to create pressure and not too far from the machine.

For washing machines that do not have self-suction function, you need to connect the water cord directly to the water source. Turn on the switch and spray as usual.

In the process of use, you can change the nozzles: tubor, flexible nozzles, scrubbing table, soap spray head . depending on usage needs. With a flexible nozzle, you can adjust the spraying style to spray the soap on the car's surface, avoid scratching the car paint. Pinch spray helps create strong pressure, flying stubborn stains under the car, wheels .

Top 3 most popular family car washers

1. Bosch Aquatak-33-11 car washer

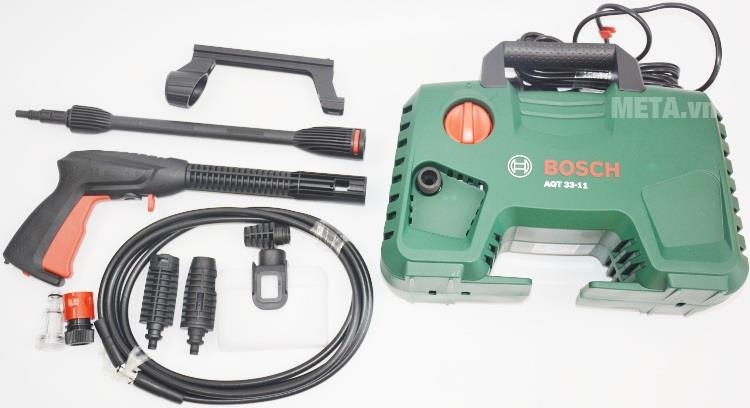

Procedures for installing car washers and notes not to be missed Picture 7

1. Motor: Brushless motor
2. Capacity: 1.300W
3. Pressure: 100 bar
4. Water flow: 330 liters / hour
5. High voltage wire: 3m

2. Ergen EN-6708 car washer

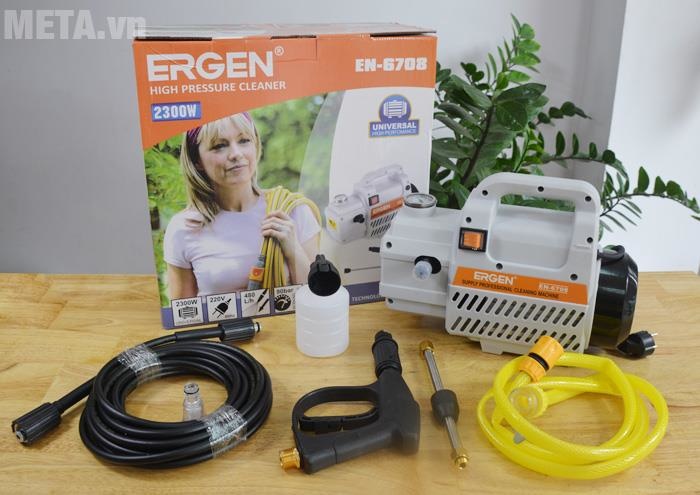

Procedures for installing car washers and notes not to be missed Picture 8

1. Motor: Magnetic motor (Induction)
2. Pressure spraying length: 8m
3. Self-draining ability: Yes
4. Capacity: 2,300W
5. Pressure: Working (90 bar); Maximum (120 bar)
6. Water flow: 480 liters / hour

3. V-JET VJ 100 washing machine

Procedures for installing car washers and notes not to be missed Picture 9

1. Motor: Magnetic motor (Induction)
2. Case material: High quality plastic
3. Self-draining ability: Yes
4. Capacity; 1,500W
5. Pressure: 135 bar
6. Water flow: 6 liters / minute
7. High-voltage wire: 10m

>>> Further reference: "Review the top 3 best car wash brands today".
