COVID-19 Portable 'safely isolated sampling chamber' in Vietnam

With a total cost of about 10 million VND, taking less than 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for COVID-19 testing.

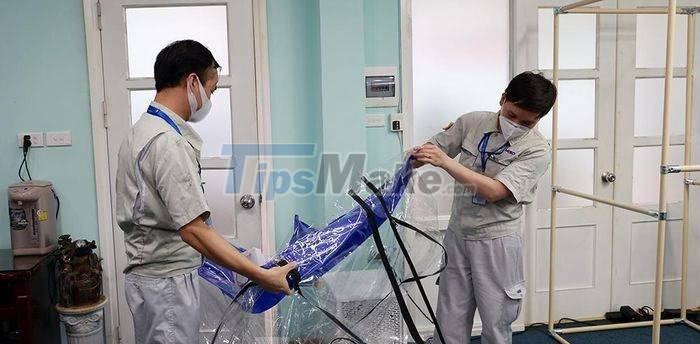

It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 1It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 1

Recently, the Vietnam Institute of Medical Equipment and Construction, the Ministry of Health of Vietnam, in collaboration with Meko Company of Japan and Hanoi University of Science and Technology, Vietnam have successfully researched and manufactured a "review chamber" mobile test" COVID-19 sampling.

It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 2It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 2

The requirement is that this chamber must have high mobility, quick disassembly, simplicity and safety.

It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 3It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 3

The chamber has an area of ​​​​nearly 1m2, about 2.5m high and weighs 20kg, for a medical staff to work and take samples for testing for people outside through a pair of gloves attached to medical plastic film.

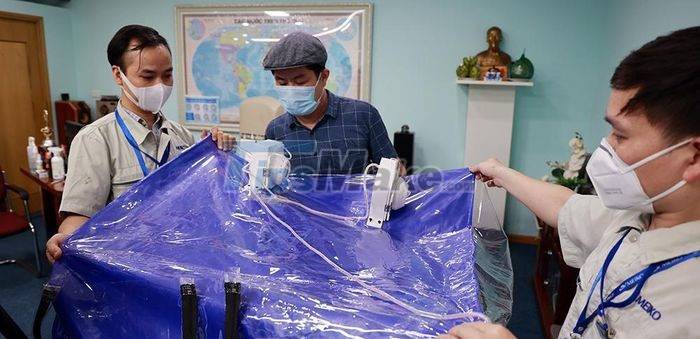

It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 4It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 4

This simple design idea is extremely effective, the chamber can be moved to any position, allowing medical staff to not need to wear thick, secretive protective clothing and have to leave after each time. use, as well as less costly other protective equipment.

It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 5It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 5

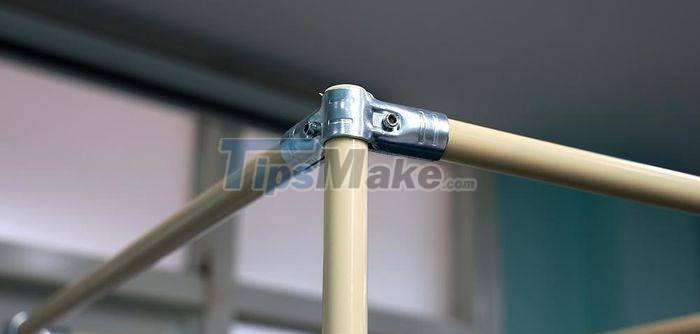

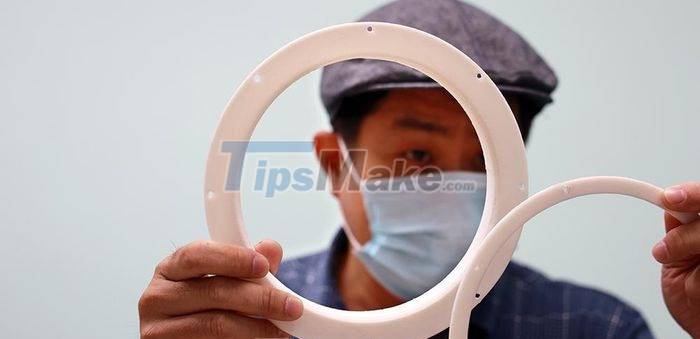

The material is made of steel and plastic pipes, so the weight is also light, easy to move and install.

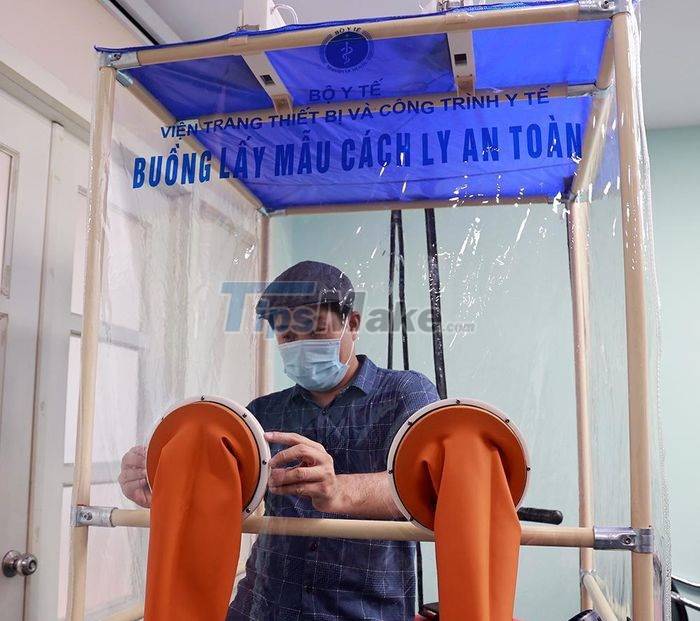

It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 6It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 6

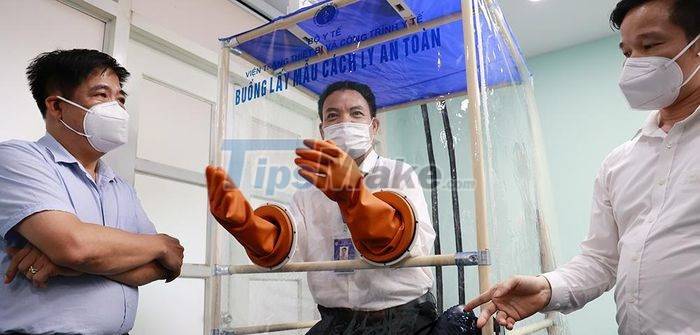

The medical staff sampling area is installed with a pair of closed rubber gloves, ensuring safety against epidemics.

It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 7It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 7

The cost for this testing chamber is only about 10 million VND and can be moved to any location.

It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 8It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 8

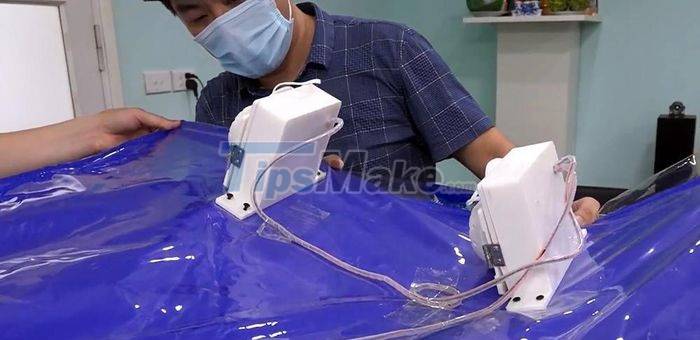

Another unique feature of the test chamber is the Blauberg fresh air supply fan system. These two air intake fans have a capacity of 120 liters / min, placed right above the sampler's head, blowing air down the shoulders to create cool wind.

It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 9It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 9

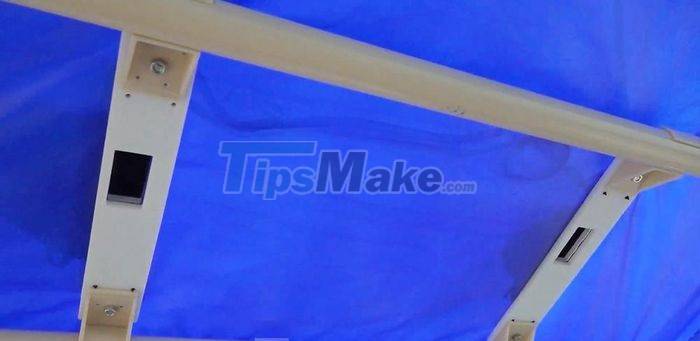

The vent inside the "safety sampling chamber" creates a ventilated space for medical staff.

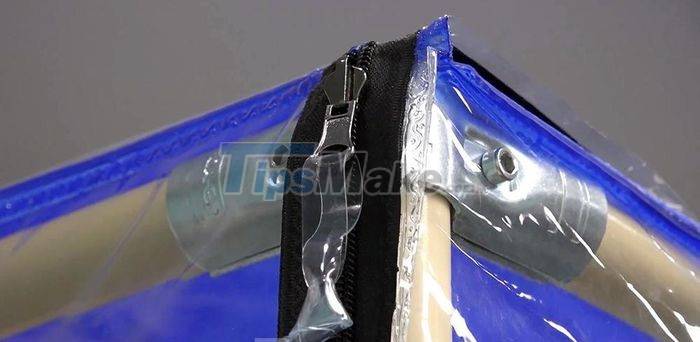

It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 10It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 10

It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 11It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 11

This Blauberg instead of using a HEPA filter which is quite difficult to replace and expensive to buy, is used to filter the air with an easy-to-change, cheap N95 mask.

It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 12It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 12

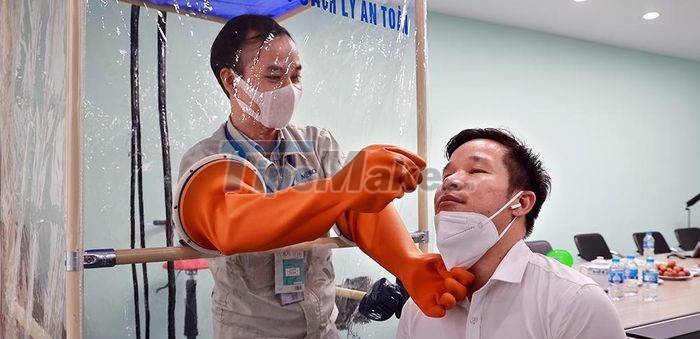

The design team wishes that each sampling chamber will act as a safety shield, reduce heat, and relieve stress for doctors and nurses who are fighting day and night at the epicenter of the epidemic.

It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 13It only takes 15 minutes to assemble, the 'safely isolated sampling chamber' is ready for testing in Vietnam Picture 13

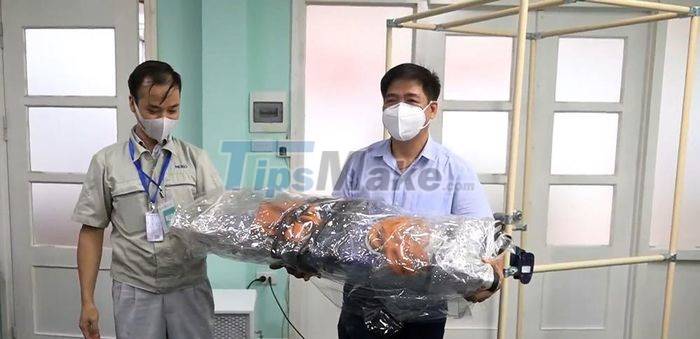

The entire "safety sampling chamber" is neatly folded before and after use.
