How to stack cable bundles in the server room

The sloppy technicians will make the room the server system into a dangerous barbed wire, but the simple tip below will restore order for this important data container.

The sloppy technicians will make the room the server system into a dangerous barbed wire, but the simple tip below will restore order for this important data container.



Although wireless technology can eliminate tangled cables hidden behind a computer desk, it is still possible to see these "pasta" in server rooms. Many rooms are not reasonably designed to arrange neat strings, which are easy to pose many risks.

How to stack cable bundles in the server room Picture 1How to stack cable bundles in the server room Picture 1

This is a sloppy server room with all kinds of cables, wires .

How to stack cable bundles in the server room Picture 2How to stack cable bundles in the server room Picture 2

Many sections of 100 - 200 m cable to run from one price to another.

How to stack cable bundles in the server room Picture 3How to stack cable bundles in the server room Picture 3

To prepare to remove this jumble, you can build a rack containing plastic boxes. Each box will contain a carefully labeled cable.

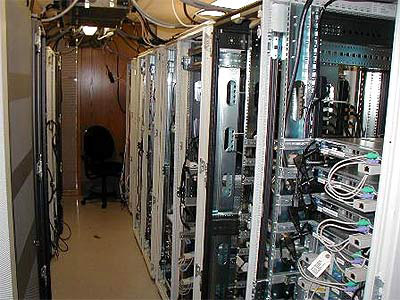

How to stack cable bundles in the server room Picture 4How to stack cable bundles in the server room Picture 4

First, remove the tangled wires in the room.

You have to make a diagram of servers with things that connect them like wire type, switch . This helps you determine the correct connection and the corresponding cable. When finished, you will be free to unplug the cord without fear of plugging it in later.

Clean in-door and surrounding rooms (if available) because this rodent will bite off the connecting cables.

How to stack cable bundles in the server room Picture 5How to stack cable bundles in the server room Picture 5

Network cables and wires should be neatly rolled on the top of the machine before you plug in other types of wires.

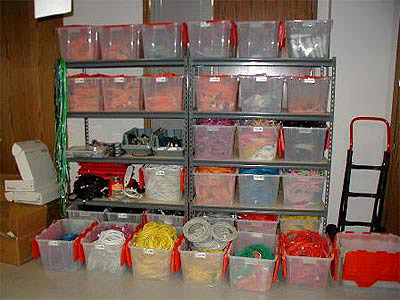

How to stack cable bundles in the server room Picture 6How to stack cable bundles in the server room Picture 6

Plastic boxes contain different types of cables.

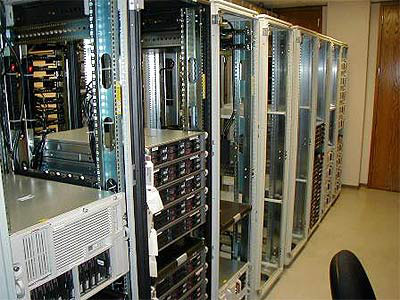

How to stack cable bundles in the server room Picture 7How to stack cable bundles in the server room Picture 7

The server blades are rearranged.

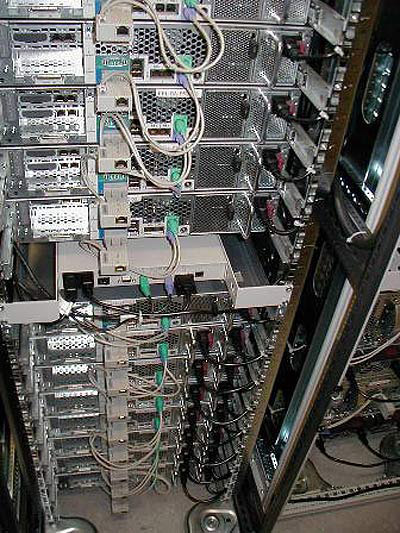

How to stack cable bundles in the server room Picture 8How to stack cable bundles in the server room Picture 8

This is a neat way to plug the power cord.

How to stack cable bundles in the server room Picture 9How to stack cable bundles in the server room Picture 9

Wrap the cable with some fastener in each piece, creating neat and beautiful look.

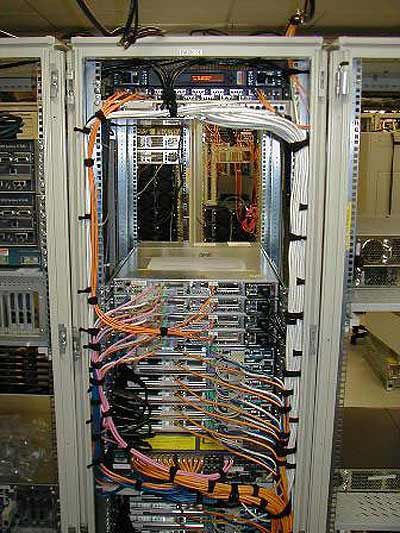

How to stack cable bundles in the server room Picture 10How to stack cable bundles in the server room Picture 10

Each string color is tied into a separate, recognizable bundle.
