How to click the 4-wire network cable, press the network cable with the phone cord
As you know, a standard network cable has 8 fibers with pairs of orange, white, blue, white and brown white. But you may not know other than the 8-wire type, there is also a 4-wire network. The four-wire network has only three colors: white, orange and blue, but it can still connect to the network if you press the standard network cable . To press the 4-wire network cable for the computer you still use the RJ45 connector, if you click on the phone you will have to use the RJ11 end, also known as the RJ11 network.
- 3 steps of fast, standard network wiring
Is there any difference in the 4-wire wiring?
- Of course, it is different, different from half the string.
Is network connection stable?
- Yes, still connected to the network normally, but limited.
And in what circumstances is it used?
- Often used in small scale such as home network, personal network. Click the 4-wire network cable also used in the connection of the landline phone. For corporate networks, multiple switches, modems, routers you should not use this 4-wire wiring, because if the network is gigabit (1000Mbps), then there should be 8 new fibers to connect at the right speed. Thus, 4-wire network wiring should only be used for slow-speed networks (100Mbps) and should only be a temporary solution if an 8-fiber cable cannot be found immediately.

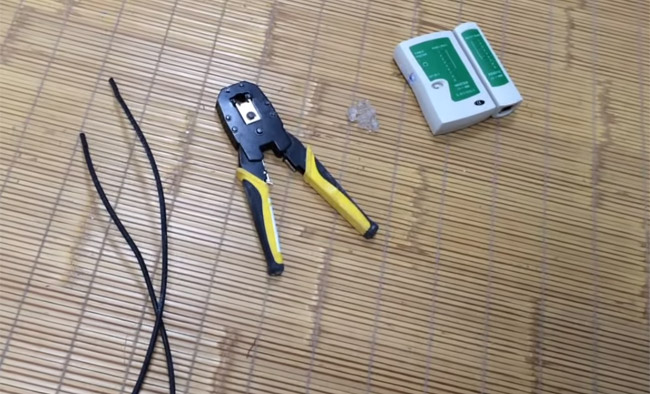

To wire the 4-wire network you need to prepare the following tools:
- 4-wire cable or phone cord, normal network cable okay, something I only use 4 thread
- Click
- RJ45 connector
- Test device
How to click the 4-wire network cable, press the network cable with the phone cord Picture 1

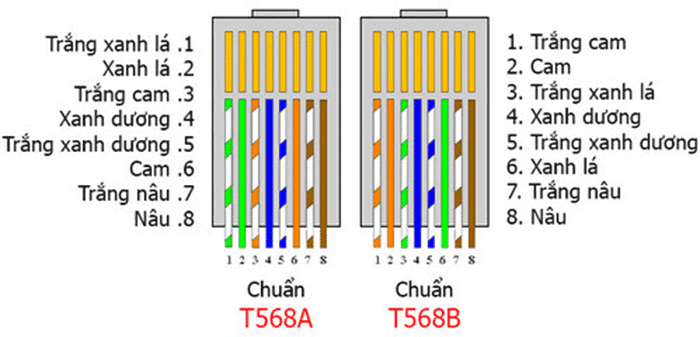

To click on 4-wire network, you still have to keep in mind that the 2 standard wiring standards are A and B, but do not line up completely like these 2 standards, just remember the order of location. You will have to put the network wires in positions 1, 2, 3 and 6.
How to click the 4-wire network cable, press the network cable with the phone cord Picture 2
Specific 4-wire wiring steps:
- Remove the outer wire cover, taking care not to trim the core wire
- Arrange the network in order 1, 2, 3, 6, here I use standard B so the string order will be white orange, orange, white green, green.
- Use pliers to cut the ends of the wire equally
- Put the network head in, put the wire in position 1, 2, 3, 6
How to click the 4-wire network cable, press the network cable with the phone cord Picture 3

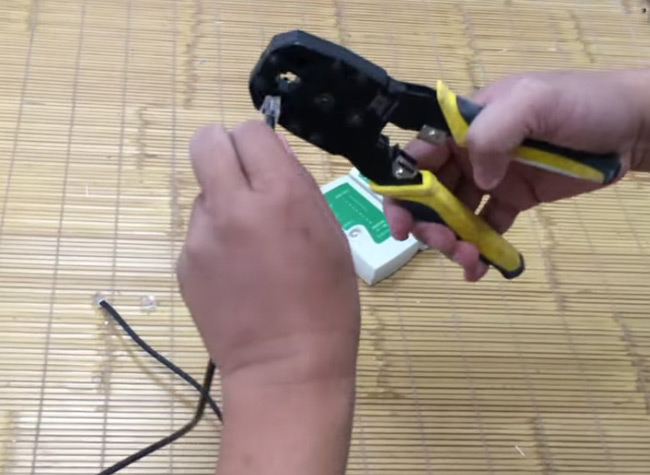

- Use pliers
How to click the 4-wire network cable, press the network cable with the phone cord Picture 4
- The other end does the same
- Then put it into the test device to check if the network wire click was successful. If the light is on, congratulations, you clicked very well.
How to click the 4-wire network cable, press the network cable with the phone cord Picture 5
The use of telephone wires to make network cables is quite common for home networks or in net shops because telephone wires have power cables, can be pulled far away without causing loss. If you want to pull a network for neighbors or people who love you about 100 meters away from home, instead of using a regular network cable, think about using a phone cord as a network cable. How to press the network cable with the phone cord is the same as above, nothing different.
Wish you all success.
