Agent runtime protection status
On the Agents page in Copilot Studio, creators can determine at the agent level whether published agents comply with security and governance standards, and verify that the agent's threat detection features are working.
For more information, see Key Concepts - Security and Administration of Copilot Studio .

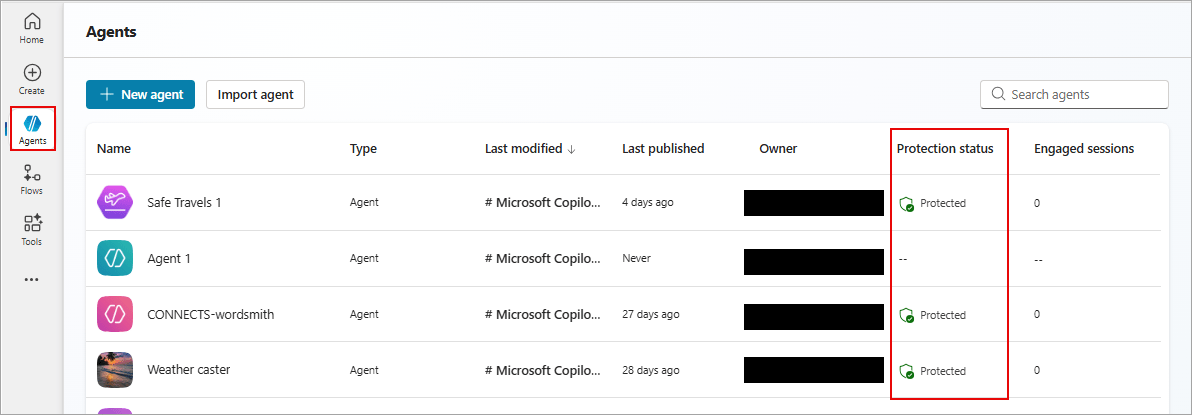

The security status of published agents is displayed in the Protection status column on the Agents page . By displaying the protection status for each agent as one of the values Protected , Needs review , or Unknown , creators can quickly determine when threat detection is active and which of their agents are protected.
The possible values for an agent published in Protection status are Protected , Needs review , and Unknown .
When an agent's agent level status is Protected , no immediate action is required (based on detected signals). When the status is Protected , a green shield icon will be displayed to visually emphasize that the agent is protected (green shield protection icon).
When the agent level status is "Needs review ," the agent's policy has been violated or validation is incomplete. Regardless of the status, the creator can view the agent level summary dialog details, which provide more information about the agent's security, categorized into different sections.
Select the agent status in the Protection status column to view the agent level summary dialog box showing the agent's protection status.

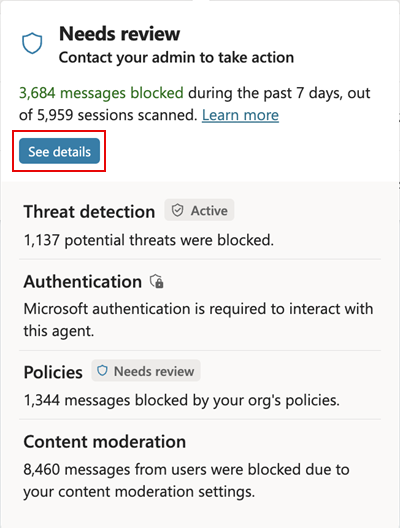

Summary of protection status
In the protection status summary dialog box, the agent's protection profile is divided into three categories: Authentication , Policies , and Content Moderation . Each category can have a status of Protected , Needs Review , or Unknown , similar to the agent-level summary status on the Agents page .
Additionally, this dialog box displays the number of messages blocked due to potential threats, policy violations, and content moderation settings breaches. Potential threats can be direct or indirect. For example, a potential threat might be caused by a user overriding security settings with administrator privileges. Or, a potential threat might be a referenced knowledge source. All published agents automatically have threat detection enabled and display the Active label .
Similar to agent-level protection status, if Authentication or Policies violate accepted security standards, as defined by the agent's security settings, the " Needs review" label will appear next to the category in the summary dialog. If either of these categories has the "Needs review" label , this label will be aggregated into the single agent-level protection status on the Agents page .
From the agent-level protection summary dialog box, if you want to see more details, select See details to open the Security analytics dialog box .

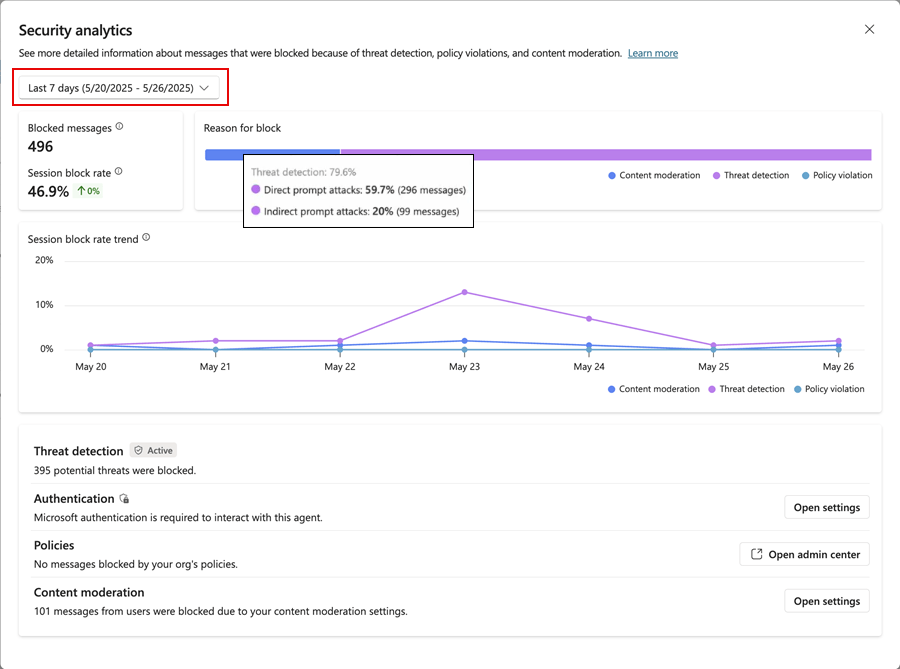

Security analysis
The Security Analytics dialog box displays statistics and trends on blocked messages and agent status across authentication, policy, and content moderation categories.
Select the date range of the security analysis data you want to view. If you don't have data in one or more of the following ranges, those ranges won't appear as selectable options in the date range selector. Choose from the following range options:
- Last 7 days
- Last 14 days
- Last 30 days
The stacked Reason for Block bar chart analyzes the total number of all blocked messages within a configured timeframe into color-coded bar segments, with the length of each segment representing the percentage for each blocking reason. For example, in the chart, there are 496 blocked messages in the last 7 days. Of these blocked messages, 79.6% were blocked because they were considered potential threats (pink bar segment), with approximately 60% of all blocked messages being direct prompt attacks. A quick look at the session blocking rate trend chart shows that the rate of message blocking due to the detection of potential threats peaked on May 23rd.
The Session block rate trend chart shows the percentage of total sessions in which a prompt was blocked, as a trend line over time. Each of the three types of protection is shown individually as color-coded trend lines, using the same color coding as the Reason for block bar chart .
| Threat detection or protection category | Describe | Act |
|---|---|---|
| Threat detection | This component displays statistics on blocked prompt attacks, which are proactively blocked by default. It provides manufacturers with insights into the number and trends of attacks, helping them better understand the security landscape for their agents. | |
| Authentication | This component indicates whether the agent requires end-user authentication or whether it operates publicly. If an automated agent operates publicly, it could expose sensitive data to potential attackers or unauthorized individuals. In such cases, this status reflects a potential threat vector that may require the manufacturer's attention. | Select Open settings to go to the agent's Settings > Security > Authentication page , where you can choose your authentication method. |
| Policy | This component reflects policy violations established by administrators in the Power Platform admin center. Agents may violate these policies, and creators need to be aware of these violations and make necessary adjustments. For example, an organizational data policy might block a connector that an agent attempts to use. | Make the necessary changes to your agent to ensure it complies with your organization's policies. To review policy-related errors, select the Review errors in Policies link . If you need to change your organization's policies and you have access, select Open admin center to access the Power Platform admin center, where you can view or edit your organization's policies. |
| Content censorship | This component doesn't directly affect the protection status but is part of the statistics and trends that the producer can use. It helps ensure that the content generated by the agent adheres to the desired sensitivity levels. | Select Open settings to go to the agent's Settings > Generative AI page , and in Moderation > Content moderation level , adjust the slider to your desired content moderation level. |
