How to adjust sound for Arirang PA-203III EV amplifiers

Arirang PA-203III EV amplifiers designed with a lot of sound control buttons will make it difficult for users. Please see how to use Arirang PA-203III EV amplifier in detail below.

How to adjust the karaoke microphone volume, adjust the music volume, adjust the volume volume, how to adjust Echo echo of Arirang PA-203III EV amplifiers? What connection ports are there on the back panel of the Arirang PA-203III EV?

Join TipsMake.com to find out more about the product to know how to use the amplifier to bring better sound quality.

Arirang PA-203III EV Amplifiers User Guide

1. How to use Arirang PA-203III EV amplifier control panel

Function buttons: adjust the sound for Mic, adjust the music volume, adjust Echo echo, display lights, adjust the volume volume, on / off switch is arranged in the front of the amplifier. How to adjust the sound as follows:

How to adjust sound for Arirang PA-203III EV amplifiers Picture 1How to adjust sound for Arirang PA-203III EV amplifiers Picture 1

Adjust the volume volume

  1. Vol: Adjust the synthesized volume.
  2. Lo: Adjust Mic synthesized Mic, music.
  3. Hi: Adjust the treble sound of Mic, music.
  4. Mid: Adjust Chinese synthesized Mic, music.

Adjust the Mic volume

  1. Mic 1 jack, Mic 2 is used to plug Microphones or put signals from other devices into the device via this terminal.
  2. Gain: When pressed, it decreases the Micro gain.
  3. Vol: Use Mic volume adjustment.
  4. Bal: Micro volume adjustment function for balance between 2 channels.
  5. Echo: Adjust Echo sound for Micro.
  6. Lo: Adjust the bass for the Micro.
  7. Mid: Adjust the Chinese language of Micro.
  8. Hi: Adjust treble for Micro.

Adjust Echo echo

  1. Selector: Select Echo Stereo or mono sound.
  2. Vol: Adjust Echo volume.
  3. Lo: Adjust the bass for Echo.
  4. Hi: Adjust the treble sound for Echo.
  5. RPT: Adjust Echo repeatability.
  6. Dly: Fast time / slow Echo.

Adjust the volume of background music

  1. A / B: Select button A or B input signal on the back of the machine.
  2. 3S: Background music effect zooms in or out.
  3. Vol: Adjust the volume of music.
  4. Lo: Adjust music bass.
  5. Hi: Adjust the treble sound for music
  6. Mid: Adjust Chinese for music

Light show

  1. VFD lamp displays sound intensity of 2-channel L-R speaker output.
  2. Protect: Red light on the VFD lamp is in protection mode when there is short-circuiting in the speaker output or overload.
  3. 3S: Display on VFD lamp indicates the Surround sound effect is being selected.

Power switch: Turn on the machine when using and turn off the computer when not in use.

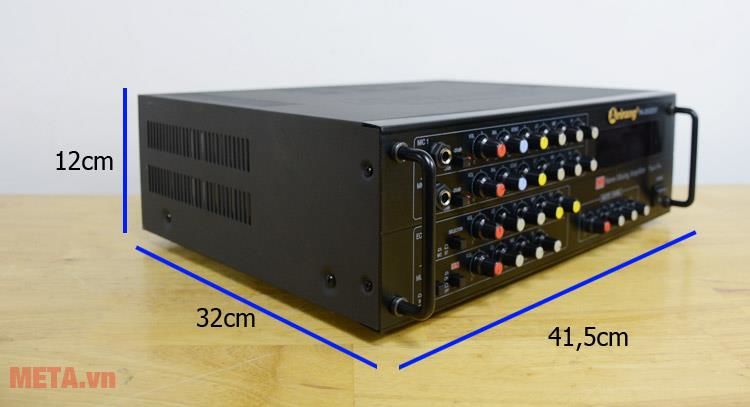

How to adjust sound for Arirang PA-203III EV amplifiers Picture 2How to adjust sound for Arirang PA-203III EV amplifiers Picture 2

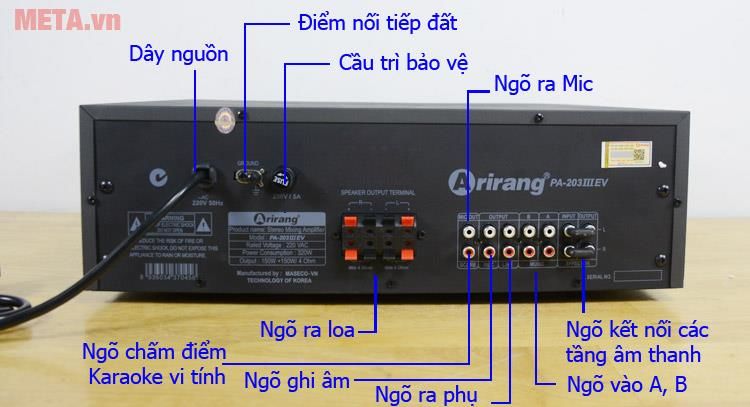

2. The connection ports of Arirang PA-203III EV amplifiers

Arirang Amply equipped with many connection ports such as speaker output, Karaoke microphone output, Score output (computer karaoke scoring), output using recording, auxiliary output, output input connecting audio floors , AB input, protective maintenance, grounding point, power cord.

How to adjust sound for Arirang PA-203III EV amplifiers Picture 3How to adjust sound for Arirang PA-203III EV amplifiers Picture 3

The function of each connection port is as follows:

  1. Loudspeaker output: The loudspeaker system must be connected in the right position, the left speaker must properly plug the left speaker position L of the speaker output. The right speaker plugs into the right speaker position R of the speaker output. When connecting the speaker, you must connect the "-" or "+" polarity.
  2. Mic Out Output: Micro signal is given through this code. This signal includes Micro signal mixed with Echo signal, without background music, can connect to the input of other recording devices.
  3. Score output: This output signal is connected to the computer karaoke scoring input.
  4. Rec output: Connects to a recording device.
  5. Line output: Connect to another amplifier.
  6. Input A, B: Connect to the output of other audio devices such as karaoke midi DVD player, DVD Player, Music Player, .
  7. Audio input and output inputs: This connector is used to connect to Stereo Graphic Equailizer or some sound effects device.
  8. Power cord: Amplifiers use 220V / 50Hz power.
  9. Grounding point: The device should be grounded to protect against electrical problems.
  10. Protection fuse: To protect the device, use the correct maintenance value recorded on the 250V - 7A device. If the Power On switch is turned on, the amplifier does not work, check the fuse again.

The article on the extremely detailed tutorial on how to use Arirang PA-203III EV amplifiers. I wish you to use it properly to bring about great sound quality.
