How to connect a VCD/DVD player to a TV

Connect the VCD/DVD player to the TV to help guide the video and audio signals from the player to the TV. Normally connecting through the AV port - Audio Video will be used, but some devices also allow connection through other ports with a higher quality image signal. Here are some common ways to connect from a VCD/DVD player to a TV.

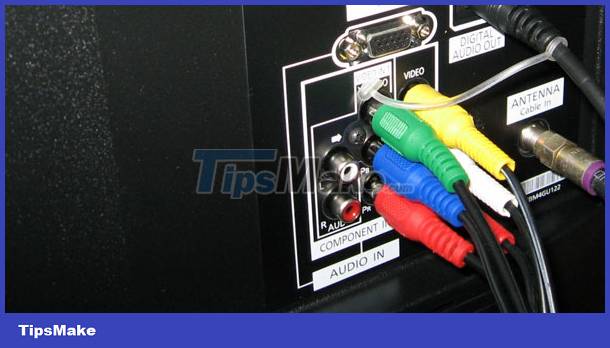

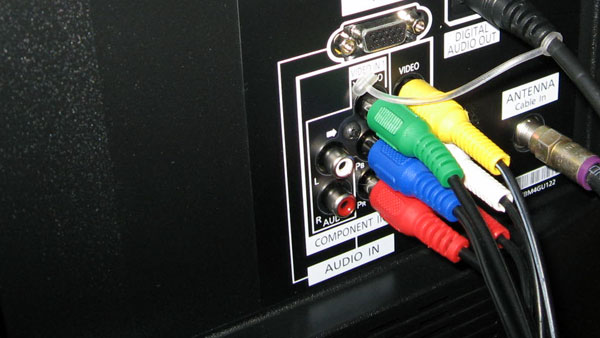

How to connect a VCD/DVD player to a TV Picture 1 How to connect a VCD/DVD player to a TV

first

Connect via AV port - Audio/Video

This is the commonly used connection through the AV port between the VCD/DVD player and the TV. In which the video signal connection port is yellow, the audio signal connection port - Audio is red - the left channel and white - the right channel.

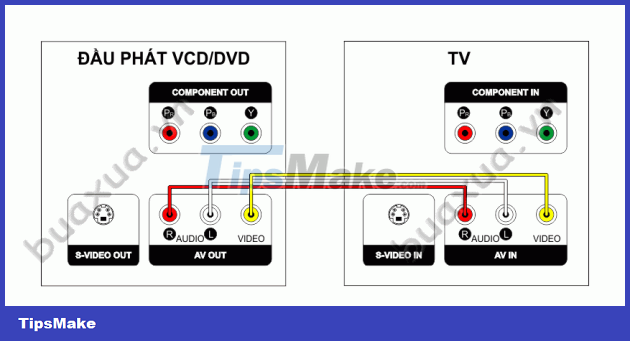

How to connect a VCD/DVD player to a TV Picture 2 Connect via AV port - Audio/Video

This type of connection uses 3 composite signal leads - lotus plug, in which the yellow wire transmits the image signal - Video, this red and white transmits the audio signal - Audio for the two left channels - L/Left and right channel - R/Right.

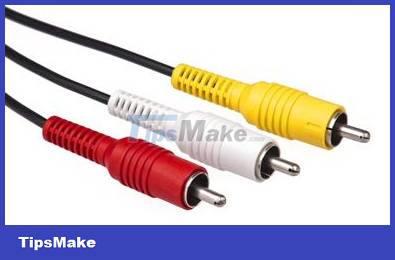

How to connect a VCD/DVD player to a TV Picture 3 AV signal connection cable - Audio/Video

Note that the audio connector and leads can be red/white or red/black. In case the wire has a different color, just plug in the correct signal position. This type of connection gives a medium quality picture signal.

2

Connecting via S-Video port

This is the connection through the S-Video port between the VCD/DVD player and the TV. This connection port is usually black and in it has 4 small jacks to transmit image signals. Because the S-Video port only transmits video signals, you need to have two additional audio conductors for the left and right channels.

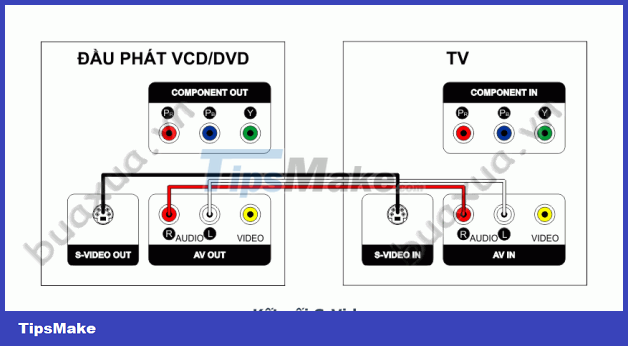

How to connect a VCD/DVD player to a TV Picture 4 Connecting via S-Video port

This type of connection uses 1 S-Video signal conductor to transmit image - Video signals.

How to connect a VCD/DVD player to a TV Picture 5 S-Video signal connection wire

Also need additional audio wire - Audio includes two red and white wires to transmit audio signals - Audio for two left channels - L/Left and right channel - R/Right.

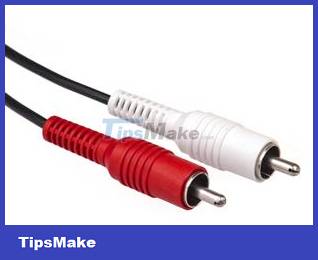

How to connect a VCD/DVD player to a TV Picture 6 Audio signal connection wire

Note that when connecting in this way, when plugging in, pay attention to rotate the S-Video cord in the correct position of the pins to avoid breaking the small pins inside. This type of connection gives a higher quality image signal.

3

Connect via Component port

This is the way to connect through the Component ports between the VCD/DVD player and the TV. This connection has 3 video signal ports - Video with red, blue and green colors. Because the Component ports only transmit video signals, you need to have two more audio conductors - Audio for the left and right channels.

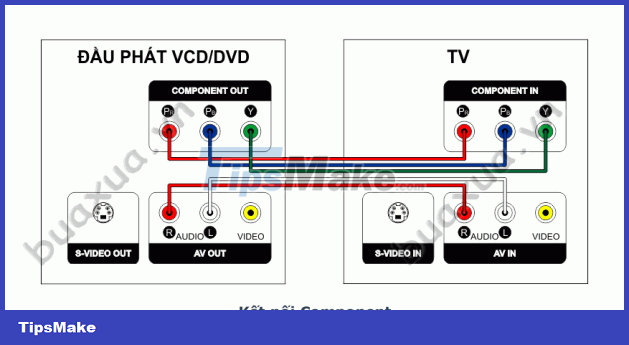

How to connect a VCD/DVD player to a TV Picture 7 Connecting via component port

This type of connection uses 3 Composite signal conductors - lotus plug to transmit image - Video signals.

How to connect a VCD/DVD player to a TV Picture 8 Component signal connection wire

In addition, it is necessary to add wires to connect audio signals - Audio includes two red and white wires to transmit audio signals - Audio for two left channels - L/Left and right channels - R/Right.

How to connect a VCD/DVD player to a TV Picture 9 Audio signal connection wire

Note that when connecting in this way, there must be 3 wires of image - video signals and must connect the correct color or the correct symbol on each connection port. This connection type gives the highest quality picture signal of the three connection types.

See instructions How to connect HD Video player to HDTV
