How to mount SATA port for desktop

Compared to attaching external devices to a computer that requires certain accuracy and understanding, connecting a SATA port does not require a lot of technology. Refer to the following steps to connect SATA port for desktop hard drive.

Compared to attaching external devices to a computer that requires certain accuracy and understanding, connecting a SATA port does not require a lot of technology. Refer to the following steps to connect SATA port for desktop hard drive.

Step 1: Determine the hard drive bay to be mounted

Typically, the hard drive bay is mounted perpendicular to the bottom of the case, and the internal hard drive is usually placed parallel to the bottom of the case. Be sure to find the appropriate space, fit the size so you can attach a new hard drive. Avoid situations that are too wide, or too tight for the size of the hard drive.

How to mount SATA port for desktop Picture 1

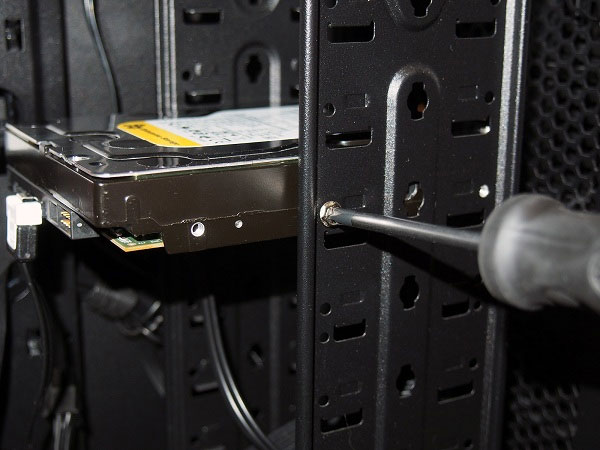

Make sure the hard drive is inside the case

Step 2: Attach the hard drive to the compartment

Position the hard drive into the cavity with 4 screws on either side or bottom of the drive. Attention should be paid to not tighten the hand. In many cases with computer population, the case usually uses a non-screw slide tray, but it is possible to use clamps to ensure robustness.

How to mount SATA port for desktop Picture 2

Many types of hard drive trays use sliders

Step 3: Connect the hard drive to SATA port

First attach a SATA cable end to the hard drive, and the other end connects to an available SATA port on the motherboard. During the mounting process, we can use metal hooks to hold it firmly.

How to mount SATA port for desktop Picture 3

Connect SATA to the hard drive

Prepare hard drive to use. Access the system BIOS, select the System Settings section to check if the hard drive is connected. If you see the drive name, you have successfully connected the hard drive.

How to mount SATA port for desktop Picture 4

Check the hard drive signal in the BIOS

Above is how to connect the SATA port to the desktop. Note, the plug should be in accordance with the position of the mainboard motherboard.

Refer to the following articles:

  1. Experience gold when choosing to buy an external hard drive
  1. Instructions for dividing hard drives right in Windows 10
  1. 5 ways to hard drive 'live' longer

I wish you all success!
