Instructions for configuring Bullet M2HP Wifi router

TipsMake.com please guide you how to install Wifi M2HP Wifi Router. Things to know about the device before configuring IP Lan default: 192.168.1.20 Username: ubnt Password: ubnt

How to plug in the device : On the PoE Adapter: PoE port plugs into Bullet M2HP, the LAN port plugs into the network card of the computer or Router ( Modem or Switch ).

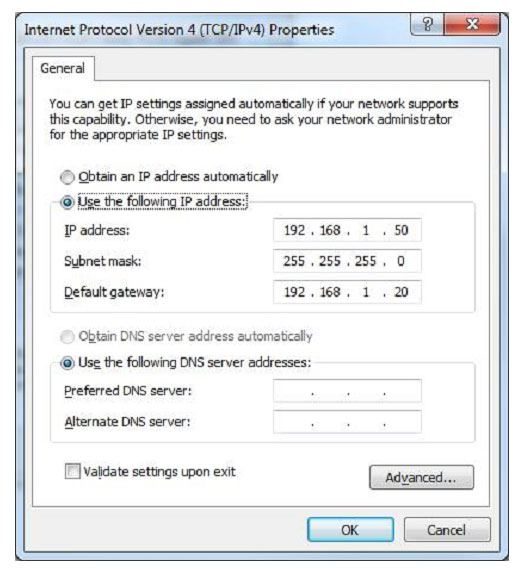

Step 1 :

Set static IP for network card

Instructions for configuring Bullet M2HP Wifi router Picture 1

Step 2 :

Open the browser and go to 192.168.1.20 with username and password as ubnt

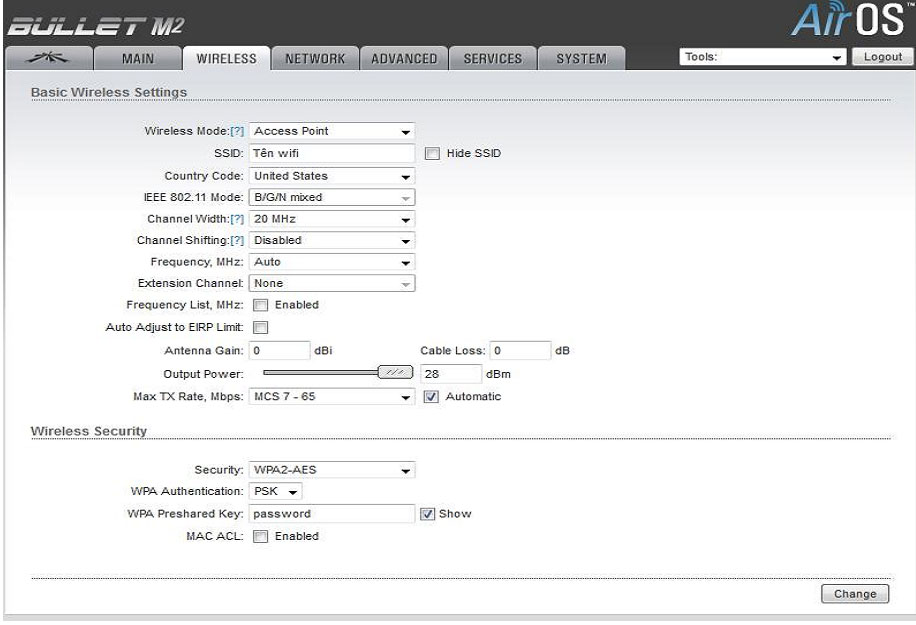

Step 3 :

Go to the Wireless card

1. Wireless mode item select Access Point
2. SSID entry type the wifi name to set
3. Channel width section selected: 20 Mhz
4. Security section select: WPA2-AES ( Other modes can be selected )
5. WPA Preshared Key : type password wifi to set. Pass has a minimum length of 8 characters
6. After completing the above items, click Change .

Instructions for configuring Bullet M2HP Wifi router Picture 2

Step 4 : Go to the card with the icon Instructions for configuring Bullet M2HP Wifi router Picture 3 . Then uncheck the Enable AirMax section then click Change and Apply to complete the installation process.

Some points to note when installing

1. The antenna must be inserted into the wifi transmitter before plugging in the power for the wifi transmitter
2. When installing outdoor connection points between the wifi transmitter - spread lightning protection ( if any ) - the antenna should be tightly sealed and tight with insulating tape.
3. In the Bullet Box M2HP, plastic buttons are available: this button is used to insert the network cable and the bottom cover to prevent insects from entering the device.
4. For antennas 8-10-12-15-24dBi must be installed tightly into iron or wall columns, must be mounted vertically to avoid strong shaking when strong winds can break the antenna.
5. Surge protection ( if any ) must be connected by grounding wire or lightning escape device. This lightning protection device only has the effect of escaping the lightning spread but cannot resist strong lightning or direct hits.
