How to Build Trailers

A trailer is a type of cart that hitches to the back of a vehicle and is used to transport large items like furniture, lumber, landscaping equipment, and more. There are many trailer types, but a common dimension for everyday needs is by ....

Part 1 of 4:

Constructing the Frame

How to Build Trailers Picture 1
Get four 2 in (5.1 cm) x 3 in (7.6 cm) pieces of rectangular steel tubing for the perimeter. The perimeter pieces are the 4 pieces of metal that form the rectangle for the trailer's base. For this trailer, use 2 length pieces 6 feet (1.8 m) long and 2 width pieces 4 feet (1.2 m) long. Either buy 4 pieces cut to this length, or buy a longer piece and cut it to size yourself.^{[1] X Research source}
1. For this trailer, you'll need 20 feet (6.1 m), or 240 inches (610 cm), of steel total for the base. Buy enough to complete the job.
2. If you're building your trailer to different dimensions, then adjust this step to meet your needs.
How to Build Trailers Picture 2
Cut a 45-degree angle into the end of each perimeter piece. Use a protractor and measure a 45-degree angle into both sides of each perimeter piece. Make sure the angles on each base piece are facing the same direction. Then use a power saw or miter saw and cut the angle into each piece.^{[2] X Research source}
1. Miter saws are best to use here because you can adjust the saw to the angle you want to cut. This ensures you get a proper, 45-degree angle.
2. Most power saws can cut metal, but be sure to use a blade designed for metal.
3. Always wear goggles and gloves when cutting metal. A welding mask would be even better, because cutting metal produces sparks.
How to Build Trailers Picture 3
Arrange the base pieces on a flat surface. Once the angles are cut, lay out the trailer perimeter. Work on a flat surface, like your driveway or garage floor. Lay out one of the 6 ft (1.8 m) pieces. Then fit a 4 ft (1.2 m) piece into each corner. Lay down the last 6 ft (1.8 m) piece to complete the rectangle.^{[3] X Research source}
1. Push the pieces together so there is as little space between them as possible.
2. If you aren't sure if you're working on a flat surface, put a level on the floor and check.
How to Build Trailers Picture 4
Weld the perimeter pieces together. With the perimeter formed, fasten the pieces together. Use a blowtorch or similar welding tool and weld along the corners of the rectangle. Weld all the areas you can reach first. Then let the metal cool down and flip it over so you can reach the bottom.^{[4] X Research source}
1. Make sure there are no openings or holes in your weld spots. This keeps water out and prevents rusting.
2. You can rent welding equipment from hardware stores, or buy it if you prefer.
3. Wear a welding mask, thick gloves, and a leather apron while you weld. Never touch metal right after you welded it. Wait for everything to cool down first.
How to Build Trailers Picture 5

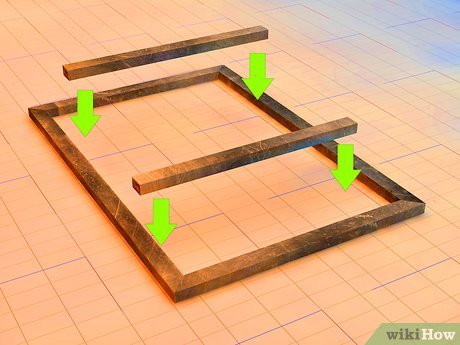

Cut a support beam for the center of the trailer bed. Use the same type of steel beams you used for the perimeter. Measure the width between the 2 longer sections of the perimeter. Then cut a piece of steel to that length. Fit it in between the length pieces to make sure it fits snuggly.^{[5] X Research source}
1. Don't worry if it's a tight fit or if you have to press the piece in. It should fit tight so it welds better.
How to Build Trailers Picture 6

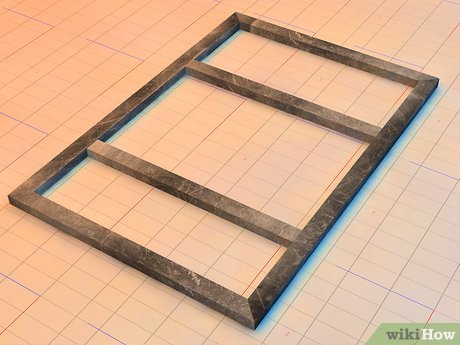

Weld the support beam at the halfway point of the trailer length. Measure the trailer lengthwise and find the halfway point. Mark this off with chalk. Then fit the support beam into this spot and weld it in place.^{[6] X Research source}

Part 2 of 4:

Attaching the Trailer Tongue

How to Build Trailers Picture 7
Cut a 4.5 ft (1.4 m) piece of metal for the tongue. The tongue is the piece of metal that attaches to your car. Take the same type of steel you used for the perimeter and cut it to 4.5 ft (1.4 m).^{[7] X Research source}
1. 4.5 feet (1.4 m) is a standard tongue size for an average trailer and towing vehicle. A general rule of thumb is that the tongue should be 1/2 the length of the towing vehicle plus 1 foot (0.30 m) to ensure it has clearance when you turn.
2. If your tongue is longer than 5 ft (1.5 m), it needs extra reinforcing to stay stable.
How to Build Trailers Picture 8
Make a notch in the tongue and rear support beam so they fit over each other. These notches fit the tongue and support beam together. Measure the distance from the middle support beam to the outer beam at the back of the trailer. Then measure this same distance on the tongue and mark it. Cut out a section the same width as the support beam halfway up the tongue at this point. Then measure the support beam and find its midpoint. Cut a notch there the same width as the tongue halfway down the beam.^{[8] X Research source}
1. For this step, a portable power saw is easier than a miter saw.
How to Build Trailers Picture 9

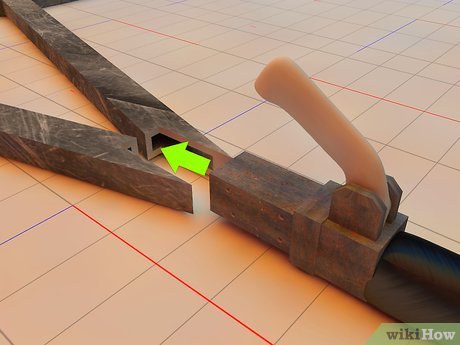

Fit the two notches together. Take the tongue notch and slide it into the beam notch. Make sure the tongue rests level on the ground and reaches the middle support beam.^{[9] X Research source}
1. Confirm that the tongue is in the center by measuring from the 2 back corners of the trailer bed to the tip of the tongue. Those 2 measurements should be equal, which confirms that the tongue is centered.
How to Build Trailers Picture 10

Weld the tongue to the trailer bed. There are 2 points of connection between the tongue and the trailer bed. First is the middle support beam, where the end of the tongue reaches. Second is the notch on the back beam. Weld both locations so the tongue is attached.^{[10] X Research source}
How to Build Trailers Picture 11
Attach the hitch connection to the end of the tongue. Complete the tongue with a hitch connection. This is where the trailer attaches to your car. Get a hitch connector that fits into your car hitch. Then fit it onto the end of the tongue and weld it on.^{[11] X Research source}
1. Hitch connectors are available from automotive stores. Make sure you get one that is the same width as the tongue.
2. Some hitch connectors have holes for bolts. In this case, fit the connector onto the end of the tongue. Then drill through the bolt holes to make holes in the tongue. Screw the bolts in and then weld the end of the connector to the tongue.

Part 3 of 4:

Building the Cage and Tailgate

How to Build Trailers Picture 12

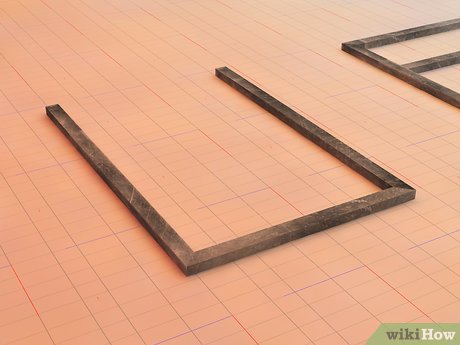

Construct a cage top the same size as the trailer perimeter out of metal pipe. This cage top is the same size as the trailer bed, except it only has 3 sides. Get metal pipes that are 1 inch (2.5 cm) in diameter. Take 2 pieces of 6 ft (1.8 m) pipe and 1 piece of 4 ft (1.2 m) pipe. Place the 2 longer pipes on a flat surface parallel to each other. Lay the shorter pipe between them at one side, making a 3-sided rectangle. Then weld the corners together.^{[12] X Research source}
1. Standard metal tubing will work for this cage top.
2. If the pipes aren't the correct size when you buy them, measure and cut the pipes to the correct size.
How to Build Trailers Picture 13

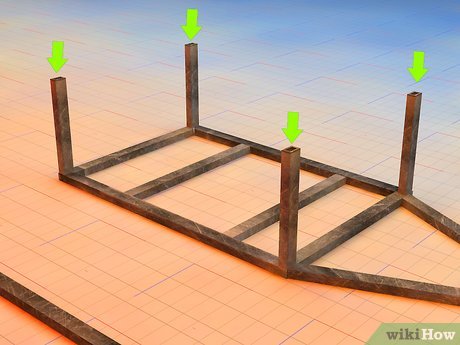

Weld vertical metal pipes to each corner of the trailer bed. These form the support beams for the cage top. Cut 4 pieces of metal tubing to 2 feet (0.61 m). Then weld each one to the corner of the bed.^{[13] X Research source}
1. The height depends on what you plan on hauling. 2 feet (0.61 m) covers most general needs. If you'll be piling up a lot of material into the trailer, then you might need a taller cage.
How to Build Trailers Picture 14

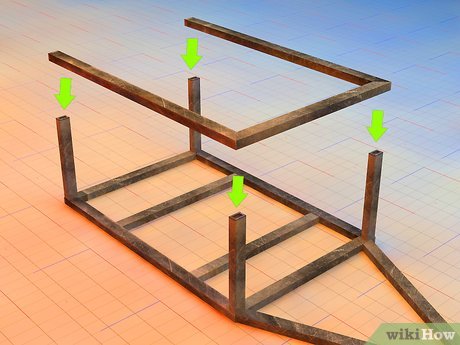

Attach the cage top to the metal pipes. Once the cage top is complete, lift it into position. Leave the open side on the opposite side from the trailer tongue. Rest it on top of the support beams and weld it into place.^{[14] X Research source}
1. Having someone else help lift the cage top and hold it in place while you weld makes this part much easier.
How to Build Trailers Picture 15

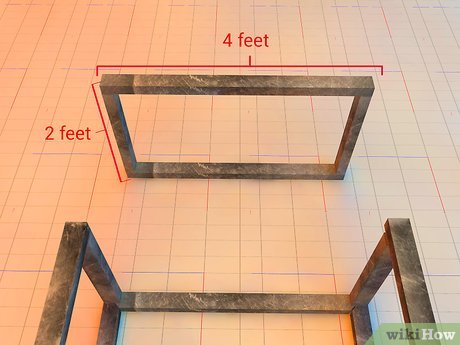

Build a trailer tailgate out of metal tubing. Use the same tubing you used for the cage. Cut 2 of them to be 4 ft (1.2 m) and 2 to be 2 ft (0.61 m) long. Lay the 2 longer pipes out parallel to each other. Then place 1 shorter pipe at each end to make a rectangle. Weld the corners together. Then weld metal mesh over the open section.^{[15] X Research source}
1. For an easier job, you can also make the tailgate out of a single piece of metal. This will be heavy, however.
2. Metal mesh is available at hardware stores or scrapyards.
How to Build Trailers Picture 16

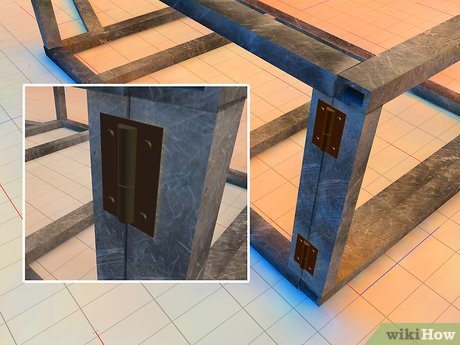

Fasten the tailgate to the trailer with door hinges. Take 2 normal door hinges. Measure 6 inches (15 cm) in from each side on the bottom of the trailer and mark these 2 points. Weld a hinge on each point. Then weld the bottom of the tailgate to each hinge.^{[16] X Research source}
1. To close the tailgate you have several options. For a simple solution, wrap a chain around the gate and bar to keep it closed.
2. You could also attach connectors to the gate and trailer bed. Get 4 circular metal loops from the hardware store. Weld 2 onto the top corner of the cage facing backward. Weld the other 2 onto the outer top edge of the tailgate, facing outward. Then close the gate so the loops line up and drop pins into them to keep it closed.
How to Build Trailers Picture 17

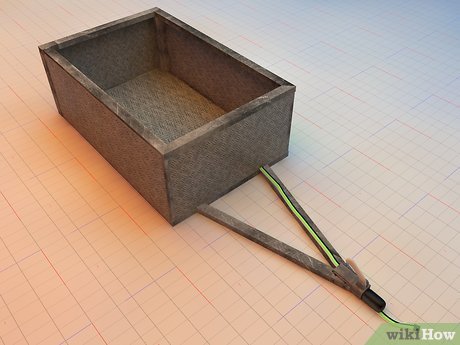

Cover the bed and sides with metal mesh. Finally, complete the trailer bed by covering it with metal mesh. Cut a sheet of mesh to the size of the base and roll it out. Attach it by welding down each point of the mesh that touches the trailer bed. Cut more sheets to fit each side of the bed as well, then attach them with the same welding process.^{[17] X Research source}
1. Some prefer to use plywood for the base of the trailer because it's cheaper and lighter. If you won't be carrying heavy loads, then lay plywood down for the trailer base.

Part 4 of 4:

Installing the Axle and Wheels

How to Build Trailers Picture 18

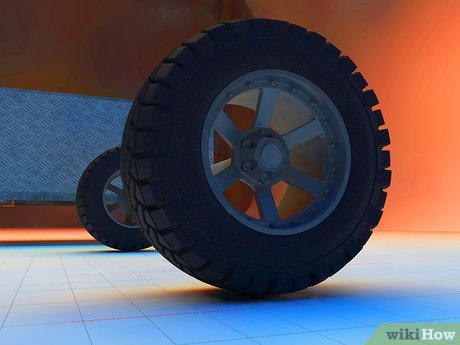

Get an axle kit from a hardware store. For the wheels of your trailer, use good-quality axles. Kits are available from hardware stores that include the axle and tire attachments. Get a kit that fits the dimensions of your trailer.^{[18] X Research source}
1. Some also use old car axles for a cheaper option. If you prefer this option, check around at scrap yards for extra parts.
2. Remember that car axles and tires will be heavier than trailer parts.
How to Build Trailers Picture 19

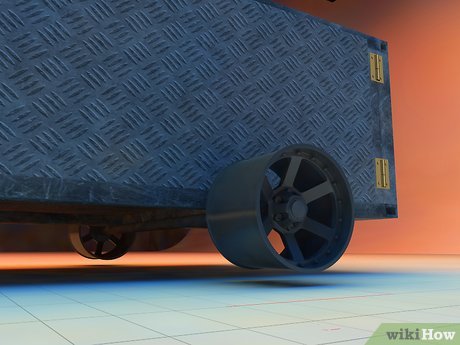

Place the axle 28.8 inches (73 cm) from the back of the bed. For single-axle trailers, building recommendations say to place 60% of the trailer length in front of the axle and 40% behind it. This provides an ideal balance. For a 6 ft (1.8 m) trailer, place the axle 28.8 inches (73 cm) from the back of the bed.^{[19] X Research source}
1. For a trailer of a different length, multiply its total length by 0.4. The result is the distance to place the axle from the rear of the trailer.
How to Build Trailers Picture 20

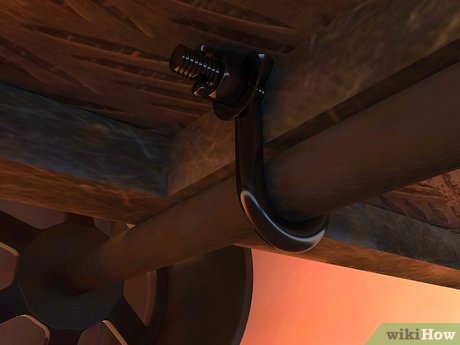

Weld the axle clasps to the bottom of the trailer bed. Each side of the axle has 2 clasps that hold it in place. Press these clasps against the trailer beam and weld them down.^{[20] X Research source}
1. If the clasps won't stay in place, clamp them down while you weld.
How to Build Trailers Picture 21

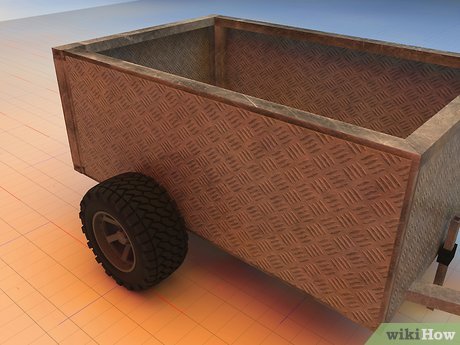

Attach and fill the tires. Finally, complete the trailer by attaching the tires. Slip the rubber onto the wheel. Then use an air compressor and fill the tires to their recommended pressure.^{[21] X Research source}
1. The recommendation for most trailer tires if 35-40 psi, but check the specifications on your product.
2. If you aren't sure how to install and fill the tires properly, let a professional do it so your trailer is safe.
