How to Add Oil to a Hydraulic Jack

Filling the Jack with Oil

1. How to Add Oil to a Hydraulic Jack Picture 1
   Position the jack on flat, level ground. This prevents the jack from rolling while you work on it. It also keeps the oil level so you can fill the chamber accurately.^[1]

   1. Also place the jack somewhere that can get dirty, just in case you spill some oil. If you don't want oil in your driveway, try doing this in the street.
2. How to Add Oil to a Hydraulic Jack Picture 2

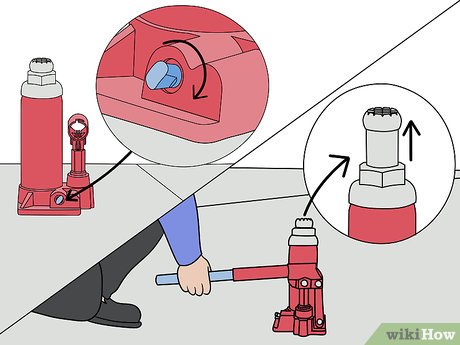

   Open the release valve. This lowers the jack so you can access the filler plug. Different jacks may have different release mechanisms. On some jacks, turning the handle counterclockwise lowers the press. On others, you have to press a release valve in a different spot.^[2]

   1. If you're unsure how your jack releases, consult your owner's manual.
   2. Keep the release valve open while you work.
3. How to Add Oil to a Hydraulic Jack Picture 3

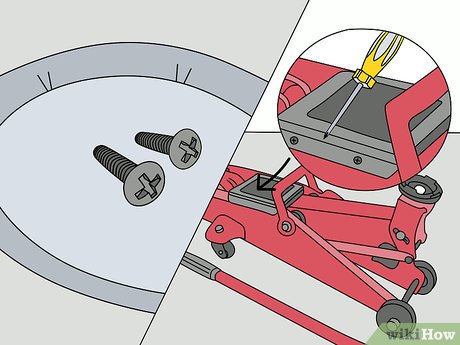

   Remove the cover plate if your jack has one. Depending on your jack model, there may be a cover plate that protects the jack's internal mechanism. Remove any screws holding this cover in place. Then lift the cover off.^[3]

   1. Depending on the type of jack you have, the cover plate might come off entirely or just lift up. If the plate comes off, keep it in a safe place so you don't lose it.
   2. Usually these screws require a Phillips head screwdriver, but check your particular model to see what type of screwdriver you need.
   3. Don't lose the screws you remove. Keep them in a safe place so you can put the cover back on later.
4. How to Add Oil to a Hydraulic Jack Picture 4
   Wipe the area around the filler port plug. The filler port is where you will pour the oil. To prevent contamination, use a rag and clean off the area around the filler plug. This keeps dirt out of the oil reservoir.^[4]

   1. If your jack is old and there is a lot of caked on dirt around the fill plug, try spraying a hose or pressure washer to remove the gunk first.
5. How to Add Oil to a Hydraulic Jack Picture 5

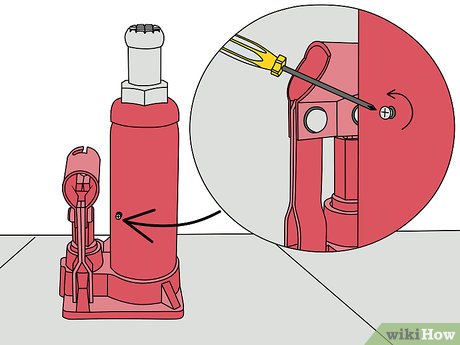

   Remove the filler port plug. This plug is underneath the cover plate on most jacks. Depending on your jack model, the plug might unscrew or just pop out. If it is a screw type, use a screwdriver and turn counterclockwise to remove the plug. If it pops out, insert a flathead screwdriver under the plug and lift it out.^[5]

   1. If you can't locate the filler port, check the owner's manual for your jack.
   2. Be careful not to damage the plug when you remove it. If it doesn't come out easily, stop and reassess what you're doing. Don't force it out.
6. How to Add Oil to a Hydraulic Jack Picture 6

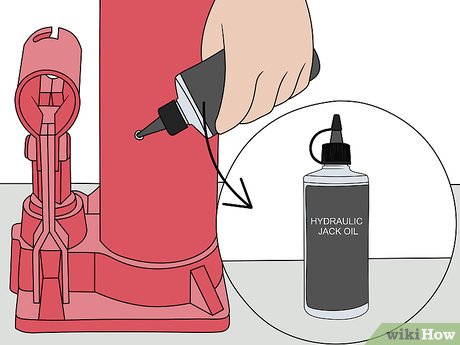

   Fill the reservoir with hydraulic jack oil. Pour until the oil is just below the lower rim of the fill hole, then stop. Wipe away any excess oil on the rim before replacing the plug.^[6]

   1. Use a funnel to avoid spills.
   2. Do not use any other type of oil besides hydraulic jack oil. Motor oil or brake fluid will not work.
7. How to Add Oil to a Hydraulic Jack Picture 7
   Replace the filler plug. Either push the plug back into the hole or screw it back in by turning it clockwise. After the plug is in place, follow the procedure to bleed air out of the hydraulic system.^[7]

   1. Do not replace the cover plate yet. You still need to bleed the air from the mechanism before moving on, and the cover plate will get in the way.
   2. Depending on the jack model, you may also have to keep the fill plug out while you bleed the air. Consult your owner's manual for the correct process.
