Fax documents over the network without a fax machine

Windows XP has a great feature that allows users to send, receive, and track their faxes. It can be said that, if you are running Windows XP, you can send and receive faxes right on your computer, without the need of a fax machine. All you need is a modem.

This tutorial will show you how to enable the fax feature in Windows XP and configure your fax. However, the modem is already installed on your computer. And you may need the Windows XP CD to proceed.

Your computer may not have an activated Fax service. To know if you have activated the Fax service, open a file for example the word file then select File -> print (Or press Ctr + P ). If the machine you do not yet have a Fax service will be similar to the following:

Fax documents over the network without a fax machine Picture 1

+ Follow these steps to activate the service.

1. Click " Start -> Settings -> Control Panel ", and then double-click " Add or Remove Programs ".

2. Click " Add / Remove Windows Components " on the left of the screen to select " Windows Components Wizard ".

Fax documents over the network without a fax machine Picture 2

3. In the list of Windows Components choose to " Fax Services " and then click " Next ".

Fax documents over the network without a fax machine Picture 3

4. Now, insert the Microsoft Windows XP CD and then click OK .

5. Click Finish , and click Close .

Fax documents over the network without a fax machine Picture 4

6. Click Start -> Settings -> Printers and Faxes

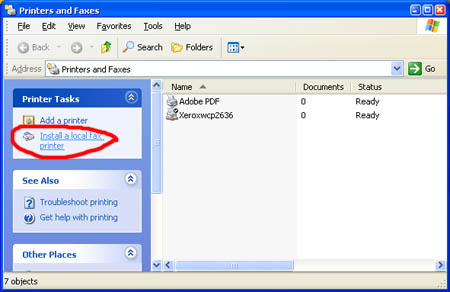

7. Click on the left of the " Install a local fax printer " screen.

Fax documents over the network without a fax machine Picture 5

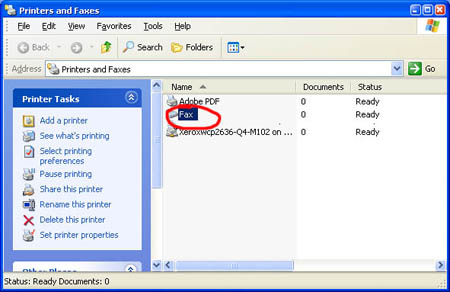

8. Now a new printer is added with " name " as Fax. So you have activated the service.

Fax documents over the network without a fax machine Picture 6

+ Here is how to configure Fax services.

- The fax service configuration will save your personal information such as name, phone number, etc. Also configure the modem and other fax service options.

1. Click " Start -> All Programs -> Accessories -> Communications -> Fax then click on Fax Console to start configuring the Fax Configuration Wizard as shown. Click" Next ", enter the information you want to appear. on your Fax cover page, and then click " Next ".

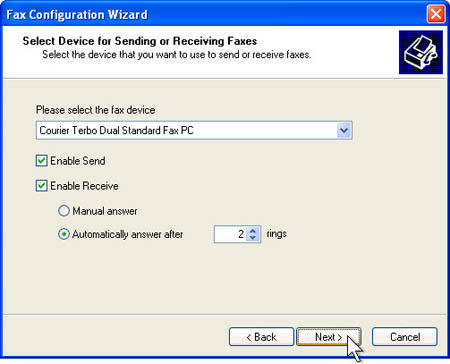

2. Select the modem you use in " Please select the fax device list ".

Fax documents over the network without a fax machine Picture 7

3. Check Enable Enable if you want the computer to receive faxes. Note when you select Manual answer if you do not want the computer to automatically receive faxes. By default, Automaitcally anwer after is activated. (Encourage you to leave this mode).

4. Next, click " Next ".

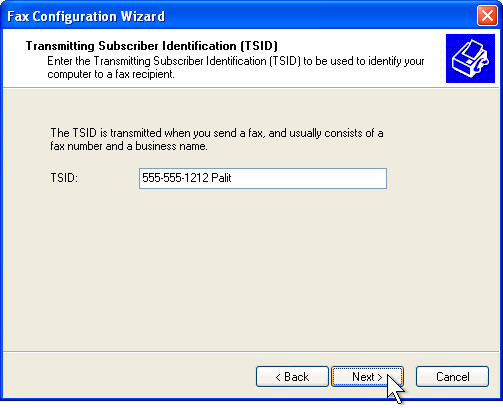

5. You type the code of " Transmitting Subscriber Identification (TSID) " into the box. Note TSID is required. This identifiable information often appears in the header area of ​​a fax that you receive, which helps you identify the fax machine from where it came from. This information usually includes the fax numbers of the sender and the business name. Then click " Next ".

Fax documents over the network without a fax machine Picture 8

6. You type the " Called Subscriber Identification (CSID) " number into the box. Note CSID is the type displayed on the fax machine where the fax machine originates. This number helps you confirm that you are sending the fax to the correct recipient. Then click " Next ".

Fax documents over the network without a fax machine Picture 9

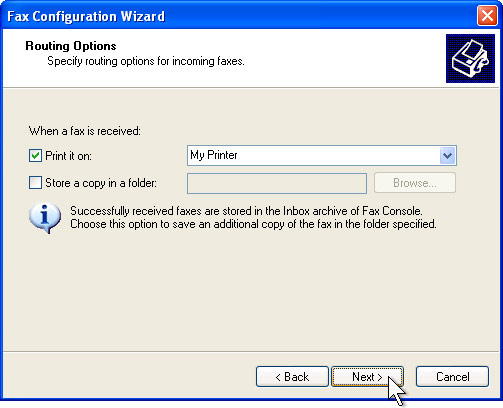

7. Click on " Print it " if you want each fax you receive will be automatically printed. When you select this option, you can choose a specific printer where you can print the faxes you receive. Then click " Next ".

Fax documents over the network without a fax machine Picture 10

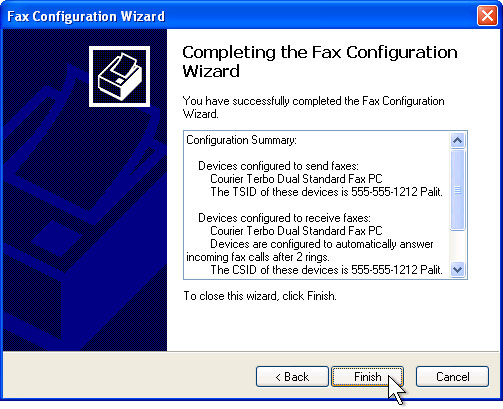

8. On the window " Completing the Fax Configuration Wizard " you click " Finish ".

Fax documents over the network without a fax machine Picture 11

9. If the " Windows Security Alert " appears as shown below, click " Unblock ". So the computer is configured to send or receive faxes.

Fax documents over the network without a fax machine Picture 12
