Instructions for installing a wired security camera system

In previous articles, you have grasped the characteristics and strengths and weaknesses of wired and Wi-Fi security camera systems.Today we will briefly discuss how to install a wired security camera system as well as notes during installation.Basically, this process is not simple, but the benefits that it brings will be totally worth the effort you spend.Below is an overview of how to install a wired security camera system.

The system used in this tutorial is EZVIZ 1080p that comes with a DVR box that supports 24/7 recording.In general no matter what system you use, the installation process is basically the same, of course there are a few minor differences depending on the system you use but not so important. .

Preparing instruments

Instructions for installing a wired security camera system Picture 1

Unlike simple Wi-Fi cameras, you'll need more tools to install a wired camera system, including:

1. Ethernet cable
2. Balun jacks (Support converting analog signals into digital signals, recommended for use if your wired security camera system uses analog)
3. A set of electric drills with full drill bits
4. Tape
5. Monitor, mouse and keyboard
6. A 'assistant' (this is really necessary)

You will know what tools to use and how to use them after embarking on the installation process depending on the specific situation.However, the equipment listed above are the most basic tools you need.

Overview diagram of installing a wired security camera system

Before going into the process of laying a wired security camera system, you must first understand how the parts of the system are connected.

Most wired security camera systems will have basic equipment including several cameras and a DVR box that acts as a user interface for managing the entire system, as well as storing all scenes. The recording has been recorded.

All cameras are directly connected to the DVR box, or use a BNC cable (for analog camera systems) or Ethernet cable (for digital systems).If you have an analog system, you'd better use special adapters called balun instead of traditional BNC cables.This adapter allows you to use an Ethernet cable because it is easier to install and more modern.

Since the cameras are directly connected to the DVR box, so suppose you install the camera in the backyard while the DVR box is located upstairs in your bedroom, you will need to route the camera cable through the house. To connect to the DVR box, it can be a bit complicated, so depending on how your home is built you will be able to make a cable diagram accurately, while saving time and medium less effort to install.

Please place the DVR box near the power outlet to limit the mess of wires.Then you connect the monitor to the DVR box to manage the entire system and also watch all the images directly from the cameras and review the previous records.Most systems will also come with a mouse, but you should also prepare a keyboard.

Step one: Determine where you want to place the camera

Instructions for installing a wired security camera system Picture 2

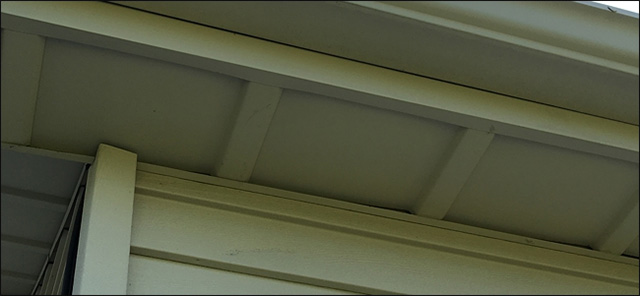

Wired security cameras are different from Wi-Fi cameras in that you don't want to place cameras anywhere.On the contrary, you will have to consider carefully the suitable locations to place the camera so that it has both vision in important areas, while helping to keep cables more complicated.

For example, it would be great to have a camera mounted on the wall in the upper corner of the door, but you will need to think about how to route the cable from the camera to the DVR box located deep in the room. 2nd floor sleeping?This is also a limiting factor you will face when installing a wired security camera system.So, instead of attaching the camera on the outside wall, it might be better to mount it on the ceiling of your porch because you can run the cable along the eaves and then through the second floor window where the box is located. DVR - obviously a lot easier.In summary, on the diagram of the location of cameras and cables is the most important step, directly affecting the entire installation process.

Step two: Prepare to install the camera

Depending on the exact location of the camera, you may need to use a number of support tools other than the ones listed above.For example, if you just need to drill through wood, drywall, or aluminum frames, a regular electric drill and some basic drill bits are enough.However, if you have to drill through bricks or other concrete blocks, you may have to prepare specialized drill bits.

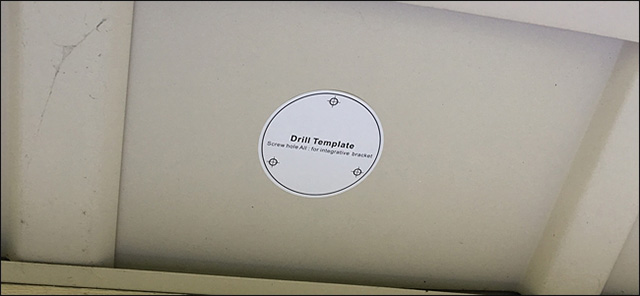

First, you will have to mark the drill hole location where the camera cable will pass, as well as the camera's screw holes.You can try the camera then mark the holes with a pencil.

Instructions for installing a wired security camera system Picture 3

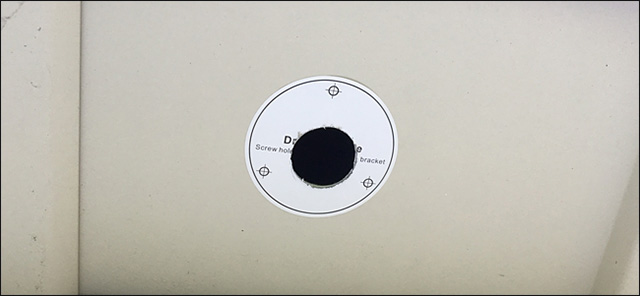

Then you drill the screw holes for the front camera and then drill a larger hole to go the cable.Therefore, it is necessary to prepare the drill bits of different sizes.

Instructions for installing a wired security camera system Picture 4

Step three: Run the cable to each location mounted camera.

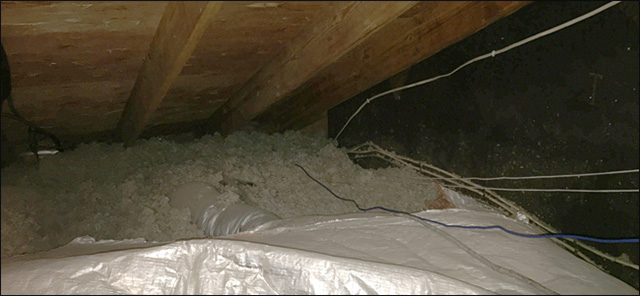

Once you have drilled the hole with the right size, now is the time to run the cable to the camera placement.The order of wiring for each position depends on the actual situation, but basically you will have to calculate whether to go to a reasonable cable, avoid drilling and underground drilling much will affect aesthetically. such as making it difficult to remove and repair replacement parts later.

Instructions for installing a wired security camera system Picture 5

Instructions for installing a wired security camera system Picture 6

Instructions for installing a wired security camera system Picture 7

Step 4: Run the cable to the DVR box

After you run the cable successfully to the camera locations, now is the time to go all those cables into the DVR box.

Instructions for installing a wired security camera system Picture 8

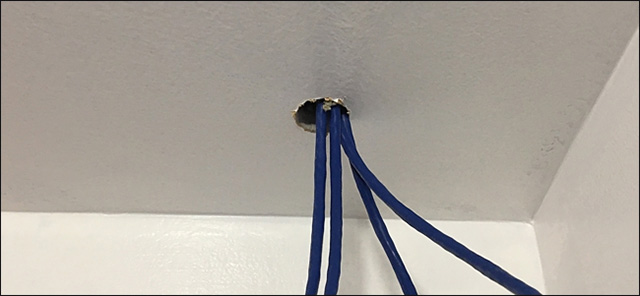

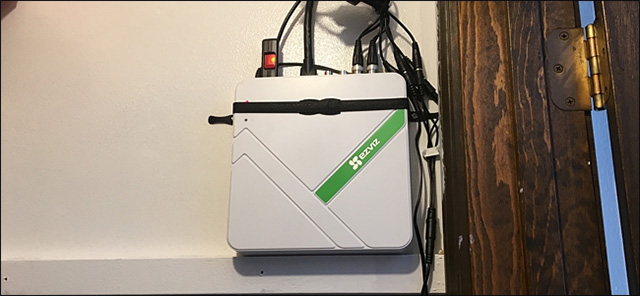

You will need to drill holes again to get the wires, this is also the most complicated step so if possible, call a few more friends to help you.Ideally you should converge the cable lines and let it go through a hole first into the DVR box.Depending on the actual situation, you choose the location of DVR box to be reasonable.Most DVR boxes will have mounting holes on the back for mounting on the wall.In addition, you can also put them at your desk to work or somewhere you want.

Instructions for installing a wired security camera system Picture 9

You can use duct tape to fix the cable on the walls and ceiling.

Instructions for installing a wired security camera system Picture 10

Step 5: Install the camera

At this point everything became much easier because running the cable is definitely the most complicated part.Installing the camera only takes a few minutes.

Instructions for installing a wired security camera system Picture 11

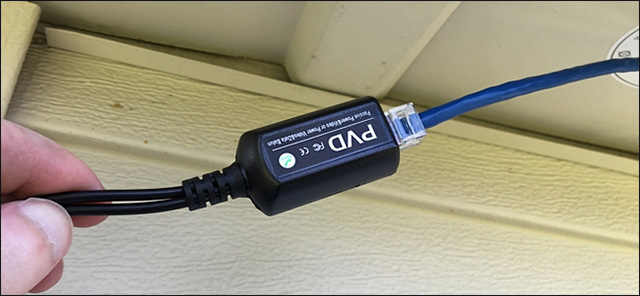

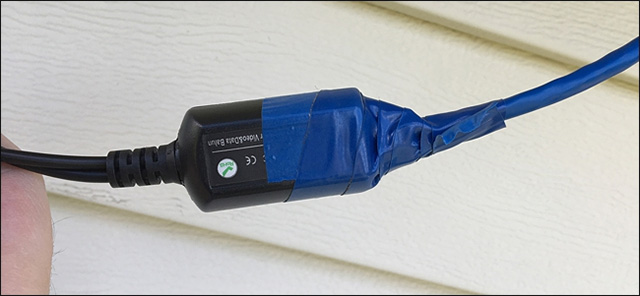

First, connect the cable to the camera.For safety, you can wrap the connection points with insulating tape to prevent power detection.

Instructions for installing a wired security camera system Picture 12

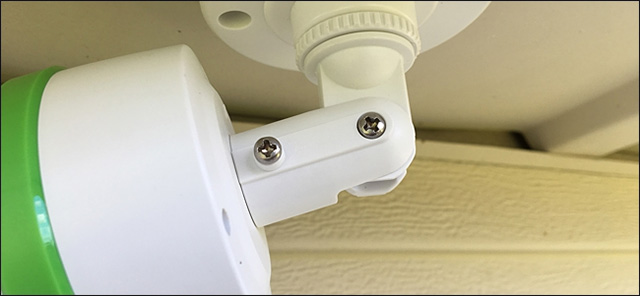

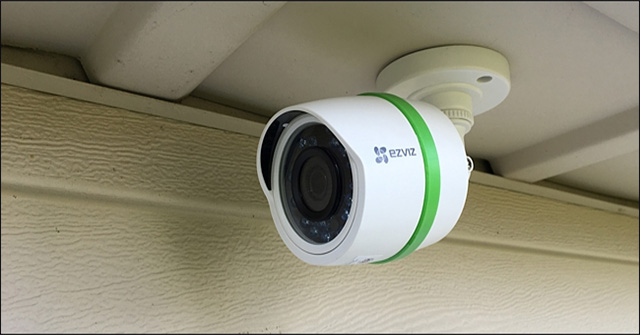

Next, take out the set of screws that are ready to hunt and attach the camera to the surface.After the camera is fixed to the surface, you can proceed to adjust the camera's orientation and vision by loosening the adjustment screws and then tightening them when all adjustments have been completed.Note that in order to help you avoid the need to re-adjust many times, it is better to adjust the orientation of the camera after the whole system has been in operation because then you will know if the camera is obscured. Is the camera direction reasonable.

Instructions for installing a wired security camera system Picture 13

Step 6: Connect the parts together

After wiring and installing the camera, you can now start connecting them to the DVR.

Instructions for installing a wired security camera system Picture 14

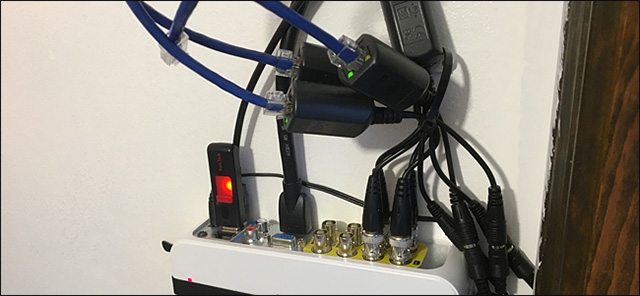

Connecting parts is usually not too complicated and has specific instructions.In general, just connect each cable to its own port, then connect the external monitor as well as the mouse and keyboard to the DVR box.You can also plug in a USB to prevent it when you need to export the logs quickly.

Step 7: Set up the user interface

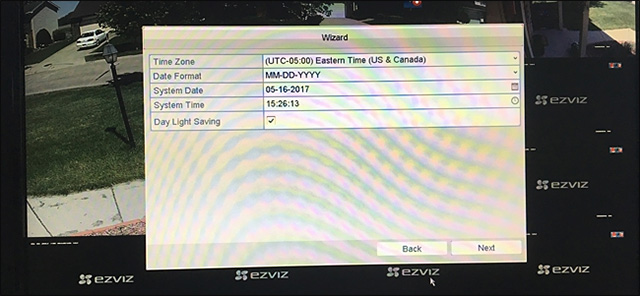

The installation of the user interface may vary depending on the system you use.In the system in the example, setting up the user interface includes creating a password, setting the date and time, along with a quick guide on how the system works.

Instructions for installing a wired security camera system Picture 15

You should take some time to study some of the recommended custom settings, such as whether your camera should record 24/7 or just write when there is a movement.Also you can customize the quality of the record.

Above is a summary of how to installa wired security camera system for the family.Good luck!
