How to Replace Brakes on a John Deere 5105 Tractor

Replacing the brakes on a John Deere 5105 can be very complicated but can be very simple and easy with the proper instructions. Please wear safety glasses and closed toed shoes during this repair. If you're not absolutely certain what...
Part 1 of 2:

Removing the Old Brakes

  1. How to Replace Brakes on a John Deere 5105 Tractor Picture 1How to Replace Brakes on a John Deere 5105 Tractor Picture 1
    Find a good work area, preferably in a closed in shop. Also, make sure the work area is clean.
  2. How to Replace Brakes on a John Deere 5105 Tractor Picture 2How to Replace Brakes on a John Deere 5105 Tractor Picture 2
    Make sure the tractor is cleaned before pulling it into the work area.

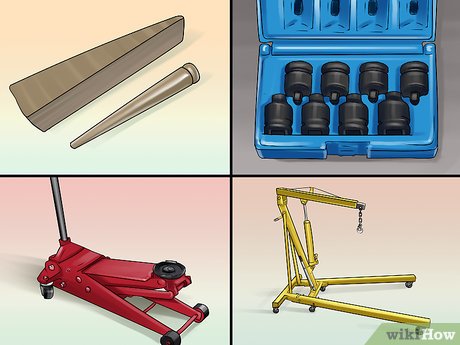

  3. How to Replace Brakes on a John Deere 5105 Tractor Picture 3How to Replace Brakes on a John Deere 5105 Tractor Picture 3
    Acquire the proper tools for the job. The following are the tools required: wood wedges, 3 ton floor jack and jack stands, a cherry picker hoist, short chain with hooks, 1/2" drive impact socket set, 1/2" drive impact, 1/2" drive torque wrench, a set of wrenches and a 3/8" drive socket set with ratchet.
  4. How to Replace Brakes on a John Deere 5105 Tractor Picture 4How to Replace Brakes on a John Deere 5105 Tractor Picture 4
    With the tractor in the work space, put the wedges between the front axle and the frame.

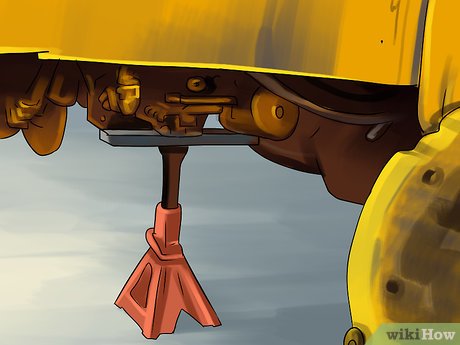

  5. How to Replace Brakes on a John Deere 5105 Tractor Picture 5How to Replace Brakes on a John Deere 5105 Tractor Picture 5
    Place the jack on the rear end of the tractor and jack it up until the rear tires are a 1/2" off the ground. Place the jack stands under the tractor and be careful not to place them under the final drives. The best place to place the jack stands is under the transmission. Once jack stands are in place the tractor can be set down and the jack removed.
  6. How to Replace Brakes on a John Deere 5105 Tractor Picture 6How to Replace Brakes on a John Deere 5105 Tractor Picture 6
    Remove the wheels from both sides of the tractor.

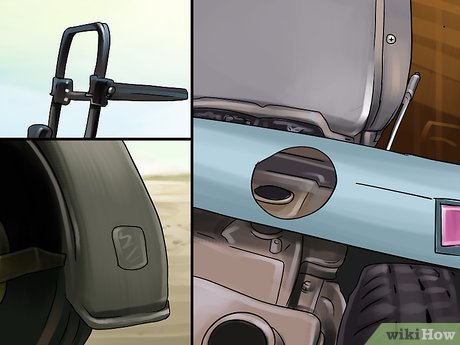

  7. How to Replace Brakes on a John Deere 5105 Tractor Picture 7How to Replace Brakes on a John Deere 5105 Tractor Picture 7
    Remove the fenders, fuel tank, and ROPS. Be sure to set them out of the way and start draining the hydraulic oil from the tractor.

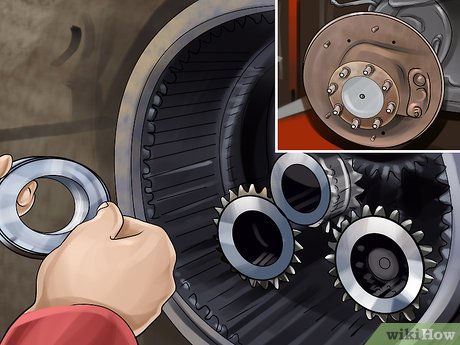

  8. How to Replace Brakes on a John Deere 5105 Tractor Picture 8How to Replace Brakes on a John Deere 5105 Tractor Picture 8
    Remove the linkage for the brakes from the final drives and start unbolting the final drives. Leave two bolts loose in the final drive and wrap it with a chain and hook the cherry picker hoist to it.

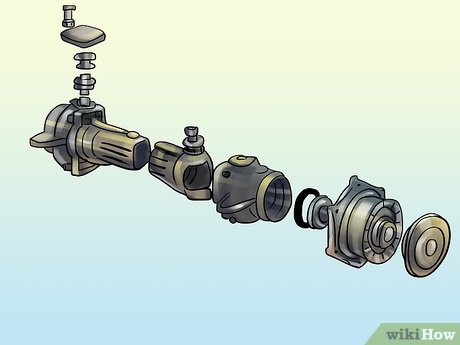

  9. How to Replace Brakes on a John Deere 5105 Tractor Picture 9How to Replace Brakes on a John Deere 5105 Tractor Picture 9
    Wiggle the final drive loose and then remove the two bolts. Once the bolts are removed the final drive can be pulled away from the tractor and set down.[1]
  10. How to Replace Brakes on a John Deere 5105 Tractor Picture 10How to Replace Brakes on a John Deere 5105 Tractor Picture 10
    Turn the final drive up so the hub for the wheel is on the bottom and the brakes can be accessed.
  11. How to Replace Brakes on a John Deere 5105 Tractor Picture 11How to Replace Brakes on a John Deere 5105 Tractor Picture 11
    Remove the shaft that connects the final drive to the tractor and set it on a rag in a clean place.

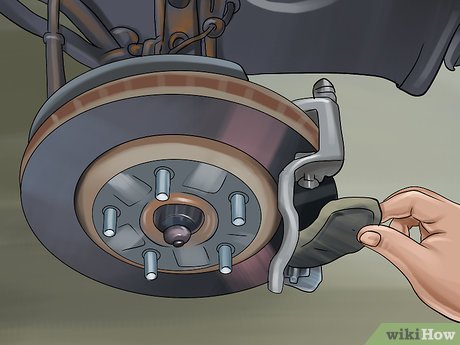

  12. How to Replace Brakes on a John Deere 5105 Tractor Picture 12How to Replace Brakes on a John Deere 5105 Tractor Picture 12
    Access and pull out the brakes. There should be a metal disc, brake pad, metal disc, brake pad, then the brake piston. A bolt from one of the clips might need to be loosened to remove the metal discs and brakes.[2]

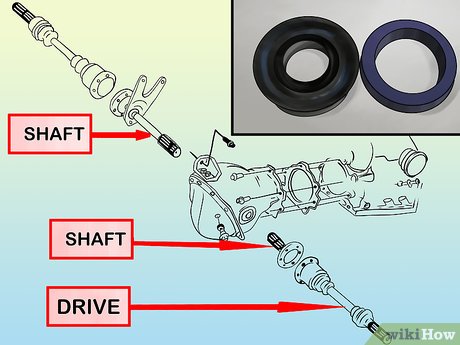

  13. How to Replace Brakes on a John Deere 5105 Tractor Picture 13How to Replace Brakes on a John Deere 5105 Tractor Picture 13
    Remove the shaft for the linkage from the final drive and remove the seal for it.
Part 2 of 2:

Installing the New Brakes

  1. How to Replace Brakes on a John Deere 5105 Tractor Picture 14How to Replace Brakes on a John Deere 5105 Tractor Picture 14
    Insert the new seal and the shaft can be reinstalled.

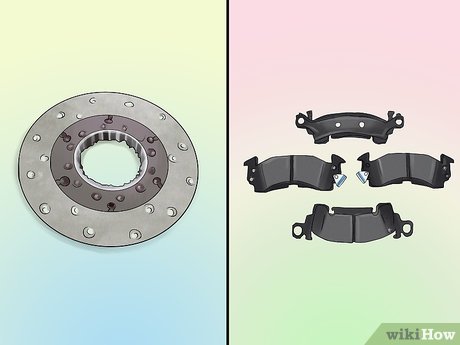

  2. How to Replace Brakes on a John Deere 5105 Tractor Picture 15How to Replace Brakes on a John Deere 5105 Tractor Picture 15
    Put the new brake pads and metal disc back inside the final drive. Make sure if the clamp was loosened to tighten it back. The shaft that connects the final drive and transmission can be installed in the final drive.

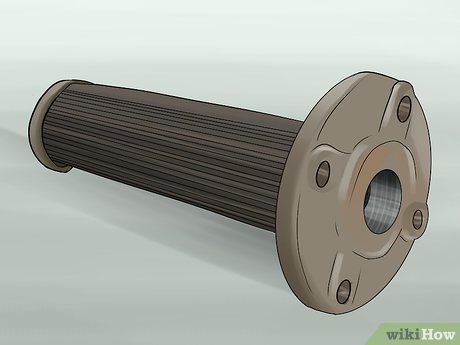

  3. How to Replace Brakes on a John Deere 5105 Tractor Picture 16How to Replace Brakes on a John Deere 5105 Tractor Picture 16
    Remove the hydraulic filter and install a new one. Also, remove the strainer and either clean or install a new one depending on the condition.

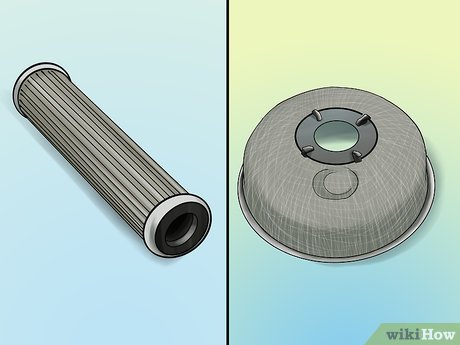

  4. How to Replace Brakes on a John Deere 5105 Tractor Picture 17How to Replace Brakes on a John Deere 5105 Tractor Picture 17
    With the new filter on and the strainer cleaned, reinstall the final drives. Lift them with the cherry picker. Put a seal maker on the edge of the final drive housing before pushing it back to the tractor. The final drives may need to be wiggled and turned some for them to line up.[3]

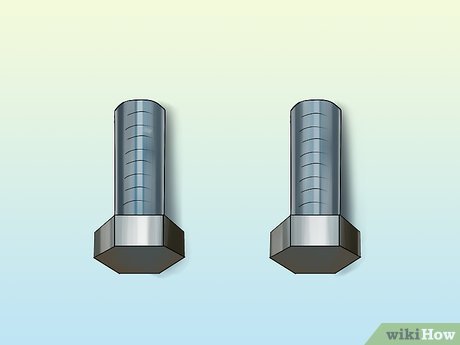

  5. How to Replace Brakes on a John Deere 5105 Tractor Picture 18How to Replace Brakes on a John Deere 5105 Tractor Picture 18
    Start 2 bolts in the housing, one in the top and one in the bottom. Slowly turn the bolts to pull the final drives in to the transmission.

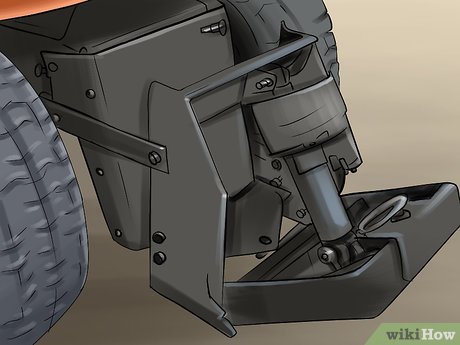

  6. How to Replace Brakes on a John Deere 5105 Tractor Picture 19How to Replace Brakes on a John Deere 5105 Tractor Picture 19
    Install the rest of the bolts. Use a torque wrench and the proper torquing procedure to tighten the bolts to 75ftlbs.

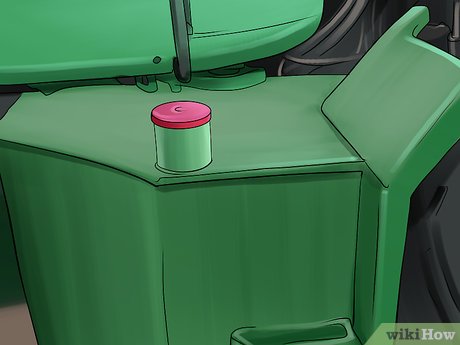

  7. How to Replace Brakes on a John Deere 5105 Tractor Picture 20How to Replace Brakes on a John Deere 5105 Tractor Picture 20
    Reinstall the fuel tank, ROPS, and fenders.

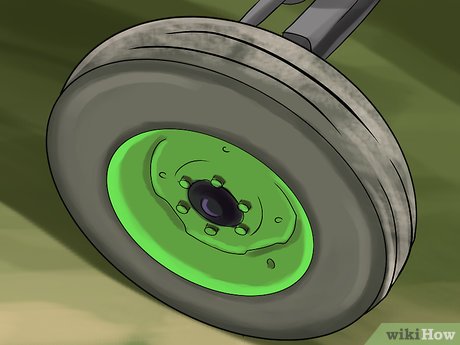

  8. How to Replace Brakes on a John Deere 5105 Tractor Picture 21How to Replace Brakes on a John Deere 5105 Tractor Picture 21
    Put the wheels back on the tractor. Replace the hydraulic oil.[4]

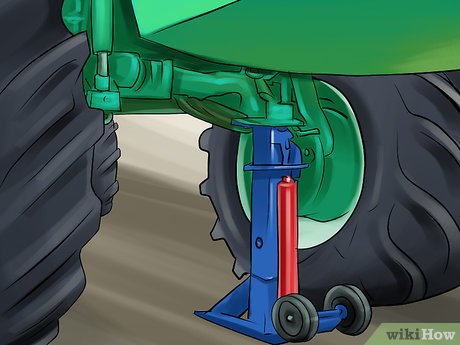

  9. How to Replace Brakes on a John Deere 5105 Tractor Picture 22How to Replace Brakes on a John Deere 5105 Tractor Picture 22
    Jack the tractor up off the jack stands and lower the tractor back on the ground.
  10. How to Replace Brakes on a John Deere 5105 Tractor Picture 23How to Replace Brakes on a John Deere 5105 Tractor Picture 23
    With the tractor safely on the ground, adjust each brake pedal separately. Each brake should have about 2 1/2" of travel and should both have equal amounts of travel.[5]
  11. How to Replace Brakes on a John Deere 5105 Tractor Picture 24How to Replace Brakes on a John Deere 5105 Tractor Picture 24
    Start and test drive the tractor. Test the brakes and make sure they are working properly. If they aren't they might have to be adjusted more or something was done wrong in the repair process.
