Instructions on how to install Ariston indirect heater

Ariston is an indirect brand from Italy that is trusted and chosen by Vietnamese people. But did you know how to install Ariston as an indirect heater?

How to install Ariston water heater indirectly

To help users easily imagine how to install indirect water heater TipsMake.com will share the following video:

1. Video tutorial for installation of Ariston indirect water heater

2. Tools that need to be prepared for indirect water heater installation

Before installing indirect hot water heater you need to read the instruction manuals attached to the machine carefully. Hot water heaters are usually available:

1. Safety valve
2. Hanging hook
3. Statistics

Instructions on how to install Ariston indirect heater Picture 1

Also you need to buy some other accessories such as:

1. 2 soft water pipes
2. Dual stainless steel, internal threaded T connector, water drain valve for maintenance
3. Lace tape

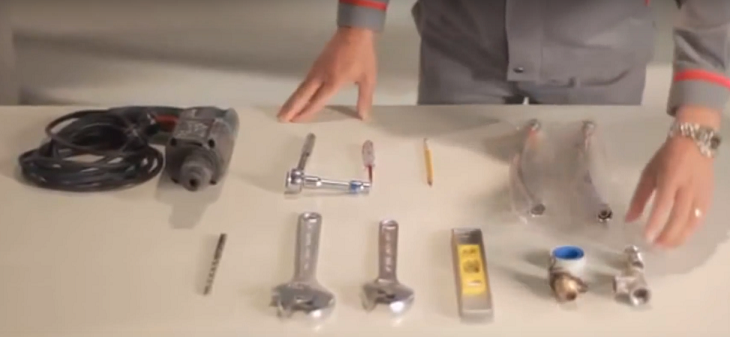

During the installation process you will not be able to lack pencils, electric markers, screwdrivers, wrenches, hand drillers, 10mm drills and micrometers (determine the horizontal of the machine) to test electricity and wall drill.

Instructions on how to install Ariston indirect heater Picture 2

3. Operation before installing Ariston indirect heater

After you have prepared the accessories you need to install, lift the hot water heater out of the carton and place it on a sponge or plastic bag to prevent scratches.

Instructions on how to install Ariston indirect heater Picture 3

Step 1: First, take the lace tape wrapped on the threads of the inlet water to avoid water leakage at the joints.

Step 2: Next, add a water drain valve to the water inlet marked in green to discharge all the water in the tank when maintenance is needed. When installing the exhaust valve you also need to wrap the lace tape to prevent water leakage.

Instructions on how to install Ariston indirect heater Picture 4

Step 3: Then turn the safety valve into a tight exhaust valve. If you do not install a water drain valve, turn the safety valve directly into the inlet water of the machine.

Instructions on how to install Ariston indirect heater Picture 5

4. Carry out installation of indirect heater

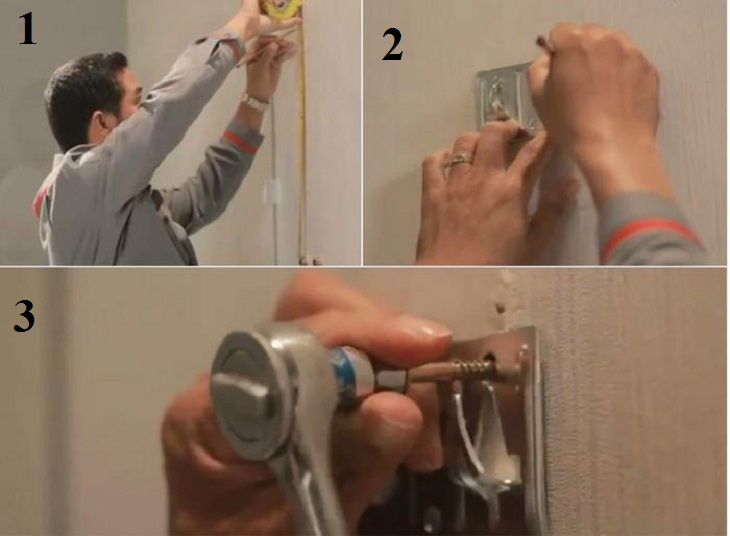

Step 1: First, measure the distance to install the inlet and outlet water lines on the wall to install indirect water heaters. Then use a ruler to draw a horizontal line for easy identification.

Step 2: Take a pencil to mark the location of the hanger on the school.

Step 3: Use the drill to drill holes in the wall and then take the inventory plug into the drill hole then tighten the fixing screw on the wall.

Instructions on how to install Ariston indirect heater Picture 6

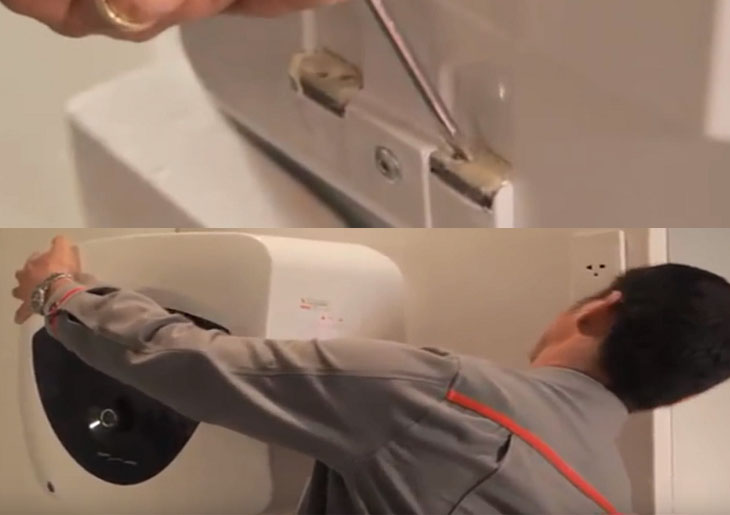

Step 4: Then, remove the insulation in the hanging position to make it more secure to install the machine on the wall.

Instructions on how to install Ariston indirect heater Picture 7

You take 2 water wires out:

1. The first thread connects to the top of the outlet water, marking the red and the water reservoir of the indoor water system.
2. The remaining fiber - marked in blue for direct connection to a one-way valve and water supply head of the water system.

Instructions on how to install Ariston indirect heater Picture 8

After 4 steps, the water heater installation is completed.

5. Check the water heater works

Step 1: Unlock the water supply head to supply water to the machine. Then open the water drain hose to deflect steam in the bottle. When you see the water coming out of the drain hose, it is in the hot and cold water tank. Then lock the flush valve and adjust the temperature so that the machine starts to heat up.

Instructions on how to install Ariston indirect heater Picture 9

Step 2: Once there is water in the jar, check the thread ends again to see if there is a water leak? If still need to be used with lace glue again.

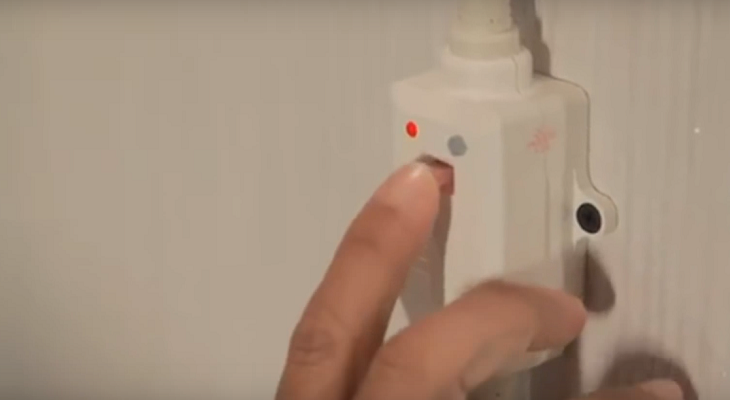

Step 3: Check the ELCB anti-shock system by pressing the gray button, if the light is off, the water heater is safe. Then press the Reset button again. Ok.

Instructions on how to install Ariston indirect heater Picture 10

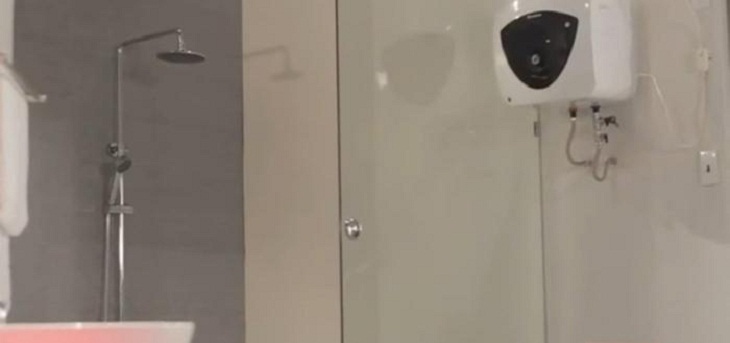

At this time, your family's Ariston indirect water heater is ready to use!

Instructions on how to install Ariston indirect heater Picture 11

Note when selecting the location of indirect water heater installation

1. Indirect water heater should be installed in an empty wall in the bathroom to make it safer to use.
2. Absolutely do not install a hot water heater near the shower to avoid showering in the water bath.
3. Do not place the heater on the interior of the bathroom.
4. Separate water and water lines should be installed for hot water bottles.

Wish you install the water heater indirectly Ariston successfully!
