Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000

With a bit of creativity, tinkering and dexterity you get a simple mini water pump that makes it easy to get water like the ones we often see in restaurants.

For those who like creativity, like making machines or things themselves, a homemade mini water pump will surely make them excited. With a bit of creativity, tinkering and dexterity you get a simple mini water pump that makes it easy to get water like the ones we often see in restaurants.

Materials needed to make mini water pumps

Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 1Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 1

  1. A mini pump
  2. A piece of plastic pipe 6
  3. One button
  4. A 9V battery jack
  5. Cover formex 0.5cm
  6. Candle glue, drilling machine, scissors, glue 502

Implementation steps

Step 1:

Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 2Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 2

You cut the fomex cover sheet, use the drill and pull the 4 holes like the above.

Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 3Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 3

Use glue candles to add 2 pieces of fomex perpendicular to the perforated fomex, the distance between the two pieces of the cover with the diameter of the soda bottle.

Step 2:

Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 4Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 4

Use the glue to fix the pump on the cover of fomex, lying on the side with two small holes.

Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 5Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 5

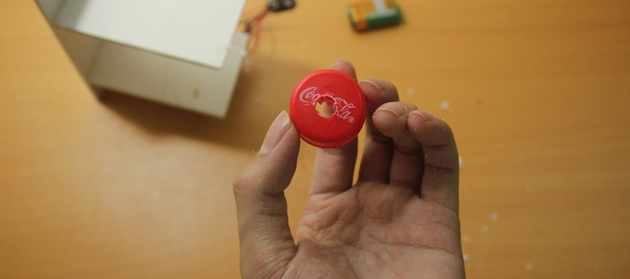

Punch a round hole on the bottle cap. Note that this hole must fit into the plastic pipe 6.

Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 6Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 6

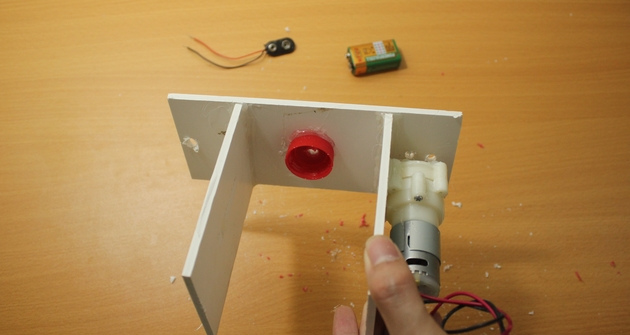

Use candle glue to attach the bottle cap to the cover plate so that the two holes overlap.

Step 3:

Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 7Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 7

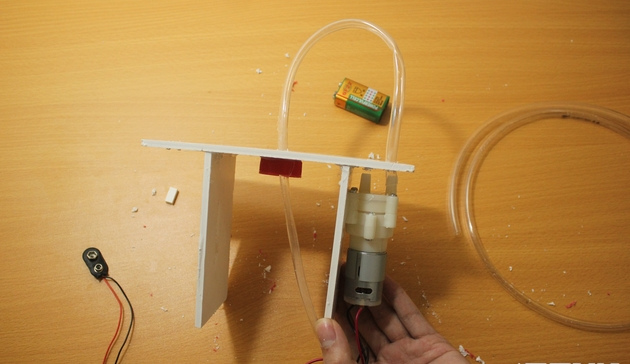

Cut a piece of plastic tube 6 about 40 cm long and connect one end to the IN line of the pump, the other end plugs through the cap as shown above.

Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 8Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 8

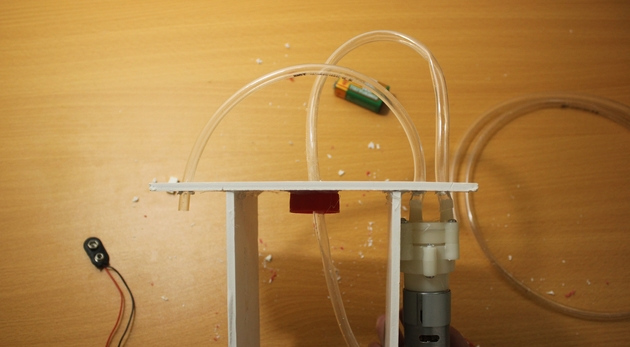

Cut another piece of tube about 20 cm. One end connects to the OUT line of the pump, the other end is inserted into the last hole on the cover to make the water line as shown in the picture.

Step 4:

Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 9Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 9

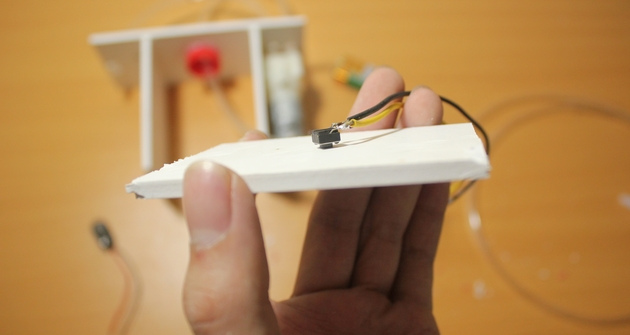

Use 502 glue to attach a button to a piece of fomex cover. Note, you only have to put a little 520 glue on it, avoid a lot of it, so it can flow into the button of the button, causing the button to be broken.

Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 10Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 10

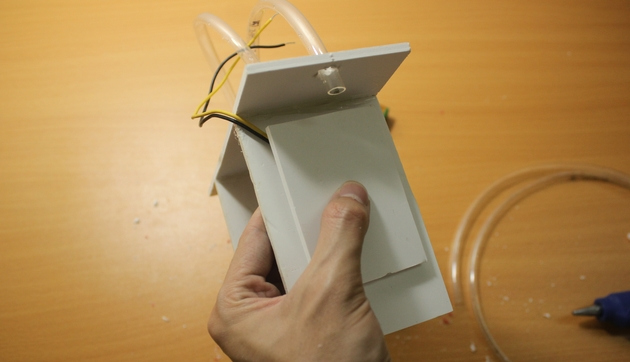

Then stick the back of the button to the pumpkin close to the water line as shown in the picture.

Step 5:

Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 11Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 11 Connect one wire of the pump to the button. Each of the remaining wires of the pump and the button connect to the 9v jack.

Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 12Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 12

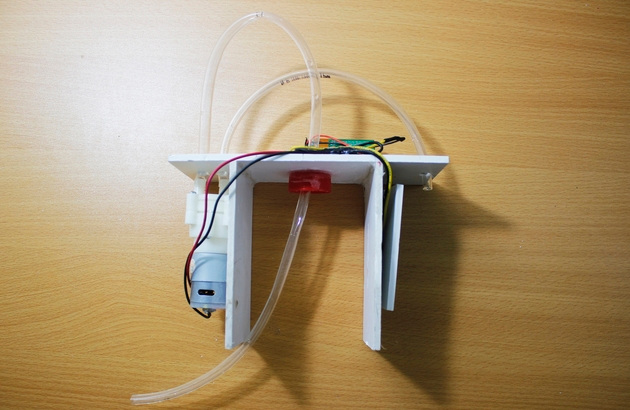

We have built this super simple mini water pump!

Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 13Instructions for making sophisticated fresh water pumps like in the shop with only VND 100,000 Picture 13

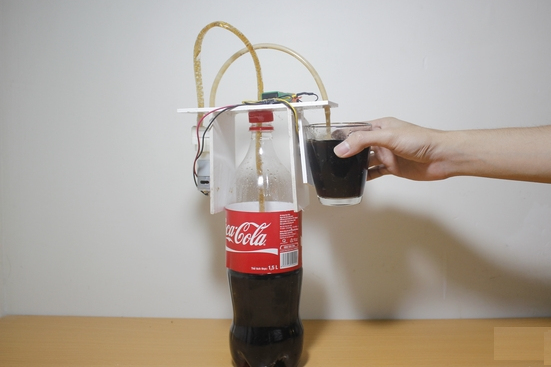

Finally, you just need to attach to a soft drink bottle and use it. You just need to gently press the cup into the fomex cover to activate the pump, when the water is nearly full, stop pressing.

When you run out of water, you just need to turn the bottle off and replace it with another bottle easily.

With this homemade mini water pump, you can use it to replace water in aquariums, or to water plants .
