How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep

Multi-configuration Ghost is the process of creating a Windows-installed computer with a full operating system including the necessary and most optimal software for a computer, then creating a multi-configuration ghost file from the newly created operating system to extract. ghost for many computers. This will save time compared to having to reinstall Windows along with many other software.

Currently, there are many software that support creating multi-configuration ghost files, such as SPAT (System Preparation Assisted Tool) software that we introduced to readers in the previous article. However, SPAT will only ghost Windows 32bit. If so, you can use EasySysprep software to multi-configuration ghost from Win XP to Win 10 on both 32bit and 64bit versions.

Note to readers that Easy Sysprep's interface is in Chinese and requires many steps, so please follow each step in detail.

1. Prepare software before ghosting:

Before creating multi-configuration ghost files, Windows computers need to ensure the following requirements include:

1. Windows is installed from CD/DVD/usb or from ISO file.
2. Fully activate the license, optimize the system, turn off unnecessary services and only leave necessary software for the system, avoid installing too much.
3. Clean up computer system trash with software like or , .

Next we will need to download some necessary tools to create multi-configuration ghost files.

1. Download Easy DriverPack (Wandriver) driver update software.

2. Download EasySysprep software to create gile ghost. Latest version Chinese language interface. Supports 32bit and 64bit operating systems.

3. WinPE to create ghosts in the WinPE environment. You can download Win 7 PE ISO using the link http://4share.vn/f/427674717a7a7075.

4. Software to create bootable USB-HDD in link http://4share.vn/f/360200050e0f0504.

You download the file, then extract it, click on the USBZL file to run. Then do as shown below.

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 1

2. How to create multi-configuration ghost files:

Step 1:

First, delete the User account logged in on the computer to avoid errors when extracting the ghost. Right click on Computer and select Manage . Next click on Local Users and Groups and select Users .

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 2

Step 2:

Delete the accounts on the computer, leaving only the Administrator and Guest accounts.

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 3

Step 3:

Right-click on the Administrator account to activate this account and select Properties .

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 4

Step 4:

Uncheck Account is disabled and then click Apply > OK . Then restart the computer, then boot and access Administrator.

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 5

Step 5:

Extract the two software Wandrv and EasySysprep_4.3.28.599. Copy the EasySysprep_4.3.28.599 folder to the C drive partition of the operating system and rename it to EasySysprep.

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 6

Step 6:

Copy the Wandrv driver update software folder to the EasySysprep folder.

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 7

Step 7:

In drive partition C, click EasySysprep4.exe to run the software and then press the Start button as shown.

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 8

Step 8:

Fill in user information, set time zone and click Next . Follow the items in the picture exactly.

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 9

Step 9:

Click Next to continue. Then you plug in the USB boot to boot into WinPE.

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 10

Step 10:

Click Next to continue.

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 11

Step 11:

Boot into Win 7 PE as shown below.

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 12

Step 12:

Access the C drive partition to run the Easy Syspep.exe file on the WinPE environment. Click the Start button again .

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 13

Step 13:

Follow the detailed steps in the image. In the Info section, you can check the box to fill in personalized information, or uncheck it if you do not want to personalize information on the computer, depending on the user.

Uncheck the OEM image section and select delete PEM bipmap image , uncheck the Login image box .

In case the user wants to add an OEM image, click Select and find the bipmap image file.

Click Next to continue.

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 14

Step 14:

In the Install Progam frame , scroll down and uncheck item 52, then click Next to continue.

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 15

Step 15:

Next, if your computer is from Win 7 or higher, you do not need to enter a key, but in Vietnam time zone, select 205.

Next, the system deployment wallpaper section will have options including:

1. Frame 2 opens multiple images one after another in order. Select number 2 and then click the square icon to open the wallpaper folder in drive partition C.
2. Check box number 4 to open a random image.

Set screen resolution to default auto. The advanced implementation selects the last line in the list. Finally click Next .

Follow the detailed items in the photo to proceed.

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 16

Step 16:

Continue clicking Next .

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 17

Step 17:

Next, in the first frame of Auto driver Wandrv, click on the square icon to add the Wandrv.exe installation file in drive C.

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 18

Check the box to open Deivce Manager and delete the successfully extracted folder.

In the Run Time section, users can add .NET and DX9.0 or ignore it.

In the other feature options box, check the 3 boxes as shown in the picture. Finally click Next .

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 19

Step 18:

In the Folder frame, click on the box to add the EasySysprep folder in drive C, which will be deleted automatically after extracting the ghost file.

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 20

Click Add to add it to the list of deletion options. The Apps section adds installation software, which can be skipped.

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 21

In the system deployment options section, choose when to run Driver Wandrv, select line number 4 First-login and press Next .

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 22

Step 19:

In this interface you will see a list of pre-installed software, click Next .

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 23

Step 20:

Click Next to continue.

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 24

Step 21:

Finally click Finish to proceed with setup.

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 25

Select OK to agree to proceed.

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 26

Step 22:

Next, proceed with multi-configuration ghost on WinPE.

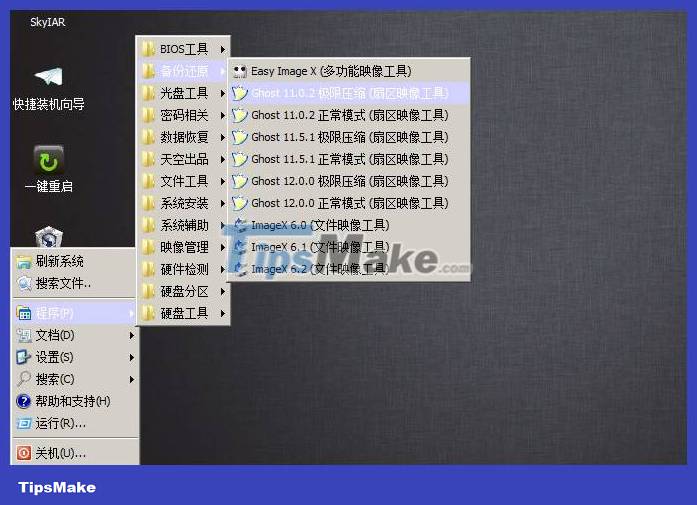

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 27

Select To Image .

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 28

Select the highest compression level High in the table. Finally, wait for the process of extracting the ghost file to complete.

How to create multi-configuration ghost files on Windows 7/8/10 with Easy Sysprep Picture 29

Wishing you success!
