How to Set Timer Function for Air Conditioner

This practical guide explains how to set timer function for air conditioner with clear steps and useful context. It also covers common requirements, potential problems, and the details that can help you get better results.

How to set timer function for air conditioner

first

Set the Current Time for the Air Conditioner

How to set current time for air conditioner

Many people do not set the current time for the air conditioner because they think it is not necessary because it is not in use, but this is not recommended. Setting the time for the air conditioner will be necessary for some of its features to work.

Every time you change the battery, you have to reset the current time. Also you can change the time at any time by pressing the button CLOCKorACL

When the controller screen appears asking you to set the current time, press the button with the up or down arrow to select the correct current time and minute and then press the button or button to SET agree ON/OFF.

The controller can have its own button to change the time or share with the temperature control button -TEMP

2

Set the Timer to Turn on the Air Conditioner

How to set the timer to turn on the air conditioner?

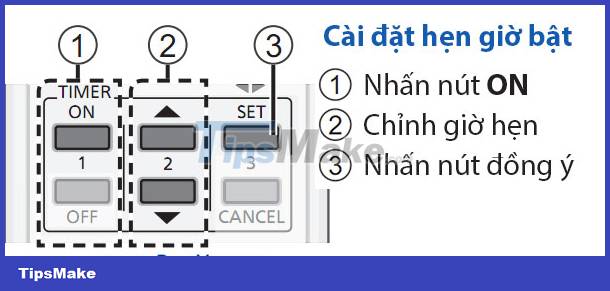

When you want to set the timer to turn on the air conditioner, press the ONor button in the TIMER START area - Not the button to turn on / off the air conditioner.ON/OFF

The display will show ON and the time will flash. Press the button with an up or down arrow to select the time you want to turn on the air conditioner. You can press and hold the up or down key for a few seconds to quickly change the time. After selecting, press the button SETor button ONto activate the timer to turn on the machine.

When you want to cancel the timer to turn on the air conditioner, press the button in the TIMER ON area and then press the button or button - to cancel the timer.CANCELCLEARCLR

3

Set the Timer to Turn Off the Air Conditioner

How to set the timer to turn off the air conditioner?

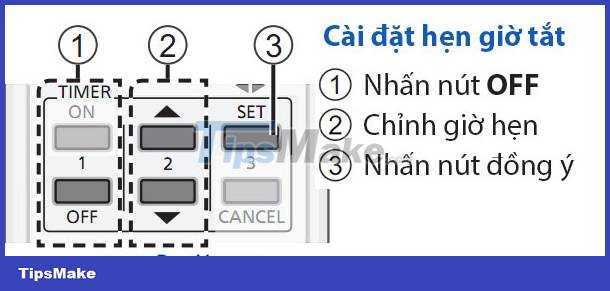

When you want to set the timer to turn off the air conditioner, press the OFFor button in the TIMER STOP area - Not the button to turn on / off the air conditioner.ON/OFF

The display will show OFF and the time will flash. Press the button with an up or down arrow to select the time you want to turn off the air conditioner. You can press and hold the up or down key for a few seconds to quickly change the time. After selecting, press the button SET or button OFF to activate the shutdown timer.

When you want to cancel the timer function to turn off the air conditioner, press the button in the TIMER OFF area and then press the button or button - to cancel the shutdown timer.CANCELCLEARCLR

If there is no button on the controller of the air conditioner SETand CANCELwhen pressing the button ONor STARTthe first time activates the timer to turn on the air conditioner, pressing it again will cancel the timer on. The same goes for the OFFor buttonSTOP

Timer to turn on and off the air conditioner is not calculated from the time of installation but will depend on the current time set on the air conditioner. The timer function will also be automatically repeated daily.

Some air conditioners will start up a few minutes before the set time to turn on to get the desired temperature on time.

4

Coordinate the Timer Function to Automatically Turn on and Off the Air Conditioner

If you want to set the timer to automatically turn on the air conditioner at bedtime at 10 pm and automatically turn off when you wake up at 6 am, the settings are as follows:

1. Press the button ONand set the power on time to 22:00 or 10:00 PM then press SETor ONto activate the timer to turn on the machine.
2. Press the button OFFand set the shutdown time to 05:30 or 5:30 AM then press SETor OFFto activate the shutdown timer.

If the air conditioner does not have the feature to operate before the scheduled time to turn on, you can set the time to turn on the machine a few minutes in advance.

The shutdown time is set 30 minutes earlier to save power because during this time the room temperature is still cool enough.

Some air conditioners have an additional button WEEKLY- the function of setting the time to automatically turn on / off for each day of the week. When setting, you just need to press this button to select the date and then follow the steps to set the timer as above.

See Things to know when using air conditioners

Conclusion

Understanding Air Conditioner makes it easier to compare options, avoid common mistakes, and apply the information in this guide more effectively. Review the relevant requirements before making changes or choosing a solution.
