Instructions for using Sunhouse 13 bar SHD7085 oil heater

If you have a Sunhouse 13 bar SHD7085 oil heater, which you don't know how to use, please refer to the following detailed user guide.

Instructions for using Sunhouse 13 bar SHD7085 oil heater Picture 1

I. Overview of Sunhouse 13 bar SHD7085 oil heater

SHD7085 oil heater possesses a small compact design, elegant and elegant colors, so it is suitable for all spaces such as bedroom, family room or office space .

It has up to 13 heating bars, suitable for rooms with a width of 20-25m2. The oil heater has the function of automatically disconnecting when tilting so it is extremely safe to use, especially for families with elderly and young children.

SHD7085 uses oil as fuel, however, during the whole process, there is no need to replace the oil because it has the fuel rotation function. You just plug and use.

Instructions for using Sunhouse 13 bar SHD7085 oil heater Picture 2

The device operates with a capacity of 2.500W with 3 power adjustment levels:

1. Level 1 is the lowest level.
2. Level 2 is average.
3. Level 3 is the highest level.

In addition, the Eco function also helps users to use more energy efficient heaters.

In addition to using heating equipment, you can also use it to dry clothes on drizzling days, cold prices thanks to the accompanying drying price.

When using a 13 bar heater SHD7085 operates with low noise, does not burn oxygen, balances the humidity in the room to bring comfort and safety to the space used.

II. A detailed guide on how to use Sunhouse SHD7085 oil heater

1. How to turn on / off Sunhouse oil heater

Open oil heater:

1. Step 1: Turn on the power switch in the switch box above the wheel.
2. Step 2: Turn on the power button on the control panel or open the remote.

Instructions for using Sunhouse 13 bar SHD7085 oil heater Picture 3

Turn off the oil heater: You do the opposite with the way the machine is turned off and the power button is turned off then turning the machine off with the switch.

2. Timer function

1. Step 1: Press the button with the " M " icon once.
2. Step 2: Increase / decrease the timer for the heater with "+/-" and the maximum appointment time is 9 hours, a minimum of 1 hour.

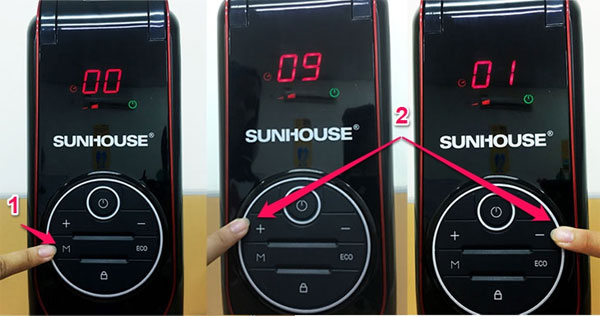

Instructions for using Sunhouse 13 bar SHD7085 oil heater Picture 4

Note: If you do not adjust the time in 5s , the display will return to the default installed screen.

Example: You want the timer for the heater to be 9 hours.

1. Step 1: Touch the button with the "M" icon once.
2. Step 2: Click the plus sign until the screen number 9 is displayed.

3. Temperature adjustment function

1. Step 1: Touch the button with the "M" icon twice.
2. Step 2: The temperature of this Sunhouse heater is adjusted within 5 - 35 degrees Celsius, you can increase / decrease with " +/-" as you like.

Instructions for using Sunhouse 13 bar SHD7085 oil heater Picture 5

Example: You set the temperature to 30 degrees C.

1. Step 1: Touch the button with the "M" icon twice.
2. Step 2: Press the plus sign until the screen shows 30. Click the "+" "-" button to increase the temperature drop you desire.

4. Power adjustment function

Below the control display screen there are 3 power levels, you can adjust with "+" "-" .

Example: You adjust the capacity at 3. Touch the plus sign to display 3 tiles, which is level 3 of the capacity.

Instructions for using Sunhouse 13 bar SHD7085 oil heater Picture 6

5. Power saving function

SHD7085 oil heater equipped with Eco mode saves energy consumption for the family. To use this mode, simply touch the button with the word "ECO" .

6. Panel lock function

1. Touch the button for 3 seconds on the lock icon on the control panel or on the remote to activate the panel lock function, restrict family members or especially children to touch the control panel to change the mode Setting.
2. Similarly, to turn off the function you just need to touch and hold for 3 seconds.

Instructions for using Sunhouse 13 bar SHD7085 oil heater Picture 7

III. General note when using oil heaters

1. When using a heater for the first time, allow the oven to operate at maximum capacity for at least 2 hours.
2. Do not place the product in uneven places, it is necessary to place the product in a flat area, without any obstacle before and after the product.
3. Oil heaters should not be close to flammable and explosive substances such as blankets, clothes, books, lighters, gas cookers . because it is very easy to cause big fire and explosion.
4. Avoid placing near water sources such as water filters, where water flows.
5. Should put a small basin in the room or turn on the ventilation fan, open the door to open the air convection. The closed door does not help the oil heater work more economically but also makes it difficult to breathe.
6. The amount of oil loaded in the heating rods has been precisely designed, if there is oil leakage it is necessary to contact the manufacturer or distributor for processing.
7. Do not let your hand or poke the heating holes or slots. When using it, put the machine at least 20cm away from the wall and surrounding objects, creating a space of 1m above the machine to circulate air.
8. The ideal temperature of the oil heater you should choose from 22 - 25 degrees, this temperature both helps ensure safety for health and can save electricity very well.

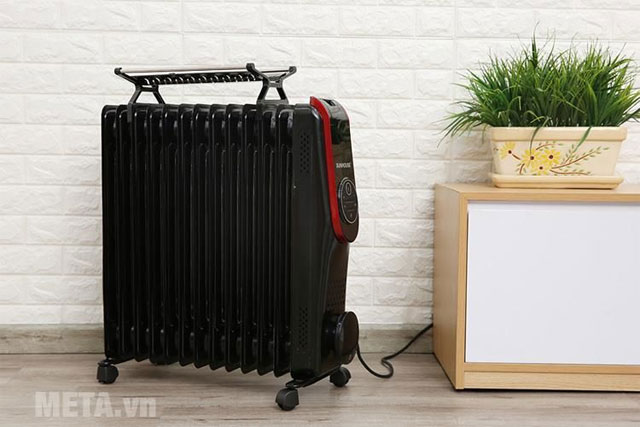

Instructions for using Sunhouse 13 bar SHD7085 oil heater Picture 8

Hopefully, through this article, you will know how to use the oil heater SHD7085. Good luck!
